Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Technology | Number of Channels | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Mounting Style | Rise / Fall Time (Typ) | Current - Output High, Low | Voltage - Isolation | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Operating Temperature | Current - DC Forward (If) (Max) | Supplier Device Package | Qualification | Voltage - Output Supply | Grade | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI82FEN-IS2RLINEAR IC |
3,592 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ACFJ-332BT-500EAUTOMOTIVE OPTOCOUPLER, T/R+LF |
4,993 |
|
- |
- | 24-SOIC (0.295", 7.50mm Width), 20 Leads | Tape & Reel (TR) | Active | Optical Coupling | 2 | 150kV/µs | 65ns, 65ns | 22ns | Surface Mount | 10ns, 10ns | 2.5A, 2.4A | 5000Vrms | 4A | - | -40°C ~ 125°C | - | 24-SO | AEC-Q100 | 10V ~ 25V | Automotive | cUL, UL |
|
ADUM3220BRZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC |
3,184 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 25kV/µs | 60ns, 60ns | - | Surface Mount | 20ns, 20ns | - | 2500Vrms | 4A | - | -40°C ~ 125°C | - | 8-SOIC | - | 7.6V ~ 18V | - | CSA, UR, VDE |
|

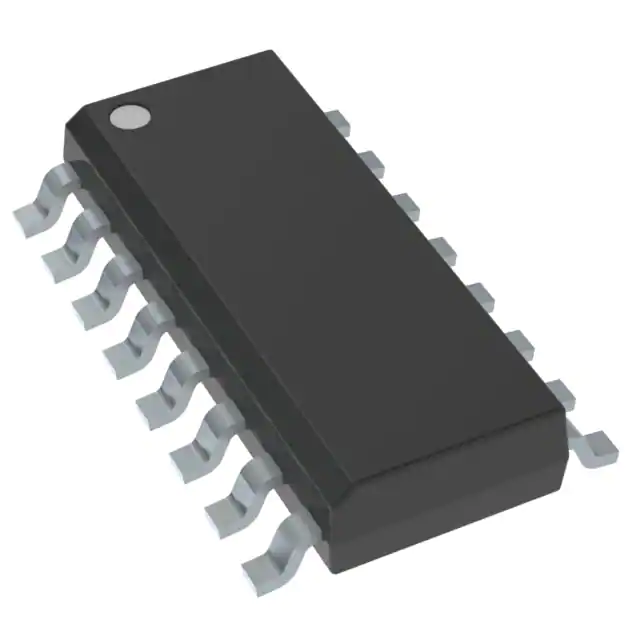

1EDF5673FXUMA1DGT ISO 1.5KV 1CH GT DVR DSO16 |
4,946 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Last Time Buy | Magnetic Coupling | 1 | 150V/ns | 44ns, 44ns | 18ns (Typ) | Surface Mount | 6.5ns, 4.5ns | 4A, 8A | 1500VDC | - | - | -40°C ~ 85°C | - | PG-DSO-16-11 | - | 3.13V ~ 3.47V | - | CQC, CSA, UL, VDE |
|
PS9505-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
4,174 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Discontinued at Digi-Key | Optical Coupling | 1 | 25kV/µs | 250ns, 250ns | 100ns | Through Hole | 50ns, 50ns | 2A, 2A | 5000Vrms | 2.5A | 1.56V | -40°C ~ 110°C | 25 mA | 8-DIP | - | 15V ~ 30V | - | CSA, SEMKO, UL |
|
|
PS9332L2-V-E3-AXOPTOISO 5KV 1CH GATE DVR 8SDIP |
4,031 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Optical Coupling | 1 | 50kV/µs | 200ns, 200ns | 75ns | Surface Mount | 17ns, 17ns | 1.5A, 1.5A | 5000Vrms | 2A | 1.56V | -40°C ~ 125°C | 25 mA | 8-SDIP Gull Wing | - | 15V ~ 30V | - | CSA, SEMKO, UL, VDE |
|
|
SI8261BCC-ASDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
2,634 |
|
Datasheet |
Si826x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 35kV/µs | 60ns, 50ns | 28ns | Surface Mount | 5.5ns, 8.5ns | 500mA, 1.2A | 3750Vrms | 600mA, 4A | 2.8V (Max) | -40°C ~ 125°C | 30 mA | 8-SOIC | AEC-Q100 | 6.5V ~ 30V | Automotive | CQC, CSA, UL, VDE |
|
ACPL-W302-500EOPTOISO 5KV 1CH GATE DRIVER 6SO |
2,079 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 10kV/µs | 700ns, 700ns | - | Surface Mount | 50ns, 50ns | 200mA, 200mA | 5000Vrms | 400mA | 1.5V | -40°C ~ 100°C | 25 mA | 6-SO Stretched | - | 10V ~ 30V | - | CSA, UR |
|
SI8234AD-C-ISRDGTL ISO 5KV 2CH GATE DVR 16SOIC |
3,496 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 20kV/µs | 60ns, 60ns | 5.6ns | Surface Mount | 12ns, 12ns (Max) | 2A, 4A | 5000Vrms | 4A | - | -40°C ~ 125°C | - | 16-SOIC | AEC-Q100 | 6.5V ~ 24V | Automotive | CQC, CSA, UR, VDE |
|
|
SI8234BD-C-ISRDGTL ISO 5KV 2CH GATE DVR 16SOIC |
3,238 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 20kV/µs | 60ns, 60ns | 5.6ns | Surface Mount | 12ns, 12ns (Max) | 2A, 4A | 5000Vrms | 4A | - | -40°C ~ 125°C | - | 16-SOIC | AEC-Q100 | 9.4V ~ 24V | Automotive | CQC, CSA, UR, VDE |
|
|
SI8235AD-C-ISRDGTL ISO 5KV 2CH GATE DVR 16SOIC |
3,706 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 20kV/µs | 60ns, 60ns | 5.6ns | Surface Mount | 12ns, 12ns (Max) | 2A, 4A | 5000Vrms | 4A | - | -40°C ~ 125°C | - | 16-SOIC | AEC-Q100 | 6.5V ~ 24V | Automotive | CQC, CSA, UR, VDE |
|
|
SI8235BD-C-ISRDGTL ISO 5KV 2CH GATE DVR 16SOIC |
3,813 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 20kV/µs | 60ns, 60ns | 5.6ns | Surface Mount | 12ns, 12ns (Max) | 2A, 4A | 5000Vrms | 4A | - | -40°C ~ 125°C | - | 16-SOIC | AEC-Q100 | 9.4V ~ 24V | Automotive | CQC, CSA, UR, VDE |
|
|
SI8238BD-C-ISRDGTL ISO 5KV 2CH GATE DVR 16SOIC |
2,947 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 20kV/µs | 60ns, 60ns | 5.6ns | Surface Mount | 12ns, 12ns (Max) | 2A, 4A | 5000Vrms | 4A | - | -40°C ~ 125°C | - | 16-SOIC | AEC-Q100 | 9.4V ~ 24V | Automotive | CQC, CSA, UR, VDE |
|
PS9505L1-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
4,298 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Bulk | Discontinued at Digi-Key | Optical Coupling | 1 | 25kV/µs | 250ns, 250ns | 100ns | Through Hole | 50ns, 50ns | 2A, 2A | 5000Vrms | 2.5A | 1.56V | -40°C ~ 110°C | 25 mA | 8-DIP | - | 15V ~ 30V | - | CSA, SEMKO, UL |
|
SI8221DC-D-ISDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
4,649 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 30kV/µs (Typ) | 60ns, 40ns | - | Surface Mount | 30ns, 30ns (Max) | 300mA, 500mA | 3750Vrms | 500mA | 2.5V (Max) | -40°C ~ 125°C | 30 mA | 8-SOIC | AEC-Q100 | 14.8V ~ 24V | Automotive | CQC, CSA, UR, VDE |
|
HCPL-J312#500OPTOISO 3.75KV 1CH GT DVR 8DIP |
2,348 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 25kV/µs | 500ns, 500ns | 300ns | Surface Mount | 100ns, 100ns | 2A, 2A | 3750Vrms | 2.5A | 1.6V | -40°C ~ 100°C | 25 mA | 8-DIP Gull Wing | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
SI8230AD-D-IS3RDGTL ISO 5KV 2CH GATE DVR 14SOIC |
4,796 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 45kV/µs | 60ns, 60ns | 5.6ns | Surface Mount | 12ns, 12ns | 2A, 4A | 5000Vrms | 4A | - | -40°C ~ 125°C | - | 14-SOIC | AEC-Q100 | 6.5V ~ 24V | Automotive | CQC, CSA, UR, VDE |
|
|
SI8230BD-D-IS3RDGTL ISO 5KV 2CH GATE DVR 14SOIC |
2,931 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 45kV/µs | 60ns, 60ns | 5.6ns | Surface Mount | 12ns, 12ns | 2A, 4A | 5000Vrms | 4A | - | -40°C ~ 125°C | - | 14-SOIC | AEC-Q100 | 6.5V ~ 24V | Automotive | CQC, CSA, UR, VDE |
|
HCPL-J312OPTOISO 3.75KV 1CH GATE DVR 8DIP |
4,270 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 25kV/µs | 500ns, 500ns | 300ns | Through Hole | 100ns, 100ns | 2A, 2A | 3750Vrms | 2.5A | 1.6V | -40°C ~ 100°C | 25 mA | 8-DIP | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
SI8273AB-IMRDGTL ISO 2.5KV 2CH GT DVR 14LGA |
4,558 |
|
Datasheet |
Si827x | 14-VFLGA | Tape & Reel (TR) | Not For New Designs | RF Coupling | 2 | 150kV/µs | 60ns, 60ns | 8ns | Surface Mount | 10.5ns, 13.3ns | 1.8A, 4A | 2500Vrms | 4A | - | -40°C ~ 125°C | - | 14-LGA (5x5) | - | 4.6V ~ 30V | - | CQC, CSA, UR, VDE |
