Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature
DH4C-C6AA SWITCH SNAP ACT SPDT 0.05A 30V ZF Electronics	-	RFQ	Datasheet	DH	Bulk	Obsolete	SPDT	On-Mom	50mA (DC)	-	30 V	Round (Pin Plunger)	Through Hole, Right Angle	PC Pin	-	-	90gf	-	0.220" (5.6mm)	0.008" (0.2mm)	0.003" (0.075mm)	0.004" (0.1mm)	-25°C ~ 70°C
DH3C-C6LA SWITCH SNAP ACTION SPDT 0.3A 30V ZF Electronics	-	RFQ	Datasheet	DH	Bulk	Obsolete	SPDT	On-Mom	300mA (DC)	-	30 V	Lever, Simulated Roller	Through Hole, Right Angle	PC Pin	-	-	50gf	-	0.264" (6.7mm)	0.051" (1.3mm)	0.025" (0.6mm)	0.011" (0.3mm)	-25°C ~ 70°C
DH4C-C6LA SWITCH SNAP ACT SPDT 0.05A 30V ZF Electronics	-	RFQ	Datasheet	DH	Bulk	Obsolete	SPDT	On-Mom	50mA (DC)	-	30 V	Lever, Simulated Roller	Through Hole, Right Angle	PC Pin	-	-	50gf	-	0.264" (6.7mm)	0.051" (1.3mm)	0.025" (0.6mm)	0.011" (0.3mm)	-25°C ~ 70°C
D2RW01L2 SWITCH SNAP SPST-NO 0.25A 100V Omron Electronics Inc-EMC Div	-	RFQ	Datasheet	D2RW	Bulk	Obsolete	SPST-NO	Off-Mom	250mA (DC)	-	100 V	Lever, Roller	Chassis Mount	Wire Leads	IP40	-	76gf	5.099gf	0.815" (20.7mm)	0.157" (4.0mm)	0.062" (1.6mm)	0.040" (1.0mm)	-10°C ~ 60°C
VX10 SWITCH SNAP ACT DGTL OC 10MA 24V Honeywell Sensing and Productivity Solutions	-	RFQ	Datasheet	VX	Bulk	Obsolete	Digital, Open Collector	Off-Mom	10mA (DC)	-	24 V	Round (Pin Plunger)	Chassis Mount	Connector	-	-	10gf	-	0.560" (14.2mm)	-	0.002" (0.05mm)	0.040" (1.0mm)	-40°C ~ 70°C
VX80 SWITCH SNAP ACT DGTL OC 10MA 24V Honeywell Sensing and Productivity Solutions	-	RFQ	Datasheet	VX	Bulk	Obsolete	Digital, Open Collector	Off-Mom	10mA (DC)	-	24 V	Round (Pin Plunger)	Chassis Mount	Connector	-	-	85gf	-	0.560" (14.2mm)	-	0.002" (0.05mm)	0.040" (1.0mm)	-40°C ~ 70°C
VX80-C1 SWITCH SNAP ACT DGTL OC 10MA 24V Honeywell Sensing and Productivity Solutions	-	RFQ	Datasheet	VX	Bulk	Obsolete	Digital, Open Collector	Off-Mom	10mA (DC)	-	24 V	Lever, Roller	Chassis Mount	Connector	-	-	85gf	-	0.787" (20.0mm)	-	0.002" (0.05mm)	0.040" (1.0mm)	-40°C ~ 70°C
V-15G3-1C24-K SWITCH SNAP ACTION SPDT 15A 250V Omron Electronics Inc-EMC Div	-	RFQ	Datasheet	V	Tray	Obsolete	SPDT	On-Mom	15A (AC), 100mA (DC)	250 V	125 V	Lever, Straight	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	35gf	-	0.600" (15.2mm)	0.354" (9.0mm)	0.110" (2.8mm)	0.125" (3.2mm)	-25°C ~ 80°C

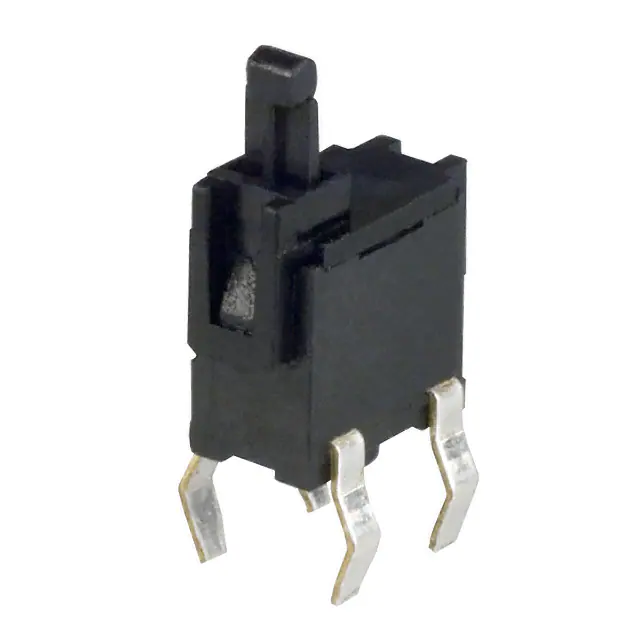

TD1104 SWITCH DETECTOR SPST-NO 0.1A 30V E-Switch	-	RFQ	Datasheet	TD	Bulk	Obsolete	SPST-NO	Off-Mom	100mA (DC)	-	30 V	Angled Toggle (Detector)	Through Hole	PC Pin	-	-	36gf	-	0.321" (8.2mm)	0.015" (0.4mm)	-	-	-20°C ~ 85°C

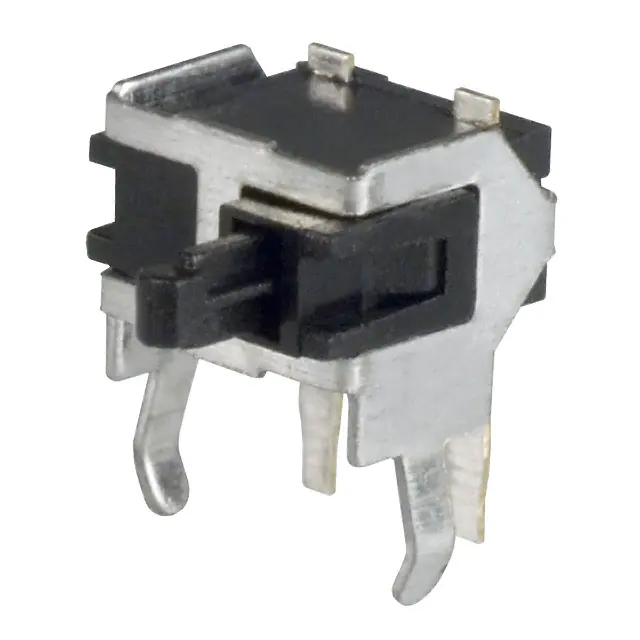

TD1105A SWITCH DETECTOR SPST-NO 0.1A 30V E-Switch	-	RFQ	Datasheet	TD	Bulk	Obsolete	SPST-NO	Off-Mom	100mA (DC)	-	30 V	Overtravel Plunger	Through Hole, Right Angle	PC Pin	-	-	36gf	-	0.197" (5.0mm)	0.015" (0.4mm)	-	-	-20°C ~ 85°C

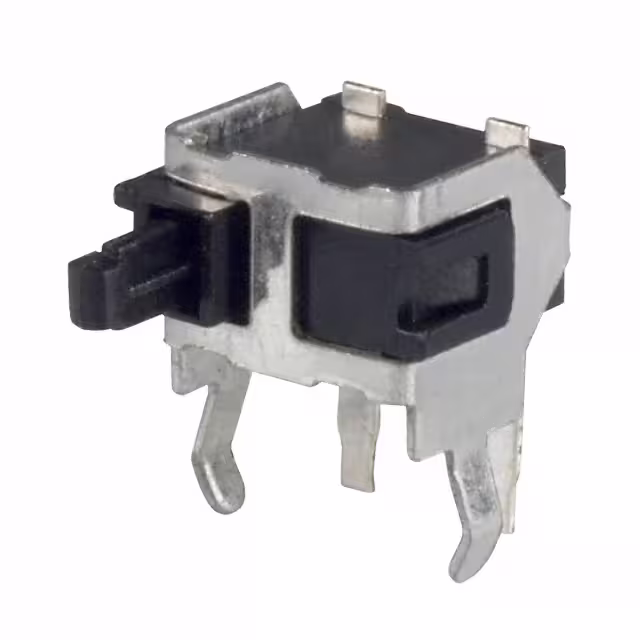

TD1105B SWITCH DETECT SPST-NO 0.1A 30V E-Switch	-	RFQ	Datasheet	TD	Bulk	Obsolete	SPST-NO	Off-Mom	100mA (DC)	-	30 V	Overtravel Plunger	Through Hole, Right Angle	PC Pin	-	-	36gf	-	0.197" (5.0mm)	0.015" (0.4mm)	-	-	-20°C ~ 85°C
ESE-2121AT SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components	-	RFQ	Datasheet	ESE21	Tape & Reel (TR)	Obsolete	SPST-NO	Off-Mom	10mA (DC)	-	5 V	Overtravel Plunger	Surface Mount	SMD (SMT) Tab	-	-	30gf	-	0.138" (3.5mm)	-	-	-	-10°C ~ 60°C
DB2CA1LB SWITCH SNAP ACTION SPDT 10A 125V ZF Electronics	-	RFQ	-	DB	Bulk	Active	SPDT	On-Mom	10A (AC)	125 V	-	Lever, Straight	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	100gf	-	0.420" (10.7mm)	0.178" (4.5mm)	0.027" (0.7mm)	0.060" (1.5mm)	-40°C ~ 120°C

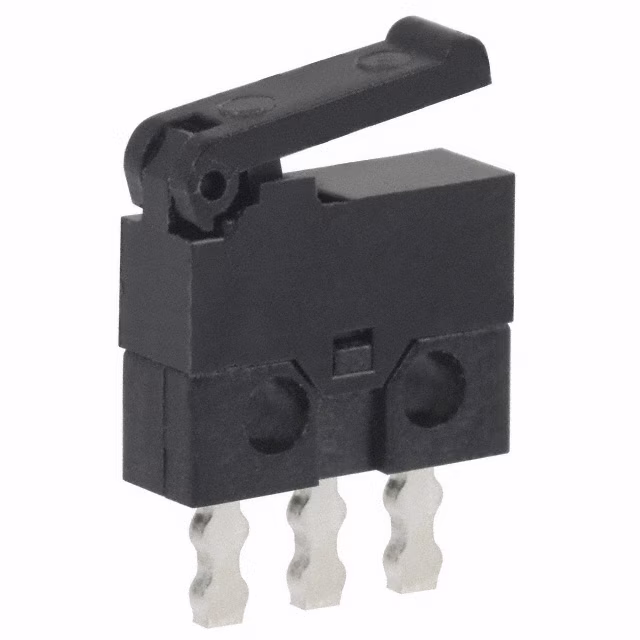

MDS001 SWITCH SNAP ACT SPDT 300MA 30V C&K	-	RFQ	Datasheet	MDS	Bulk	Obsolete	SPDT	On-Mom	300mA (DC)	-	30 V	Lever, Straight	Through Hole	PC Pin	-	-	50gf	3.000gf	-	-	-	-	-10°C ~ 60°C

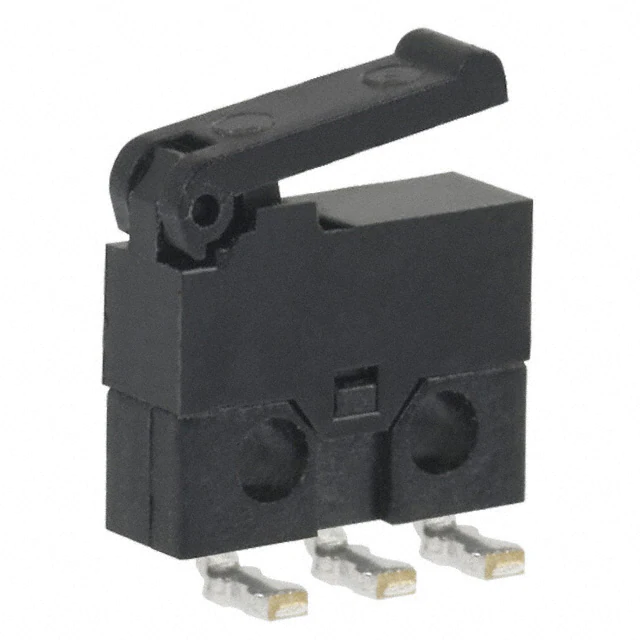

MDS002 SWITCH SNAP ACT SPDT 300MA 30V C&K	-	RFQ	Datasheet	MDS	Bulk	Obsolete	SPDT	On-Mom	300mA (DC)	-	30 V	Lever, Straight	Through Hole, Right Angle	PC Pin	-	-	50gf	3.000gf	-	-	-	-	-10°C ~ 60°C

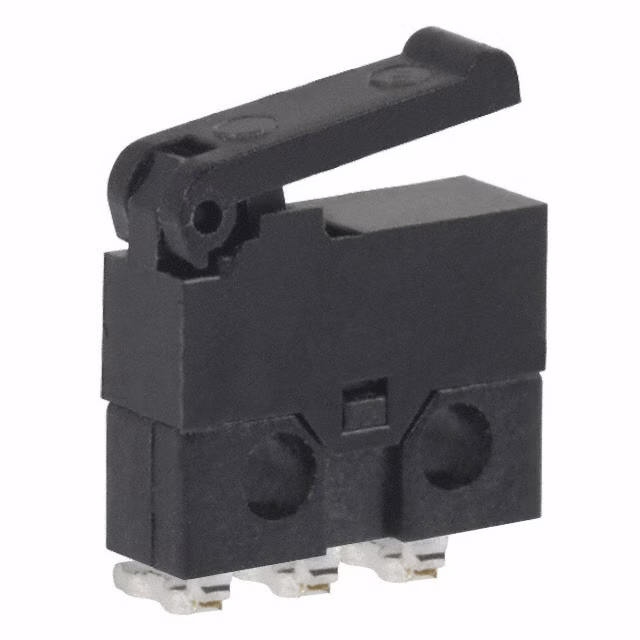

MDS003 SWITCH SNAP ACT SPDT 300MA 30V C&K	-	RFQ	Datasheet	MDS	Bulk	Obsolete	SPDT	On-Mom	300mA (DC)	-	30 V	Lever, Straight	Through Hole, Right Angle	PC Pin	-	-	50gf	3.000gf	-	-	-	-	-10°C ~ 60°C
DB3CB1AA SWITCH SNAP ACT SPDT 0.1A 125V ZF Electronics	-	RFQ	-	DB	Bulk	Active	SPDT	On-Mom	100mA (AC)	125 V	-	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP50 - Dust Protected	-	150gf	-	0.330" (8.4mm)	0.040" (1.0mm)	0.004" (0.1mm)	0.025" (0.6mm)	-40°C ~ 120°C
DB3CC1AA SWITCH SNAP ACT SPDT 0.1A 125V ZF Electronics	-	RFQ	-	DB	Bulk	Active	SPDT	On-Mom	100mA (AC)	125 V	-	Round (Pin Plunger)	Through Hole	PC Pin	IP50 - Dust Protected	-	150gf	-	0.330" (8.4mm)	0.040" (1.0mm)	0.004" (0.1mm)	0.025" (0.6mm)	-40°C ~ 120°C
311SM23-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	-	RFQ	Datasheet	SM	Tray	Active	SPDT	On-Mom	1A (AC/DC)	125 V	30 V	Lever, Straight	Chassis Mount	Solder Turret	-	-	40gf	7.138gf	0.340" (8.6mm)	0.085" (2.16mm)	0.020" (0.5mm)	0.020" (0.5mm)	-55°C ~ 125°C
EVN2000C SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	-	RFQ	Datasheet	EVN2000	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	6A (AC)	120 V	-	Roller Plunger	Chassis Mount	Cable Leads	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	1428gf	-	1.100" (28.0mm)	-	0.040" (1.0mm)	0.158" (4.0mm)	-25°C ~ 85°C

Total 23871 Record«Prev 1... 999 1000 1001 100210031004 1005 1006...1194 Next»
