Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-261N-520OPTOCOUPLER 10MBD UL+T/R |
4,765 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2630-520OPTOCOUPLER 10MBD UL+T/R |
4,661 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
TLP2098(TPL,F)X36 PB-F OPTOCOUPLER; MFSOP6; TA |
4,011 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 15kV/µs | AC, DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 30ns, 30ns | 1.57V | 20mA | 3V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 5 Lead |
|
|
TLP2601(LF1,F)X36 PB-F PHOTOCOUPLER SMD BULK J |
4,072 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 2500Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 75ns, 75ns | 30ns, 30ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Surface Mount | 8-SMD |
|

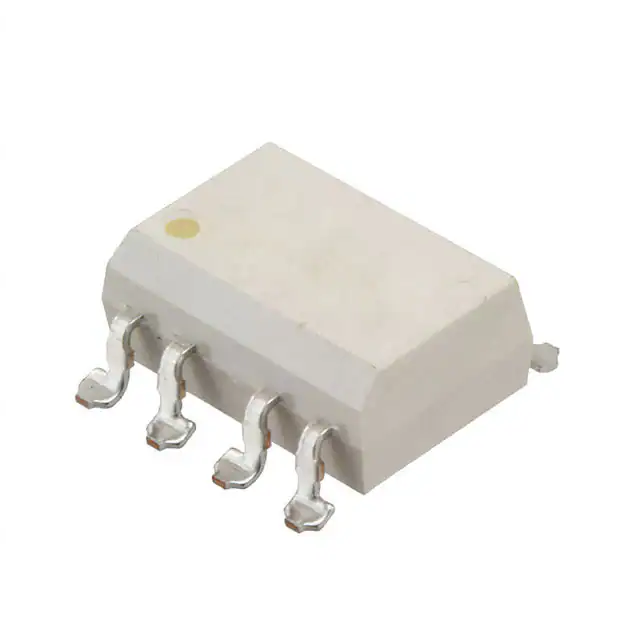

TLP2631(LF5,F)X36 PB PHOTOCOUPLER SMD BULK JAP |
3,328 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 2 | 2/0 | 2500Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 16 mA | 10MBd | 75ns, 75ns | 30ns, 30ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
.jpg)
|
TLP701H(TP,F)X36 PB-F PHOTOCOUPLER SMD BULK J |
2,423 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 600 mA | - | 700ns, 700ns | 50ns, 50ns | 1.57V | 25mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SDIP |
|
TLP754(TP1,F)HIGH SPEED LOGIC OUTPUT OPTOCOUP |
3,133 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 15 mA | - | 400ns, 550ns | - | 1.55V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP |
|
HCPL-0708-560MEOPTOISOLATOR 15MBD 8SOIC |
3,393 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | - | 1/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15MBd | 60ns, 60ns | 20ns, 25ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Tall |
|
QCPL-070H-500EOPTOISOLATOR 15MBD 8SOIC |
2,568 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QCPL-073H-500EOPTOISOLATOR 15MBD 8SOIC |
3,663 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PS9117A-V-F3-NTY-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
2,610 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
TLP2761F(D4,F)OPTOCOUPLER TRANS |
3,060 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width) | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2761F(D4-TP,F)OPTOCOUPLER TRANS |
2,471 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2761F(F)OPTOCOUPLER TRANS |
4,178 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width) | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2761F(TP,F)OPTOCOUPLER TRANS |
2,473 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2761(D4-LF4,EOPTOCOUPLER TRANS |
3,834 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | - | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2761(D4-TP4,EOPTOCOUPLER TRANS |
3,747 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | - | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2761(LF4,EOPTOCOUPLER TRANS |
2,236 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Bulk | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | - | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2761(TP4,EOPTOCOUPLER TRANS |
3,939 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | - | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
HCPL2630SVM8PW 10MB 2-CH SMD VDE |
4,984 |
|
- |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
