Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

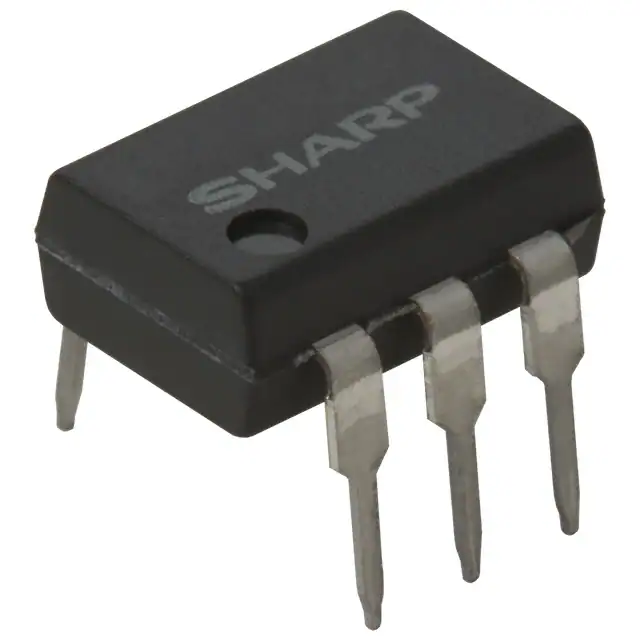

PC900V0NSZXOPTOISO 5KV OPEN COLLECTOR 6DIP Sharp Microelectronics |
4,021 |
|
Datasheet |
OPIC™ | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | - | 6µs, 3µs | 100ns, 50ns | 1.1V | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Through Hole | 6-DIP |
|

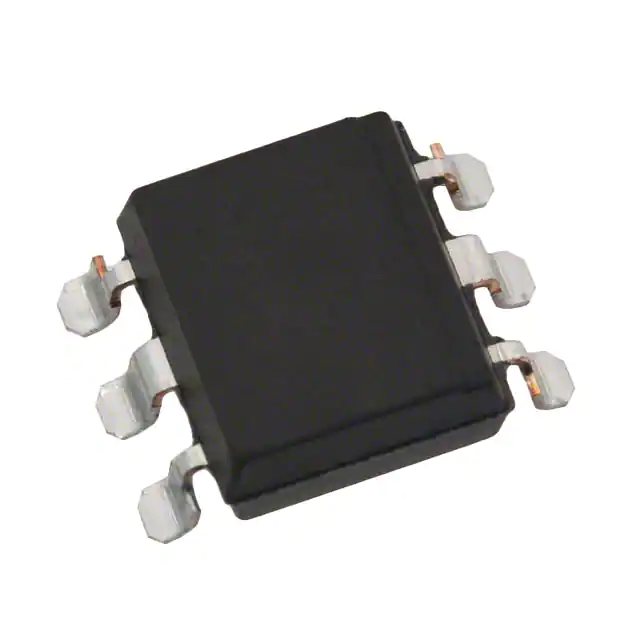

PC900V0NIZXOPTOISO 5KV OPEN COLLECTOR 6SMD Sharp Microelectronics |
2,214 |
|
Datasheet |
OPIC™ | 6-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | - | 6µs, 3µs | 100ns, 50ns | 1.1V | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Surface Mount | 6-SMD |
|
|
PC900V0NIZXFOPTOISOLATOR 5KV OPN COLL 6SMD Sharp Microelectronics |
2,207 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | - | 6µs, 3µs | 100ns, 50ns | 1.1V | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Surface Mount | 6-SMD |
|
|
PC901V0NSZXOPTOISO 5KV OPEN COLLECTOR 6DIP Sharp Microelectronics |
4,922 |
|
Datasheet |
OPIC™ | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | 2kV/µs (Typ) | DC | Open Collector | 50 mA | - | 3µs, 6µs | 100ns, 50ns | 1.1V | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Through Hole | 6-DIP |
|
PC400TJ0000FOPTOISO 3.75KV OPEN COLL 5MFP Sharp Microelectronics |
4,767 |
|
Datasheet |
OPIC™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | - | DC | Open Collector | 50 mA | - | 6µs, 3µs | 100ns, 50ns | 1.1V | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Surface Mount | 5-MFP |
|
|
PC401OPTOISO 3.75KV OPEN COLL 5MFP Sharp Microelectronics |
2,766 |
|
Datasheet |
OPIC™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | - | DC | Open Collector | 50 mA | - | 3µs, 6µs | 100ns, 50ns | 1.1V | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Surface Mount | 5-MFP |
|
PC910L0NSZOPTOISO 5KV OPEN COLLECTOR 8DIP Sharp Microelectronics |
4,956 |
|
Datasheet |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 10ns, 20ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
PC410L0NIT0FOPTOISO 3.75KV OPEN COLL 5MFP Sharp Microelectronics |
2,090 |
|
- |
OPIC™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-MFP |
|
|
PC410L0YIP0FOPTOISO 3.75KV OPEN COLL 5SOP Sharp Microelectronics |
4,419 |
|
Datasheet |
OPIC™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SOP |
|
|
PC910L0YSZOPTOISO 5KV OPEN COLLECTOR 8DIP Sharp Microelectronics |
2,669 |
|
Datasheet |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 10ns, 20ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
