Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS9122-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
4,152 |
|
- |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Bulk | Not For New Designs | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 20 mA | 1Mbps | 700ns, 500ns | 60ns, 70ns | 1.6V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
HCPL-2201#300OPTOISO 3.75KV PUSH PULL 8DIP GW |
4,619 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
ACSL-6210-06REOPTOISO 2.5KV 2CH OPEN COLL 8SO |
2,639 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 1/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO |
|
|
HCPL-0211#500OPTOISO 3.75KV PUSH PULL 8SO |
1,500 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
HCPL2631SDOPTOISO 2.5KV 2CH OPEN COLL 8DIP |
3,339 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
SFH6750-X007TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
1,364 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 5300Vrms | 100V/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
VO2630-X009TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
138 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 5300Vrms | 1kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
HCPL-7720-060EOPTOISO 3.75KV PUSH PULL 8DIP |
3,778 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
ACFL-6212T-560EOPTOISO 5KV 2CH PSH PULL SO12 |
3,875 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 12-SO |
|
|
PS9113-V-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
3,037 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Bulk | Not For New Designs | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
ACPL-W70L-060EOPTOISO 5KV PUSH PULL 6SSO |
4,564 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SSO |
|
|
PS9817A-1-F3-AXOPTOISO 2.5KV OPEN COLL 8SSOP |
2,664 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
|
HCPL-J456-500EOPTOISO 3.75KV OPEN COLL 8DIP GW |
3,000 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 480ns | - | 1.6V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
.jpg)
|
PS9324L2-AXOPTOISO 5KV OPEN COLLECTOR 6SMD |
2,705 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Strip | Not For New Designs | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing |
|
SFH6755TOPTOISO 4KV 2CH OPEN DRAIN 8SOIC |
718 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 4000Vrms | 100V/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
PS9317L-AXOPTOISO 5KV OPEN COLL 6DIP GW |
3,835 |
|
Datasheet |
NEPOC | 6-SOIC (0.268", 6.80mm Width) | Strip | Not For New Designs | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 6-SDIP Gull Wing |
|
FOD0738LOGIC IC OUTPUT OPTOCOUPLER |
2,352 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Box | Obsolete | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15MBd | 60ns, 60ns | 12ns, 8ns | 1.45V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
FOD0738R1LOGIC IC OUTPUT OPTOCOUPLER |
1,887 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15MBd | 60ns, 60ns | 12ns, 8ns | 1.45V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|

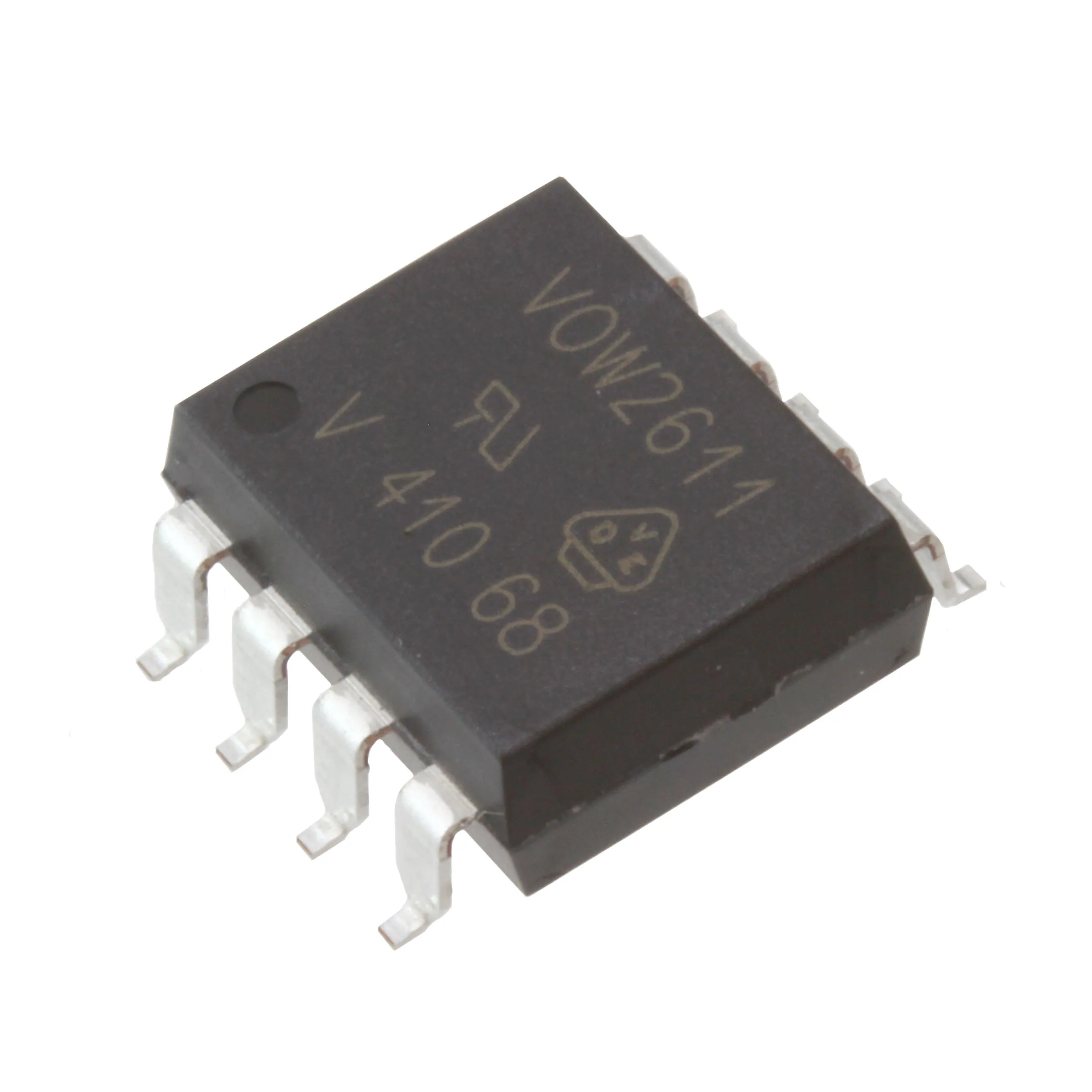

VOW2611-X017TOPTOISO 5.3KV OPN COLLECTOR 8SMD |
498 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5300Vrms | 25kV/µs | DC | Open Collector | 50 mA | 10MBd | 100ns, 100ns | 14ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
ACPL-W456-500EOPTOISO 5KV OPEN COLLECTOR 6SO |
3,000 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
