Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-665KLHERMETIC OPTOCOUPLER |
4,034 |
|
- |
- | 16-FlatPack | Tray | Active | 4 | 2/2 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 16-FlatPack |
|
|
5962-0824204KZCHERMETIC OPTOCOUPLER |
2,874 |
|
- |
- | 16-FlatPack | Bulk | Active | 4 | 2/2 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 16-FlatPack |
|
|
HCPL-665KOPTOISO 1.5KV OPEN COLL 16FLATPK |
3,271 |
|
Datasheet |
- | 16-FlatPack | Bulk | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-FlatPack |
|
|
5962-9800104KFAOPTOISO 1.5KV OPEN COLL 16FLATPK |
2,731 |
|
Datasheet |
- | 16-FlatPack | Tube | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-FlatPack |
|
|
5962-9800104KFCOPTOISO 1.5KV OPEN COLL 16FLATPK |
4,845 |
|
Datasheet |
- | 16-FlatPack | Tube | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-FlatPack |
|
|
HCPL-625KOPTOISO 1.5KV PUSH PULL 16FLATPK |
2,029 |
|
Datasheet |
- | 16-FlatPack | Bulk | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Surface Mount | 16-FlatPack |
|
|
5962-8876906KFCOPTOISO 1.5KV PUSH PULL 16FLATPK |
2,615 |
|
Datasheet |
- | 16-FlatPack | Tube | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Surface Mount | 16-FlatPack |
|
HCPL2630OPTOISO 2.5KV 2CH OPEN COLL 8DIP |
4,986 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
74OL6000OPTOISO 5.3KV PUSH PULL 6DIP |
3,082 |
|
Datasheet |
OPTOLOGIC™ | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 5kV/µs | Logic | Push-Pull, Totem Pole | 40 mA | 15MBd | 100ns, 100ns | 45ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Through Hole | 6-DIP |
|
|
74OL6010OPTOISO 5.3KV OPN COLLECTOR 6DIP |
4,456 |
|
Datasheet |
OPTOLOGIC™ | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 5kV/µs | Logic | Open Collector, Schottky Clamped | 40 mA | 15MBd | 180ns, 120ns | 50ns, 5ns | - | - | 4.5V ~ 15V | - | - | 0°C ~ 70°C | Through Hole | 6-DIP |
|
|
74OL6011OPTOISO 5.3KV OPN COLLECTOR 6DIP |
2,032 |
|
Datasheet |
OPTOLOGIC™ | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 5kV/µs | Logic | Open Collector, Schottky Clamped | 40 mA | 15MBd | 180ns, 120ns | 50ns, 5ns | - | - | 4.5V ~ 15V | - | - | 0°C ~ 70°C | Through Hole | 6-DIP |
|
74OL6000SOPTOISO 5.3KV PUSH PULL 6SOIC |
3,796 |
|
Datasheet |
OPTOLOGIC™ | 6-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 5kV/µs | Logic | Push-Pull, Totem Pole | 40 mA | 15MBd | 100ns, 100ns | 45ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Surface Mount | 6-SMD |
|
PS9601OPTOISO 5KV OPEN DRAIN 8DIP |
4,880 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | - | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
PS9601LOPTOISO 5KV OPEN DRAIN 8SMD GW |
2,010 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | - | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
PS9701OPTOISO 2.5KV OPN COLLECTOR 5SOP |
2,414 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Obsolete | 1 | 1/0 | 2500Vrms | - | DC | Open Collector | 50 mA | - | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
|
74OL6000300OPTOISO 5.3KV PUSH PULL 6DIP |
4,042 |
|
Datasheet |
OPTOLOGIC™ | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 5kV/µs | Logic | Push-Pull, Totem Pole | 40 mA | 15MBd | 100ns, 100ns | 45ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Through Hole | 6-DIP |
|
OCP-PCP116OPTOISO 5KV OPEN COLLECTOR 6DIP |
4,967 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | - | 9µs, 15µs | 100ns, 50ns | 1.2V | 50mA | 4.5V ~ 17V | - | - | -25°C ~ 85°C | Through Hole | 6-DIP |
|

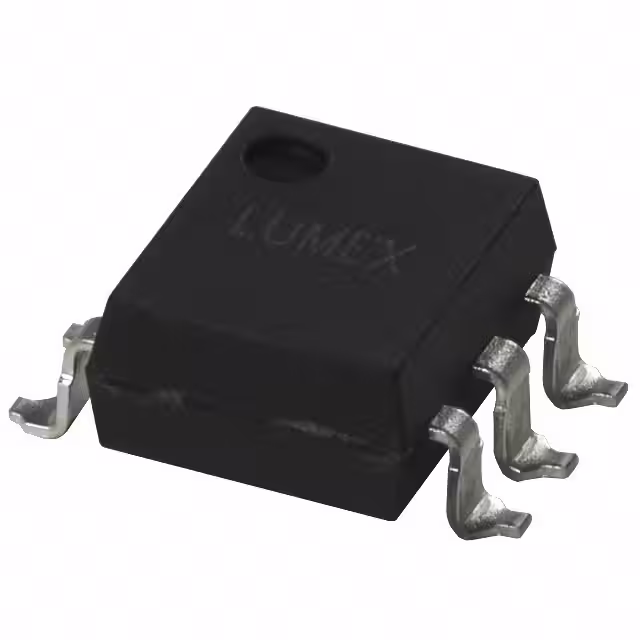

OCP-PCP116-TROPTOISO 5KV OPEN COLLECTOR 6SMD |
4,706 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | - | 9µs, 15µs | 100ns, 50ns | 1.2V | 50mA | 4.5V ~ 17V | - | - | -25°C ~ 85°C | Surface Mount | 6-SMD |
|
6N137SOPTOISO 2.5KV 1CH OPEN COLL 8SMD |
3,628 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
6N137WOPTOISO 2.5KV 1CH OPEN COLL 8DIP |
2,024 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-MDIP |
