Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3042SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
1,053 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
VOT8024AB-VTPHOTOTRIAC 800V ZC SMD4 VDE |
1,020 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
|
MOC3033SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
1,000 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
MOC3072M6-PIN DIP RAND. PHASE TRIAC OUTP |
37 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Bulk | Active | Triac | No | 1 | 4170Vrms | 800 V | 1kV/µs | 10mA | - | 540µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
TLP3062A(FOPTO TRIAC COUPLER; ZERO-VOLTAGE |
50 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 2kV/µs (Typ) | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, cUR, UR |
,-Gull-Wing.jpg)
|

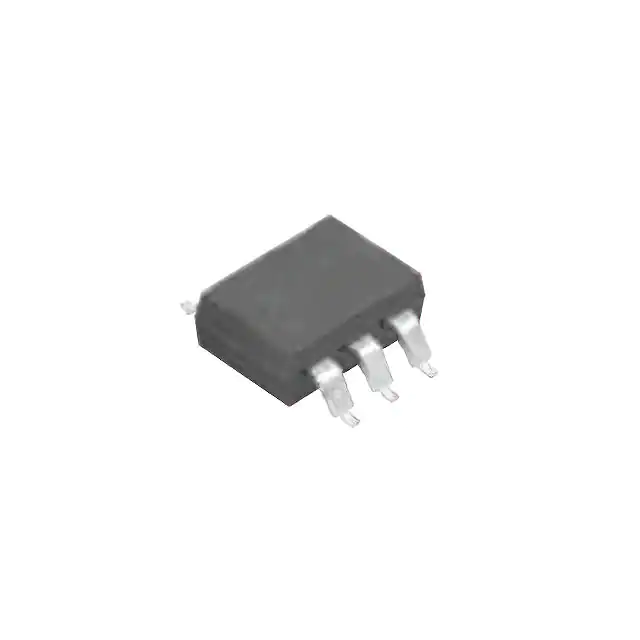

APT1232WAPHOTOTRIAC COUPLER 600V 6DIP |
100 |
|
Datasheet |
APT | 6-SMD (5 Leads), Gull Wing | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
|
FOD4108VOPTOISOLATOR 5KV TRIAC 6DIP |
100 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
MOC3021XOPTOISOLATOR 5.3KV TRIAC 6DIP |
837 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 400 V | 10V/µs (Typ) | 15mA | - | 100µA | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | - | UR, VDE |
|
|
MOC3022XOPTOISOLATOR 5.3KV TRIAC 6DIP |
347 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 400 V | 10V/µs (Typ) | 10mA | - | 100µA | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | - | UR, VDE |
|
|
MOC3020XOPTOISOLATOR 5.3KV TRIAC 6DIP |
60 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 400 V | 10V/µs (Typ) | 30mA | - | 100µA | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | - | UR, VDE |
|
|
MOC3010XOPTOISOLATOR 5.3KV TRIAC 6DIP |
41 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 250 V | 10V/µs (Typ) | 15mA | - | 100µA | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | - | UR, VDE |
|
|
MOC3083XOPTOISOLATOR 5.3KV TRIAC 6DIP |
46 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | VDE |
|
MOC3043TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
89 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
VO3062-X007TOPTOISOLATOR 5.3KV TRIAC 6SMD |
1,009 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 1.5kV/µs | 10mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUR, UR |
|
VO3062-X017TOPTOISOLATOR 5.3KV TRIAC 6SMD |
1,000 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 1.5kV/µs | 10mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUR, UR, VDE |
|
|
APT1212WAYOPTOISOLATOR 5KV TRIAC 6DIP |
1,000 |
|
Datasheet |
APT | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
|
|
14230524010OPTOCOUPLER TRIAC NZC / WE30X-4L |
100 |
|
Datasheet |
WL-OCTR | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | - | 257µA (Typ) | - | 1.24V | 60 mA | -40°C ~ 100°C | Through Hole | 4-DIP | CQC, cULus, cURus, UL, VDE |
|
|
14230424010OPTOCOUPLER TRIAC ZC / WE30X-4L; |
100 |
|
Datasheet |
WL-OCTR | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 400 V | 1kV/µs | 10mA | - | 237µA (Typ) | - | 1.24V | 60 mA | -40°C ~ 100°C | Through Hole | 4-DIP | CQC, cULus, cURus, UL, VDE |
|
|
14230514010OPTOCOUPLER TRIAC NZC / WE30X-4L |
100 |
|
Datasheet |
WL-OCTR | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 15mA | - | 257µA (Typ) | - | 1.24V | 60 mA | -40°C ~ 100°C | Through Hole | 4-DIP | CQC, cULus, cURus, UL, VDE |
|
|
14230614110OPTOCOUPLER TRIAC ZC / WE30X-4L; |
100 |
|
Datasheet |
WL-OCTR | 4-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 15mA | - | 237µA (Typ) | - | 1.24V | 60 mA | -40°C ~ 100°C | Through Hole | 4-DIP-M | CQC, cULus, cURus, UL, VDE |
