DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Number of Outputs | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Grade | Voltage - Output 3 | Voltage - Output 4 | Voltage - Input (Min) | Current - Output (Max) | Power (Watts) | Efficiency | Voltage - Isolation | Qualification | Operating Temperature | Part Applications | Features | Mounting Style | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDHM-A-12S400P-VDC DC CONVERTER 400V 250MW |
5 |
|
Datasheet |
KDHM-A | 6-DIP Module | Retail Package | Active | High Voltage - Non-Isolated Module | 1 | 16V | 0 ~ 400V | - | - | - | - | 11V | 500µA | 200 mW | - | - | - | -20°C ~ 65°C | ITE (Commercial) | Adjustable Output | Through Hole | - | - | - | - |
|
|
KDHM-A-5S400P-VDC DC CONVERTER 400V 250MW |
4 |
|
Datasheet |
KDHM-A | 6-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 7V | 0 ~ 400V | - | - | - | - | 4.5V | 500µA | 200 mW | - | - | - | -20°C ~ 65°C | ITE (Commercial) | Adjustable Output | Through Hole | - | - | - | - |
|
|
KDHM-A-5S500N-VDC DC CONVERTER -500V 250MW |
5 |
|
Datasheet |
KDHM-A | 6-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 7V | 0 ~ -500V | - | - | - | - | 4.5V | 500µA | 250 mW | - | - | - | -20°C ~ 65°C | ITE (Commercial) | Adjustable Output | Through Hole | - | - | - | - |
|
|
KDHM-A-5S500P-VDC DC CONVERTER 500V 250MW |
5 |
|
Datasheet |
KDHM-A | 6-DIP Module | Retail Package | Active | High Voltage - Non-Isolated Module | 1 | 7V | 0 ~ 500V | - | - | - | - | 4.5V | 500µA | 250 mW | - | - | - | -20°C ~ 65°C | ITE (Commercial) | Adjustable Output | Through Hole | - | - | - | - |
|
|
KDHM-A-12S500P-VDC DC CONVERTER 500V 250MW |
5 |
|
Datasheet |
KDHM-A | 6-DIP Module | Retail Package | Active | High Voltage - Non-Isolated Module | 1 | 16V | 0 ~ 500V | - | - | - | - | 11V | 500µA | 250 mW | - | - | - | -20°C ~ 65°C | ITE (Commercial) | Adjustable Output | Through Hole | - | - | - | - |
|
|
KDHM-A-12S500N-VDC DC CONVERTER -500V 250MW |
5 |
|
Datasheet |
KDHM-A | 6-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 16V | 0 ~ -500V | - | - | - | - | 11V | 500µA | 250 mW | - | - | - | -20°C ~ 65°C | ITE (Commercial) | Adjustable Output | Through Hole | - | - | - | - |
|
|
KDHM-A-24S500P-VDC DC CONVERTER 500V 250MW |
5 |
|
Datasheet |
KDHM-A | 6-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 28V | 0 ~ 500V | - | - | - | - | 21V | 500µA | 250 mW | - | - | - | -20°C ~ 65°C | ITE (Commercial) | Adjustable Output | Through Hole | - | - | - | - |
|
|
AM150HB-11024SA30JZ-K150W DC/DC Converter |
4 |
|
Datasheet |
AM150HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 160V | 24V | - | - | - | - | 43V | 6.25A | 150 W | 91% | 3 kV | - | -40°C ~ 105°C | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | Through Hole | - | - | CE | - |
|
|
AM150HB-11005SA30JZ-K120W DC/DC Converter |
3 |
|
Datasheet |
AM150HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 160V | 5V | - | - | - | - | 43V | 24A | 120 W | 88% | 3 kV | - | -40°C ~ 105°C | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | Through Hole | - | - | CE | - |
|
|
AM150HB-11012SA30JZ-K150W DC/DC Converter |
3 |
|
Datasheet |
AM150HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 160V | 12V | - | - | - | - | 43V | 12.5A | 150 W | 89% | 3 kV | - | -40°C ~ 105°C | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | Through Hole | - | - | CE | - |
|
|
AM150HB-11015SA30JZ-K150W DC/DC Converter |
3 |
|
Datasheet |
AM150HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 160V | 15V | - | - | - | - | 43V | 10A | 150 W | 89% | 3 kV | - | -40°C ~ 105°C | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | Through Hole | - | - | CE | - |
|
|
MWA60-24S12DC DC CONVERTER 12V 60W |
5 |
|
Datasheet |
MWA60 (60W) | 10-DIP Module, 8 Leads | Bulk | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 18V | 5A | 60 W | 84% | 1.6 kV | - | -25°C ~ 71°C | ITE (Commercial) | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active Low | - | - |
|
LWA10-24-15-A-CECDC DC CONVERTER +/-15V 10W |
5 |
|
Datasheet |
LWA10 (10W) | 5-DIP Module | Tray | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 18V | 333mA, 333mA | 10 W | 81% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | CE, cURus, UL | - |
|
|
PLD250-DQTA24-12DC/DC CONVERTER 12V 250W |
20 |
|
Datasheet |
- | Quarter Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 21A | 252 W | 93% | 2.25 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Baseplate, Remote On/Off | Through Hole | Quarter Brick | Enable, Active High | - | - |
|
|
AM250HB-11005SA30JZ-K200W DC/DC Converter |
2 |
|
Datasheet |
AM250HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 160V | 5V | - | - | - | - | 40V | 40A | 200 W | 88% | 3 kV | - | -40°C ~ 105°C | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | Through Hole | - | - | - | - |
.jpg)
|
PR81-15CDC DC CONVERTER +/-15V 2.25W |
5 |
|
Datasheet |
PR (10W) | 5-DIP Module | Tray | Active | Isolated Module | 2 | 5.5V | 15V | -15V | - | - | - | 4.5V | 150mA, 150mA | 2.25 W | 65% | 500 V | - | -25°C ~ 71°C | ITE (Commercial) | - | Through Hole | - | - | - | - |
|

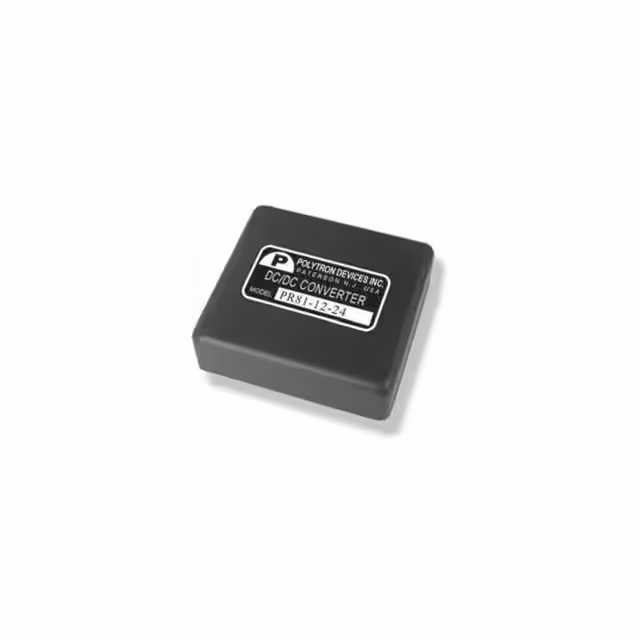

PR81-15-24DC DC CONVERTER +/-15V 2.25W |
10 |
|
Datasheet |
PR (10W) | 5-DIP Module | Tray | Active | Isolated Module | 2 | 26.4V | 15V | -15V | - | - | - | 21.6V | 150mA, 150mA | 2.25 W | 65% | 500 V | - | -25°C ~ 71°C | ITE (Commercial) | - | Through Hole | - | - | - | - |
|
|
Y5-12S12DC DC CONVERTER |
5 |
|
Datasheet |
Y5 | 4-DIP Module | Bulk | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 417mA | 5 W | 72% | 500 V | - | -25°C ~ 71°C | ITE (Commercial) | - | Through Hole | - | - | - | - |
|
|
PLD500-DHTA24-12DC/DC CONVERTER 12V 500W |
20 |
|
Datasheet |
- | Half Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 42A | 504 W | 93% | 2.25 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | Through Hole | Half Brick | Enable, Active High | - | - |
|
|
PLD1000-DFTA24-24DC/DC CONVERTER 24V 1000W |
12 |
|
Datasheet |
- | Full Brick | Tape & Box (TB) | Active | Isolated Module | 1 | 36V | 24V | - | - | - | - | 9V | 42A | 1.008 kW | 93.6% | 2.25 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | Through Hole | Full Brick | Enable, Active High | - | - |
