DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Number of Outputs | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Grade | Voltage - Output 3 | Voltage - Output 4 | Voltage - Input (Min) | Current - Output (Max) | Power (Watts) | Efficiency | Voltage - Isolation | Qualification | Operating Temperature | Part Applications | Features | Mounting Style | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRC40W-110-S24DC-DC, ISOLATED, 40 W, 40 ~ 160 |
52 |
|
Datasheet |
PRC40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 160V | 24V | - | - | - | - | 40V | 1.667A | 40 W | 89.5% | 3 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Through Hole | - | - | CE, UKCA | 62368-1 |
|
|
JMR2024S0520W PCB DIP24 9-36VDC INPUT 4:1 |
60 |
|
Datasheet |
JMR20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 9V | 4A | 20 W | 88.5% | 5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR2024S1220W PCB DIP24 9-36VDC INPUT 4:1 |
38 |
|
Datasheet |
JMR20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 1.67A | 20 W | 88.5% | 5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
RP10-2415DEW/M2DC DC CONVERTER +/-15V 10W |
30 |
|
Datasheet |
POWERLINE RP10-EW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 9V | 333mA, 333mA | 10 W | 80% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | OCP, OVP, SCP | Through Hole | - | - | - | - |
|
|
BMR4560004/001DC DC CONVERTER 12V 420W |
44 |
|
Datasheet |
BMR456 (468W) | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 75V | 12V | - | - | - | - | 36V | 35A | 420 W | 96.4% | 2.25 kV | - | -40°C ~ 125°C (With Derating) | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|

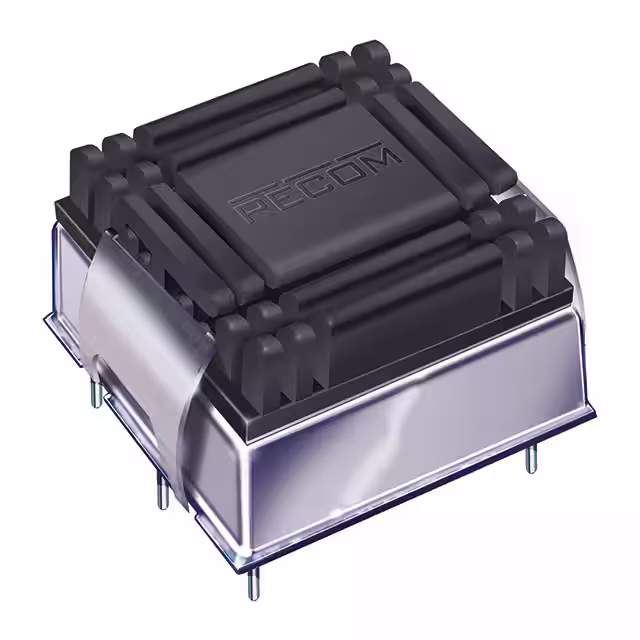

RP10-2412SAW/P-HCDC DC CONVERTER 12V 10W |
27 |
|
Datasheet |
POWERLINE RP10-AW (10W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 830mA | 10 W | 90% | 1.6 kV | - | -40°C ~ 81°C | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | Through Hole | - | Enable, Active High | cURus, EAC | - |
|
PKM4613ANHPISPDC DC CONVERTER 11.6V 580W |
80 |
|
Datasheet |
PKM4000NH (580W) | Quarter Brick | Tray | Active | Intermediate Bus Converter | 1 | 75V | 11.6V | - | - | - | - | 36V | 50A | 580 W | 96.4% | 2.25 kV | - | -40°C ~ 125°C (With Derating) | ITE (Commercial) | Remote On/Off | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
40IMX4-15-8GDC DC CONVERTER 15V 4.2W |
91 |
|
Datasheet |
Melcher IMX4 (4W) | 24-DIP Module, 13 Leads | Bulk | Active | Isolated Module, Conformal Coated | 1 | 75V | 15V | - | - | - | - | 16.8V | 280mA | 4.2 W | 82% | 2 kV | - | -40°C ~ 85°C | ITE (Commercial), Railway | OCP, OTP, OVP, SCP | Through Hole | - | - | - | - |
|
|
SSQE48T07120-NABFGDC DC CONVERTER 12V 84W |
199 |
|
Datasheet |
SSQE48 | 8-DIP Module, 1/16 Brick | Bulk | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 36V | 7A | 84 W | 92% | 2.25 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | Through Hole | - | Enable, Active Low | - | - |
|
RP15-243.3SAW/PDC DC CONVERTER 3.3V 15W |
54 |
|
Datasheet |
POWERLINE RP15-AW (15W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 3.3V | - | - | - | - | 9V | 4A | 15 W | 86% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | Through Hole | - | Enable, Active High | - | - |
|
|
PTP20-24-S5DC-DC, ISOLATED, 15 W, 18~36 VDC |
54 |
|
Datasheet |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 4A | 20 W | 87% | 7 kV | - | -40°C ~ 100°C (With Derating) | Medical | - | Through Hole | - | - | CE, UKCA | 60601-1 |
|
|
PTP20-24-S12DC-DC, ISOLATED, 15 W, 18~36 VDC |
52 |
|
Datasheet |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 18V | 1.67A | 20 W | 89% | 7 kV | - | -40°C ~ 100°C (With Derating) | Medical | - | Through Hole | - | - | CE, UKCA | 60601-1 |
|
|
PTP20-24-S24DC-DC, ISOLATED, 15 W, 18~36 VDC |
49 |
|
Datasheet |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 24V | - | - | - | - | 18V | 840mA | 20 W | 88% | 7 kV | - | -40°C ~ 100°C (With Derating) | Medical | - | Through Hole | - | - | CE, UKCA | 60601-1 |
|
|
PRC60-48-S5DC-DC, ISOLATED, 60 W, 18~75 VDC |
48 |
|
Datasheet |
PRC60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 75V | 5V | - | - | - | - | 18V | 12A | 60 W | 91% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | Through Hole | - | - | CE, UKCA | 62368-1 |
|
THM 15-2423WIDC DC CONVERTER +/-15V 15W |
28 |
|
Datasheet |
THM 15WI (15W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 9V | 500mA, 500mA | 15 W | 88% | 5 kV | - | -40°C ~ 85°C (With Derating) | Medical | OCP, OTP, OVP, SCP | Through Hole | - | - | - | - |
|
AVQ300-48S12B-4LDC DC CONVERTER 12V |
148 |
|
Datasheet |
AVQ300 (300W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 36V | 25A | - | 94.5% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | Quarter Brick | - | - | - |
|
AVD200-48S12TL12V 200W SIXTEENTH BRICK |
200 |
|
Datasheet |
AVD200-48S12 (200W) | Sixteenth Brick | Tape & Reel (TR) | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 36V | 17A | 204 W | 93.9% | 2.25 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off | Surface Mount | Sixteenth Brick | - | CE, CSA, TUV, UL | 62368-1 |
|
|
AVD200-48S12B-7TL12V 200W SIXTEENTH BRICK |
199 |
|
Datasheet |
AVD200-48S12 (200W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 36V | 17A | 204 W | 93.9% | 2.25 kV | - | -40°C ~ 85°C | ITE (Commercial) | Baseplate, Remote On/Off | Through Hole | Sixteenth Brick | - | CE, CSA, TUV, UL | 62368-1 |
|
LTM4630IY-1B#PBFDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
41 |
|
Datasheet |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | - | 4.5V | 18A, 18A | - | - | - | - | -40°C ~ 125°C | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | Surface Mount | 144-BGA (16x16) | - | - | - |
|
|
I7A12060A008V-0F1-RDC DC CONVERTER 0.8-8V 400W |
62 |
|
Datasheet |
i7A (750W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 18V | 0.8 ~ 8V | - | - | - | - | 9V | 60A | 480 W | 97% | - | - | -40°C ~ 125°C (With Derating) | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | Through Hole | Sixteenth Brick | Enable, Active Low | CE, UKCA | 62368-1 |
