DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCF4824QBO-400WR3-NISOLATED MODULE DC DC CONVERTER1 |
33 |
|
Datasheet |
VCF48_QBO-400WR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 16.5A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
BWR-12/125-D48-CDC DC CONVERTER +/-12V 3W |
61 |
|
Datasheet |
BWR (10W) | 8-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 72V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1 kV | ITE (Commercial) | OCP, OVP | -25°C ~ 75°C | 80% | - | - | Through Hole | - | - | - | - |
|
PYB20-Q48-S12DC DC CONVERTER 12V 20W |
2 |
|
Datasheet |
PYB20 (20W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.667A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | - | Enable, Active High | CB Scheme, EN, IEC, UL | 55024; 60950-1; 61000-3-2; 61000-3-3 |
|
|
SQ24S15033-PS0SDC DC CONVERTER 3.3V 50W |
2,155 |
|
Datasheet |
SemiQ™ SQ24 (50W) | 8-SMD Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 15A | 50 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 88% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
|
UIQ48T72033-NDABGDC DC CONVERTER 3.3V 240W |
2,674 |
|
Datasheet |
UIB (240W) | 8-DIP Module, 1/4 Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 72A | 240 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
RDT-6Y05DC-DC,14-160V INPUT, 5V/1.2A OUT |
42 |
|
Datasheet |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 14V | 160V | 5V | - | - | - | 1.2A | 6 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
RDT-6Y15DC-DC,14-160V INPUT, 15V/0.4A OU |
33 |
|
Datasheet |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 250mA | 3.75 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
PTQB425080P2ADDC DC CONVERTER 8V 200W |
4,907 |
|
Datasheet |
PTQB425080 (200W) | 5-DIP Module, 1/4 Brick | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 8V | - | - | - | 25A | 200 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Through Hole | - | - | - | - |
|
|
PT7741NDC DC CONVERTER 0.8-3.1V 32A |
248 |
|
Datasheet |
PT7740 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.1V | - | - | - | 32A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole, Vertical | - | - | - | - |
|
|
PT7746ADC DC CONVERTER 1.3-3.5V |
2,510 |
|
Datasheet |
PT7740 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 32A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole, Horizontal | - | - | - | - |
|

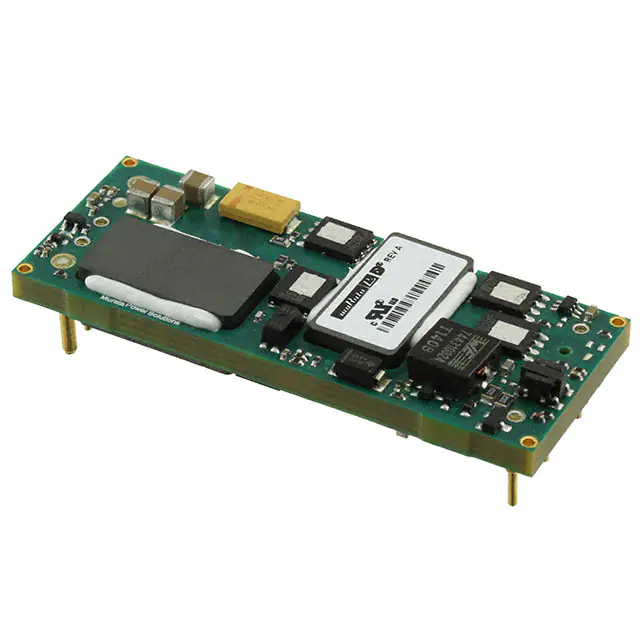

UWE-12/10-Q12P-CDC DC CONVERTER 12V 120W |
197 |
|
Datasheet |
UWE | 8-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 10A | 120 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
VCF4815QBO-400WHR3-NISOLATED MODULE DC DC CONVERTER1 |
35 |
|
Datasheet |
VCF48_QBO-400WHR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 26.5A | 398 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
VCF4828QBO-400WHR3-NISOLATED MODULE DC DC CONVERTER1 |
34 |
|
Datasheet |
VCF48_QBO-400WHR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 14.2A | 398 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
PTB78560BASDC DC CONVERTER 1.8-3.6V 30W |
4,833 |
|
Datasheet |
PTB78560 (30W) | 11-SMD Module | Bulk | Not For New Designs | Isolated Module | 1 | 18V | 60V | 1.8 ~ 3.6V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - |
|
|
NDM2Z-50HS-A-001DC DC CONVERTER 0.6-3.3V |
2,632 |
|
Datasheet |
Novum® NDM2Z | 20-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 3.3V | - | - | - | 50A | - | - | ITE (Commercial) | Digital | -40°C ~ 125°C | 94.6% | - | - | Surface Mount | - | - | - | - |
|
EBE4120N017N76DC DC CONVERTER 12V 204W |
30 |
|
Datasheet |
EBE | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 17A | 204 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C | 95% | - | - | Through Hole | Eighth Brick | Enable, Active Low | cURus | - |
|
|
VCF4812QBO-400WFR3-NISOLATED MODULE DC DC CONVERTER1 |
32 |
|
Datasheet |
VCF48_QBO-400WFR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
VCF4828QBO-400WFR3-NISOLATED MODULE DC DC CONVERTER1 |
32 |
|
Datasheet |
VCF48_QBO-400WFR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 14.2A | 398 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
VCF4815QBO-400WFR3-NISOLATED MODULE DC DC CONVERTER1 |
30 |
|
Datasheet |
VCF48_QBO-400WFR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 33A | 495 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
SFS302415CDC DC CONVERTER 15V |
322 |
|
Datasheet |
SFS (30W) | 20-DIP Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 2A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - |
