Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Type | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Panel Cutout Dimensions | Voltage Rating - DC | Actuator Type | Circuit | Actuator Marking | Color - Actuator/Cap | Features | Illumination Type, Color | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AL1M-A11JW10MM ROUND MAINT LED PB SPDT |
2,598 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | On-On | 1A (AC/DC) | 120 V | Circular - 10.00mm Dia | 24 V | Round, Button | SPDT | - | White | - | LED, White | -25°C ~ 55°C | IP40 | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
AL1M-A11-ARND LED PB SPDT IP4 |
2,985 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | On-On | 1A (AC/DC) | 120 V | Circular - 10.00mm Dia | 24 V | Round, Button | SPDT | - | Amber | - | LED, Amber | -25°C ~ 55°C | IP40 | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
AL1Q-A11JW10MM SQUARE MAINT LED PB SPDT |
2,130 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | On-On | 1A (AC/DC) | 120 V | Circular - 10.00mm Dia | 24 V | Square, Button | SPDT | - | White | - | LED, White | -25°C ~ 55°C | IP40 | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
AL1H-A11-YRCT LED PB SPDT IP4 |
2,699 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | On-On | 1A (AC/DC) | 120 V | Circular - 10.00mm Dia | 24 V | Rectangular, Button | SPDT | - | Yellow | - | LED, Yellow | -25°C ~ 55°C | IP40 | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
YB15KKW03-5C05-JBSWITCH PUSHBUTTON SPDT 3A 125V |
2,103 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC/DC) | 125 V | Circular - 16.00mm Dia | 30 V | Square, Button | SPDT | No Marking | Clear (White Filter/Diffuser) | Stainless Steel | LED, Red | -25°C ~ 50°C | - | 5 VDC | PC Pin |
|
|
YB15KKW03-5F05-JBSWITCH PUSHBUTTON SPDT 3A 125V |
3,420 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC/DC) | 125 V | Circular - 16.00mm Dia | 30 V | Square, Button | SPDT | No Marking | Clear (White Filter/Diffuser) | Stainless Steel | LED, Green | -25°C ~ 50°C | - | 5 VDC | PC Pin |
|

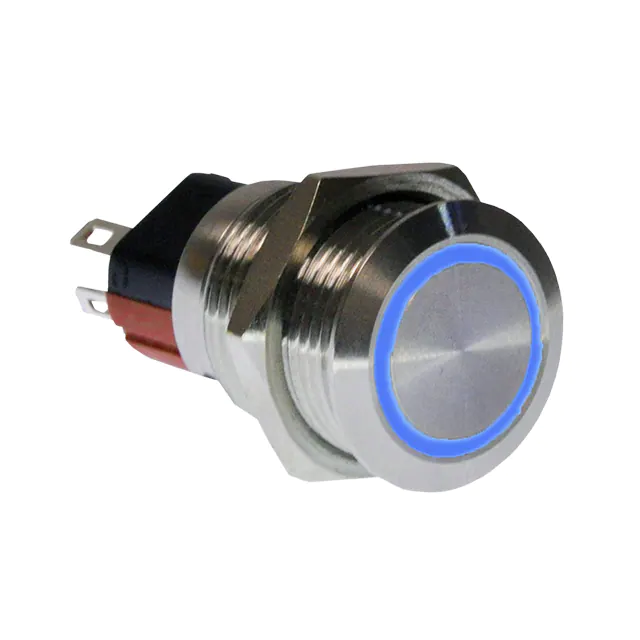

PVA3H230SS341SWITCH PB SPST 2A 36V |
2,789 |
|
Datasheet |
PVA3 | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | On-On | 2A (DC) | - | Circular - 16.00mm Dia | 36 V | Round, Button | SPDT | No Marking | Silver | Stainless Steel | LED, Blue | -25°C ~ 55°C | IP65 - Dust Tight, Water Resistant | 2.8 VDC | Solder Lug |
|
1977737-1SWITCH PUSHBUTTON SPDT 60MA |
4,687 |
|
Datasheet |
Blue | Bulk | Obsolete | Panel Mount, Rear | Standard | On-On | 60mA (DC) | - | - | 30 V | Plunger for Cap | SPDT | No Marking | - | Tactile/Audible Feedback | - | -20°C ~ 80°C | - | - | Solder Lug |
|
1977738-2SWITCH PUSHBUTTON SPDT 60MA |
4,064 |
|
Datasheet |
Blue | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 60mA (DC) | - | - | 30 V | Plunger for Cap | SPDT | No Marking | - | Tactile/Audible Feedback | - | -20°C ~ 80°C | - | - | PC Pin |
|
|
ISR3Z1AD7/100PUSHBUTTON SWITCH FD DBLE ICON |
4,261 |
|
- |
IS | Bulk | Active | Panel Mount, Front | Standard | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | Circular - 13.60mm Dia | 48 V | Round, Button, Domed | SPST-NO | - | White | - | - | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Quick Connect - 0.110" (2.8mm) |
|
|
LB15WGW01/USWITCH PUSHBUTTON SPDT 3A 125V |
4,111 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | On-Mom | 3A (AC/DC) | 125 V | Circular - 22.00mm Dia | 30 V | Plunger for Cap | SPDT | No Marking | - | - | - | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
HA2B-M1C6-B16MM PUSHBUTTON BLACK |
2,773 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN12SB1W03-AT4043LARGE BUSHING MINIATURE PUSHBUTT |
2,531 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN25SB1G01LARGE BUSHING MINIATURE PUSHBUTT |
2,339 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN15SB3G03LARGE BUSHING MINIATURE PUSHBUTT |
2,102 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | Circular - 12.50mm Dia | 28 V | Plunger for Cap | SPDT | - | - | - | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | PC Pin |
|
|
PV4F2Y011-345-M26Switches |
4,496 |
|
Datasheet |
PV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | On-Mom, Off-Mom | 2A (DC) | - | Circular - 19.00mm Dia | 24 V | Round, Button, Flush | DPST-NO/NC | - | Black | - | LED, Blue | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | 24 VDC | Solder Lug |
|
|
D16OAR12SWITCH PB DPDT 8A 125V |
2,170 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard | On-Mom | 8A (AC), 6A (DC) | 125 V | Circular - 16.00mm Dia | 24 V | Round, Button (Not Included) | DPDT | - | - | - | - | -20°C ~ 55°C | - | - | Solder Lug |
|
|
D16OAS12SWITCH PB DPDT 8A 125V |
4,363 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard | On-Mom | 8A (AC), 6A (DC) | 125 V | Circular - 16.00mm Dia | 24 V | Square, Button (Not Included) | DPDT | - | - | - | - | -20°C ~ 55°C | - | - | Solder Lug |
|
|
LAKOAV11JREDREDSWITCH PUSHBUTTON SPDT 8A 125V |
4,305 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | On-Mom | 8A (AC), 6A (DC) | 125 V | Circular - 22.00mm Dia | 24 V | Round, Button, Flush | SPDT | No Marking | Red | - | LED, Red | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | 12 VDC | Quick Connect - 0.110" (2.8mm) |
|
|
PV4F6Y0SS-3G5SWITCH PB DPST-NO/NC 2A 24V |
3,434 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | On-Mom, Off-Mom | 2A (DC) | - | Circular - 19.00mm Dia | 24 V | Round, Button, Flush | DPST-NO/NC | - | Silver | - | LED, Green/Red | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | 24 VDC | Screw Terminal |
