Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Type | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Panel Cutout Dimensions | Voltage Rating - DC | Actuator Type | Circuit | Actuator Marking | Color - Actuator/Cap | Features | Illumination Type, Color | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-104SWITCH PUSH SPST-NO 0.15A 24V |
85 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Snap-In | Standard | Off-Mom | 150mA (DC) | - | Circular - 15.20mm Dia | 24 V | Round, Button | SPST-NO | No Marking | Orange | Sealed - Fully | - | -40°C ~ 80°C | - | - | Solder Lug |
|
M2B15BA5G03-BASWITCH PUSH SPDT 0.4VA 28V |
53 |
|
Datasheet |
M2 | Tray | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPDT | No Marking | Black | Process Sealed | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
M2B15BA5G03-CCSWITCH PUSH SPDT 0.4VA 28V |
56 |
|
Datasheet |
M2 | Tray | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPDT | No Marking | Red | Process Sealed | - | -30°C ~ 85°C | - | - | PC Pin |
|
W48-1-RB-N-RD-FPBS 12MM SPST 0.1A 48V MOM PLAST |
100 |
|
Datasheet |
W48 | Bulk | Active | Panel Mount, Snap-In | Standard | Off-Mom | 10mA (AC) | 12 V | Circular - 13.42mm Dia | - | Round, Button, Domed | SPST-NO | - | Red | - | - | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Quick Connect - 0.110" (2.8mm), Wire Leads |
|

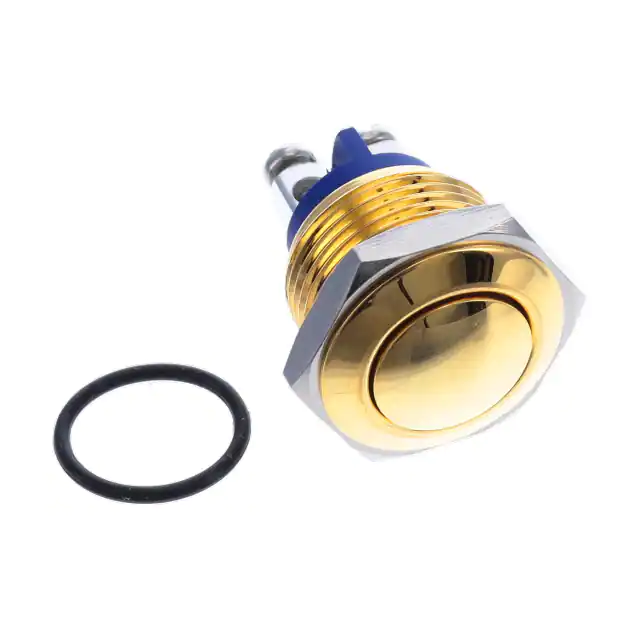

PV2S640GGSWITCH PUSHBUTTON SPST-NO 2A 48V |
48 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 48 V | Round, Button, Domed | SPST-NO | No Marking | Gold | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Screw Terminal |
|
W49-111PBS 12MM SPST 0.1A 48V MOM PLAST |
84 |
|
Datasheet |
W49 | Bulk | Active | Panel Mount, Front | Standard | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | Circular - 13.60mm Dia | 50 V | Round, Button, Domed | SPST-NO | - | Black | - | - | -40°C ~ 105°C | IP67 - Dust Tight, Waterproof | - | Solder Lug |
|
SB4011NOM-2ASWITCH PUSH SPST-NO 3A 125V |
56 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | Off-Mom | 3A (AC), 2A (DC) | 125 V | Circular - 12.50mm Dia | 30 V | Round, Button | SPST-NO | No Marking | Black | Epoxy Sealed Terminals | - | -10°C ~ 70°C | - | - | Solder Lug |
|
SB221TNOSWITCH PUSH SPST-NO 3A 125V |
79 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | Off-Mom | 3A (AC) | 125 V | Circular - 12.50mm Dia | - | Round, Button | SPST-NO | No Marking | Black | - | - | -10°C ~ 70°C | - | - | Screw Terminal |
|
|
SB221TNCSWITCH PUSH SPST-NC 3A 125V |
15 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | On-Mom | 3A (AC) | 125 V | Circular - 12.50mm Dia | - | Round, Button | SPST-NC | No Marking | Black | - | - | -10°C ~ 70°C | - | - | Screw Terminal |
|
CTHS15CIC06ONOFFSWITCH PUSH CAPACITIVE ILLUM SQ |
92 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | Off-On | - | - | - | - | Square, Button | - | Power Symbol | Black | - | LED, Blue | - | - | 3.2 VDC | PC Pin |
|
PV2F640GGSWITCH PUSHBUTTON SPST-NO 2A 48V |
33 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 48 V | Round, Button, Flush | SPST-NO | No Marking | Gold | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Screw Terminal |
|
PB6B2FM2M1CAL03S500SWITCH PUSH SPST-NO 125MA 125V |
62 |
|
Datasheet |
PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | Circular - 13.60mm Dia | 50 V | Round, Button | SPST-NO | No Marking | Black | - | LED, Red | -30°C ~ 85°C | IP68 - Dust Tight, Waterproof | - | Wire Leads |
|

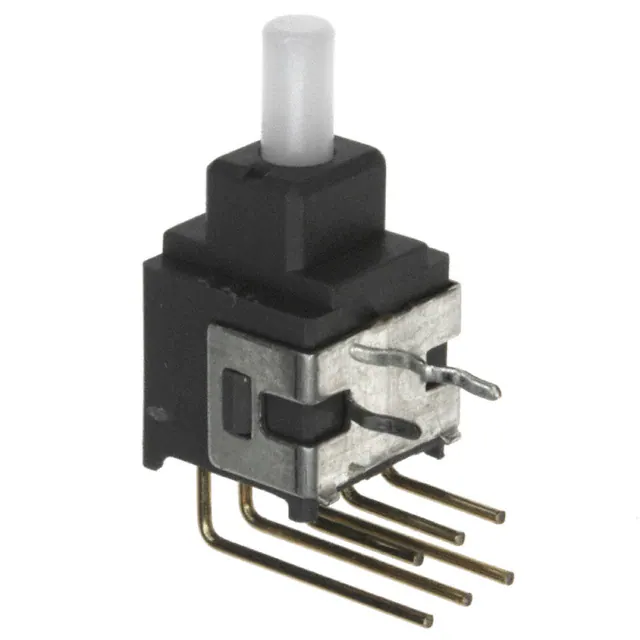

AB25AHSWITCH PUSH DPDT 0.4VA 28V |
50 |
|
Datasheet |
AB | Box | Active | Through Hole, Right Angle | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Plunger for Cap | DPDT | No Marking | White | Sealed - Fully | - | -30°C ~ 85°C | - | - | PC Pin |
|

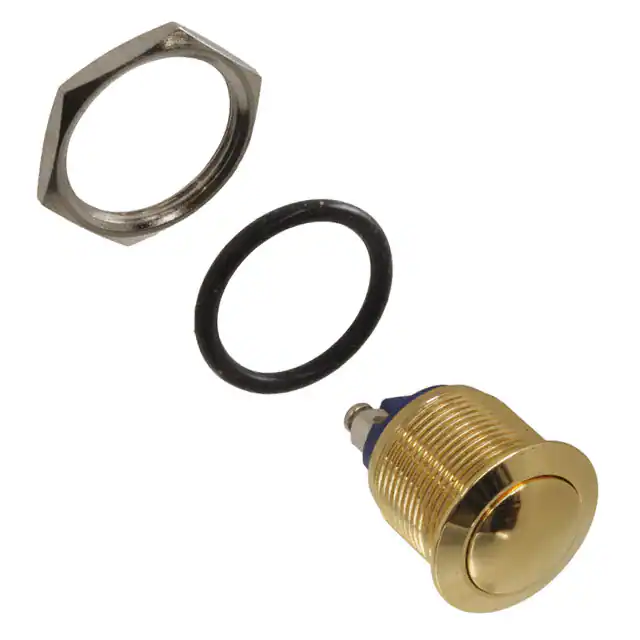

PV1S640GGSWITCH PUSHBUTTON SPST-NO 2A 48V |
48 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 19.00mm Dia | 48 V | Round, Button, Domed | SPST-NO | No Marking | Gold | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Screw Terminal |
|
PB6B2FM6M1CAL06S500SWITCH PUSH SPST-NO 125MA 125V |
3,345 |
|
Datasheet |
PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | Circular - 13.60mm Dia | 50 V | Round, Button | SPST-NO | No Marking | Green | - | LED, Green | -30°C ~ 85°C | IP68 - Dust Tight, Waterproof | - | Wire Leads |
|
7004ASWITCH PUSH SPST 15A 125V |
59 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Rear | Standard | On-Off | 15A (AC) | 125 V | - | - | Round, Button | SPST | No Marking | Silver | - | - | - | - | - | Quick Connect - 0.187" (4.7mm) |
|

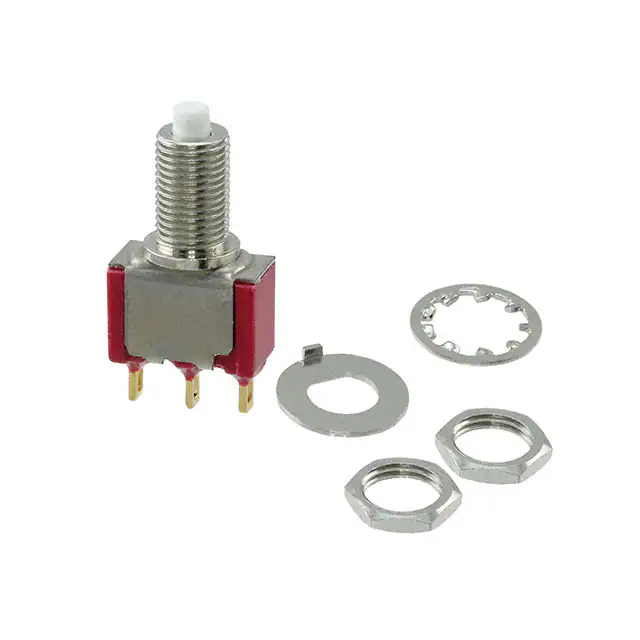

8125LY4ZBESWITCH PUSH SPDT 0.4VA 20V |
100 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Rear | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | Circular - 6.35mm Dia | 20 V | Round, Plunger | SPDT | No Marking | White | Tactile Feedback | - | -30°C ~ 75°C | - | - | Solder Lug |
|
G3B15APSWITCH PUSH SPDT 0.4VA 28V |
80 |
|
Datasheet |
G3B | Tray | Active | Surface Mount | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Plunger | SPDT | No Marking | Gray | Process Sealed | - | -30°C ~ 85°C | - | - | Gull Wing |
|
EB2085-BASWITCH PUSHBUTTON DPDT 3A 125V |
37 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | On-On | 3A (AC) | 125 V | Circular - 6.35mm Dia | - | Round, Button | DPDT | No Marking | Black | Epoxy Sealed Terminals | - | -10°C ~ 70°C | - | - | Solder Lug |
|
8531MZBE2SWITCH PUSH SPST-NO 0.4VA 20V |
26 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | Circular - 6.35mm Dia | 20 V | Round, Plunger | SPST-NO | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | Solder Lug |
