Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Type | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Panel Cutout Dimensions | Voltage Rating - DC | Actuator Type | Circuit | Actuator Marking | Color - Actuator/Cap | Features | Illumination Type, Color | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CP24B-A2E01S22MM/BL/MAINTAINED/1NC |
14 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | On-Off | 8A (AC), 2.5A (DC) | 120 V | Circular - 22.30mm Dia | 30 V | Round, Button | SPST-NC | - | Blue | - | - | -25°C ~ 70°C | IP66 - Dust Tight, Water Resistant | - | Spring Terminal |
|
LB26RGW01SWITCH PUSHBUTTON DPDT 3A 125V |
34 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | On-On | 3A (AC/DC) | 125 V | Rectangular - 22.40mm x 16.20mm | 30 V | Plunger for Cap | DPDT | No Marking | - | - | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
LB26CGW01SWITCH PUSHBUTTON DPDT 3A 125V |
15 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | On-On | 3A (AC/DC) | 125 V | Circular - 22.00mm Dia | 30 V | Plunger for Cap | DPDT | No Marking | - | - | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
3-145-766SWITCH PUSHBUTTON DPDT 5A 125V |
10 |
|
Datasheet |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal | On-Mom | 3A (AC) | 125 V | Circular - 19.10mm Dia | - | Round, Button, Flush | DPDT | - | Silver | - | - | -30°C ~ 85°C | IP40 | - | Quick Connect - 0.110" (2.8mm) |
|
|
EB2085-B-J33AFFSWITCH PUSHBUTTON DPDT 3A 125V |
20 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-On | 3A (AC) | 125 V | Rectangular - 18.40mm x 15.00mm | - | Square, Button | DPDT | No Marking | White | Epoxy Sealed Terminals | LED, Green/Green | -10°C ~ 70°C | - | 2.25 VDC | Solder Lug |
|
|
18-238.035SWITCH PB SPST-NC 0.1A 42V |
10 |
|
Datasheet |
18 | Bulk | Active | Panel Mount, Front | Standard | On-Off | 100mA (AC/DC) | 42 V | Circular - 8.00mm Dia | 42 V | Round, Button (Not Included) | SPST-NC | No Marking | - | - | - | -25°C ~ 65°C | IP40 | - | Solder Lug |
|
|
18-268.035SWITCH PB SPST-NC 0.1A 42V |
10 |
|
Datasheet |
18 | Bulk | Active | Panel Mount, Front | Standard | On-Off | 100mA (AC/DC) | 42 V | - | 42 V | Round, Button (Not Included) | SPST-NC | No Marking | - | - | - | -25°C ~ 65°C | IP40 | - | Solder Lug |
|
EB2085G-B-J33AEFSWITCH PUSH DPDT 0.4VA 28V |
4 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-On | 0.4VA (AC/DC) | 28 V | Rectangular - 18.40mm x 15.00mm | 28 V | Square, Button | DPDT | No Marking | White | Epoxy Sealed Terminals | LED, Green/Yellow | -10°C ~ 70°C | - | 2.1, 2.25 VDC | Solder Lug |
|
LP0125CMKW015CBSWITCH PUSHBUTTON DPDT 3A 125V |
100 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC/DC) | 125 V | Circular - 17.30mm Dia | 30 V | Round, Button | DPDT | No Marking | White | - | LED, Red | -10°C ~ 50°C | - | 2.05 VDC | Solder, Quick Connect - 0.110" (2.8mm) |
|
LP0125CMKW015DBSWITCH PUSHBUTTON DPDT 3A 125V |
85 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC/DC) | 125 V | Circular - 17.30mm Dia | 30 V | Round, Button | DPDT | No Marking | White | - | LED, Amber | -10°C ~ 50°C | - | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
UB216SKG035D-1JBSWITCH PUSH SPDT 0.4VA 28V |
20 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | On-On | 0.4VA (AC/DC) | 28 V | - | 28 V | Square, Button | SPDT | No Marking | Clear (White Filter/Diffuser) | Sealed - Fully | LED, Amber | -25°C ~ 50°C | - | 2 VDC | PC Pin |
|

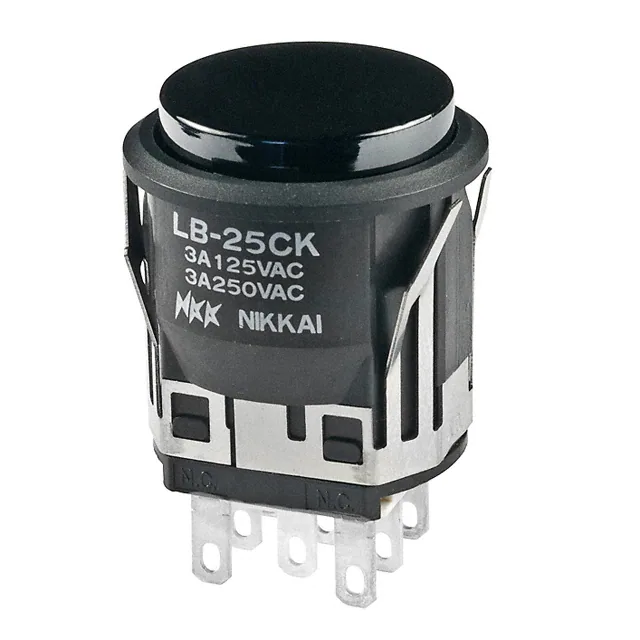

LB25CKW01-ASWITCH PUSHBUTTON DPDT 3A 125V |
30 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | On-Mom | 3A (AC/DC) | 125 V | Circular - 22.00mm Dia | 30 V | Round, Button | DPDT | No Marking | Black | - | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
LB25SKW01-ESWITCH PUSHBUTTON DPDT 3A 125V |
12 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | On-Mom | 3A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | DPDT | No Marking | Yellow | - | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
YB16SKG01-FBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
16 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | On-On | 0.4VA (AC/DC) | 28 V | Circular - 16.00mm Dia | 28 V | Square, Button | SPDT | No Marking | Green (White Filter/Diffuser) | Tactile Feedback | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
9100SWITCH MOM |
56 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | Off-Mom | 6A (AC/DC) | 125 V | - | 125 V | Round, Plunger, Metal | SPST-NO | No Marking | Silver | - | - | - | - | - | Screw Terminal |
|
YB15WRKW01SWITCH PUSHBUTTON SPDT 3A 125V |
37 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | On-Mom | 3A (AC/DC) | 125 V | Circular - 16.00mm Dia | 30 V | Plunger for Cap | SPDT | No Marking | - | Tactile Feedback | - | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | Solder, Quick Connect - 0.110" (2.8mm) |
|

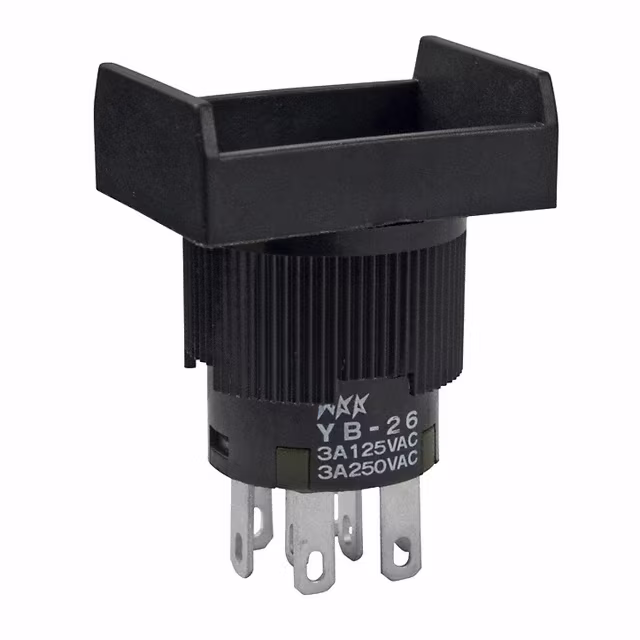

YB26RKW01SWITCH PUSHBUTTON DPDT 3A 125V |
129 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | On-On | 3A (AC/DC) | 125 V | Circular - 16.00mm Dia | 30 V | Plunger for Cap | DPDT | No Marking | - | Voltage Reduction Lighting | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
YB25MKG01SWITCH PUSHBUTTON DPDT 0.4VA 28V |
100 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | Circular - 16.00mm Dia | 28 V | Plunger for Cap | DPDT | No Marking | - | Voltage Reduction Lighting | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
MBN15SB3W01-DALARGE BUSHING MINIATURE PUSHBUTT |
97 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | On-Mom | 3A (AC), 2A (DC) | 125 V | Circular - 12.50mm Dia | 30 V | Round, Button | SPDT | - | Black | - | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Solder Lug |
|
|
MBN25SB1G01-DALARGE BUSHING MINIATURE PUSHBUTT |
10 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
