Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Type | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Panel Cutout Dimensions | Voltage Rating - DC | Actuator Type | Circuit | Actuator Marking | Color - Actuator/Cap | Features | Illumination Type, Color | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F2UEETBAUSWITCH PUSH DPDT 0.04A 50V |
2,854 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | On-On | 40mA (AC), 10mA (DC) | 50 V | - | 30 V | Plunger for Cap | DPDT | No Marking | White | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C | - | - | PC Pin, Solder Lug |
|
1412N8C7SWITCH PUSH SPST-NC 3A 12V |
2,203 |
|
Datasheet |
1400N | Bulk | Active | Panel Mount, Snap-In | Standard | On-Mom | 3A (DC) | - | Rectangular - 16.50mm x 14.30mm | 12 V | Square, Button | SPST-NC | No Marking | Ivory | - | - | -20°C ~ 55°C | - | - | Quick Connect - 0.187" (4.7mm) |
|
|
700SP7M3QEAP1BLKSWITCH PUSHBUTTON SPDT 3A 120V |
3,457 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Snap-In | Standard | On-Mom | 3A (AC/DC) | 120 V | Rectangular - 15.70mm x 12.70mm | 28 V | Square, Button | SPDT | No Marking | Black | - | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
700CSP7B60M7REHSWITCH PUSH SPDT 0.4VA 20V |
2,673 |
|
Datasheet |
700C | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | On-On | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPDT | No Marking | White | - | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
ULP12OAM1QPMCL1GRNNILSWITCH PUSHBUTTON SPDT 0.5A 250V |
3,998 |
|
Datasheet |
ULP | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 200mA (AC), 500mA (DC) | 250 V | Rectangular - 17.70mm x 15.80mm | 25 V | Square, Button, Flush | SPDT | No Marking | Clear (White Filter/Diffuser) | Tactile Feedback | LED, Green | -20°C ~ 70°C | - | - | Solder Lug |
|
|
700SP7M1REAP2REDBLKSWITCH PUSH SPDT 0.4VA 20V |
3,968 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Snap-In | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | Rectangular - 15.70mm x 12.70mm | 20 V | Square, Button | SPDT | No Marking | Red | - | - | -30°C ~ 85°C | - | - | Solder Lug |
|
700SP7M1REAP2WHTWHTSWITCH PUSHBUTTON SPDT 0.4VA 20V |
2,845 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Snap-In | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | Rectangular - 15.70mm x 12.70mm | 20 V | Square, Button | SPDT | No Marking | White | - | - | -30°C ~ 85°C | - | - | Solder Lug |
|
|
30-601 RED-ESWITCH PUSH SPST-NO 0.15A 5V |
3,325 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | Off-Mom | 150mA (DC) | - | Circular - 6.75mm Dia | 5 V | Round, Plunger | SPST-NO | No Marking | Red | Epoxy Sealed Terminals | - | -40°C ~ 85°C | - | - | Solder Lug |
|
|
PV1F240NNSWITCH PB SPST-NO 2A 36V |
3,086 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 19.00mm Dia | 36 V | Round, Button, Flush | SPST-NO | - | Silver | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
RP8400B2M1CEBLKBLUNILSWITCH PB SPST-NO 0.125A 125V |
3,458 |
|
Datasheet |
RP8400 | Bulk | Active | Panel Mount, Front | Standard | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | Circular - 13.60mm Dia | 50 V | Square, Button | SPST-NO | - | Blue | - | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
38CSP7B20M7QTSWITCH PUSHBUTTON SPDT 3A 125V |
3,029 |
|
Datasheet |
38C | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | On-Mom | 3A (AC/DC) | 125 V | - | 28 V | Round, Plunger | SPDT | No Marking | White | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
700CSP7B60VS2REHSWITCH PUSH SPDT 0.4VA 20V |
2,774 |
|
Datasheet |
700C | Bulk | Active | Through Hole | Standard | On-On | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPDT | No Marking | White | - | - | -30°C ~ 85°C | - | - | PC Pin |
|
AB11CWSWITCH PUSH SPST-NO 0.4VA 28V |
2,783 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | Off-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Plunger | SPST-NO | No Marking | White | Sealed - Fully | - | -30°C ~ 85°C | - | - | Wire Wrap |
|
|
38CSP71B10M6QTSWITCH PUSHBUTTON SPDT 3A 125V |
3,594 |
|
Datasheet |
38C | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | On-Mom | 3A (AC/DC) | 125 V | - | 28 V | Round, Plunger | SPDT | No Marking | White | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
RP8100B2W1CEBLKYELNILSWITCH PB SPST-NO 0.125A 125V |
4,620 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | Circular - 13.60mm Dia | 50 V | Round, Button | SPST-NO | - | Yellow | - | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Wire Leads |
|
|
RP8100B2W1CEBLKREDNILSWITCH PB SPST-NO 0.125A 125V |
4,316 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | Circular - 13.60mm Dia | 50 V | Round, Button | SPST-NO | - | Red | - | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Wire Leads |
|
|
APA1BGPCSWITCH PUSH SPST-NC 50MA 48V |
2,719 |
|
Datasheet |
APA | Bulk | Obsolete | Through Hole | Standard | On-Mom | 50mA (AC/DC) | 48 V | - | 48 V | Round, Plunger | SPST-NC | No Marking | Black | - | - | -20°C ~ 85°C | - | - | PC Pin |
|

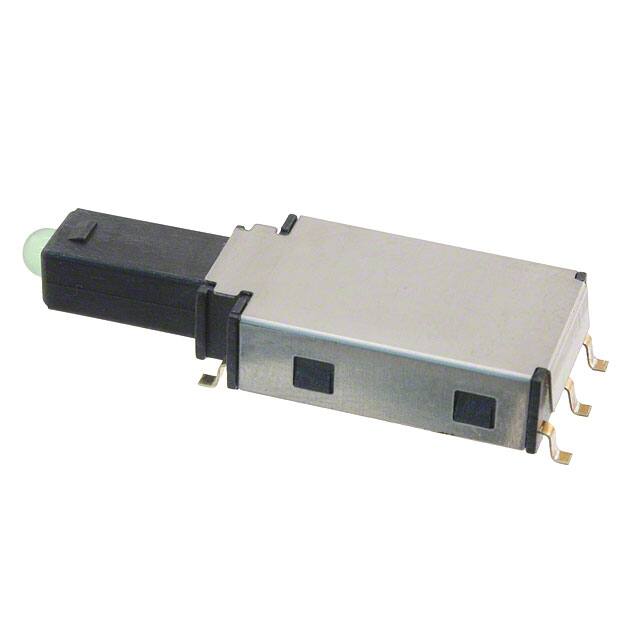

LP37OACGGSWITCH PUSH SPDT 0.25A 50V |
4,652 |
|
Datasheet |
LP37 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | On-Mom | 250mA (DC) | - | - | 50 V | Plunger for Cap | SPDT | No Marking | Black | - | LED, Green | -30°C ~ 85°C | - | 2.2 VDC | Gull Wing |
|
|
LP37OACGRSWITCH PUSH SPDT 0.25A 50V |
4,097 |
|
Datasheet |
LP37 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | On-Mom | 250mA (DC) | - | - | 50 V | Plunger for Cap | SPDT | No Marking | Black | - | LED, Red | -30°C ~ 85°C | - | 2.3 VDC | Gull Wing |
|
LP37OACGYSWITCH PUSH SPDT 0.25A 50V |
4,532 |
|
Datasheet |
LP37 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | On-Mom | 250mA (DC) | - | - | 50 V | Plunger for Cap | SPDT | No Marking | Black | - | LED, Yellow | -30°C ~ 85°C | - | 2.1 VDC | Gull Wing |
