Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Type | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Panel Cutout Dimensions | Voltage Rating - DC | Actuator Type | Circuit | Actuator Marking | Color - Actuator/Cap | Features | Illumination Type, Color | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700CSP7B60M1RESwitches |
3,865 |
|
Datasheet |
700C | Bulk | Active | Panel Mount, Rear | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | Circular - 6.35mm Dia | 20 V | Round, Plunger | SPDT | - | White | - | - | -30°C ~ 85°C | - | - | Solder, Quick Connect - 0.079" (2.0mm) |
|
8534MZBE2SWITCH PUSH SPST-NC 0.4VA 20V |
2,230 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | Circular - 6.35mm Dia | 20 V | Round, Plunger | SPST-NC | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | Solder Lug |
|
|
8534SZBE2SWITCH PUSH SPST-NC 0.4VA 20V |
3,557 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | Circular - 6.35mm Dia | 20 V | Round, Plunger | SPST-NC | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | Solder Lug |
|
|
AB15CWSUBMINIATURE PUSHBUTTON/PC |
3,091 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Plunger | SPDT | No Marking | White | Sealed - Fully | - | -30°C ~ 85°C | - | - | Wire Wrap |
|
|
104-0101-033PUSHBUTTON SWITCHES |
2,788 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

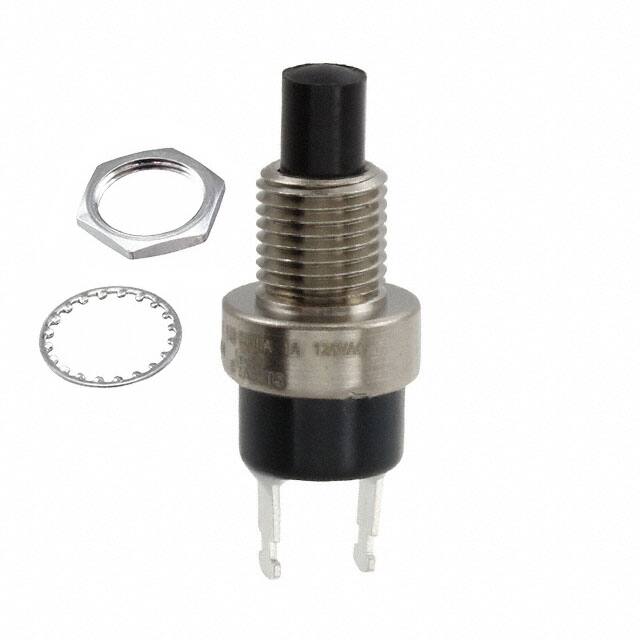

8534SZQE2SWITCH PUSH SPST-NC 1A 120V |
2,666 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | On-Mom | 1A (AC/DC) | 120 V | Circular - 6.35mm Dia | 28 V | Round, Plunger | SPST-NC | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | Solder Lug |
|
|
8531TCQE3SWITCH PUSH SPST-NO 1A 120V |
2,966 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | Off-Mom | 1A (AC/DC) | 120 V | Circular - 11.91mm Dia | 28 V | Round, Button | SPST-NO | No Marking | Red | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | PC Pin |
|
1.10.001.151/0301SWITCH PUSH SPST-NC 0.7A 250V |
4,832 |
|
- |
- | Bulk | Active | Panel Mount, Front | Standard | On-Mom | 700mA (AC) | 250 V | Circular - 15.20mm Dia | - | Round, Button | SPST-NC | No Marking | Red | - | - | -28°C ~ 85°C | IP40 | - | Screw Terminal |
|
|
1.10.001.151/0104SWITCH PUSH SPST-NC 0.7A 250V |
4,259 |
|
- |
- | Bulk | Active | Panel Mount, Front | Standard | On-Mom | 700mA (AC) | 250 V | Circular - 15.20mm Dia | - | Round, Button | SPST-NC | No Marking | Black | - | - | -28°C ~ 85°C | IP40 | - | Screw Terminal |
|
|
1.10.001.161/0104MOMENTARY PUSHBUTTON OPAQUE BLAC |
4,801 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1.10.001.161/0301MOMENTARY PUSHBUTTON OPAQUE RED |
3,225 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
38DSP14BDM1QTSWITCH PUSHBUTTON SPDT 6A 125V |
2,726 |
|
Datasheet |
38D | Bulk | Active | Panel Mount, Rear | Standard | On-On | 6A (AC/DC) | 125 V | - | 28 V | Round, Plunger | SPDT | No Marking | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | Solder Lug |
|
|
38CSP71B10M7GTSWITCH PUSHBUTTON SPDT 3A 125V |
4,953 |
|
Datasheet |
38C | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | On-Mom | 3A (AC/DC) | 125 V | - | 28 V | Round, Plunger | SPDT | No Marking | White | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | PC Pin |
|
CTHS15CIC04ALARMSWITCH PUSH CAPACITIVE ILLUM SQ |
2,587 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | Off-On | - | - | - | - | Square, Button | - | Alarm Symbol | Black | - | LED, White | - | - | 3.2 VDC | PC Pin |
|
CTHS15CIC06ALARMSWITCH PUSH CAPACITIVE ILLUM SQ |
2,075 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | Off-On | - | - | - | - | Square, Button | - | Alarm Symbol | Black | - | LED, Blue | - | - | 3.2 VDC | PC Pin |
|
|
3S1-SP9-B8-M1-RESWITCH |
3,619 |
|
- |
3S | Bulk | Active | Panel Mount, Rear | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Plunger for Cap | SPST-NO | - | Black | - | - | -30°C ~ 85°C | - | - | Solder Lug |
|
|
3S1-SP9-B5-M1-RESWITCH |
3,867 |
|
- |
3S | Bulk | Active | Panel Mount, Rear | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Plunger for Cap | SPST-NO | - | Black | - | - | -30°C ~ 85°C | - | - | Solder Lug |
|
|
ULP22EEP1QSSCL1GRNREDSWITCH PUSHBUTTON DPDT 0.5A 250V |
3,479 |
|
Datasheet |
ULP | Bulk | Active | Through Hole | Standard, Illuminated | On-On | 200mA (AC), 500mA (DC) | 250 V | - | 25 V | Square, Button | DPDT | No Marking | Clear (White Filter/Diffuser) | Tactile Feedback | LED, Green/Red | -20°C ~ 70°C | - | - | PC Pin |
|
|
TP32P00850042SWITCH PUSH SPDT 0.4VA 20V |
3,791 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Button | SPDT | Power Symbol | Black | Sealed | - | -30°C ~ 85°C | - | - | PC Pin |
.jpg)
|
GP11MSA1KESWITCH PUSH SPST-NO 0.4VA 20V |
3,521 |
|
Datasheet |
GP | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPST-NO | No Marking | White | Epoxy Sealed Terminals | - | -30°C ~ 85°C | IP57 - Dust Protected, Waterproof | - | Gull Wing |
