Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7104-12-1011RELAY REED 4PST 500MA 12V |
2,797 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | - | Non Latching | Diode, Electrostatic Shield | 4PST-NO (4 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 1 ms |
|
|
BFH-2C05200V/0.5A REED RELAY, 2 FORM C, |
3,000 |
|
Datasheet |
BFH | Active | Through Hole | 5VDC | 250 mA | 100VDC - Max | 55.6 mA | - | Non Latching | - | DPDT (2 Form C) | PC Pin | Sealed - Hermetically | -40°C ~ 125°C | 2.5 VDC | 2 ms | 0.4 VDC | 1.5 ms | |
|
|
3602-05-92RELAY REED DPST 250MA 5V |
4,613 |
|
Datasheet |
3600 | Tube | Obsolete | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 0.1 ms | 0.4 VDC | 0.75 ms |
|
|
3501-05-711RELAY REED SPST 500MA 5V |
3,059 |
|
Datasheet |
3500 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 85°C | 3.8 VDC | 0.1 ms | 0.4 VDC | 0.75 ms |
|
|
7104-05-1010RELAY REED 4PST 500MA 5V |
2,457 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 62.5 mA | - | Non Latching | Electrostatic Shield | 4PST-NO (4 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 1 ms |
|
|
7104-12-1000RELAY REED 4PST 500MA 12V |
4,112 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | - | Non Latching | - | 4PST-NO (4 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 1 ms |
|
|
3502-12-810RELAY REED DPST 500MA 12V |
2,184 |
|
Datasheet |
3500 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 6 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 0.75 ms |
|
S2-12EURELAY REED SPST 1A 12V UL |
2,590 |
|
Datasheet |
S2 | Bulk | Active | Through Hole | 12VDC | 1 A | 300VAC, 350VDC - Max | 12 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | Axial | - | -40°C ~ 85°C | 9 VDC | 0.5 ms | 2 VDC | 1 ms |
|
|
S1-24-2ARELAY REED TWIN N/O 1.5KV 24V |
4,395 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 24VDC | 500 mA | 1000VDC - Max | 12 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) x 2 | PC Pin | - | -40°C ~ 85°C | 18 VDC | 0.3 ms | 2.4 VDC | 0.75 ms |
|
|
S3-24-CRELAY REED C/O 24V |
3,206 |
|
Datasheet |
S3 | Bulk | Active | Through Hole | 24VDC | 250 mA | 120VDC - Max | 24 mA | Rhodium (Rh) | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 18 VDC | - | 2.4 VDC | - |
|
|
S3-12-CMRELAY REED C/O 12V |
3,844 |
|
Datasheet |
S3 | Bulk | Active | Through Hole | 12VDC | 250 mA | 120VDC - Max | 66.7 mA | Rhodium (Rh) | Non Latching | EMI Shielded | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 9 VDC | - | 1.2 VDC | - |
|

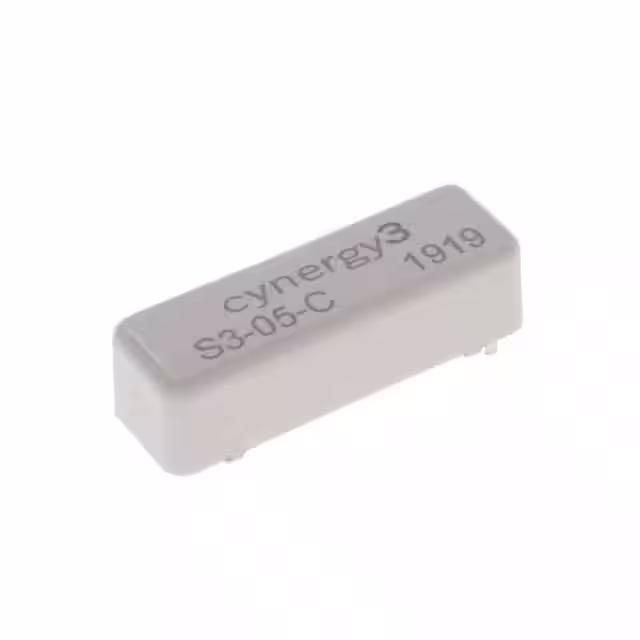

S3-05-CRELAY REED C/O 5V |
4,603 |
|
Datasheet |
S3 | Bulk | Active | Through Hole | 5VDC | 250 mA | 120VDC - Max | 167 mA | Rhodium (Rh) | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 3.75 VDC | - | 0.5 VDC | - |
|
|
S3-05-CMRELAY REED C/O 5V |
3,480 |
|
Datasheet |
S3 | Bulk | Active | Through Hole | 5VDC | 250 mA | 120VDC - Max | 167 mA | Rhodium (Rh) | Non Latching | EMI Shielded | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 3.75 VDC | - | 0.5 VDC | - |
|
|
S3-12-CRELAY REED C/O 12V |
4,592 |
|
Datasheet |
S3 | Bulk | Active | Through Hole | 12VDC | 250 mA | 120VDC - Max | 66.7 mA | Rhodium (Rh) | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 9 VDC | - | 1.2 VDC | - |
|
|
S3-24-CMRELAY REED C/O 24V |
4,521 |
|
Datasheet |
S3 | Bulk | Active | Through Hole | 24VDC | 250 mA | 120VDC - Max | 24 mA | Rhodium (Rh) | Non Latching | EMI Shielded | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 18 VDC | - | 2.4 VDC | - |
|
|
3502-05-811RELAY REED DPST 500MA 5V |
3,829 |
|
Datasheet |
3500 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 85°C | 3.8 VDC | 0.1 ms | 0.4 VDC | 0.75 ms |
|
|
S1-12-2ADRELAY REED TWIN N/O 1.5KV 12V |
3,581 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 12VDC | 500 mA | 1000VDC - Max | 15.4 mA | Rhodium (Rh) | Non Latching | Diode | SPST-NO (1 Form A) x 2 | PC Pin | - | -40°C ~ 85°C | 9 VDC | 0.3 ms | 1.2 VDC | 0.75 ms |
|
|
S1-24-2AMRELAY REED TWIN N/O 1.5KV 24V |
4,419 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 24VDC | 500 mA | 1000VDC - Max | 12 mA | Rhodium (Rh) | Non Latching | EMI Shielded | SPST-NO (1 Form A) x 2 | PC Pin | - | -40°C ~ 85°C | 18 VDC | 0.3 ms | 2.4 VDC | 0.75 ms |
|
|
S1-12-2AMRELAY REED TWIN N/O 1.5KV 12V |
3,350 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 12VDC | 500 mA | 1000VDC - Max | 15.4 mA | Rhodium (Rh) | Non Latching | EMI Shielded | SPST-NO (1 Form A) x 2 | PC Pin | - | -40°C ~ 85°C | 9 VDC | 0.3 ms | 1.2 VDC | 0.75 ms |
|
|
S1-05-2AMRELAY REED TWIN N/O 1.5KV 5V |
4,493 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 5VDC | 500 mA | 1000VDC - Max | 20 mA | Rhodium (Rh) | Non Latching | EMI Shielded | SPST-NO (1 Form A) x 2 | PC Pin | - | -40°C ~ 85°C | 3.75 VDC | 0.3 ms | 0.5 VDC | 0.75 ms |
