Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT70510PURELAY REED SPST-NO 2A 5V |
3,825 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Solder Turret | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
DAT70510SURELAY REED SPST-NO 2A 5V |
2,653 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
DAT70510TURELAY REED SPST-NO 2A 5V |
2,792 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
DAT71210PURELAY REED SPST-NO 2A 12V |
4,000 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Solder Turret | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|
|
DAT71210SURELAY REED SPST-NO 2A 12V |
3,623 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|
|
DAT71210TURELAY REED SPST-NO 2A 12V |
4,115 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|
|
DAT72410PURELAY REED SPST-NO 2A 24V |
4,708 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Solder Turret | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
|
DAT72410TURELAY REED SPST-NO 2A 24V |
3,192 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
DBT70510FRELAY REED SPST-NC 2A 5V |
2,836 |
|
Datasheet |
DB | Tray | Active | Through Hole | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 3.7 VDC | 3 ms | 0.5 VDC | 2 ms |
|
DBT70510PRELAY REED SPST-NC 2A 5V |
2,607 |
|
Datasheet |
DB | Tray | Active | Chassis Mount | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | Solder Turret | - | -20°C ~ 70°C | 3.7 VDC | 3 ms | 0.5 VDC | 2 ms |
|
DBT70510TRELAY REED HV 10KV N/C 5VDC PCB |
2,528 |
|
Datasheet |
D | Bulk | Active | Through Hole | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 131.6 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 3.7 VDC | 3 ms | 0.5 VDC | 2 ms |
|
|
DBT71210TRELAY REED HV 10KV N/C 12VDC PCB |
2,820 |
|
Datasheet |
D | Bulk | Active | Through Hole | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
|
|
DBT72410TRELAY REED HV 10KV N/C 24VDC PCB |
4,517 |
|
Datasheet |
D | Bulk | Active | Through Hole | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Solder Turret | - | -20°C ~ 70°C | 20 VDC | 3 ms | 4 VDC | 2 ms |
|

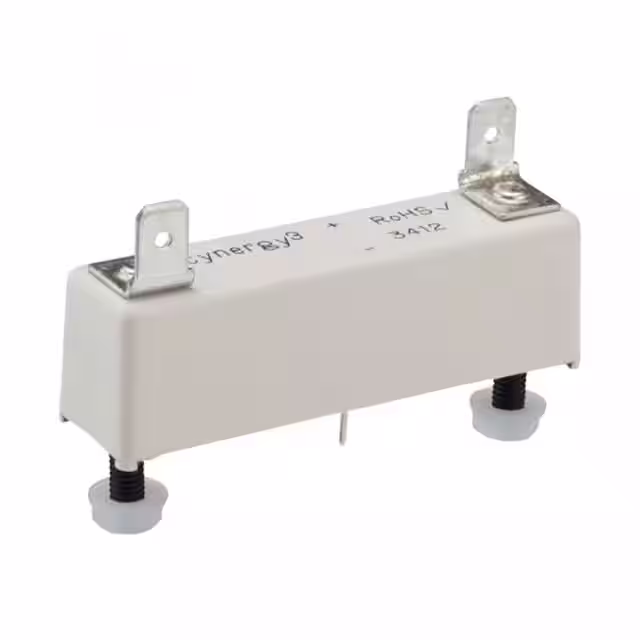

DBT70510SRELAY REED SPST-NC 2A 5V |
3,122 |
|
Datasheet |
DB | Tray | Active | Chassis Mount | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 3.7 VDC | 3 ms | 0.5 VDC | 2 ms |
|
|
DAT70510FURELAY REED SPST-NO 2A 5V |
1 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
|
V23100V6002A112RELAY REED DPST 350MA 12V |
3,058 |
|
- |
V23100-V6, AXICOM | Bulk | Active | Through Hole | 12VDC | 350 mA | 24VDC - Nom | 10.9 mA | Rhodium (Rh), Ruthenium (Ru) | Non Latching | - | DPST-NO/NC (1 Form A, 1 Form B) | PC Pin | - | - | - | - | - | - |
|
|
DBR71210FURR HV N/C 10KV 12V COIL FLYING L |
3,926 |
|
- |
D | Bulk | Active | Through Hole | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
|
|
DBR70510PURR HV N/C 10KV 5V COIL PANEL MOU |
2,454 |
|
- |
D | Bulk | Active | Chassis Mount | 5VDC | 3 A | 1000VAC, 1000VDC - Max | 131.6 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | Solder Turret | - | -20°C ~ 70°C | 3.7 VDC | 3 ms | 0.5 VDC | 2 ms |
|
|
DBR72410SURR HV N/C 10KV 24V COIL SPADE UL |
4,496 |
|
- |
D | Bulk | Active | Chassis Mount | 24VDC | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 20 VDC | 3 ms | 4 VDC | 2 ms |
|
|
DBR71210SURR HV N/C 10KV 12V COIL SPADE UL |
4,115 |
|
- |
D | Bulk | Active | Chassis Mount | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
