Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

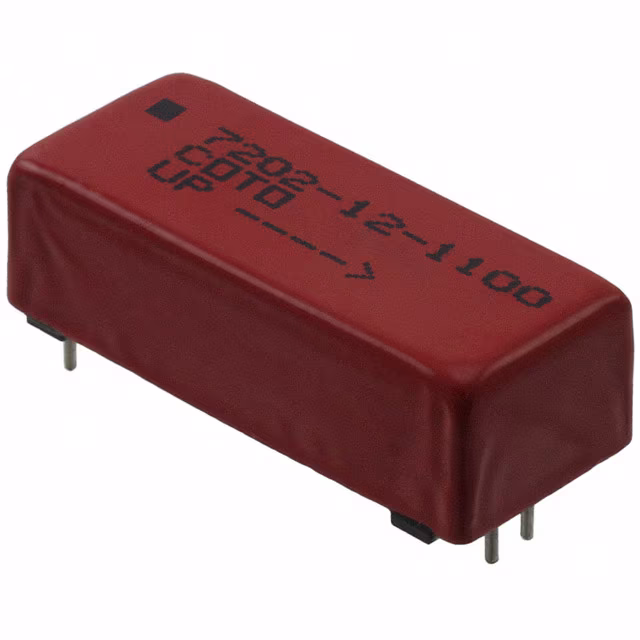

7202-12-1100RELAY REED DPST 1A 12V Coto Technology |
89 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 12VDC | 1 A | 500VAC, 500VDC - Max | 35.2 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 1 ms | 1 VDC | 2 ms |
|

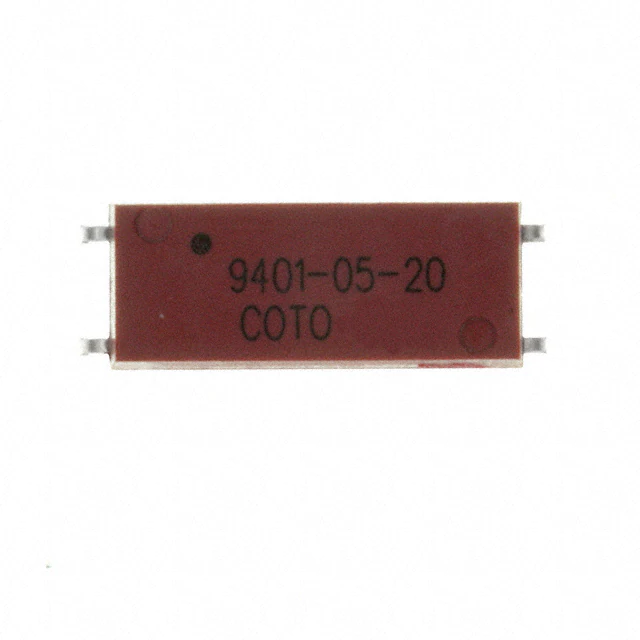

9401-05-20RELAY REED SPST 500MA 5V Coto Technology |
3,270 |
|
Datasheet |
9400 | Tube | Active | Surface Mount | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | - | Non Latching | - | SPST-NO (1 Form A) | J Lead | - | -20°C ~ 85°C | 3.75 VDC | 0.2 ms | 0.4 VDC | 0.4 ms |
|
8L41-12-001RELAY REED SPDT 250MA 12V Coto Technology |
2,729 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | - | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -20°C ~ 85°C | 9.6 VDC | 1 ms | 1 VDC | 1 ms |
|

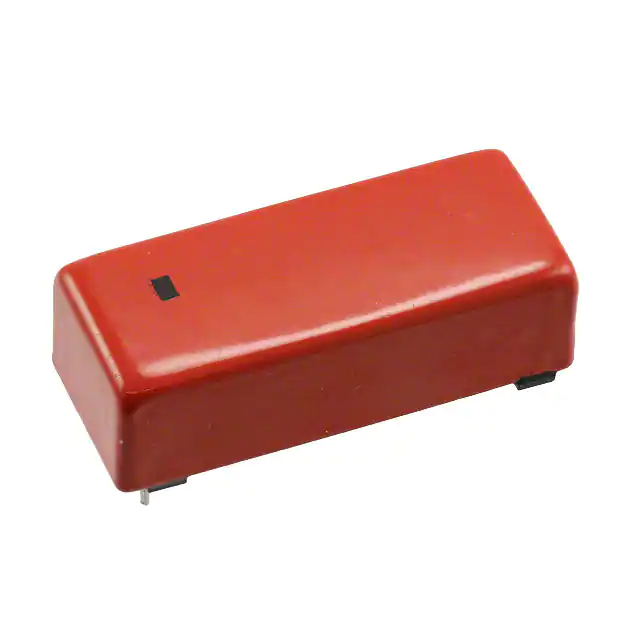

7302-24-1010RELAY REED DPST 500MA 24V Coto Technology |
4,444 |
|
Datasheet |
7000 | Tube | Not For New Designs | Through Hole | 24VDC | 500 mA | 500VAC, 500VDC - Max | 9.8 mA | - | Non Latching | Electrostatic Shield | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 0.1 ms | 2 VDC | 1 ms |
|
7143-05-1100RELAY REED 3PDT 250MA 5V Coto Technology |
3,576 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 90.9 mA | - | Non Latching | - | 3PDT (3 Form C) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 2.5 ms | 0.4 VDC | 2 ms |
|
|

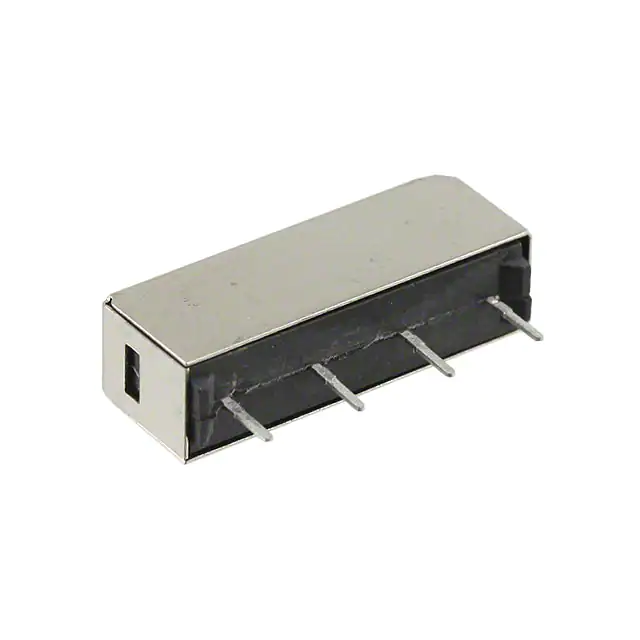

9007-05-10RELAY REED SPST 500MA 5V Coto Technology |
4,726 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.2 ms | 0.4 VDC | 0.5 ms |
|
|
9007-12-10RELAY REED SPST 500MA 12V Coto Technology |
2,533 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.2 ms | 1 VDC | 0.5 ms |
|
9007-05-11RELAY REED SPST 500MA 5V Coto Technology |
2,950 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | Diode, EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.2 ms | 0.4 VDC | 0.5 ms |
|

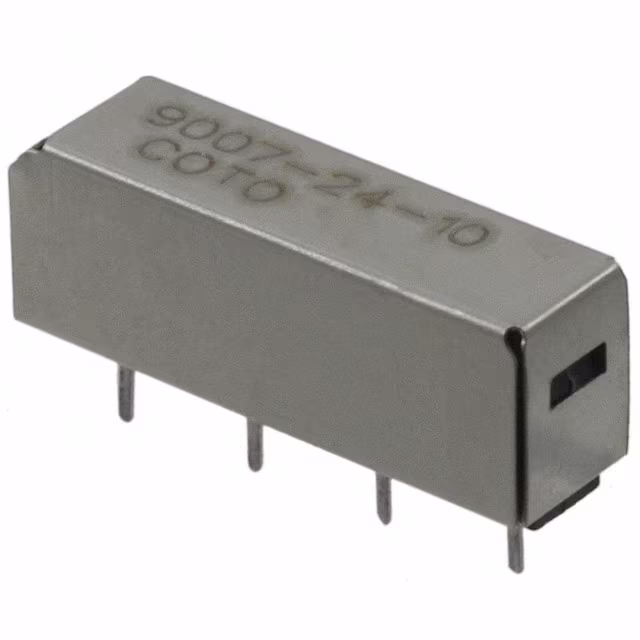

9007-24-10RELAY REED SPST 500MA 24V Coto Technology |
3,420 |
|
Datasheet |
9007, Spartan | Tube | Not For New Designs | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 0.2 ms | 2 VDC | 0.5 ms |
|
9091-12-00RELAY REED SPST 500MA 12V Coto Technology |
2,223 |
|
Datasheet |
9091 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.3 ms | 1 VDC | 0.5 ms |
