Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2362-05-000RELAY REED DPDT 250MA 5V Coto Technology |
3,102 |
|
Datasheet |
2362 | Tube | Active | Surface Mount | 5VDC | 250 mA | 100VAC, 100VDC - Max | 28.6 mA | - | Non Latching | - | DPDT (2 Form C) | Gull Wing | Sealed - Hermetically | -20°C ~ 85°C | 3.8 VDC | 2 ms | 0.4 VDC | 1.5 ms |
|
|
3502-05-511RELAY REED DPST 500MA 5V Coto Technology |
2,357 |
|
Datasheet |
3500 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 85°C | 3.8 VDC | 0.1 ms | 0.4 VDC | 0.75 ms |
|
|
7201-12-1000RELAY REED SPST 1A 12V Coto Technology |
3,483 |
|
Datasheet |
7000 | Bulk | Not For New Designs | Through Hole | 12VDC | 1 A | 500VAC, 500VDC - Max | 26.7 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 1 ms | 1 VDC | 2 ms |
|

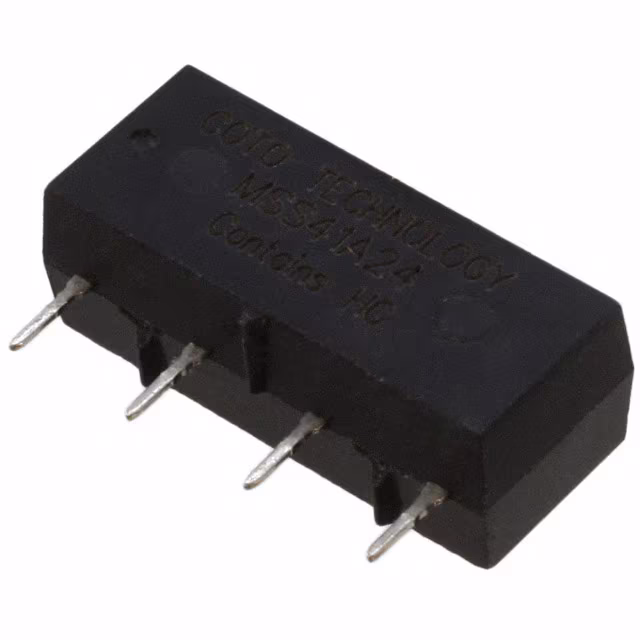

MSS41A24RELAY REED SPST 2A 24V Coto Technology |
2,343 |
|
Datasheet |
MSS4 | Tube | Discontinued at Digi-Key | Through Hole | 24VDC | 2 A | 500VAC, 500VDC - Max | 11.1 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 105°C | 18 VDC | 1.5 ms | 2 VDC | 1.75 ms |
|
|
5000-0388RELAY REED HV SPST CUSTOM Coto Technology |
4,765 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MVS21A24BRELAY REED SPST 2A 24V Coto Technology |
3,859 |
|
- |
MVS2 | Tube | Obsolete | Through Hole | 24VDC | 2 A | 1000VAC, 1000VDC - Max | 11.2 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 105°C | 18 VDC | 2.5 ms | 2 VDC | 2.5 ms |
|
5503-12-1RELAY REED SPST 3A 12V Coto Technology |
3,496 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | 12VDC | 3 A | 3500VAC, 3500VDC - Max | 69 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 3 ms | 1 VDC | 3 ms |
|
|
1240-12-2104RELAY COTO STANDARD CD REV.A BOM Coto Technology |
3,467 |
|
- |
1240 | Bulk | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 19.2 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 100 µs | 1 VDC | 1 ms |
|
|
7202-12-1001RELAY REED DPST 1A 12V Coto Technology |
4,872 |
|
Datasheet |
7000 | Bulk | Not For New Designs | Through Hole | 12VDC | 1 A | 500VAC, 500VDC - Max | 35.2 mA | - | Non Latching | Diode | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 1 ms | 1 VDC | 2 ms |
|
|
5502-05-1SPDT REED RELAY POLARIZED 5V DC Coto Technology |
4,758 |
|
Datasheet |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
