Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7202-24-1101RELAY REED DPST 1A 24V |
3,258 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 1 A | 500VAC, 500VDC - Max | 18 mA | - | Non Latching | Diode | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 1 ms | 2 VDC | 2 ms |
|
|
7203-05-1000RELAY REED 3PST 1A 5V |
2,990 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 1 A | 500VAC, 500VDC - Max | 100 mA | - | Non Latching | - | 3PST-NO (3 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 1 ms | 0.4 VDC | 2 ms |
|
|
7203-05-1010RELAY REED 3PST 1A 5V |
3,178 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 1 A | 500VAC, 500VDC - Max | 100 mA | - | Non Latching | Electrostatic Shield | 3PST-NO (3 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 1 ms | 0.4 VDC | 2 ms |
|
|
7203-24-1000RELAY REED 3PST 1A 24V |
4,921 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 1 A | 500VAC, 500VDC - Max | 20 mA | - | Non Latching | - | 3PST-NO (3 Form A) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 1 ms | 2 VDC | 2 ms |
|
|
7241-05-1001RELAY REED SPDT 1A 5V |
4,068 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 1 A | 500VAC, 500VDC - Max | 100 mA | - | Non Latching | Diode | SPDT (1 Form C) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 1.5 ms | 0.4 VDC | 2 ms |
|
|
7241-05-1011RELAY REED SPDT 1A 5V |
3,579 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 1 A | 500VAC, 500VDC - Max | 100 mA | - | Non Latching | Diode, Electrostatic Shield | SPDT (1 Form C) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 1.5 ms | 0.4 VDC | 2 ms |
|
|
7241-12-1000RELAY REED SPDT 1A 12V |
3,691 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 1 A | 500VAC, 500VDC - Max | 40 mA | - | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 1.5 ms | 1 VDC | 2 ms |
|
|
7301-05-1001RELAY REED SPST 500MA 5V |
2,717 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 500 mA | 500VAC, 500VDC - Max | 28.6 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 1 ms |
|
|
7301-05-1010RELAY REED SPST 500MA 5V |
3,512 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 500 mA | 500VAC, 500VDC - Max | 28.6 mA | - | Non Latching | Electrostatic Shield | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 1 ms |
|
|
7301-05-1100RELAY REED SPST 500MA 5V |
4,408 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 500 mA | 500VAC, 500VDC - Max | 28.6 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 1 ms |
|
|
7301-12-1100RELAY REED SPST 500MA 12V |
3,506 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 500VAC, 500VDC - Max | 10.9 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 1 ms |
|
|
7302-12-1110RELAY REED DPST 500MA 12V |
2,303 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 500VAC, 500VDC - Max | 18.8 mA | - | Non Latching | Electrostatic Shield | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 1 ms |
|
|
7302-24-1001RELAY REED DPST 500MA 24V |
2,001 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 500 mA | 500VAC, 500VDC - Max | 9.8 mA | - | Non Latching | Diode | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 0.1 ms | 2 VDC | 1 ms |
|
|
7304-12-1000RELAY REED 4PST 500MA 12V |
4,097 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 500VAC, 500VDC - Max | 40 mA | - | Non Latching | - | 4PST-NO (4 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 1 ms |
|

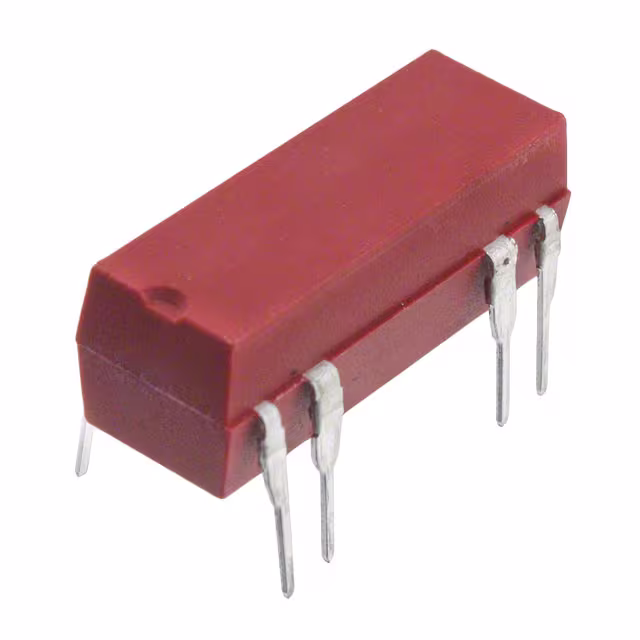

8001-05-011RELAY REED SPST 500MA 5V |
3,478 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 1 ms | 0.5 VDC | 0.5 ms |
|
|
8001-05-101RELAY REED SPST 500MA 5V |
3,102 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | Electrostatic Shield | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 0.5 ms |
|
|
8001-12-001RELAY REED SPST 500MA 12V |
3,075 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 24 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9.6 VDC | 0.5 ms | 1 VDC | 0.5 ms |
|
|
8002-05-00RELAY REED DPST 500MA 5V |
4,071 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 0.5 ms |
|
8002-12-00RELAY REED DPST 500MA 12V |
3,129 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 24 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 9.6 VDC | 0.5 ms | 1 VDC | 0.5 ms |
|
|
8041-05-101RELAY REED SPDT 250MA 5V |
4,435 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 5VDC | 250 mA | 100VAC, 100VDC - Max | 25 mA | - | Non Latching | Electrostatic Shield | SPDT (1 Form C) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 1 ms | 0.5 VDC | 1 ms |
