Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE721A0550RELAY REED SPST 500MA 5V |
3,177 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 10 mA | - | Non Latching | Diode, EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 3.75 VDC | 1 ms | 0.5 VDC | 1 ms |
|
|
HE721A1250RELAY REED SPST 500MA 12V |
4,502 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VDC - Max | 12 mA | - | Non Latching | Diode, EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 8 VDC | 1 ms | 1 VDC | 1 ms |
|
|
HE721A2440RELAY REED SPST 500MA 24V |
4,979 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | 500 mA | 200VDC - Max | 11.1 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 16 VDC | 1 ms | 2 VDC | 1 ms |
|
|
HE721C0550RELAY REED SPDT 250MA 5V |
3,386 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | 250 mA | 175VDC - Max | 25 mA | - | Non Latching | Diode, EMI Shielded | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 3.75 VDC | 3 ms | 0.5 VDC | 3 ms |
|
|
HE721C1220RELAY REED SPDT 250MA 12V |
2,996 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 12VDC | 250 mA | 175VDC - Max | 24 mA | - | Non Latching | Electrostatic Shield | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 8 VDC | 3 ms | 1 VDC | 3 ms |
|
|
HE721C2440RELAY REED SPDT 250MA 24V |
2,822 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | 250 mA | 175VDC - Max | 12 mA | - | Non Latching | EMI Shielded | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 16 VDC | 3 ms | 2 VDC | 3 ms |
|
HE3671A0500RELAY REED SPST 500MA 5V |
3,124 |
|
Datasheet |
HE3600 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VDC - Max | 10 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 3.75 VDC | 1 ms | 0.5 VDC | 1 ms |
|
|
HE3671A1200RELAY REED SPST 500MA 12V |
2,152 |
|
Datasheet |
HE3600 | Tube | Obsolete | Through Hole | 12VDC | 500 mA | 200VDC - Max | 12 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 8 VDC | 1 ms | 1 VDC | 1 ms |
|
HE3321A0540RELAY REED SPST 500MA 5V |
2,388 |
|
Datasheet |
HE3300 | Bag | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 10 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 3.75 VDC | 1 ms | 0.5 VDC | 1 ms |
|
|
HE3321A0440RELAY REED SPST 500MA 5V |
3,485 |
|
Datasheet |
HE3300 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 10 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 3.75 VDC | 1 ms | 0.5 VDC | 1 ms |
|
2274-05-021RELAY REED SPST 500MA 5V |
2,259 |
|
Datasheet |
2270 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 50 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 125°C | 2.5 VDC | 0.1 ms | 0.4 VDC | 0.5 ms |
|
SIL12-1A31-71MRELAY REED SPST 2A 12V |
4,843 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 12VDC | 2 A | 500VAC, 500VDC - Max | 24 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 55°C | 8.4 VDC | 1 ms | 1.8 VDC | 1.2 ms |
|

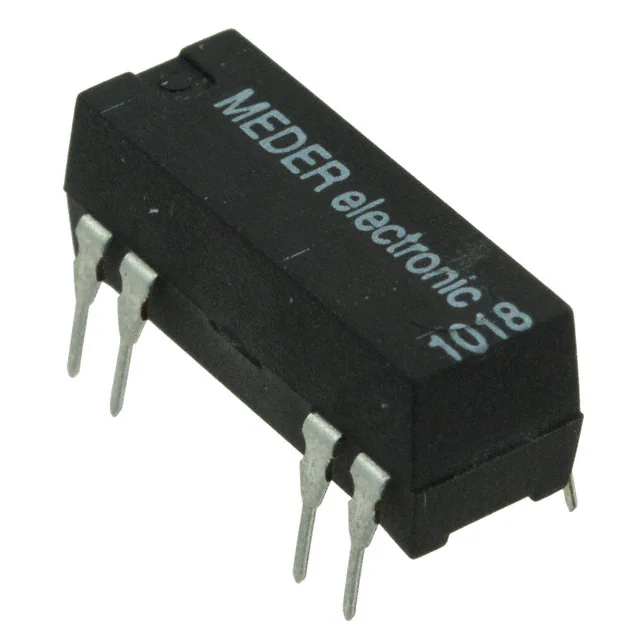

DIP05-1C90-51FRELAY REED SPDT 250MA 5V |
3,433 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | 250 mA | 175VAC, 175VDC - Max | 25 mA | - | Non Latching | Diode | SPDT (1 Form C) | PC Pin | - | -20°C ~ 70°C | 3.5 VDC | 1.5 ms | 0.75 VDC | 0.7 ms |
|
|
3520-05-911RELAY REED DPST 1A 5V |
3,638 |
|
Datasheet |
3500 | Tube | Obsolete | Through Hole | 5VDC | 1 A | 500VAC, 500VDC - Max | 25 mA | - | Non Latching | Electrostatic Shield | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 1 ms | 0.4 VDC | 2 ms |
|
|
HE721R1200RELAY REED SPDT 250MA 12V |
2,891 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 12VDC | 250 mA | 175VDC - Max | 24 mA | - | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 8 VDC | 3 ms | 1 VDC | 3 ms |
|
|
HE721R2400RELAY REED SPDT 250MA 24V |
4,544 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | 250 mA | 175VDC - Max | 12 mA | - | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 16 VDC | 3 ms | 2 VDC | 3 ms |
|
|
9201-12-00TRRELAY REED SPST 500MA 12V |
3,043 |
|
Datasheet |
9200 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | - | Non Latching | - | SPST-NO (1 Form A) | Gull Wing | Sealed - Hermetically | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 0.4 ms |
|
|
1340-0251RELAY REED HV CUSTOM |
2,583 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

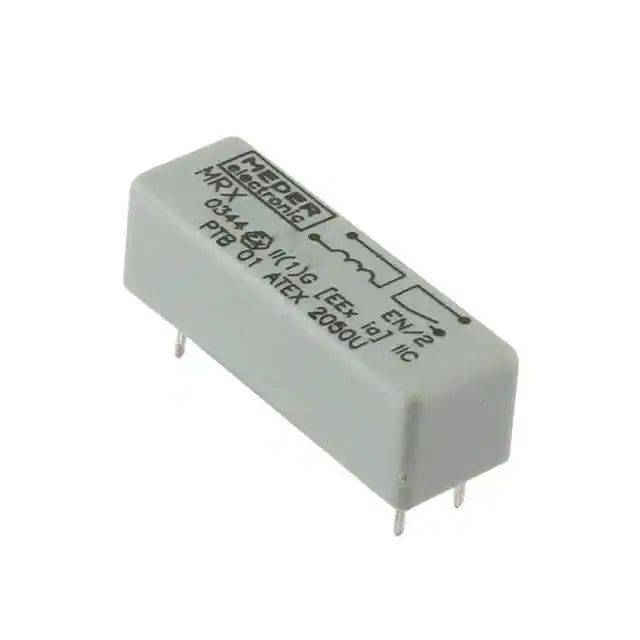

MRX24-1A71REED RELAY SPST-NO 24V ATEX PLAS |
4,790 |
|
Datasheet |
MRX | Tube | Active | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 4 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Fully | -20°C ~ 85°C | 18 VDC | 0.2 ms | 3.5 VDC | 0.5 ms |
|
|
H12-1A83RELAY REED 3A 12V |
2,195 |
|
Datasheet |
H | Bag | Active | Through Hole | 12VDC | 3 A | 7500VAC, 7500VDC - Max | 52.2 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 70°C | 8.4 VDC | 1.5 ms | 1 VDC | 3 ms |
