RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE9858B-20-CPRGWR-112 Waveguide Standard Gain H Pasternack |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 10.440" (265.18mm) | General Purpose |
|
|
PE9856B-20-CPRGWR-90 Waveguide Standard Gain Ho Pasternack |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 9.870" (250.70mm) | General Purpose |
|
|
PEWAN1076WR-15 Waveguide Lens Horn Antenn Pasternack |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 60GHz | 55GHz ~ 65GHz | Horn | 1 | 1.5 | - | 37dBi | - | - | - | - | - | - | Waveguide Mount | 10.850" (275.59mm) | General Purpose |
|
|
PEWAN1072WR-12 Waveguide Wide Angle Scala Pasternack |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 77GHz | 72GHz ~ 82GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.100" (27.94mm) | General Purpose |
|
|
PEWAN1074WR-10 Waveguide Wide Angle Scala Pasternack |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 94GHz | 89GHz ~ 99GHz | Horn | 1 | - | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PE9859B/NF-15WR-137 Waveguide Standard Gain H Pasternack |
8 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 8.240" (209.30mm) | General Purpose |
|

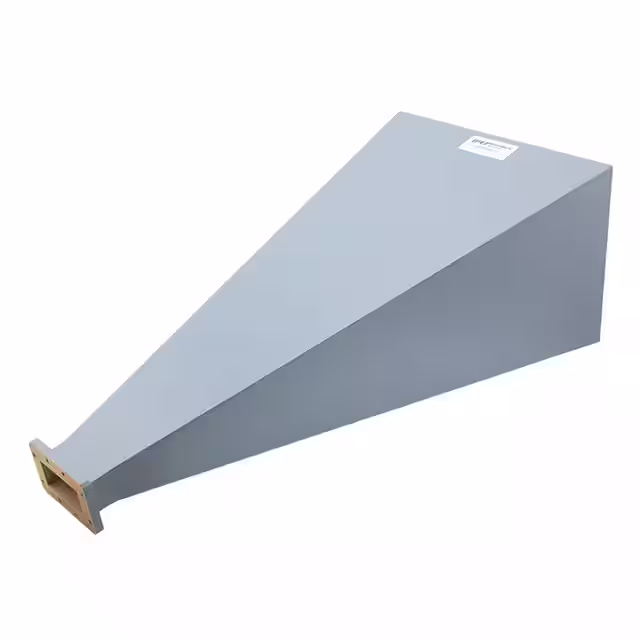

PEWAN187-20WR187 GAIN HORN 3.95-5.85GHZ 20D Pasternack |
4 |
|
Datasheet |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|

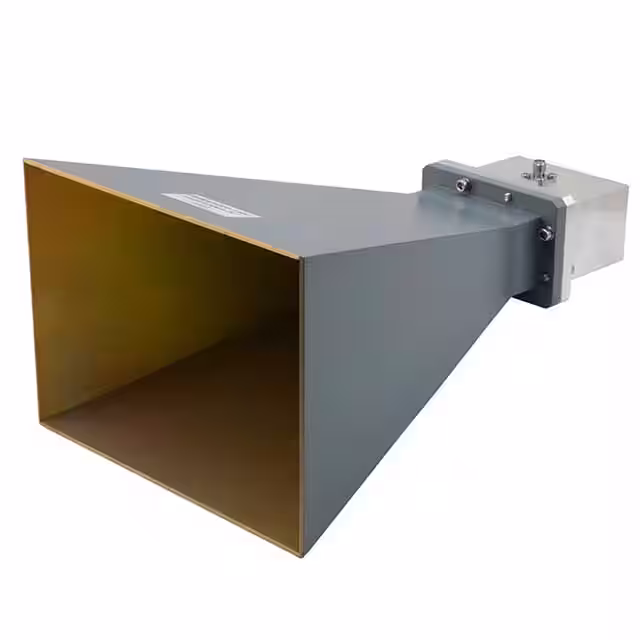

PEWAN229-15SFWR229 GAIN HRN 3.3-4.9GHZ 15DBI Pasternack |
3 |
|
Datasheet |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | SMA Female | - | - | - | Waveguide Flange Mount | 9.795" (248.79mm) | - |
|
|
PE9856B/SF-10WR-90 Standard Gain Horn Antenna Pasternack |
10 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 1.220" (31.00mm) | General Purpose |
|
|
PEWAN1009WR-15 Waveguide Standard Gain Ho Pasternack |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 62.5GHz | 50GHz ~ 75GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.250" (31.75mm) | General Purpose |
