RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

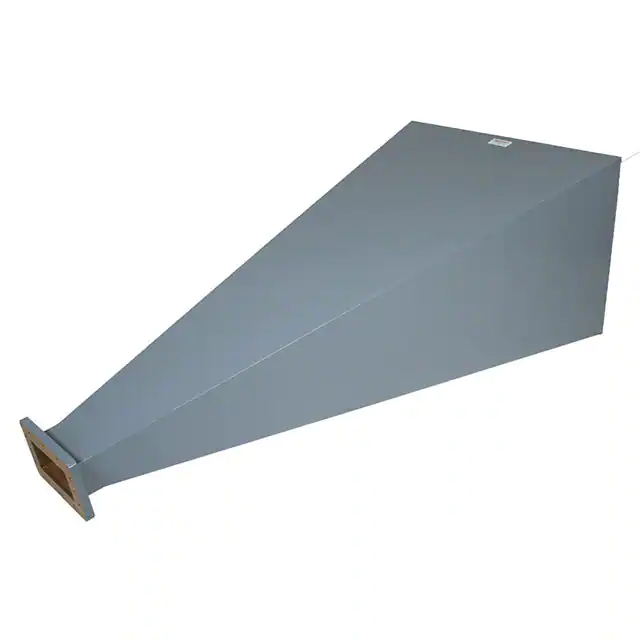

PEWAN430-20WR430 GAIN HORN 1.7-2.6GHZ 20DBI Pasternack |
1 |
|
Datasheet |
- | Bulk | Active | Waveguide | L Band (1GHz ~ 2GHz) | 2.2GHz | 1.7GHz ~ 2.6GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PE51FP1005-48 DBI 902-960MHZ OMNI SMA Pasternack |
3,735 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.5 | - | 8dBi | - | Cable - 1.2192m | SMA Male | - | - | - | Wall Mount | 1.200" (30.48mm) | GSM, ISM, LPWAN, LoRA, WLAN |
|
PE51FP1008-18DBI 902-928MHZ RHCP PANEL RPSMA Pasternack |
2,242 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.5 | - | 8dBi | 25 W | Cable - 1.2192m | RP-SMA | - | - | - | Panel Mount | 1.100" (27.94mm) | GSM, ISM, LPWAN, LoRA, WLAN |
|
PEWAN1012WR-15 Waveguide Standard Gain Ho Pasternack |
2,634 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 62.5GHz | 50GHz ~ 75GHz | Horn | 1 | 1.15 | - | 24dBi | - | - | - | - | - | - | Waveguide Mount | 3.930" (99.82mm) | General Purpose |
|
|
PEWAN1006WR-19 Waveguide Standard Gain Ho Pasternack |
3,292 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 50GHz | 40GHz ~ 60GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.500" (38.10mm) | General Purpose |
|
|
PEWAN1111WR-28 Waveguide Dual Polarized S Pasternack |
3,557 |
|
Datasheet |
- | Retail Package | Active | Cellular | SHF (f > 4GHz) | 32GHz | 24GHz ~ 40GHz | Horn | 1 | - | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 4.100" (104.14mm) | 5G |
|
PE512154.5 DBI DB 4900-5900 MHZ UMCX Pasternack |
8 |
|
Datasheet |
- | Bag | Active | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | PCB Trace | 1 | - | - | 4.5dBi | - | Cable - 85.85mm | U.FL (UMCX), I-PEX | - | - | - | Surface Mount | 0.030" (0.76mm) | WLAN |
|
PE512023DBI PCB ANT 2400-5900MHZ UMCX Pasternack |
12 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 3dBi | - | Cable - 100mm | U.FL (UMCX), I-PEX | - | - | - | Surface Mount | - | WLAN |
|
PE512042DBI PCB ANT 2400-2500MHZ UMCX Pasternack |
10 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 2dBi | - | Cable - 100mm | U.FL (UMCX), I-PEX | - | - | - | Surface Mount | 0.039" (1.00mm) | WLAN |
|
PE512113 DBI PCB 5150-5850 MHZ UMCX Pasternack |
8 |
|
Datasheet |
- | Bag | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.850GHz | PCB Trace | 1 | 2 | - | 3.5dBi | - | Cable - 100mm | U.FL (UMCX), I-PEX | - | - | - | Surface Mount | - | WLAN |
