RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

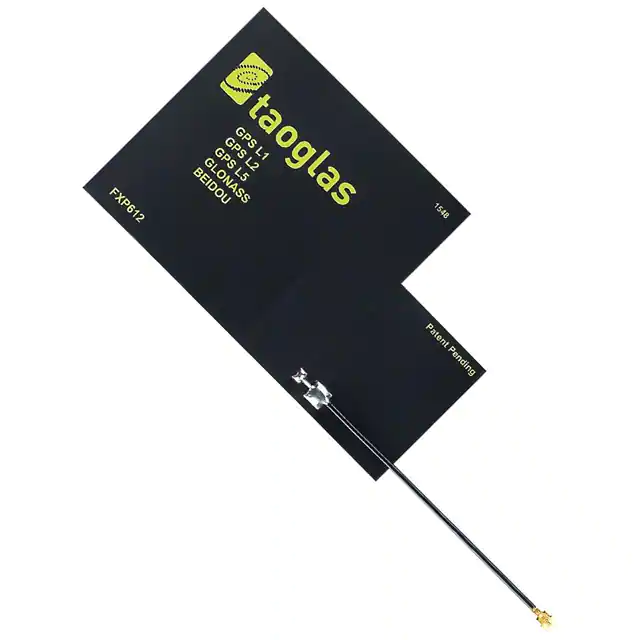

FXP612.07.0095ARF ANT FLAT PATCH IPEX MHFI ADH Taoglas Limited |
68 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | - | - | Flat Patch | 3 | 1.3 | -23dB | 4dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Beidou, GLONASS, GPS |
|
AFXP.125.07.0095AACTIVE MULTI-BAND GNSS FLEXIBLE Taoglas Limited |
64 |
|
Datasheet |
- | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Flat Patch | 4 | 1 | - | -3.73dBi, -0.71dBi, -0.63dBi, -0.13dBi | - | Cable - 95mm, LNA, Filter | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.091" (2.30mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|

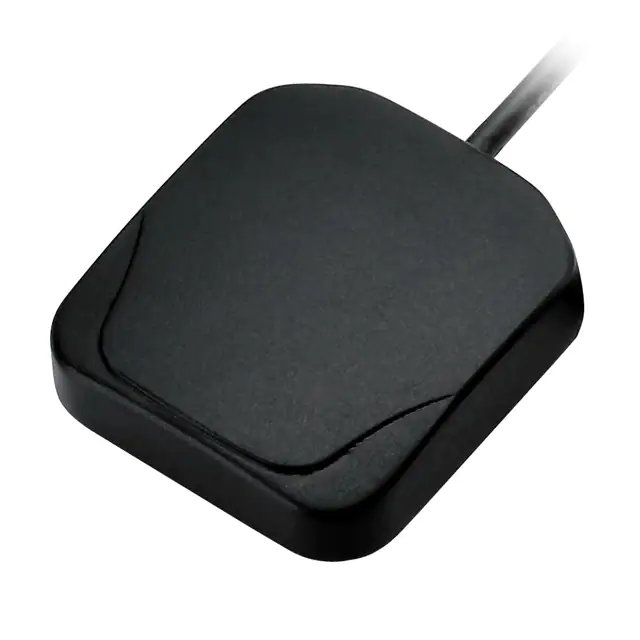

AA.166.A.301111AA.166.A.301111 ULYSSES MINIATUR Taoglas Limited |
56 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.559GHz, 1.561GHz, 1.575GHz, 1.592GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Module | 5 | 5 | -3dB | 1.92dBi, 2.34dBi, 0.34dBi, 2.1dBi, 1.81dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.394" (10.00mm) | Beidou, Galileo, GLONASS, GPS |
|
TS.89.4113SIGHUNTER 868 & 915MHZ DIRECTION Taoglas Limited |
30 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Module | 2 | - | - | 3.5dBi, 2.7dBi | 10 W | Cable - 127mm | SMA Male | - | - | - | Connector Mount | 4.646" (118.00mm) | ISM, LoRa, Sigfox |
|

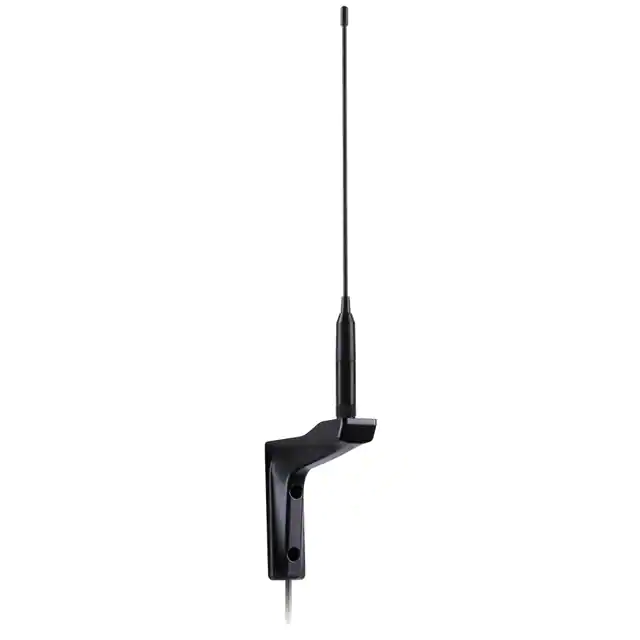

WM.86.A.305111CYCLOPS 868MHZ WALL MOUNT FLEXIB Taoglas Limited |
80 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 890MHz | Whip, Straight | 1 | - | -10dB | 2.57dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Bracket Mount | 12.087" (307.00mm) | ISM |
|
|
AHP24510.07.0100CACTIVE GNSS L1,L2 L-BAND STACKED Taoglas Limited |
24 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.249GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.589GHz | 1.217GHz ~ 1.237GHz, 1.241GHz ~ 1.258GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.569GHz ~ 1.61GHz | Ceramic Patch | 6 | 2 | - | 3.05dBi, 2.86dBi, 4.33dBi, 4.48dBi, 4.5dBi, 2.46dBi | - | Cable - 100mm, LNA, Filter | I-PEX MHFI (U.FL) | - | - | - | Adhesive | 0.596" (15.15mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
A.120.A.101111BOLT LOW PROFILE ACTIVE GNSS L1/ Taoglas Limited |
5 |
|
Datasheet |
- | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.268GHz, 1.278GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Dome | 10 | 1.5 | - | -1.5dBi, 0.5dBi, 1.8dBi, 1.2dBi, -0.1dBi, -1.5dBi, 2.6dBi, 4.2dBi, 4dBi, 2.7dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.024" (26.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
MA700.A.ABC.001RF ANT 750/892MHZ DOME SMA MALE Taoglas Limited |
23 |
|
Datasheet |
Pantheon | Box | Active | Cellular, Navigation | Wide Band | 750MHz, 892MHz, 1.588GHz, 1.9GHz, 2.4GHz, 5.5GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.9GHz | Dome | 6 | 2, 1.7 | - | 2.4dBi, 1.7dBi, 32dBi, 2.4dBi, 2.1dBi, 3.8dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GLONASS, GPS, LTE |
|

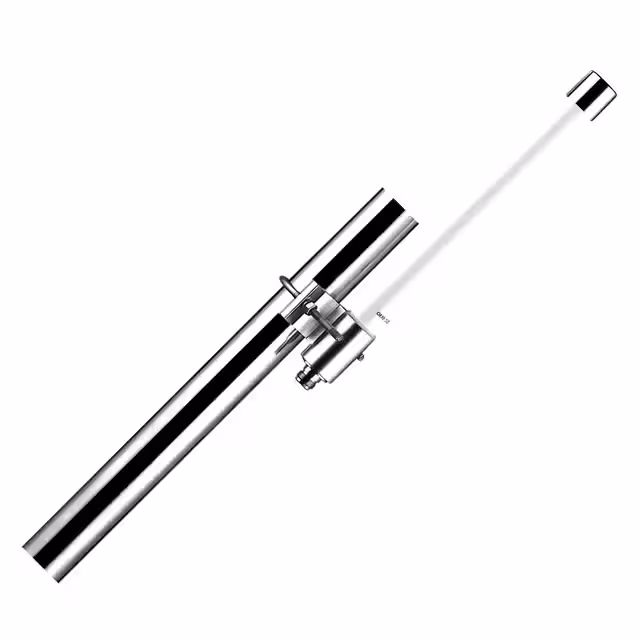

OMB.445.05F21RF ANT 4.7GHZ WHIP STR N FEM Taoglas Limited |
4 |
|
Datasheet |
Barracuda | Tube | Active | - | SHF (f > 4GHz) | 4.7GHz | 4.4GHz ~ 5GHz | Whip, Straight | 1 | 1.5 | - | 7dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 10.630" (270.00mm) | - |
|
TGX.04.A.001450-6000MHZ CROSS POLARISED WIDE Taoglas Limited |
13 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 450MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 430MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 9 | - | - | 1dBi, 1.9dBi, 2.7dBi, 2.8dBi, 3.1dBi, 4.2dBi, 4.3dBi, 3.5dBi, 2.3dBi | 10 W | - | SMA Male | IP67 | - | - | Pole, Wall Mount | 5.866" (149.00mm) | 3G, 4G, 5G, LTE, Wi-Fi |
