Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71BDF30-12-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
2,457 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 250mA (AC/DC) | 115 V | 12 | 30 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole, Right Angle | 9.53mm | - | - | 30° | Silver Alloy | 87.35mm |
|
|
44M45-05-1-02NSWITCH ROTARY 2POS 5A 115V |
3,107 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | Solder Lug | 5A (AC), 1A (DC) | 115 V | 5 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | - | - | 45° | Silver Alloy | 61.19mm |
|
|
44M30-03-4-02NSWITCH ROTARY 2POS 1A 115V |
3,164 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | Solder Lug | 1A (AC/DC) | 115 V | 3 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | - | - | 30° | Silver Alloy | 43.61mm |
|
|
53HS15-02-1-21SSWITCH ROTARY 21POS 250MA 115V |
4,502 |
|
Datasheet |
53 | Bulk | Active | 21 | Fixed | 1 | SP21T | Shorting (MBB) | Solder Lug | 250mA (AC/DC) | 115 V | 2 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | - | Gold | 15° | Silver Alloy | 31.72mm |
|
|
53HS15-02-1-12NSWITCH ROTARY 12POS 250MA 115V |
2,013 |
|
Datasheet |
53 | Bulk | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 115 V | 2 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | Shaft and Panel Sealed | Gold | 15° | Silver Alloy | 31.72mm |
|
|
53HS15-02-1-20NSWITCH ROTARY 20POS 250MA 115V |
3,562 |
|
Datasheet |
53 | Bulk | Active | 20 | Fixed | 1 | SP20T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 115 V | 2 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | Shaft and Panel Sealed | Gold | 15° | Silver Alloy | 31.72mm |
|
|
53HS15-02-1-23SSWITCH ROTARY 23POS 250MA 115V |
3,770 |
|
Datasheet |
53 | Bulk | Active | 23 | Fixed | 1 | SP23T | Shorting (MBB) | Solder Lug | 250mA (AC/DC) | 115 V | 2 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | Shaft and Panel Sealed | Gold | 15° | Silver Alloy | 31.72mm |
|
|
53HS15-02A24NSWITCH ROTARY 24POS 250MA 115V |
3,165 |
|
Datasheet |
53 | Bulk | Active | 24 | Continuous | 1 | SP24T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 115 V | 2 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | Shaft and Panel Sealed | Gold | 15° | Silver Alloy | 31.72mm |
|
|
53HS15-02A24SSWITCH ROTARY 24POS 250MA 115V |
2,513 |
|
Datasheet |
53 | Bulk | Active | 24 | Continuous | 1 | SP24T | Shorting (MBB) | Solder Lug | 250mA (AC/DC) | 115 V | 2 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | Shaft and Panel Sealed | Gold | 15° | Silver Alloy | 31.72mm |
|
|
53HS15-02B24SSWITCH ROTARY 24POS 250MA 115V |
4,073 |
|
Datasheet |
53 | Bulk | Active | 24 | Fixed | 1 | SP24T | Shorting (MBB) | Solder Lug | 250mA (AC/DC) | 115 V | 2 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | Shaft and Panel Sealed | Gold | 15° | Silver Alloy | 31.72mm |
|
|
42MGS36-01C05NSWITCH ROTARY 5POS 1A 115V |
4,822 |
|
- |
42 | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | Solder Lug | 1A (AC/DC) | 115 V | 1 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | - | - | 36° | Silver Alloy | 26.04mm |
|
|
D6D0412SSWITCH ROTARY 2-12POS 500MA 115V |
3,892 |
|
Datasheet |
D6 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Shorting (MBB) | Solder Lug | 500mA (AC), 1.5A (DC) | 115 V | 4 | 28 V | Round (6.35mm Dia) | Panel Mount | 47.63mm | - | Silver | 30° | Brass | 60.48mm |
|
|
D7C0211NSWITCH ROTARY 2-11POS 1A 115V |
2,993 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | Solder Lug | 1A (AC), 2.25A (DC) | 115 V | 2 | 28 V | Round (6.35mm Dia) | Panel Mount | 47.63mm | - | Silver | 30° | Brass | 47.32mm |
|
|
D7C0211SSWITCH ROTARY 2-11POS 1A 115V |
4,291 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | SP11T | Shorting (MBB) | Solder Lug | 1A (AC), 2.25A (DC) | 115 V | 2 | 28 V | Round (6.35mm Dia) | Panel Mount | 47.63mm | - | Silver | 30° | Brass | 47.32mm |
|
|
44S30-04-2-06NSWITCH ROTARY 6POS 1A 115V |
4,474 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | Solder Lug | 1A (AC/DC) | 115 V | 4 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | Shaft and Panel Sealed | - | 30° | Silver Alloy | 52.40mm |
|
|
D7G0311NSWITCH ROTARY 2-11POS 1A 115V |
4,498 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | Solder Lug | 1A (AC), 2.25A (DC) | 115 V | 3 | 28 V | Round (6.35mm Dia) | Panel Mount | 47.63mm | - | Silver | 30° | Brass | 70.71mm |
|

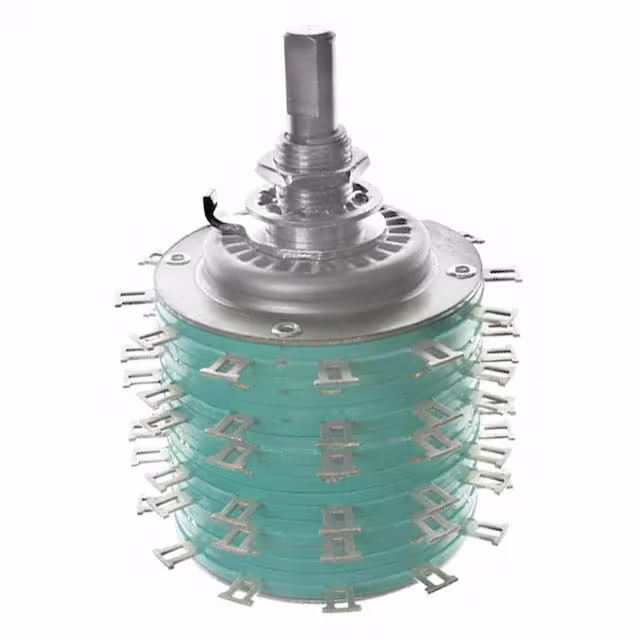

C7D0323NSWITCH ROTARY 23POS 500MA 125V |
4,067 |
|
Datasheet |
C7 | Bulk | Active | 23 | Fixed | 1 | SP23T | Non-Shorting (BBM) | Solder Lug | 500mA (AC), 1A (DC) | 125 V | 3 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 14.29mm | - | Silver | 15° | Brass | 44.38mm |
|
|
D7G0311SSWITCH ROTARY 2-11POS 1A 115V |
4,841 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | SP11T | Shorting (MBB) | Solder Lug | 1A (AC), 2.25A (DC) | 115 V | 3 | 28 V | Round (6.35mm Dia) | Panel Mount | 47.63mm | - | Silver | 30° | Brass | 70.71mm |
|
|
44HS30-03-2-05NSWITCH ROTARY 5POS 1A 115V |
4,002 |
|
- |
44 | Bulk | Active | 5 | Fixed | 2 | DP5T | Non-Shorting (BBM) | Solder Lug | 1A (AC/DC) | 115 V | 3 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | Shaft and Panel Sealed | - | 30° | Silver Alloy | 43.61mm |
|
|
09M45-02-2-03NSWITCH ROTARY 3POS 250MA 115V |
3,488 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 115 V | 2 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | - | Gold | 45° | Silver Alloy | 31.19mm |
