Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
312-8T3ESWITCH ROTARY 8POS 30A 300V |
0 |
|
Datasheet |
312 | Bulk | Active | 8 | Fixed | 3 | 1 | SP8T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 177.80mm |
|
|
412-5T3ESWITCH ROTARY 5POS 50A 300V |
0 |
|
Datasheet |
412 | Bulk | Active | 5 | Fixed | 3 | 1 | SP5T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 193.70mm |
|
|
608-4ESWITCH ROTARY 4POS 100A 300V |
0 |
|
Datasheet |
608 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 100A (AC/DC) | 300 V | 20 V | Flatted (9.53mm Dia) | 52.39mm | 40° | Silver Alloy | - | Panel Mount | Solder Lug | - | 84.10mm |
|
|
E4C0417NSWITCH ROTARY 2-17POS 9A 115V |
0 |
|
Datasheet |
E4 | Bulk | Active | 2 ~ 17 | Adjustable | 4 | 1 | SP17T | Non-Shorting (BBM) | 9A (AC), 11A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 47.63mm | 20° | Silver (Ag) | - | Panel Mount | Solder Lug | - | 116.79mm |
|
|
05002-02NSWITCH ROTARY 2POS 1A 115V |
0 |
|
Datasheet |
5000 | Bulk | Active | 2 | Fixed | 2 | 1 | SPDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - | - |
|
|
312-9T3ESWITCH ROTARY 9POS 30A 300V |
0 |
|
Datasheet |
312 | Bulk | Active | 9 | Fixed | 3 | 1 | SP9T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 177.80mm |
|

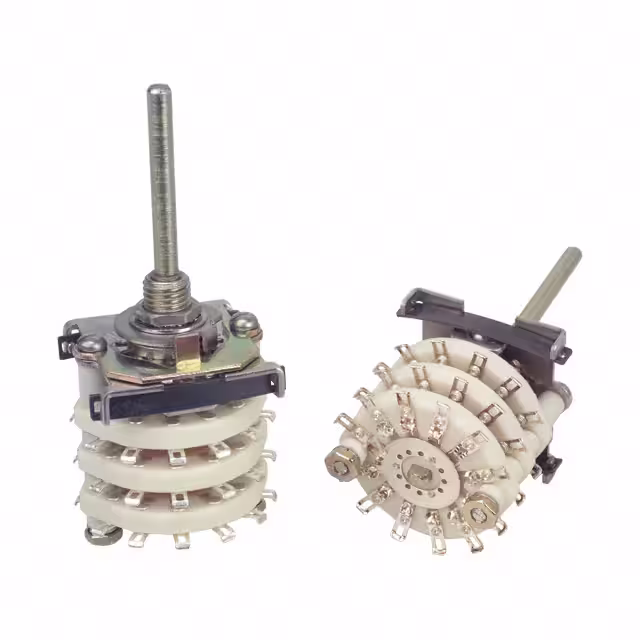

D2C0311NSWITCH ROTARY 2-11POS 250MA 115V |
0 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (3.17mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 24.08mm |
|
|
312-10T3ESWITCH ROTARY 10POS 30A 300V |
0 |
|
Datasheet |
312 | Bulk | Active | 10 | Fixed | 3 | 1 | SP10T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 177.80mm |
|
|
59M18-10A20NSWITCH ROTARY 20POS 250MA 115V |
0 |
|
Datasheet |
59 | Bulk | Active | 20 | Continuous | 10 | 1 | SP20T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 105.74mm |
|
|
412-6T3SWITCH ROTARY 6POS 50A 300V |
0 |
|
Datasheet |
412 | Bulk | Active | 6 | Fixed | 3 | 1 | SP6T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 193.70mm |
|
|
05002-07NSWITCH ROTARY 7POS 1A 115V |
0 |
|
Datasheet |
5000 | Bulk | Active | 7 | Fixed | 2 | 1 | SP7T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - | - |
|
|
608-5ESWITCH ROTARY 5POS 100A 300V |
0 |
|
Datasheet |
608 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 100A (AC/DC) | 300 V | 20 V | Flatted (9.53mm Dia) | 52.39mm | 40° | Silver Alloy | - | Panel Mount | Solder Lug | - | 84.10mm |
|
|
312-7T3SWITCH ROTARY 7POS 30A 300V |
0 |
|
Datasheet |
312 | Bulk | Active | 7 | Fixed | 3 | 1 | SP7T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 177.80mm |
|
|
59HS18-05-4-05NSWITCH ROTARY 5POS 250MA 115V |
0 |
|
Datasheet |
59 | Bulk | Active | 5 | Fixed | 5 | 4 | 4P5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 57.10mm |
|
|
412-6T3ESWITCH ROTARY 6POS 50A 300V |
0 |
|
Datasheet |
412 | Bulk | Active | 6 | Fixed | 3 | 1 | SP6T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 193.70mm |
|
|
D2C0605NSWITCH ROTARY 2-5POS 250MA 115V |
0 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 3 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (3.17mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 24.08mm |
|
|
412-7T3ESWITCH ROTARY 7POS 50A 300V |
0 |
|
Datasheet |
412 | Bulk | Active | 7 | Fixed | 3 | 1 | SP7T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 193.70mm |
|
|
M6G0806NSWITCH ROTARY 2-6POS 125MA 115V |
0 |
|
- |
M6 | Bulk | Active | 2 ~ 6 | Adjustable | 4 | 2 | DP6T | Non-Shorting (BBM) | 125mA (AC), 500mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 17.46mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 62.33mm |
|
|
M7G0324NSWITCH ROTARY 2-24POS 125MA 115V |
0 |
|
- |
M7 | Bulk | Active | 2 ~ 24 | Adjustable | 3 | 1 | SP24T | Non-Shorting (BBM) | 125mA (AC), 500mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 17.46mm | 15° | Silver Alloy | - | Panel Mount | Solder Lug | - | 56.57mm |
|
|
312-11T3ESWITCH ROTARY 11POS 30A 300V |
0 |
|
Datasheet |
312 | Bulk | Active | 11 | Fixed | 3 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 177.80mm |
