Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS16-6N-AT432SWITCH ROTARY 2-11POS 12A 125V |
2,709 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | Solder Lug | 12A (AC) | 125 V | 6 | - | Knob | Panel Mount | 15.00mm | - | - | 30° | Phosphor Bronze | 81.50mm |
|
|
MRA403SWITCH ROTARY 2-3POS 250MA 125V |
3,237 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 3 | Adjustable | 4 | 4P3T | Non-Shorting (BBM) | PC Pin | 250mA (AC) | 125 V | 1 | - | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 10.00mm | Process Sealed | Silver | 30° | Copper | 17.00mm |
|
|
PS1N-AT432SWITCH ROTARY 2-11POS 30A 125V |
3,055 |
|
Datasheet |
PS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | Screw Terminal | 30A (AC) | 125 V | 1 | - | Knob | Panel Mount | 15.00mm | - | - | 30° | Silver Alloy | 46.50mm |
|

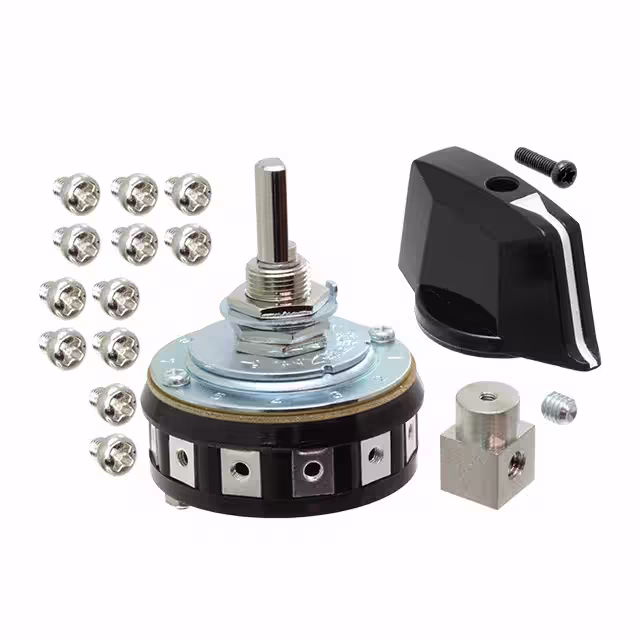

TS1N-AT432SWITCH ROTARY 2-11POS 6A 125V |
3,564 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | Screw Terminal | 6A (AC) | 125 V | 1 | - | Knob | Panel Mount | 15.60mm | - | - | 30° | Phosphor Bronze | 22.00mm |
|
|
TS3N-AT432SWITCH ROTARY 2-11POS 6A 125V |
3,656 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | Screw Terminal | 6A (AC) | 125 V | 3 | - | Knob | Panel Mount | 15.60mm | - | - | 30° | Phosphor Bronze | 46.00mm |
|
|
TS5N-AT432SWITCH ROTARY 2-11POS 6A 125V |
2,588 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | Screw Terminal | 6A (AC) | 125 V | 5 | - | Knob | Panel Mount | 15.60mm | - | - | 30° | Phosphor Bronze | 70.00mm |
|
|
435097-2SWITCH ROTARY 10POS W/ THUMBWHL |
2,971 |
|
Datasheet |
6000 | Box | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | PC Pin | - | - | 1 | - | Thumbwheel | Through Hole | Flush | - | Gold | 36° | Phosphor Bronze | - |
|
435128-1SWITCH ROTARY 10POS 125MA 115V |
2,094 |
|
Datasheet |
6000 | Bag | Active | 10 | Continuous | - | BCD | Non-Shorting (BBM) | PC Pin | 125mA (AC) | 115 V | 1 | - | Thumbwheel | Through Hole | Flush | - | Gold | 36° | Phosphor Bronze | - |
|
|
57M22-10-1-16N-CSWITCH ROTARY 16POS 250MA 115V |
2,555 |
|
Datasheet |
57 | Bulk | Active | 16 | Continuous | 1 | SP16T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 115 V | 10 | 30 V | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | - | Gold | 22.5° | Silver Alloy | 105.74mm |
|
|
42UD36-02-2-AJNSWITCH ROTARY 2-5POS 1A 125V |
4,496 |
|
Datasheet |
42 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | Solder Lug | 1A (AC) | 125 V | 2 | - | Flatted (6.35mm Dia) | Panel Mount | 11.10mm | - | - | 36° | Silver Alloy | 34.82mm |
|
|
54UD30-01-2-AJNSWITCH ROTARY 2-6POS 1A 125V |
3,813 |
|
Datasheet |
54 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | Solder Lug | 1A (AC) | 125 V | 1 | - | Concentric (3.17mm Dia, 6.35mm Dia) | Panel Mount | 9.53mm | - | - | 30° | Silver Alloy | 24.74mm |
|
|
56BSDP30-01-2-AJNSWITCH ROTARY 2-6POS 200MA 115V |
3,576 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Screwdriver Slot | Panel Mount, Through Hole | 3.18mm | Shaft and Panel Sealed | Silver | 30° | Brass | 9.58mm |
|
|
71ADF30-07-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
4,444 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 250mA (AC/DC) | 115 V | 7 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole, Right Angle | 9.53mm | - | - | 30° | Silver Alloy | 59.66mm |
|
|
55SD30-01-1-AJNSWITCH ROTARY 2-12POS 200MA 115V |
3,487 |
|
Datasheet |
55 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | Shaft and Panel Sealed | Silver | 30° | Brass | 16.13mm |
|
|
55SD36-01-1-AJNSWITCH ROTARY 2-10POS 200MA 115V |
2,105 |
|
Datasheet |
55 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 16.13mm |
|
|
71ED36-01-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
4,065 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 115 V | 1 | 30 V | Round (4mm Dia) | Panel Mount | 17.00mm | - | - | 36° | Silver Alloy | 19.33mm |
|

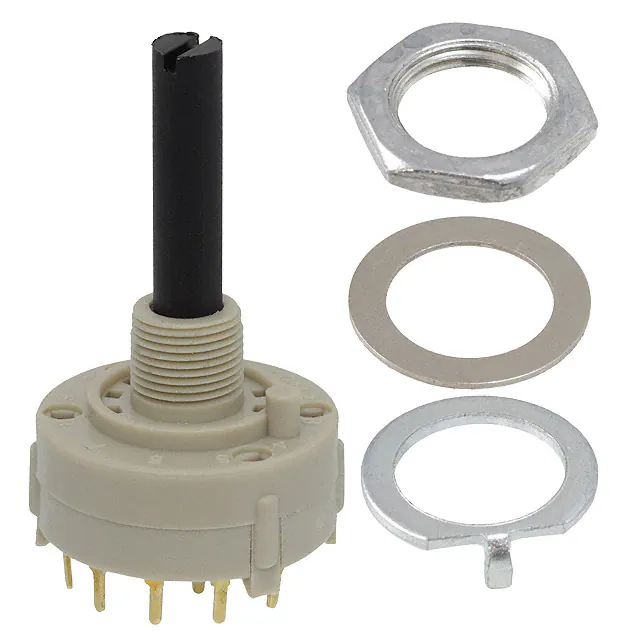

KC15B02NPFB31.5MMSWITCH ROTARY 5POS 350MA 125V |
3,009 |
|
- |
KC | Bulk | Obsolete | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | PC Pin | 350mA (AC) | 125 V | 1 | - | Round (6mm Dia), Slotted | Panel Mount, Through Hole | 23.50mm | - | Gold | 30° | Copper Alloy | 14.10mm |
|

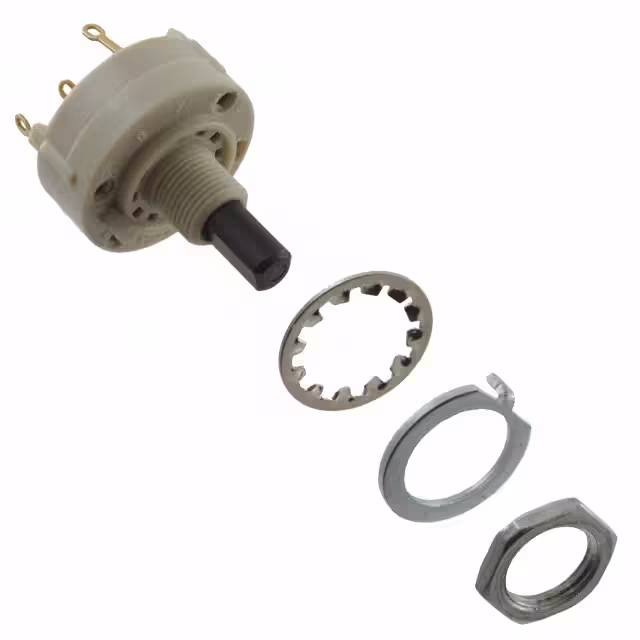

KC56A10.001NLFSWITCH ROTARY 3POS 350MA 125V |
3,850 |
|
Datasheet |
KC | Bulk | Obsolete | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | Solder Lug | 350mA (AC) | 125 V | 1 | - | Flatted (6.35mm Dia) | Panel Mount | 10.00mm | - | Gold | 90° | Copper Alloy | 18.50mm |
|

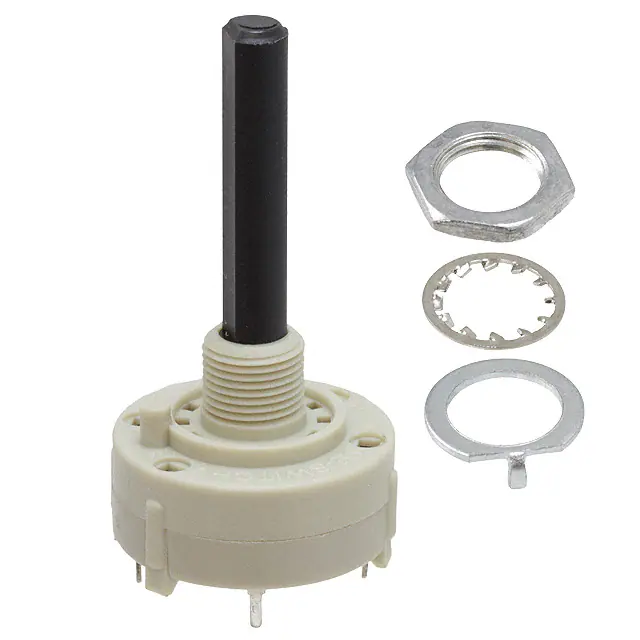

KC58A30.001NPSSWITCH ROTARY 4POS 350MA 125V |
2,221 |
|
Datasheet |
KC | Bulk | Obsolete | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | PC Pin | 350mA (AC) | 125 V | 1 | - | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 30.00mm | - | Silver | 90° | Copper Alloy | 14.20mm |
|
|
RTAC2DW16M25NSSWITCH ROTARY 16POS 150MA 60V |
3,558 |
|
Datasheet |
RTA | Bag | Obsolete | 16 | Continuous | - | BCD | Non-Shorting (BBM) | Solder Lug | 150mA (AC/DC) | 60 V | 1 | 60 V | Round (6mm Dia), Slotted | Panel Mount | 25.00mm | - | Silver | 22.5° | Brass | 18.70mm |
