Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19101-06ULSWITCH ROTARY 6POS 15A 120V |
44 |
|
Datasheet |
19 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | 24.13mm |
|

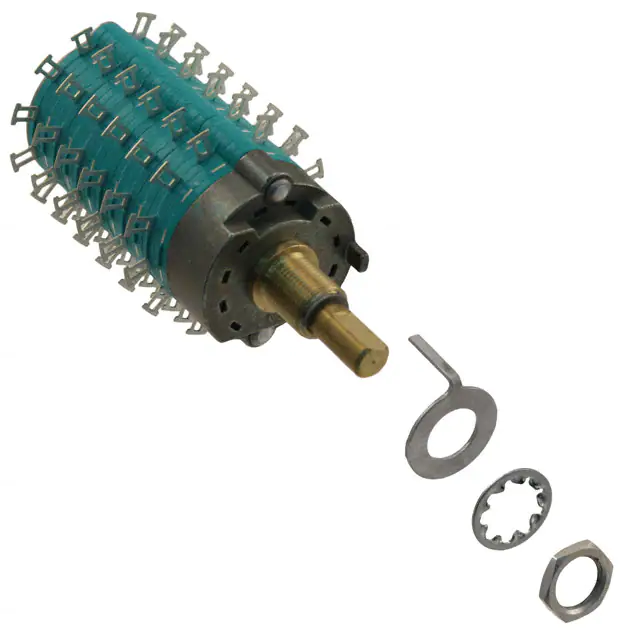

C4D0612N-ASWITCH ROTARY 2-12POS 300MA 125V |
73 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 12 | Adjustable | 6 | 1 | SP12T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 56.18mm |
|

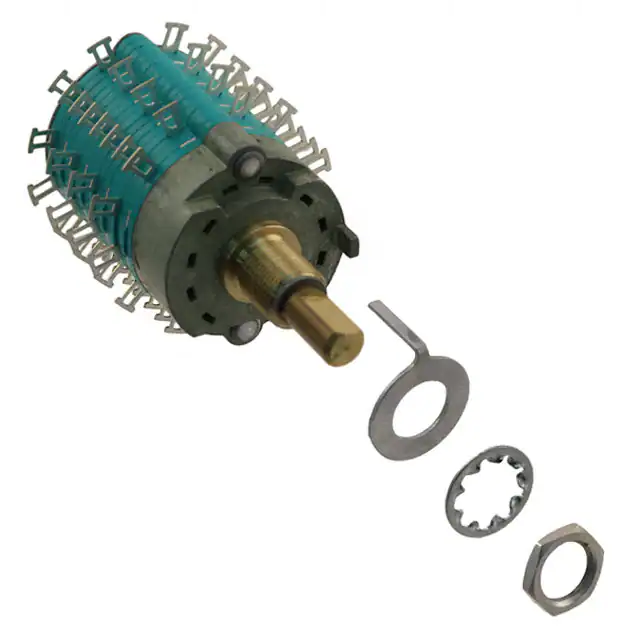

C4D1204N-ASWITCH ROTARY 2-4POS 300MA 125V |
41 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 4 | Adjustable | 4 | 3 | 3P4T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 41.76mm |
|
42D36-02-1-AJNSWITCH ROTARY 2-10POS 1A 115V |
36 |
|
Datasheet |
42 | Bulk | Active | 2 ~ 10 | Adjustable | 2 | 1 | SP10T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
44D30-03-1-AJNSWITCH ROTARY 2-12POS 1A 115V |
29 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|

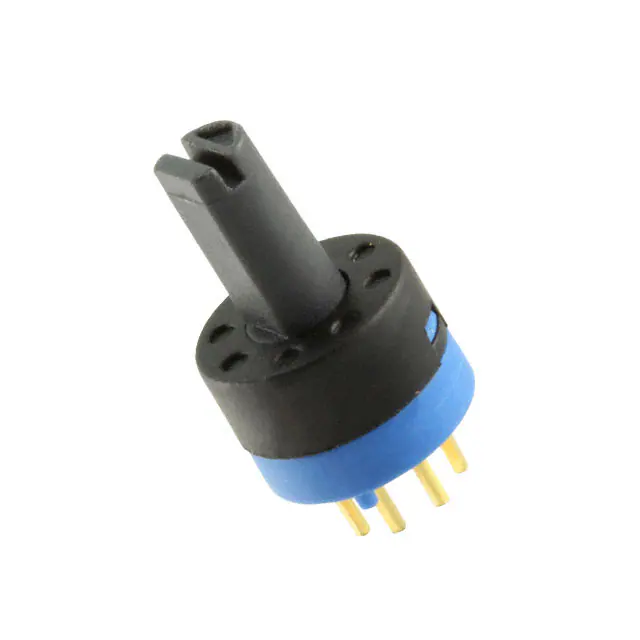

RM102772BCBSWITCH ROTARY 2POS 500MA 24V |
179 |
|
Datasheet |
RM | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
RM102002BCBSWITCH ROTARY 2POS 500MA 24V |
174 |
|
Datasheet |
RM | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Screwdriver Slot | Flush | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|

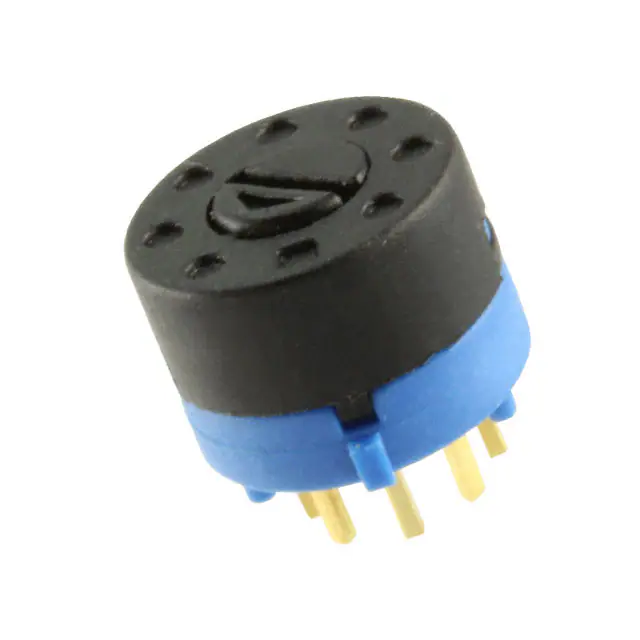

RM106002BCBSWITCH ROTARY 6POS 500MA 24V |
115 |
|
Datasheet |
RM | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Screwdriver Slot | Flush | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|

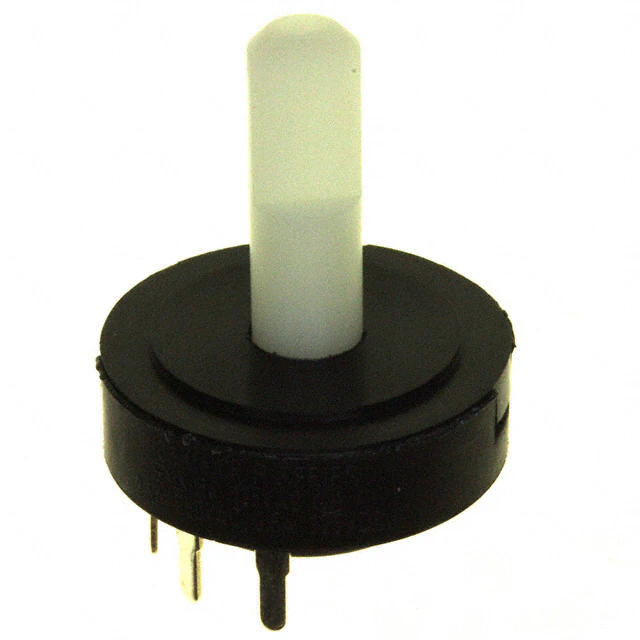

R10307RN02QSWITCH ROTARY 3POS 5A 125V |
111 |
|
Datasheet |
R | Tray | Active | 3 | Fixed | 1 | 1 | SP3T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Through Hole | PC Pin | - | 10.29mm |
|

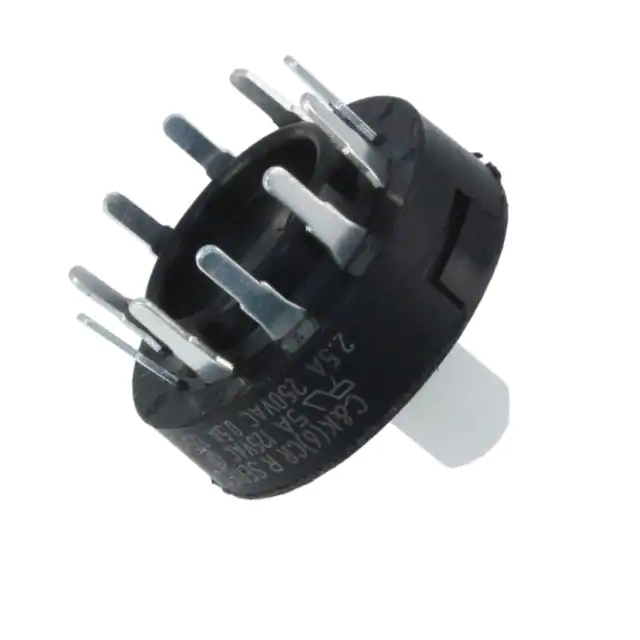

R20405RN02QSWITCH ROTARY 4POS 5A 125V |
246 |
|
Datasheet |
R | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Copper | Silver | Through Hole | PC Pin | - | 10.29mm |
|
R10305RN02QSWITCH ROTARY 3POS 5A 125V |
114 |
|
Datasheet |
R | Tube | Active | 3 | Fixed | 1 | 1 | SP3T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Copper | Silver | Through Hole | PC Pin | - | 10.29mm |
|

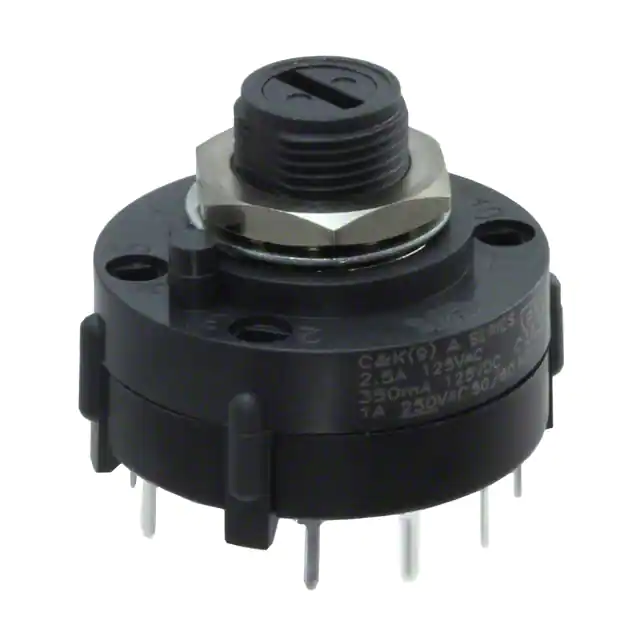

A205S1MNCQSWITCH ROTARY 5POS 2.5A 125V |
1,825 |
|
Datasheet |
A | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|

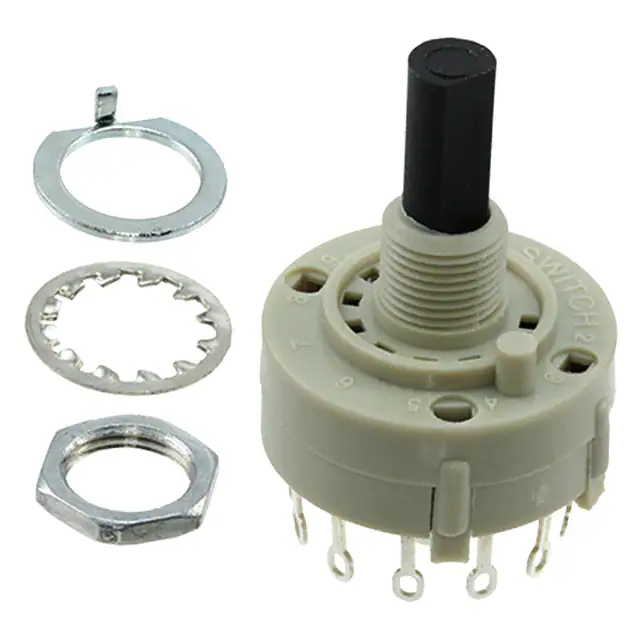

KC43A13.001NLSSWITCH ROTARY 3POS 350MA 125V |
143 |
|
Datasheet |
KC | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
KC15B10.001NPSSWITCH ROTARY 5POS 350MA 125V |
482 |
|
Datasheet |
KC | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 10.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

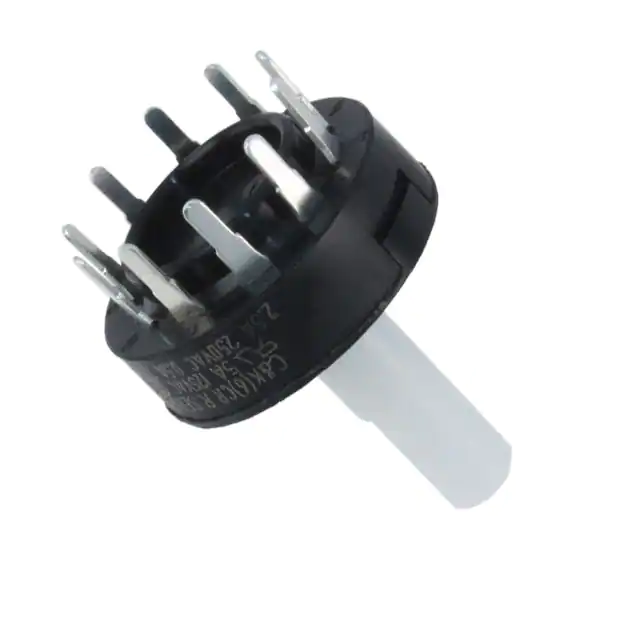

R20407RN02QSWITCH ROTARY 4POS 5A 125V |
197 |
|
Datasheet |
R | Tray | Active | 4 | Fixed | 1 | 2 | DP4T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Through Hole | PC Pin | - | 10.29mm |
|
RTAP31S12W25FSSWITCH ROTARY 12POS 150MA 60V |
451 |
|
Datasheet |
RTA | Bag | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Flatted (6mm Dia) | 25.00mm | 30° | Brass | Silver | Through Hole | PC Pin | - | 12.60mm |
|
R20507RR02QSWITCH ROTARY 5POS 5A 125V |
138 |
|
Datasheet |
R | Tube | Active | 5 | Fixed | 1 | 2 | DP5T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Panel Mount, Through Hole | PC Pin | - | 10.29mm |
|

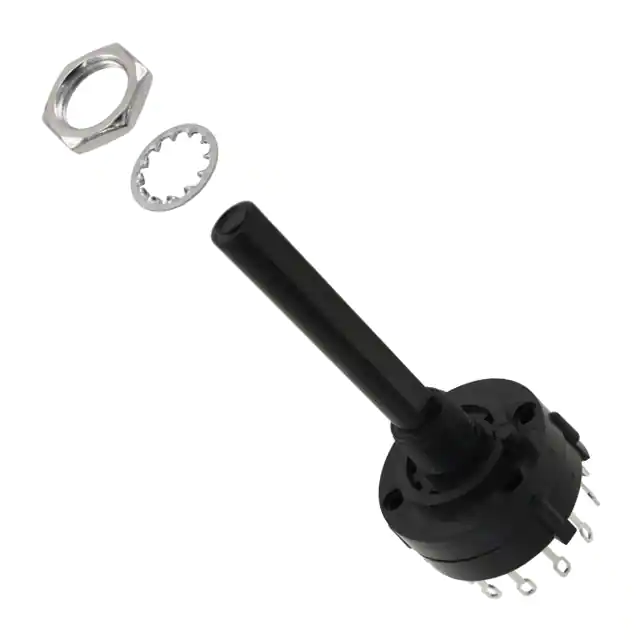

A30415RNZQSWITCH ROTARY 4POS 2.5A 125V |
145 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

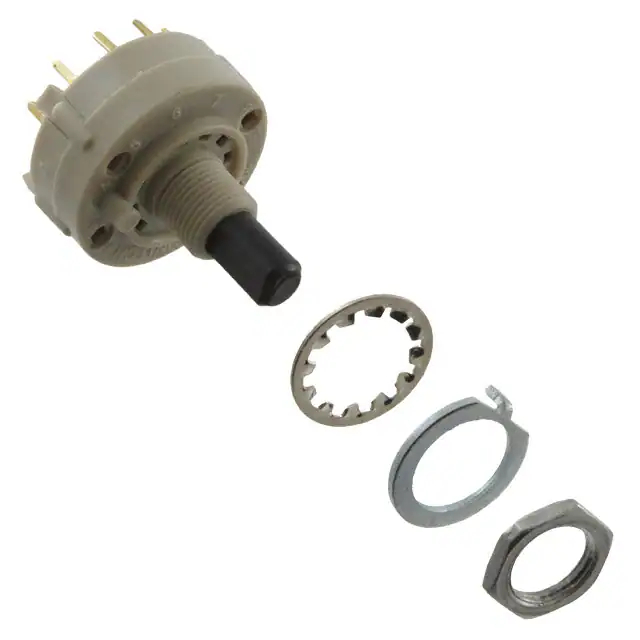

KC15A9.501NPFSWITCH ROTARY 5POS 350MA 125V |
1,092 |
|
Datasheet |
KC | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
A11415RNZQSWITCH ROTARY 2POS 2.5A 125V |
102 |
|
Datasheet |
A | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
