Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

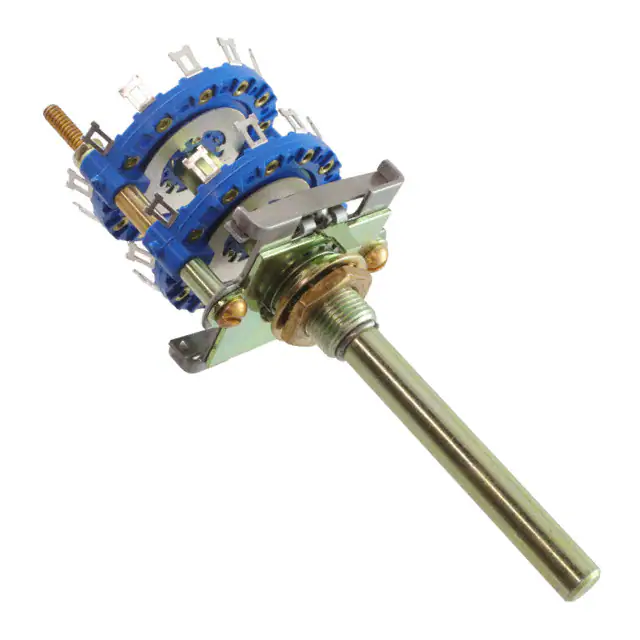

D6D0212NSWITCH ROTARY 2-12POS 500MA 115V Electroswitch |
2 |
|
Datasheet |
D6 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | Solder Lug | 500mA (AC), 1.5A (DC) | 115 V | 2 | 28 V | Round (6.35mm Dia) | Panel Mount | 47.63mm | - | Silver | 30° | Brass | 30.00mm |
|
D2D0305S-L60F02SWITCH ROTARY 5POS 250MA 115V Electroswitch |
4 |
|
- |
D2 | Bulk | Active | 5 | Fixed | 3 | 3P5T | Shorting (MBB) | Solder Lug | 250mA (AC), 550mA (DC) | 115 V | 1 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 9.52mm | - | Silver | 60° | Brass | 11.99mm |
|

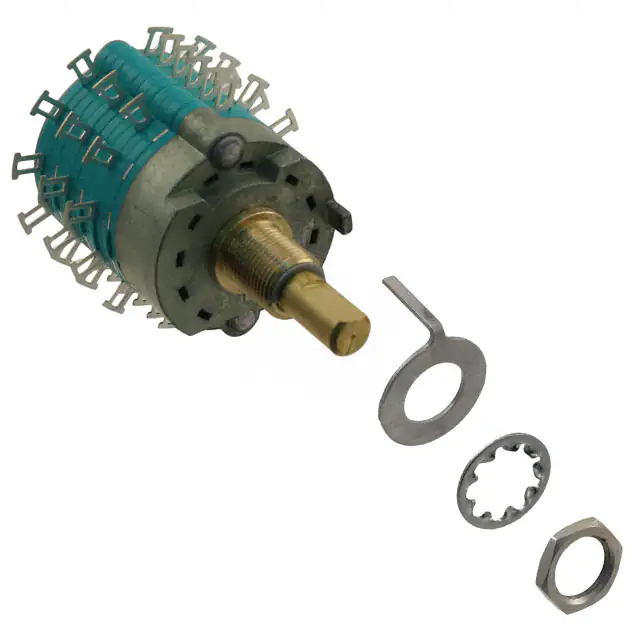

C4D0606N-ASWITCH ROTARY 2-6POS 300MA 125V Electroswitch |
4 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | Solder Lug | 300mA (AC), 500mA (DC) | 125 V | 3 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | Silver | 30° | Brass | 34.54mm |
|

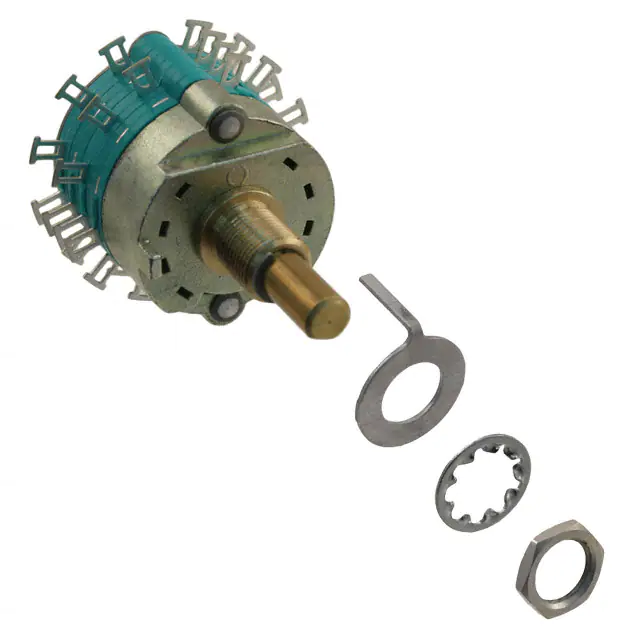

C4D0604N-ASWITCH ROTARY 2-4POS 300MA 125V Electroswitch |
1 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 4 | Adjustable | 3 | 3P4T | Non-Shorting (BBM) | Solder Lug | 300mA (AC), 500mA (DC) | 125 V | 2 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | Silver | 30° | Brass | 27.33mm |
|

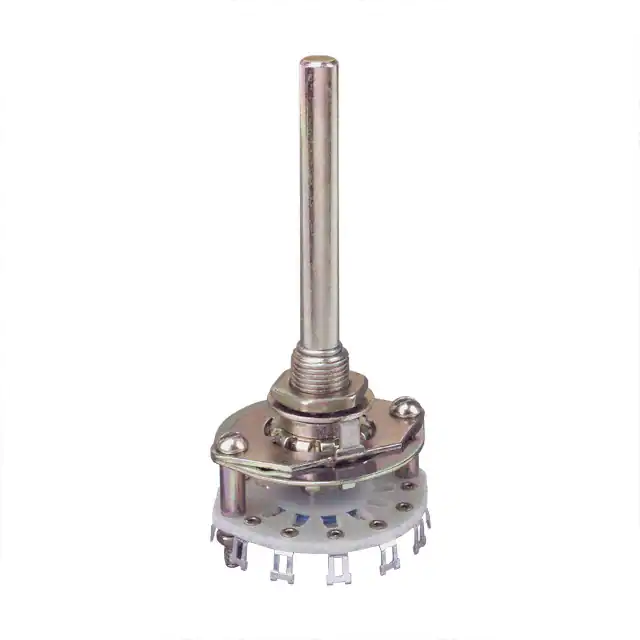

D4G0303NSWITCH ROTARY 2-3POS 500MA 115V Electroswitch |
5 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 3 | Adjustable | 3 | 3P3T | Non-Shorting (BBM) | Solder Lug | 500mA (AC), 1.5A (DC) | 115 V | 1 | 28 V | Round (6.35mm Dia) | Panel Mount | 47.63mm | - | Silver | 30° | Brass | 14.27mm |
|

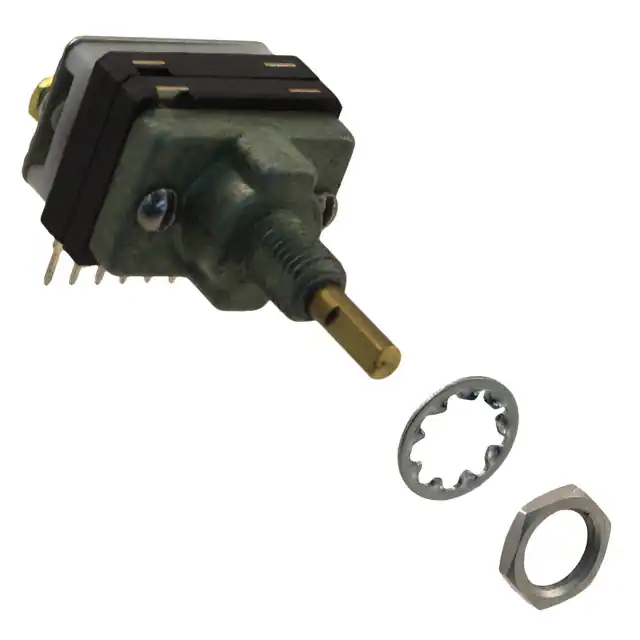

C2P0108N-ASWITCH ROTARY 2-8POS 100MA 125V Electroswitch |
3 |
|
Datasheet |
C2 | Bulk | Active | 2 ~ 8 | Adjustable | 1 | SP8T | Non-Shorting (BBM) | PC Pin | 100mA (AC), 250mA (DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole, Right Angle | 9.52mm | - | Silver | 30° | Brass | 22.38mm |
|

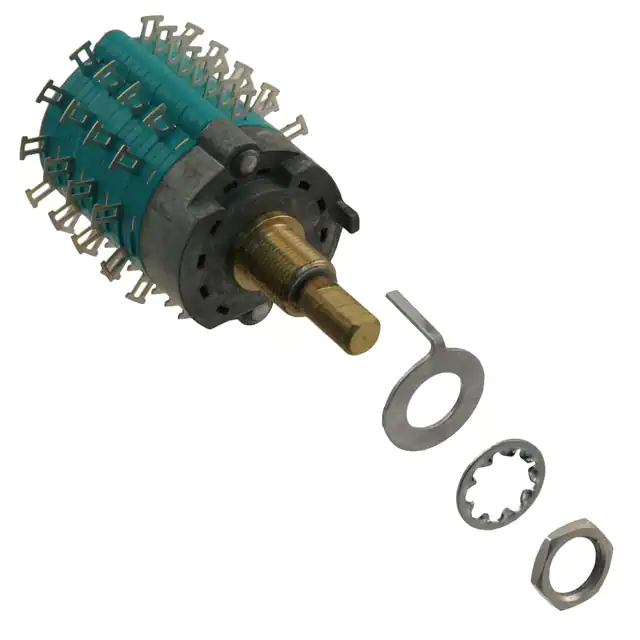

C4D0806N-ASWITCH ROTARY 2-6POS 300MA 125V Electroswitch |
3,719 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | Solder Lug | 300mA (AC), 500mA (DC) | 125 V | 4 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | Silver | 30° | Brass | 41.76mm |
|

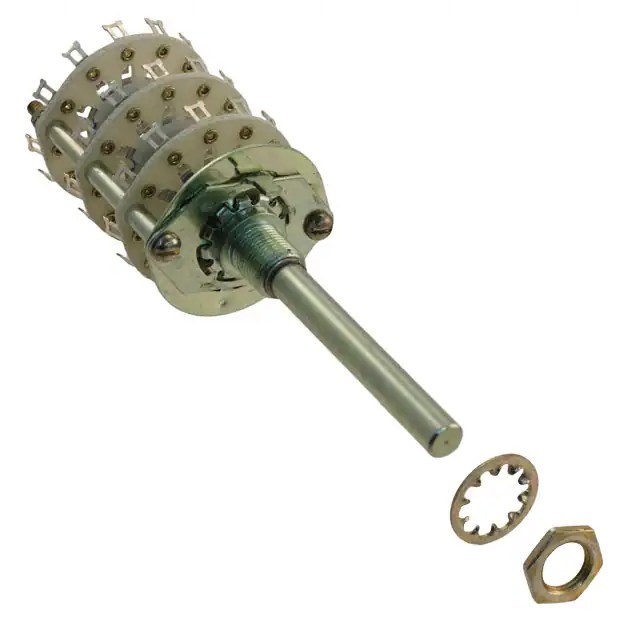

D4G0311NSWITCH ROTARY 2-11POS 500MA 115V Electroswitch |
3,833 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | Solder Lug | 500mA (AC), 1.5A (DC) | 115 V | 3 | 28 V | Round (6.35mm Dia) | Panel Mount | 47.63mm | - | Silver | 30° | Brass | 42.82mm |
|

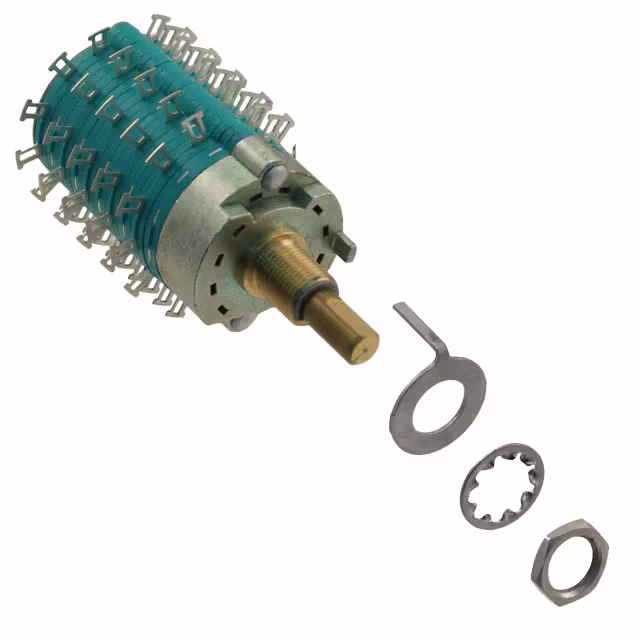

C4D1006N-ASWITCH ROTARY 2-6POS 300MA 125V Electroswitch |
3,004 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | Solder Lug | 300mA (AC), 500mA (DC) | 125 V | 5 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | - | Silver | 30° | Brass | 48.97mm |
|

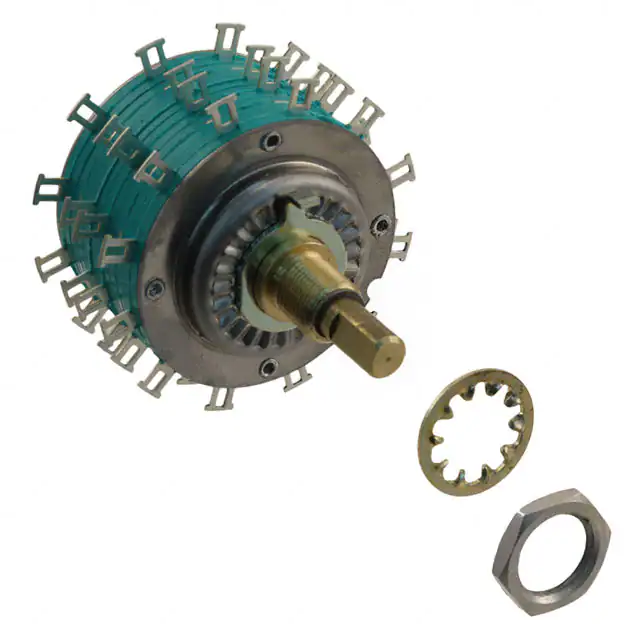

C7D0223NSWITCH ROTARY 23POS 500MA 125V Electroswitch |
1 |
|
Datasheet |
C7 | Bulk | Active | 23 | Fixed | 1 | SP23T | Non-Shorting (BBM) | Solder Lug | 500mA (AC), 1A (DC) | 125 V | 2 | 28 V | Flatted (6.35mm Dia) | Panel Mount | 14.29mm | - | Silver | 15° | Brass | 32.49mm |
