Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
56P36-01-1-03SSWITCH ROTARY 3POS 200MA 115V |
4,663 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | SP3T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|
|
56P36-01-1-10S-FSWITCH ROTARY 10POS 200MA 115V |
3,701 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | SP10T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|
MA05L2NCGFSWITCH ROTARY 5POS 250MA 125V |
2,517 |
|
Datasheet |
M | Tray | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | PC Pin | 250mA (AC/DC) | 125 V | 1 | 28 V | Screwdriver Slot | Panel Mount, Through Hole | Flush | IP67 - Dust Tight, Waterproof | Gold | 36° | Copper Alloy | 10.42mm |
|
MA05S1NZGFSWITCH ROTARY 5POS 250MA 125V |
2,483 |
|
Datasheet |
M | Tray | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | IP67 - Dust Tight, Waterproof | Gold | 36° | Copper Alloy | 14.86mm |
|
|
56B36-01-2-04NSWITCH ROTARY 4POS 200MA 115V |
2,866 |
|
Datasheet |
56 | Bulk | Active | 4 | Continuous | 2 | SP4T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Screwdriver Slot | Panel Mount | 3.13mm | - | Silver | 36° | Brass | 12.19mm |
|
|
MB04L1NCQDSWITCH ROTARY 4POS 250MA 125V |
4,881 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | PC Pin | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 10.16mm | - | Silver | 36° | Copper Alloy | 10.42mm |
|

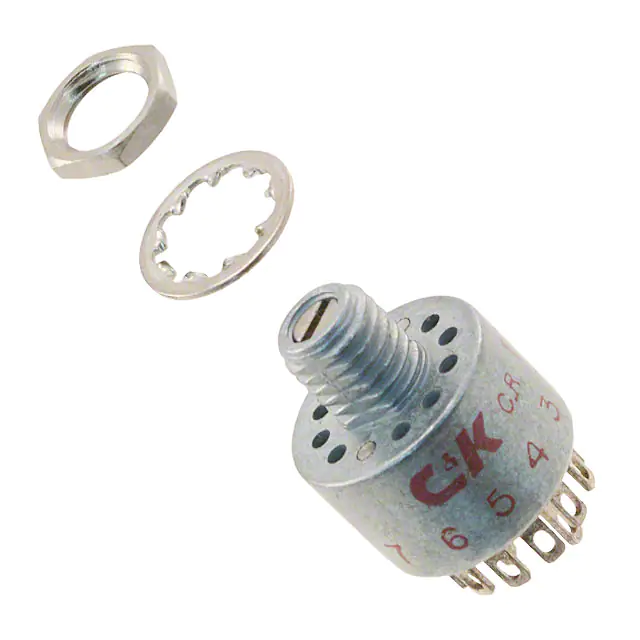

MD06L2NZQDSWITCH ROTARY 6POS 250MA 125V |
5 |
|
Datasheet |
M | Tray | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Screwdriver Slot | Panel Mount | Flush | - | Silver | 30° | Copper Alloy | 14.86mm |
|
|
56BS36-01-1-03NSWITCH ROTARY 3POS 200MA 115V |
4,803 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Screwdriver Slot | Panel Mount | 3.18mm | Shaft and Panel Sealed | Silver | 36° | Brass | 12.19mm |
|
|
56BS36-01-1-04NSWITCH ROTARY 4POS 200MA 115V |
4,372 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Screwdriver Slot | Panel Mount | 3.18mm | Shaft and Panel Sealed | Silver | 36° | Brass | 12.19mm |
|
|
56S36-01-1-04NSWITCH ROTARY 4POS 200MA 115V |
2,449 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 12.19mm |
|
|
56S36-01-1-06NSWITCH ROTARY 6POS 200MA 115V |
3,132 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 12.19mm |
|
|
56SD36S-01PAJNSWITCH ROTARY 2-10POS 200MA 115V |
3,314 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 9.58mm |
|
|
56P36S-01-1-05NSWITCH ROTARY 5POS 200MA 115V |
2,171 |
|
Datasheet |
56 | Bulk | Active | 5 | Continuous | 1 | SP5T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 9.58mm |
|
|
MRJE11204SWITCH ROTARY 12POS 0.4VA 20V |
4,919 |
|
Datasheet |
MRJ | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 0.4VA (AC/DC) | 20 V | 1 | 20 V | Round (3.17mm Dia), Slotted | Panel Mount, Through Hole | 19.00mm | Epoxy Sealed Terminals | Gold | 30° | Nickel | 8.13mm |
|
|
56P30-01-1-07SSWITCH ROTARY 7POS 200MA 115V |
4,075 |
|
Datasheet |
56 | Bulk | Active | 7 | Fixed | 1 | SP7T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 30° | Brass | 9.58mm |
|
|
56BDP30-01-1-AJSSWITCH ROTARY 2-12POS 200MA 115V |
3,621 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Screwdriver Slot | Panel Mount, Through Hole | 3.18mm | - | Silver | 30° | Brass | 9.58mm |
|
|
56BP30-01-1-12S-FSWITCH ROTARY 12POS 200MA 115V |
3,882 |
|
Datasheet |
56 | Bulk | Active | 12 | Fixed | 1 | SP12T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Screwdriver Slot | Panel Mount, Through Hole | 3.18mm | - | Silver | 30° | Brass | 9.58mm |
|
|
56P30-01-1-06SSWITCH ROTARY 6POS 200MA 115V |
3,543 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | SP6T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 30° | Brass | 9.58mm |
|
|
56P30-01-1-12S-CSWITCH ROTARY 12POS 200MA 115V |
4,072 |
|
Datasheet |
56 | Bulk | Active | 12 | Continuous | 1 | SP12T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 30° | Brass | 9.58mm |
|
|
MC00S1NZGFSWITCH ROTARY 12POS 250MA 125V |
4,730 |
|
Datasheet |
M | Tray | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | IP67 - Dust Tight, Waterproof | Gold | 30° | Copper Alloy | 14.86mm |
