Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Release Time | Coil Current | Coil Type | Contact Form | Features | Termination Style | Operate Time | Seal Rating | Operating Temperature | Must Release Voltage | Coil Insulation | Must Operate Voltage | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

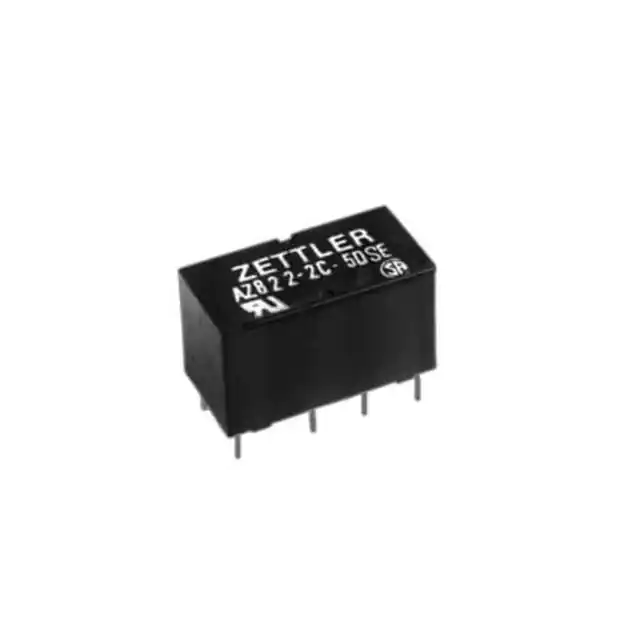

AZ822-2C-12DERELAY GEN PURPOSE DPDT 2A 12V American Zettler |
10,207 |
|
Datasheet |
AZ822 | Tube | Active | Through Hole | 12VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 2 ms | 16.7 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -55°C ~ 90°C | 0.6 VDC | - | 8.4 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|

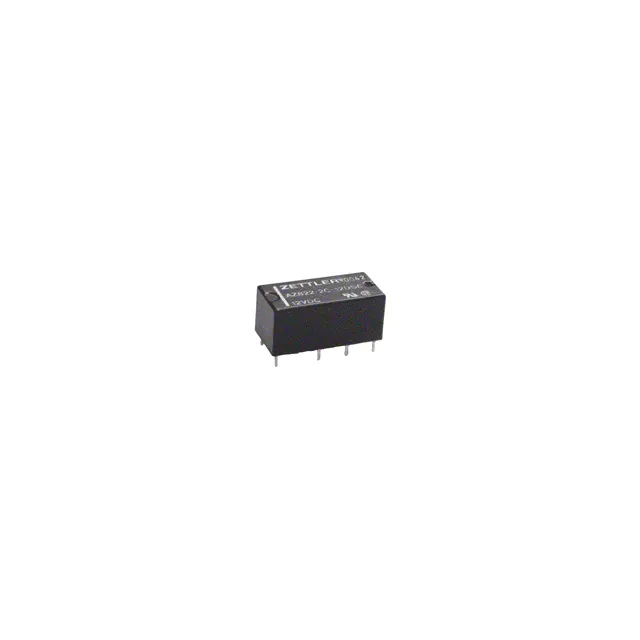

AZ822-2C-12DSERELAY GEN PURPOSE DPDT 2A 12V American Zettler |
4,663 |
|
Datasheet |
AZ822 | Tray | Active | Through Hole | 12VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 2 ms | 12.5 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -55°C ~ 90°C | 0.6 VDC | - | 8.4 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
AZ822-2C-24DSERELAY GEN PURPOSE DPDT 2A 24V American Zettler |
1,400 |
|
Datasheet |
AZ822 | Tray | Active | Through Hole | 24VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 2 ms | 6.25 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -55°C ~ 90°C | 1.2 VDC | - | 16.8 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
AZ9571-1C-24DSERELAY GEN PURPOSE SPDT 1A 24V American Zettler |
1,823 |
|
Datasheet |
AZ9571 | Tray | Active | Through Hole | 24VDC | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 5 ms | 6.3 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 70°C | 2.4 VDC | - | 19.2 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
AZ9571-1C-12DSERELAY GEN PURPOSE SPDT 1A 12V American Zettler |
3,923 |
|
Datasheet |
AZ9571 | Tray | Active | Through Hole | 12VDC | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 5 ms | 12.5 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 70°C | 1.2 VDC | - | 9.6 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
AZ822-2C-5DERELAY GENERAL PURPOSE DPDT 2A 5V American Zettler |
1,465 |
|
Datasheet |
AZ822 | Tube | Active | Through Hole | 5VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 2 ms | 40 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -55°C ~ 90°C | 0.25 VDC | - | 3.5 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
AZ822-2C-5DSERELAY GENERAL PURPOSE DPDT 2A 5V American Zettler |
2,851 |
|
Datasheet |
AZ822 | Tray | Active | Through Hole | 5VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 2 ms | 29.9 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -55°C ~ 90°C | 0.25 VDC | - | 3.5 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
AZ822-2C-24DERELAY GEN PURPOSE DPDT 2A 24V American Zettler |
429 |
|
Datasheet |
AZ822 | Tube | Active | Through Hole | 24VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 2 ms | 8.3 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -55°C ~ 90°C | 1.2 VDC | - | 16.8 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
AZ822-2C-9DERELAY GENERAL PURPOSE DPDT 2A 9V American Zettler |
272 |
|
Datasheet |
AZ822 | Tray | Active | Through Hole | 9VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 2 ms | 22.2 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -55°C ~ 90°C | 0.45 VDC | - | 6.3 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
AZ822-2C-9DSERELAY GENERAL PURPOSE DPDT 2A 9V American Zettler |
2,403 |
|
Datasheet |
AZ822 | Tray | Active | Through Hole | 9VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 2 ms | 16.7 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -55°C ~ 90°C | 0.45 VDC | - | 6.3 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
