Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UD2-12NURELAY GEN PURPOSE DPDT 1A 12V |
5,641 |
|
Datasheet |
UD2 | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Non Latching | - | Gull Wing | - | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|

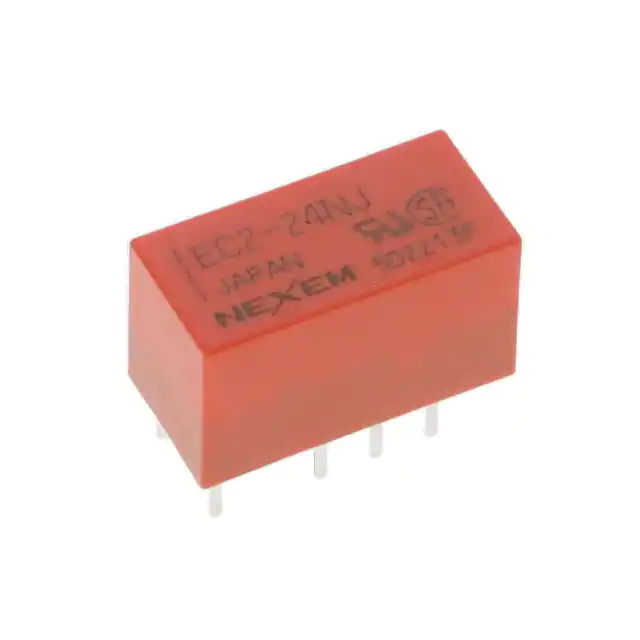

EC2-24NJRELAY GEN PURPOSE DPDT 2A 24V |
7,236 |
|
Datasheet |
EC2 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|

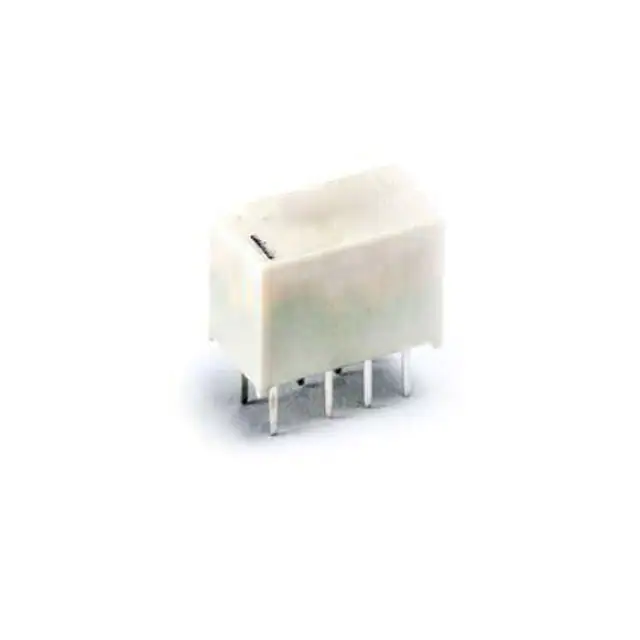

UA2-12NJRELAY GEN PURPOSE DPDT 1A 12V |
7,575 |
|
Datasheet |
UA2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EE2-3TNURELAY GENERAL PURPOSE DPDT 2A 3V |
1,302 |
|
Datasheet |
EE2 | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 46.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EE2-12NUX-LRELAY GEN PURPOSE DPDT 2A 12V |
2,032 |
|
Datasheet |
EE2 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.7 mA | Non Latching | - | Gull Wing | - | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EA2-5NJRELAY GENERAL PURPOSE DPDT 1A 5V |
3,447 |
|
Datasheet |
EA2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 28.1 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TQ2-L2-3VRELAY TELECOM DPDT 1A 3V |
9,277 |
|
Datasheet |
TQ | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 66.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.25 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
AGN200S24ZRELAY TELECOM DPDT 1A 24V |
1,370 |
|
Datasheet |
AGN | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 9.6 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
EB2-3NU-LRELAY GENERAL PURPOSE DPDT 1A 3V |
785 |
|
Datasheet |
EB2 | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
AGQ20TS24XRELAY GEN PURPOSE DPDT 2A 24V |
4,335 |
|
Datasheet |
AGQ TH | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 250VA, 220W | 9.6 mA | Non Latching | - | Gull Wing | - | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
UD2-5NUN-LRELAY GENERAL PURPOSE DPDT 1A 5V |
2,209 |
|
Datasheet |
UD2 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 28 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
UD2-5NURELAY GENERAL PURPOSE DPDT 1A 5V |
6,821 |
|
Datasheet |
UD2 | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 28 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
UB2-12NURELAY GEN PURPOSE DPDT 1A 12V |
9,353 |
|
Datasheet |
UB2 | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Non Latching | - | Gull Wing | - | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
UD2-3SNUN-LRELAY GENERAL PURPOSE DPDT 1A 3V |
478 |
|
Datasheet |
UD2 | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EE2-3NUHRELAY GENERAL PURPOSE DPDT 2A 3V |
2,838 |
|
Datasheet |
EE2 | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TQ2SA-4.5V-ZRELAY TELECOM DPDT 2A 4.5V |
2,117 |
|
Datasheet |
TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 31 mA | Non Latching | - | Gull Wing | - | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
UD2-3NUN-LRELAY GENERAL PURPOSE DPDT 1A 3V |
11,906 |
|
Datasheet |
UD2 | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
UB2-12NUN-LRELAY GEN PURPOSE DPDT 1A 12V |
5,000 |
|
Datasheet |
UB2 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Non Latching | - | Gull Wing | - | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
UB2-24NURELAY GEN PURPOSE DPDT 1A 24V |
970 |
|
Datasheet |
UB2 | Tube | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 9.6 mA | Non Latching | - | Gull Wing | - | - | 18 VDC | 2.4 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
UD2-4.5SNUN-LRELAY GEN PURPOSE DPDT 1A 4.5V |
3,441 |
|
Datasheet |
UD2 | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 22.2 mA | Latching, Single Coil | - | Gull Wing | - | - | 3.38 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
