Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6A-274P-ST40-US DC12RELAY GEN PURPOSE DPDT 2A 12V |
388 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TQ2SA-48V-ZRELAY TELECOM DPDT 2A 48V |
1,000 |
|
Datasheet |
TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 48VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 6.3 mA | Non Latching | - | Gull Wing | - | - | 36 VDC | 4.8 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
DS1E-S-DC3VRELAY GENERAL PURPOSE SPDT 2A 3V |
942 |
|
Datasheet |
DS | Box | Active | Through Hole | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

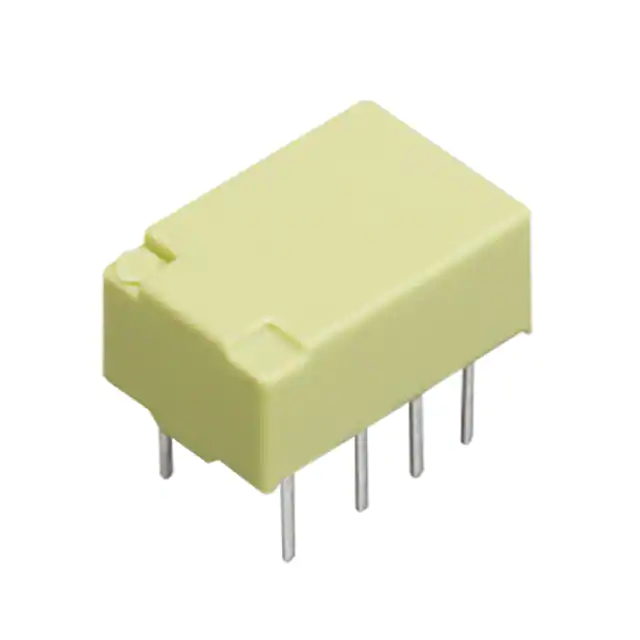

AGQ20T12RELAY GEN PURPOSE DPDT 2A 12V |
253 |
|
Datasheet |
AGQ TH | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 250VA, 220W | 11.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
AGN21003RELAY TELECOM DPDT 1A 3V |
992 |
|
Datasheet |
AGN | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
3-1462037-1RELAY TELECOM DPDT 2A 4.5V |
40,882 |
|
Datasheet |
IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 22.2 mA | Latching, Single Coil | - | Gull Wing | Sealed - Hermetically | - | 3.38 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
|
G6E-134PL-ST-US DC12RELAY GEN PURPOSE SPDT 2A 12V |
2,789 |
|
Datasheet |
G6E | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6E-134PL-ST-US DC24RELAY GEN PURPOSE SPDT 2A 24V |
667 |
|
Datasheet |
G6E | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6A-234P-ST15-US DC12RELAY GEN PURPOSE DPDT 1A 12V |
375 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 12.5 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
IMB03ITSRELAY TELECOM SPST 2A 5V |
217 |
|
Datasheet |
IM, AXICOM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 400VDC - Max | 500VA, 440W | 28.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
IMB03IGRRELAY TELECOM SPST 2A 5V |
1,108 |
|
Datasheet |
IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 400VDC - Max | 500VA, 440W | 28.1 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
G6A-274P-ST40-US DC48RELAY GEN PURPOSE DPDT 2A 48V |
1,094 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6AK-274P-STLT-US DC5RELAY GENERAL PURPOSE DPDT 2A 5V |
836 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | - | Latching, Dual Coil | - | PC Pin | - | - | 3.5 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
V23101D 106A201RELAY GEN PURPOSE SPDT 1.25A 12V |
1,243 |
|
Datasheet |
V23101, AXICOM | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 17.2 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6AK-274P-ST40-US DC12RELAY GEN PURPOSE DPDT 2A 12V |
428 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 30 mA | Latching, Dual Coil | - | PC Pin | - | - | 8.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6AK-234P-ST-US DC24RELAY GEN PURPOSE DPDT 1A 24V |
2,086 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 7.5 mA | Latching, Dual Coil | - | PC Pin | - | - | 16.8 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6AK-234P-ST-US DC12RELAY GEN PURPOSE DPDT 1A 12V |
743 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 15 mA | Latching, Dual Coil | - | PC Pin | - | - | 8.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
RJ22S-C-A120RELAY GEN PURPOSE DPDT 1A 120V |
166 |
|
Datasheet |
RJ | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 1 A | 250VAC, 30VDC - Max | 250VA, 30W | 7.5 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
MYQ4N DC24RELAY GEN PURPOSE 4PDT 1A 24V |
163 |
|
Datasheet |
MY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 36.9 mA | Non Latching | Lighted Indicator | Plug In | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
R10-E1Z4-V2.5KRELAY GEN PURPOSE 4PDT 2A 48V |
220 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 48VDC | 4PDT (4 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 19.2 mA | Non Latching | - | Plug In | - | - | 36 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
