Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Release Time | Coil Current | Coil Type | Contact Form | Features | Termination Style | Operate Time | Seal Rating | Operating Temperature | Must Release Voltage | Coil Insulation | Must Operate Voltage | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TN2-H-12VRELAY GEN PURPOSE DPDT 1A 12V |
2,093 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 12VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 11.7 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | 1.2 VDC | - | 9 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TN2-H-24VRELAY GEN PURPOSE DPDT 1A 24V |
2,701 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 24VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 8.3 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | 2.4 VDC | - | 18 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TN2-H-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
2,223 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 4.5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 31.1 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | 0.45 VDC | - | 3.38 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-H-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
4,015 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 28.1 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | 0.5 VDC | - | 3.75 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-H-9VRELAY GENERAL PURPOSE DPDT 1A 9V |
2,402 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 9VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 15.5 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | 0.9 VDC | - | 6.75 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

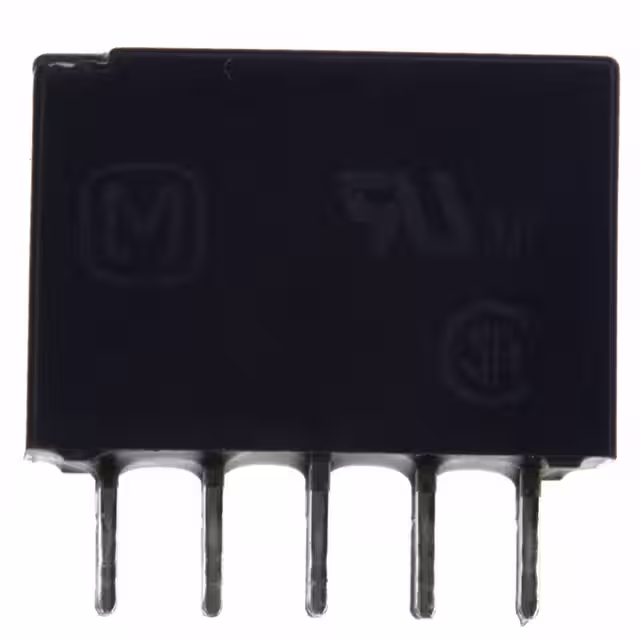

TN2-L-12VRELAY GEN PURPOSE DPDT 1A 12V |
3,966 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 12VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 8.3 mA | Latching, Single Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 9 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-12V-3RELAY GEN PURPOSE DPDT 1A 12V |
4,625 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 12VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 8.3 mA | Latching, Single Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 9 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-24VRELAY GEN PURPOSE DPDT 1A 24V |
3,224 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 24VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 6.3 mA | Latching, Single Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 18 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
3,248 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 3VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 33.3 mA | Latching, Single Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 2.25 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
4,569 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 4.5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 22.2 mA | Latching, Single Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 3.38 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TN2-L-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
2,098 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 20 mA | Latching, Single Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 3.75 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-6VRELAY GENERAL PURPOSE DPDT 1A 6V |
3,787 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 6VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 16.7 mA | Latching, Single Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 4.5 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L-H-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
4,638 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 20 mA | Latching, Single Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 3.75 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
3,827 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 3VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 66.7 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 2.25 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
3,222 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 4.5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 44.4 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 3.38 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-6VRELAY GENERAL PURPOSE DPDT 1A 6V |
2,629 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 6VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 33.3 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 4.5 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-9VRELAY GENERAL PURPOSE DPDT 1A 9V |
4,481 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 9VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 22.2 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 6.75 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-H-12VRELAY GEN PURPOSE DPDT 1A 12V |
3,514 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 12VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 16.7 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 9 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-H-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
2,130 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 4.5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 44.4 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 3.38 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-H-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
4,111 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 40 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 3.75 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
