Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G5V-2-FDDC12RELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Datasheet |
G5V-2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 41.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 7 ms | 3 ms | -25°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G6A-274P-ST10-US DC12RELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6A-274P-ST10-US-DC24RELAY GEN PURPOSE DPDT 2A 24V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6A-274P-ST15-US DC1.5RELAY GEN PURPOSE DPDT 2A 1.5V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 100 mA | Non Latching | - | PC Pin | - | - | 1.2 VDC | 0.15 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6A-274P-STLT-US DC12RELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | - | Non Latching | - | PC Pin | - | - | - | 1.2 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6A-274P-ST-US DC18RELAY GEN PURPOSE DPDT 2A 18V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 18VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.1 mA | Non Latching | - | PC Pin | - | - | 12.6 VDC | 1.8 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6A-274P-STY-USDC24RELAY GEN PURPOSE DPDT 2A 24V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | - | Non Latching | - | PC Pin | - | - | - | 2.4 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6A-2-L-DC24RELAY GENERAL PURPOSE DPDT 24V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | - | 250VAC, 220VDC - Max | - | - | - | - | PC Pin | - | - | - | - | 5 ms | 3 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
G6AK-234P-ST40-US-DC12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 30 mA | Latching, Dual Coil | - | PC Pin | - | - | 8.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6AK-234P-ST40-US-DC48RELAY GEN PURPOSE DPDT 1A 48V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 7.5 mA | Latching, Dual Coil | - | PC Pin | - | - | 33.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6AK-274P-ST40-US-DC9RELAY GENERAL PURPOSE DPDT 2A 9V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Latching, Dual Coil | - | PC Pin | - | - | 6.3 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6AU-234P-ST-US-DC48RELAY GEN PURPOSE DPDT 1A 48V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 2.5 mA | Latching, Single Coil | - | PC Pin | - | - | 33.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6AU-234P-ST-US-DC6RELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 16.7 mA | Latching, Single Coil | - | PC Pin | - | - | 4.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6AU-274P-ST-US-DC6RELAY GENERAL PURPOSE DPDT 2A 6V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Latching, Single Coil | - | PC Pin | - | - | 4.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |

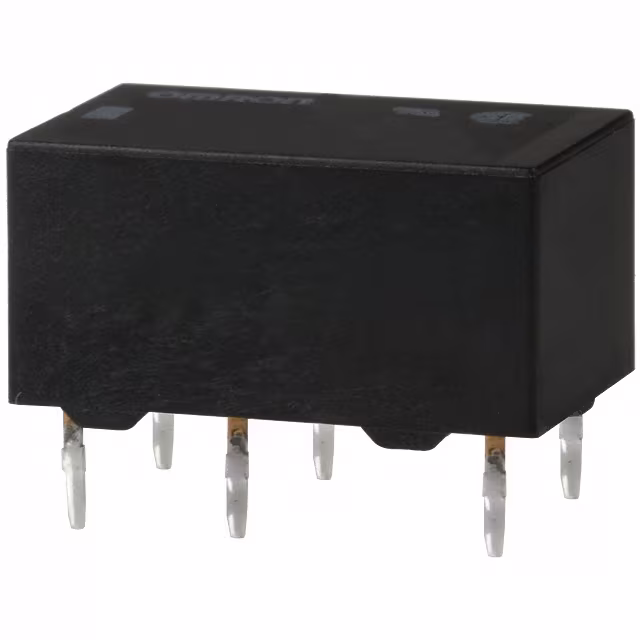

, G6E-134P-ST-US-DC(3,5,9,12,24).jpg)
|
G6E-134PL-ST-US DC3RELAY GENERAL PURPOSE SPDT 2A 3V |
0 |
|
Datasheet |
G6E | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 133 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6E-134PL-US DC48RELAY GEN PURPOSE SPDT 2A 48V |
0 |
|
Datasheet |
G6E | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6E-134P-ST-US-H-DC48RELAY GEN PURPOSE SPDT 2A 48V |
0 |
|
Datasheet |
G6E | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6E-134P-US DC48RELAY GEN PURPOSE SPDT 2A 48V |
0 |
|
Datasheet |
G6E | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6E-194P-ST-USDC12RELAY GEN PURPOSE SPDT 2A 12V |
0 |
|
Datasheet |
G6E | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G6EK-134P-ST-1-USDC3RELAY GENERAL PURPOSE SPDT 2A 3V |
0 |
|
Datasheet |
G6E | Tube | Obsolete | Through Hole | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
