Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Release Time | Coil Current | Coil Type | Contact Form | Features | Termination Style | Operate Time | Seal Rating | Operating Temperature | Must Release Voltage | Coil Insulation | Must Operate Voltage | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6A-274P-ST40-US DC24RELAY GEN PURPOSE DPDT 2A 24V |
4,827 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 24VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 3 ms | 16.7 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | - | -40°C ~ 70°C | 2.4 VDC | - | 16.8 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
IMB06IGRRELAY TELECOM SPST 2A 12V |
2,895 |
|
Datasheet |
IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 12VDC | 2 A | 400VDC - Max | 500VA, 440W | 3 ms | 11.7 mA | Non Latching | SPST-NO (1 Form A) | - | Gull Wing | 3 ms | Sealed - Hermetically | -40°C ~ 85°C | 1.2 VDC | - | 9 VDC | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|

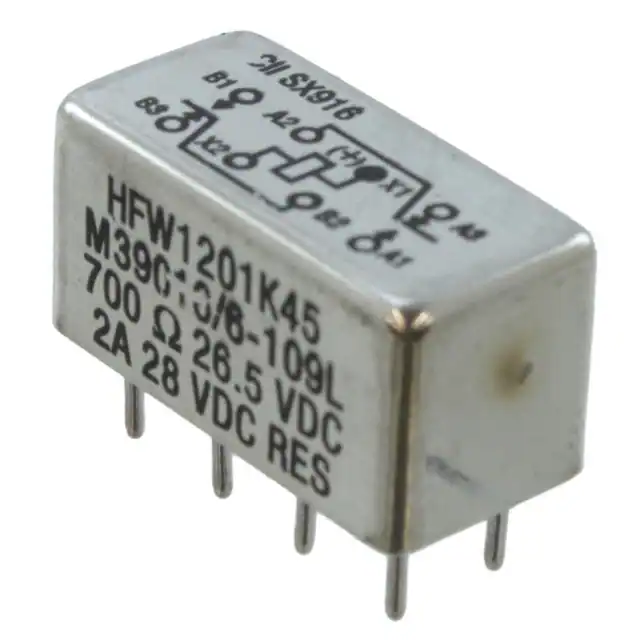

HFW1201K45RELAY GEN PURPOSE DPDT 2A 26.5V |
3,995 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | 2 A | 28VDC - Nom | - | 4 ms | 37.9 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Hermetically | -65°C ~ 125°C | 1.5 VDC | - | 13.5 VDC | - | General Purpose | Military | MIL-R-39016/6 |
|
HFW1201G01MRELAY GEN PURPOSE DPDT 2A 12V |
3,286 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | 12VDC | 2 A | 28VDC - Nom | - | 4 ms | 75 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.7 VDC | - | 6.4 VDC | - | General Purpose | Military | MIL-R-39016/6 |
|

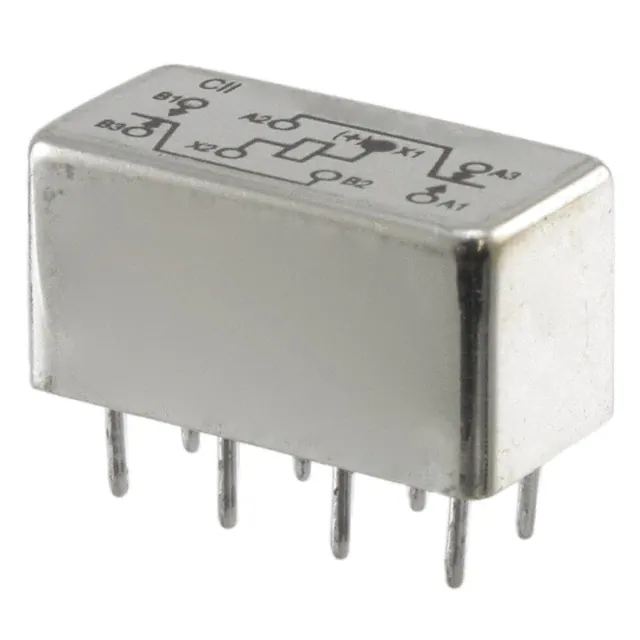

HFW1201K45MRELAY GEN PURPOSE DPDT 2A 26.5V |
2,449 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | 2 A | 28VDC - Nom | - | 4 ms | 37.9 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Hermetically | -65°C ~ 125°C | 1.5 VDC | - | 13.5 VDC | - | General Purpose | Military | MIL-R-39016/6 |
|
JMSWD-5XMRELAY GENERAL PURPOSE DPDT 1A 5V |
3,389 |
|
Datasheet |
MSD, CII | Bulk | Active | Through Hole | 5VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 7.5 ms | 50 mA | Non Latching | DPDT (2 Form C) | Diode | PC Pin | 4 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.23 VDC | - | 2.6 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
|
TQ2-L-12VRELAY TELECOM DPDT 1A 12V |
9 |
|
Datasheet |
TQ | Tube | Active | Through Hole | 12VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 8.3 mA | Latching, Single Coil | DPDT (2 Form C) | - | PC Pin | 3 ms | - | -40°C ~ 70°C | - | - | 9 VDC | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
EC2-5NJRELAY GENERAL PURPOSE DPDT 2A 5V |
4,595 |
|
Datasheet |
EC2 | Tube | Active | Through Hole | 5VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 1 ms | 28.1 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 2 ms | - | -40°C ~ 85°C | 0.5 VDC | - | 3.75 VDC | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EC2-12TNURELAY GEN PURPOSE DPDT 2A 12V |
4,806 |
|
Datasheet |
EC2 | Tube | Active | Through Hole | 12VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 1 ms | 11.7 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 2 ms | - | -40°C ~ 85°C | - | - | 9 VDC | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EE2-3SNUH-LRELAY GENERAL PURPOSE DPDT 2A 3V |
2,245 |
|
Datasheet |
EE2 | Tape & Reel (TR) | Not For New Designs | Surface Mount | 3VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 1 ms | 33.3 mA | Latching, Single Coil | DPDT (2 Form C) | - | Gull Wing | 2 ms | - | -40°C ~ 85°C | - | - | 2.25 VDC | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TX2-5V-THRELAY GENERAL PURPOSE DPDT 2A 5V |
3,810 |
|
Datasheet |
TX-TH | Tube | Active | Through Hole | 5VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 4 ms | 28.1 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Fully | -40°C ~ 85°C | 0.5 VDC | - | 3.75 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TXS2-3V-1RELAY GEN PURPOSE DPDT 10MA 3V |
3 |
|
Datasheet |
TX-S | Tube | Active | Through Hole | 3VDC | 10 mA | 10VDC - Max | - | 5 ms | 16.7 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 70°C | 0.3 VDC | - | 2.4 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
G6SK-2 DC24RELAY TELECOM DPDT 2A 24V |
4,313 |
|
Datasheet |
G6S | Tube | Active | Through Hole | 24VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 4 ms | 12.5 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 4 ms | - | -40°C ~ 70°C | - | - | 18 VDC | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TX2-48VRELAY TELECOM DPDT 2A 48V |
2,136 |
|
Datasheet |
TX | Tube | Active | Through Hole | 48VDC | 2 A | 220VDC - Max | 440VA | 4 ms | 5.6 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Fully | -40°C ~ 70°C | 4.8 VDC | - | 36 VDC | Silver (Ag), Gold (Au) | Telecom | - | - |
|
DS1E-ML2-DC12VRELAY GEN PURPOSE SPDT 2A 12V |
4,741 |
|
Datasheet |
DS | Box | Active | Through Hole | 12VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5 ms | 30 mA | Latching, Dual Coil | SPDT (1 Form C) | - | PC Pin | 10 ms | Sealed - Fully | -40°C ~ 70°C | - | - | 8.4 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
V23101D1106B201RELAY GEN PURPOSE SPDT 1.25A 12V |
3,295 |
|
Datasheet |
V23101, AXICOM | Tube | Active | Through Hole | 12VDC | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 5 ms | 17.2 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 7 ms | - | -40°C ~ 85°C | 1.2 VDC | - | 9 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
MYQ4-02-DC24RELAY GEN PURPOSE 4PDT 1A 24V |
3,253 |
|
Datasheet |
MY | Bulk | Active | Through Hole | 24VDC | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 20 ms | 36.9 mA | Non Latching | 4PDT (4 Form C) | - | PC Pin | 20 ms | Sealed - Fully | -55°C ~ 60°C | 2.4 VDC | - | 19.2 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
MYQ4-AC110/120RELAY GEN PURPOSE 4PDT 1A 120V |
4,379 |
|
Datasheet |
MY | Bulk | Active | Socketable | 120VAC | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 20 ms | 9.2 mA | Non Latching | 4PDT (4 Form C) | - | Plug In | 20 ms | Sealed - Fully | -55°C ~ 60°C | 36 VAC | - | 96 VAC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
MYQ4Z DC24RELAY GEN PURPOSE 4PDT 1A 24V |
4 |
|
Datasheet |
MY | Bulk | Active | Socketable | 24VDC | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 20 ms | 36.9 mA | Non Latching | 4PDT (4 Form C) | - | Plug In | 20 ms | Sealed - Fully | -55°C ~ 60°C | 2.4 VDC | - | 19.2 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

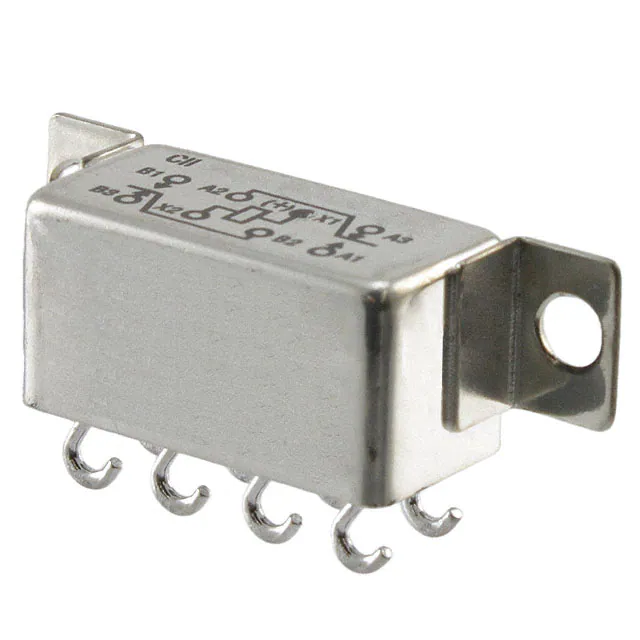

HFW1131K04RELAY GEN PURPOSE DPDT 2A 26.5V |
4,135 |
|
Datasheet |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | 2 A | 28VDC - Nom | - | 4 ms | 37.9 mA | Non Latching | DPDT (2 Form C) | - | Solder Hook | 4 ms | Sealed - Hermetically | -65°C ~ 125°C | 1.5 VDC | - | 13.5 VDC | - | General Purpose | Military | MIL-R-39016/6 |
