Special Purpose Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Current - Output / Channel | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-3000-300EOPTOISO 5KV BIPOLAR 8SMD GW |
2,252 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | Power Transistor Driver | 1 | 5000Vrms | 10kV/µs | DC | 500mA, 600mA | 5µs, 5µs | 200ns, 100ns | 1.1 V | 25 mA | 5.4V ~ 13V | -20°C ~ 80°C | Surface Mount | 8-SMD Gull Wing | UR |
|
|
HCPL-2612#300OPTOISO 3.75KV LINE RX 8DIP GW |
3,019 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | Line Receiver | 1 | 3750Vrms | 3.5kV/µs | AC, DC | 50mA | 75ns, 75ns | 24ns, 10ns | 2.3 V | 60 mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
TLP557(F)OPTOISO 2.5KV TRANS INVERTR 8DIP |
3,339 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Power Transistor Driver | 1 | 2500Vrms | 2kV/µs | DC | 320mA | 5µs, 5µs | 50ns, 50ns | 1.55 V | 25 mA | 5V ~ 13V | -30°C ~ 70°C | Through Hole | 8-DIP | UR |
|
|
CPC5902GOPTOISO 3.75KV 2CH BIDIR 8DIP |
2,637 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | I2C Repeater | 2 | 3750Vrms | - | I2C | - | - | - | - | - | 2.7V ~ 5.5V | -40°C ~ 85°C | Through Hole | 8-DIP | UR, TUV |
|
|
CPC5902GSTROPTOISO 3.75KV 2CH BIDIR 8SMD |
4,171 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | I2C Repeater | 2 | 3750Vrms | - | I2C | - | - | - | - | - | 2.7V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SMD | UR, TUV |
|
|
CPC5903GOPTOISO 3.75KV 1CH BIDIR 8DIP |
4,941 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | I2C Repeater | 2 | 3750Vrms | - | I2C | - | - | - | - | - | 2.7V ~ 5.5V | -40°C ~ 85°C | Through Hole | 8-DIP | UR, TUV |
|
|
CPC5903GSOPTOISO 3.75KV 1CH BIDIR 8SMD |
4,190 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | I2C Repeater | 2 | 3750Vrms | - | I2C | - | - | - | - | - | 2.7V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SMD | UR, TUV |
|
|
CPC5903GSTROPTOISO 3.75KV 1CH BIDIR 8SMD |
4,127 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | I2C Repeater | 2 | 3750Vrms | - | I2C | - | - | - | - | - | 2.7V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SMD | UR, TUV |
|

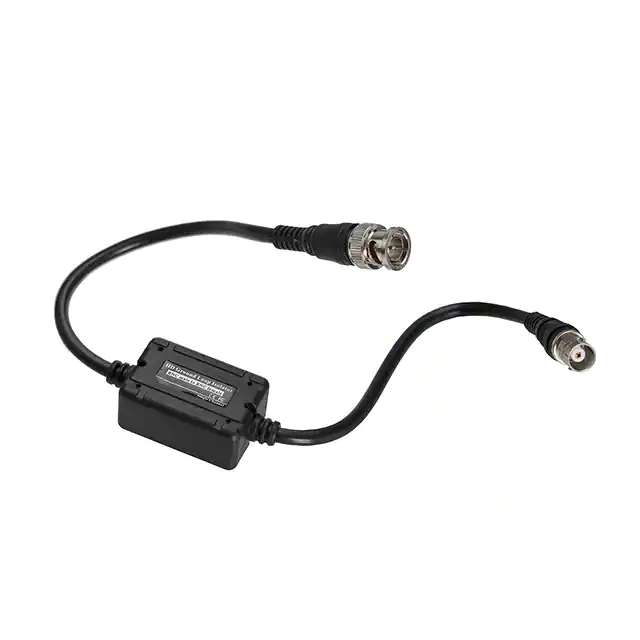

HD-GLIGROUND LOOP ISOLATOR |
3,066 |
|
Datasheet |
- | Module | Box | Active | - | 1 | - | - | - | - | - | - | - | - | - | - | Connector | - | - |
