Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Features | Actuator Type | Actuator Length | Switch Function | Illumination | Illumination Type, Color | Ingress Protection | Illumination Voltage (Nominal) | Operating Temperature | Bushing Thread | Termination Style | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTA106ESWITCH TOGGLE SPDT 6A 125V |
10 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | Epoxy Sealed Terminals | Standard Round | 10.49mm | On-Off-On | Non-Illuminated | - | - | - | -20°C ~ 80°C | 1/4-40 | Solder Lug | Circular - 6.40mm Dia |
|
6FC53-78/TABSSWITCH TOGGLE SPDT 15A 125V |
100 |
|
Datasheet |
F | Box | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | - | Standard Round | 17.45mm | Mom-Off-Mom | Non-Illuminated | - | - | - | -17.8°C ~ 65.6°C | 15/32-32 | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia |
|

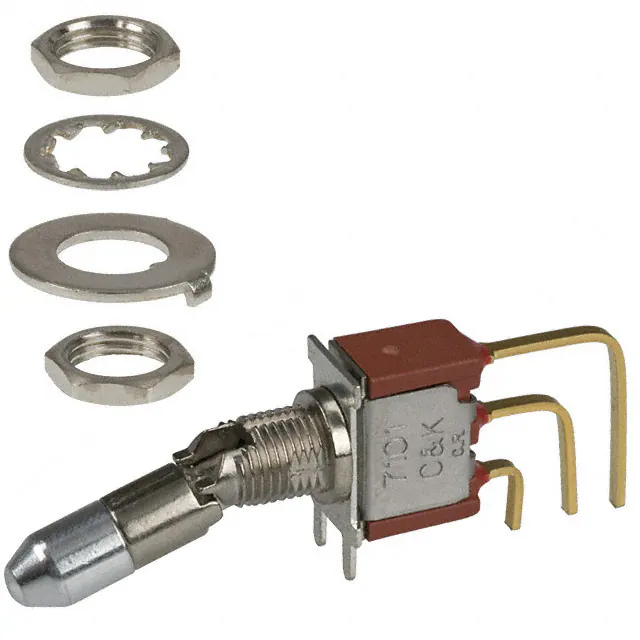

7101K2AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
30 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Epoxy Sealed Terminals | Locking Lever | 17.88mm | On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | PC Pin | Circular - 6.35mm Dia |
|

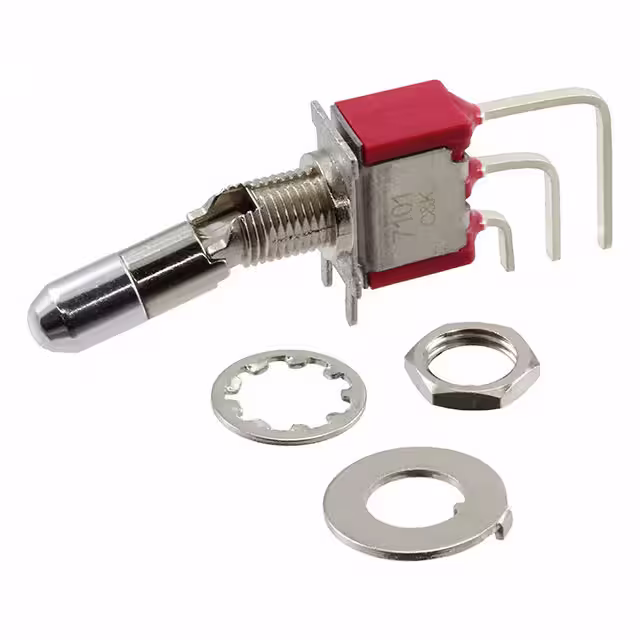

7101K2AV2QESWITCH TOGGLE SPDT 5A 120V |
82 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Locking Lever | 17.88mm | On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | PC Pin | Circular - 6.35mm Dia |
|
S3AWSWITCH TOGGLE SPDT 15A 125V |
93 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | - | Standard Round | 17.50mm | On-Off-On | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C | M12 x 1 | Solder Lug | Circular - 12.50mm Dia |
|

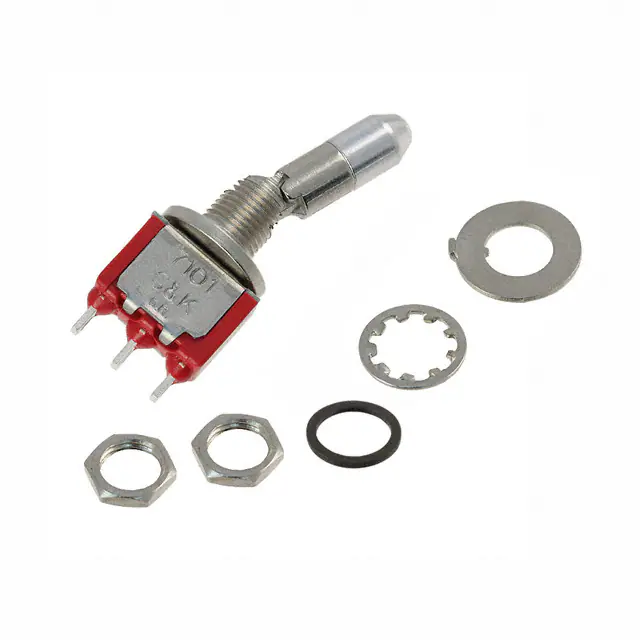

7101K2CWZQESWITCH TOGGLE SPDT 5A 120V |
18 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Locking Lever | 17.88mm | On-On | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.35mm Dia |
|

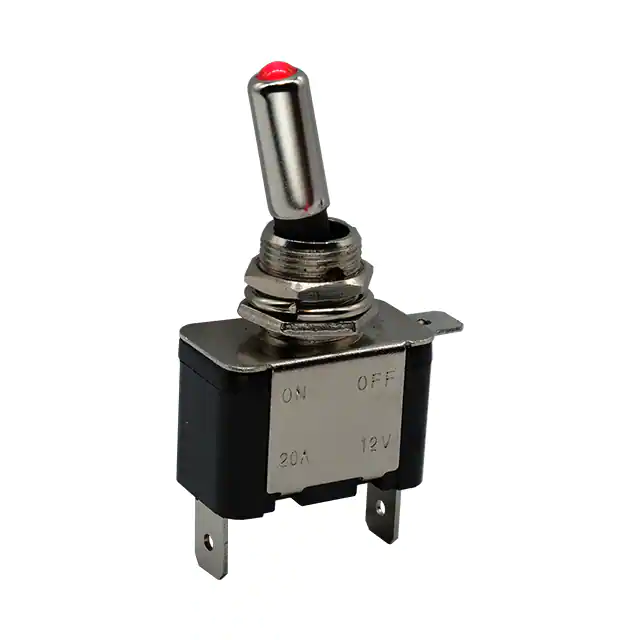

ILT02SWITCH TOGGLE SPST 20A 12V |
47 |
|
Datasheet |
ILT | Tray | Active | Panel Mount | SPST | 20A (DC) | - | 12 V | - | Standard Round | 19.90mm | On-Off | Illuminated | LED, Red | - | 2 VDC | -25°C ~ 85°C | M12 x 0.75 | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia |
|

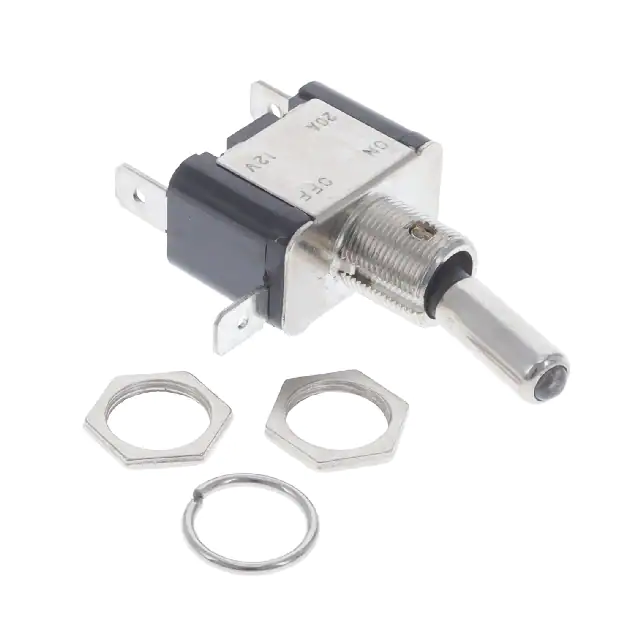

ILT04SWITCH TOGGLE SPST 20A 12V |
23 |
|
Datasheet |
ILT | Tray | Active | Panel Mount | SPST | 20A (DC) | - | 12 V | - | Standard Round | 19.90mm | On-Off | Illuminated | LED, Blue | - | 2.8 ~ 3.6 VDC | -25°C ~ 85°C | M12 x 0.75 | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia |
|
MN22LL2W13SWITCH TOGGLE |
64 |
|
Datasheet |
M | Bulk | Active | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | - | Locking Lever | 16.50mm | On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | Unthreaded | PC Pin | - |
|
|
S6FSWITCH TOGGLE DPDT 20A 125V |
69 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | - | Standard Round | 17.50mm | On-On | Non-Illuminated | - | - | - | -10°C ~ 70°C | M12 x 1 | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia |
|
S331RSWITCH TOGGLE DPST 20A 125V |
36 |
|
Datasheet |
S300R | Bulk | Active | Panel Mount | DPST | 20A (AC/DC) | 125 V | 30 V | Black Actuator | Flatted | 27.00mm | On-Off | Non-Illuminated | - | - | - | -10°C ~ 70°C | M12 x 1 | Solder Lug | Circular - 12.50mm Dia |
|
641HSWITCH TOGGLE DPST 15A 250V |
35 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPST | 15A (AC) | 250 V | - | - | Standard Round | 17.50mm | On-Off | Non-Illuminated | - | - | - | -20°C ~ 55°C | M12 x 0.75 | Screw Terminal | Circular - 12.20mm Dia |
|
7211P3YZQESWITCH TOGGLE SP3T 5A 120V |
31 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Jumper needed to achieve triple throw | Flat Anti-Rotation | 11.43mm | On-On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.35mm Dia |
|
7203TZQESWITCH TOGGLE DPDT 5A 120V |
41 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Standard Round | 17.45mm | On-Off-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 15/32-32 | Solder Lug | Circular - 11.91mm Dia |
|

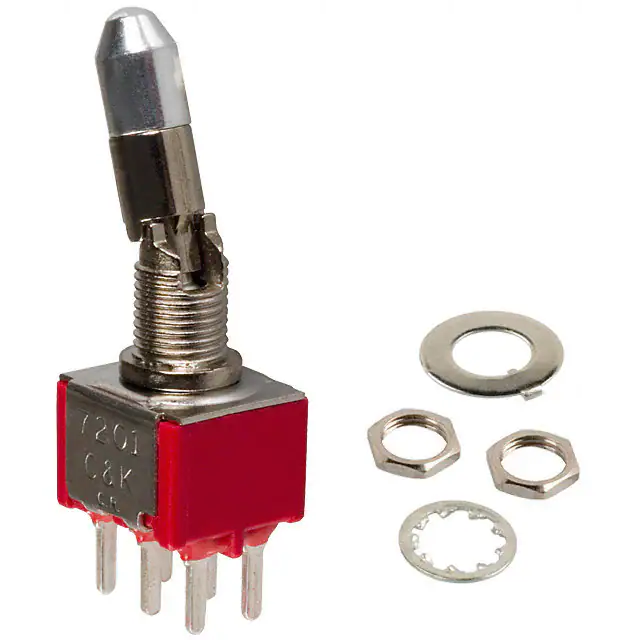

7201K2CQESWITCH TOGGLE DPDT 5A 120V |
64 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Locking Lever | 17.88mm | On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | PC Pin | Circular - 6.35mm Dia |
|
7211TZQESWITCH TOGGLE SP3T 5A 120V |
85 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Jumper needed to achieve triple throw | Standard Round | 17.45mm | On-On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 15/32-32 | Solder Lug | Circular - 11.91mm Dia |
|
646NH/2SWITCH TOGGLE DPDT 10A 250V |
75 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | - | Flatted | 13.50mm | On-On | Non-Illuminated | - | - | - | -20°C ~ 55°C | M12 x 0.75 | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia |
|
6GG5B-73SWITCH TOGGLE DPDT 15A 125V |
90 |
|
Datasheet |
G | Box | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | - | Standard Round | 17.45mm | Mom-On-Off | Non-Illuminated | - | - | - | 0°C ~ 85°C | 15/32-32 | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia |
|
649H/2SWITCH TOGGLE DPDT 10A 250V |
82 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | - | Standard Round | 17.50mm | On-Off-On | Non-Illuminated | - | - | - | -20°C ~ 55°C | M12 x 0.75 | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia |
|

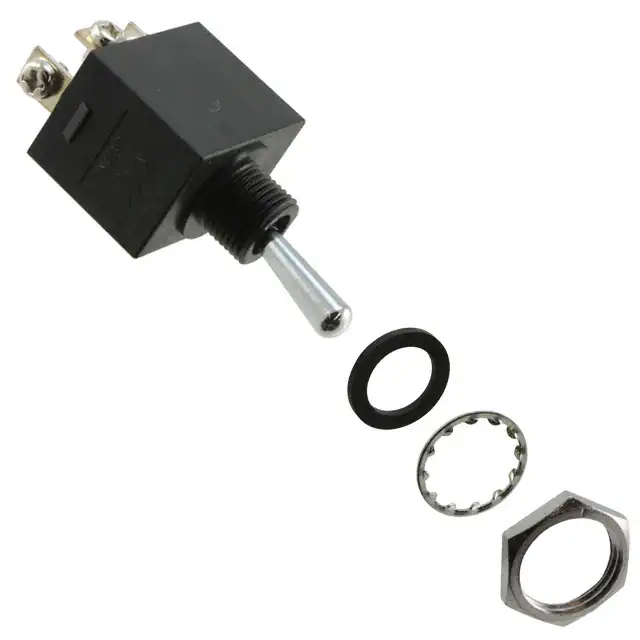

WT12TSWITCH TOGGLE SPDT 10A 125V |
37 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | 10A (AC/DC) | 125 V | 30 V | Epoxy Sealed Terminals | Standard Round | 17.50mm | On-On | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C | M12 x 1 | Screw Terminal | Circular - 12.50mm Dia |
