Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2024LL4W01-CSWITCH TOGGLE SP3T 6A 125V |
3,496 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
S338F-AT401HSWITCH TOGGLE DPDT 15A 125V |
2,639 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S338F-AT401ASWITCH TOGGLE DPDT 15A 125V |
3,706 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

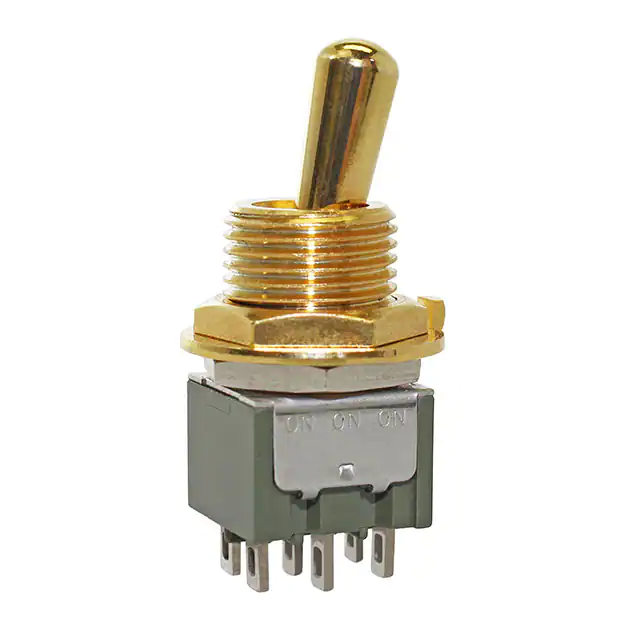

M2024BB1UW01SWITCH TOGGLE SP3T 6A 125V |
63 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Gold Actuator, Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2023SS2G30-BASWITCH TOGGLE DPDT 0.4VA 28V |
17 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
M2026B2B1W01-VB-AT4181SWITCH TOGGLE SP3T 6A 125V |
2,613 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2024BB1G03-AT402SSWITCH TOGGLE SP3T 0.4VA 28V |
2,947 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
ET220S12-ZSWITCH TOGGLE DPDT 20A 125V |
72 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

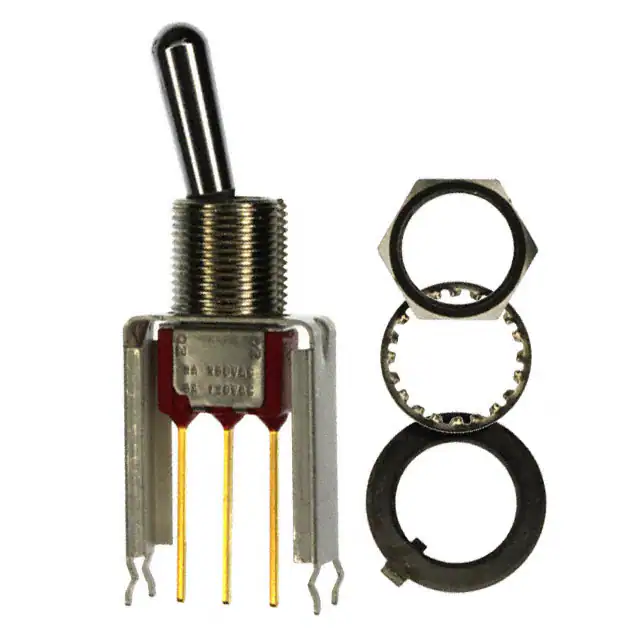

7108TCWV81GESWITCH TOGGLE SPDT 5A 120V |
34 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

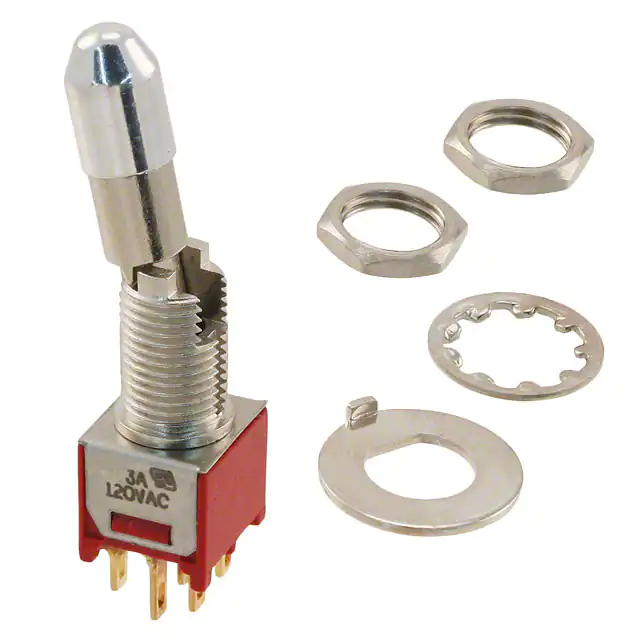

T201KZGESWITCH TOGGLE DPDT 3A 120V |
11 |
|
Datasheet |
T | Bulk | Obsolete | Panel Mount | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Locking Lever | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

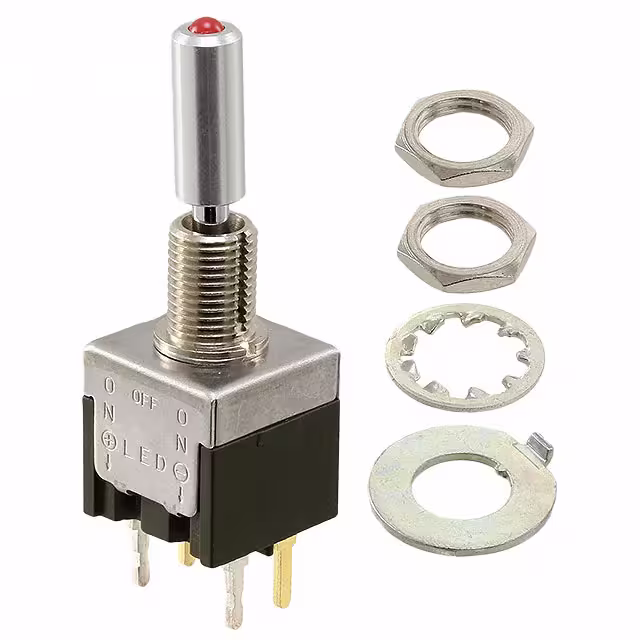

M2113LCG03SWITCH TOGGLE SPDT 0.4VA 28V |
3 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
2NT91-6SWITCH TOGGLE DPST-NO 10A 125V |
4,898 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
32NT91-4SWITCH TOGGLE DPST-NC 10A 125V |
8 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPST-NC | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
S338F-AT402ASWITCH TOGGLE DPDT 15A 125V |
4,647 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S338F-AT402CSWITCH TOGGLE DPDT 15A 125V |
3,542 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S338F-AT402HSWITCH TOGGLE DPDT 15A 125V |
4,767 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
PT105SZQSWITCH TOGGLE SPDT 10A 277V |
46 |
|
Datasheet |
PT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
S335F-AT401HSWITCH TOGGLE DPDT 15A 125V |
2,209 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S335F-AT401ASWITCH TOGGLE DPDT 15A 125V |
3,749 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
M2026B2B1W01-VB-AT401ASWITCH TOGGLE SP3T 6A 125V |
4,114 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
