Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

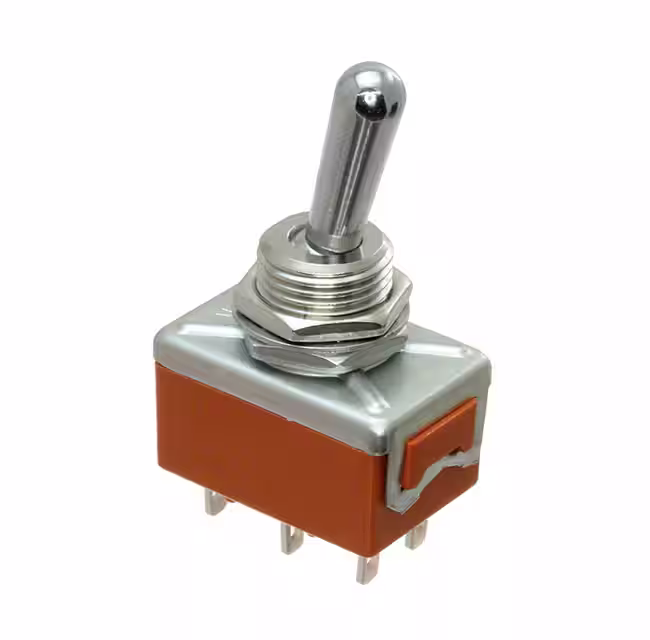

T206N-FSWITCH TOGGLE DPDT 6A 125V |
1 |
|
Datasheet |
T-06 | Box | Active | Through Hole | DPDT | On-On | 6A (AC/DC) | 125 V | 30 V | Anti-Rotation | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.30mm Dia | M12 x 1 | - | - | -25°C ~ 70°C |
|
B23JHSWITCH TOGGLE DPDT 0.4VA 28V |
6 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET115D12-ZSWITCH TOGGLE SPDT 15A 125V |
23 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
8G2014-ZSWITCH TOGGLE DPDT 6A 125V |
17 |
|
Datasheet |
8G | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|
7101SDCQESWITCH TOGGLE SPDT 5A 120V |
18 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7262BSWITCH TOGGLE SPDT 20A 125V |
24 |
|
Datasheet |
7200 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
1825219-3SWITCH TOGGLE SPDT 0.4VA 20V |
3,371 |
|
Datasheet |
TT | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.61mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
CF-TA-1DB4-L12SWITCH TOGGLE SPDT 50MA 48V |
4,749 |
|
Datasheet |
CF-TA | Bulk | Active | Surface Mount, Right Angle | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 11.50mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | - | -40°C ~ 85°C |
|

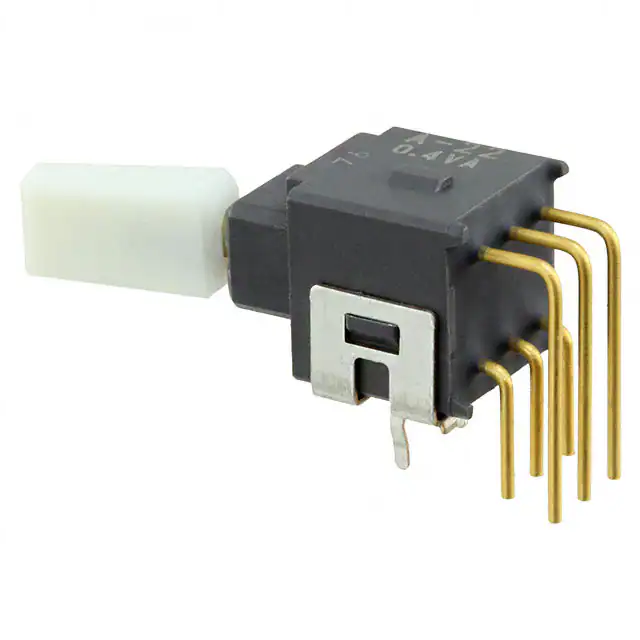

A22KH-ABSWITCH TOGGLE DPDT 0.4VA 28V |
21 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | White Actuator | -30°C ~ 85°C |
|
E101MD1AQESWITCH TOGGLE SPDT 7.5A 125V |
2,630 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET01SD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
2,903 |
|
Datasheet |
ET | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E101MD9AGESWITCH TOGGLE SPDT 7.5A 125V |
4,628 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
EHTSLPKGSWITCH TOGGLE DPDT |
3,430 |
|
- |
EH | Bulk | Active | Panel Mount | DPDT | On-On | - | - | - | Standard Round | - | Non-Illuminated | - | - | Solder Lug | - | - | - | - | - |
|
7101SPDCQESWITCH TOGGLE SPDT 5A 120V |
4,264 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

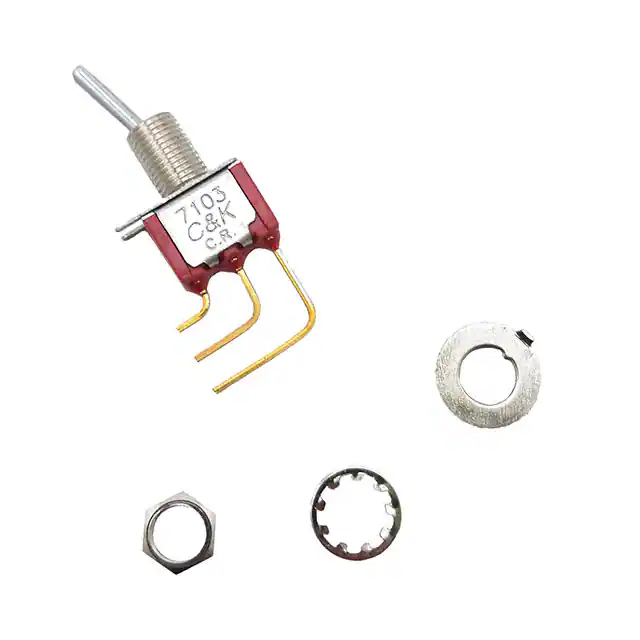

7103SYAV2BESWITCH TOGGLE SPDT 0.4VA 20V |
3,032 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

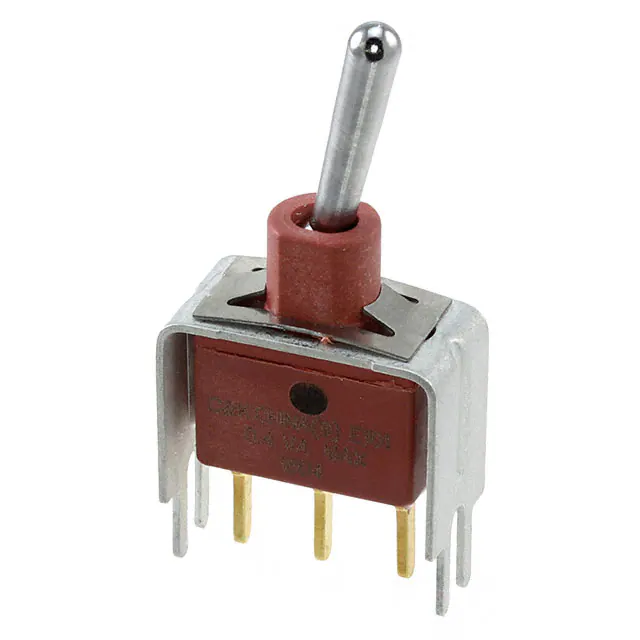

E101SD1V3BESWITCH TOGGLE SPDT 0.4VA 20V |
3,367 |
|
Datasheet |
E | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET03SD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
8 |
|
Datasheet |
ET | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

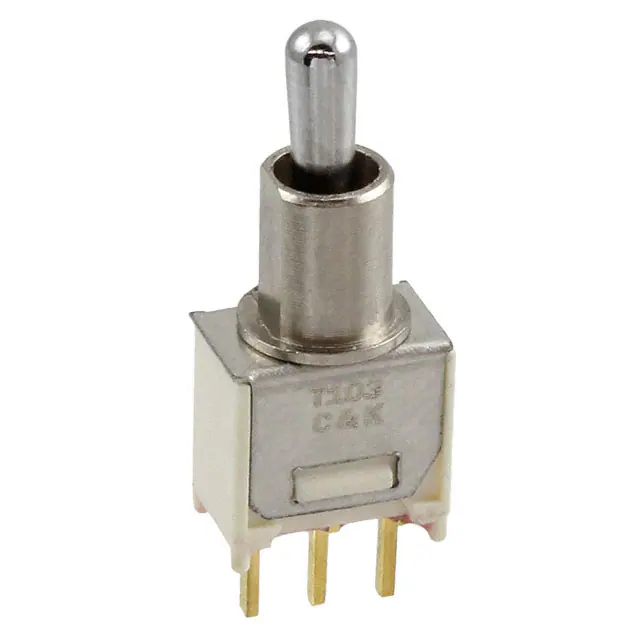

T103MH9CBESWITCH TOGGLE SPDT 0.4VA 20V |
2,738 |
|
Datasheet |
T | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

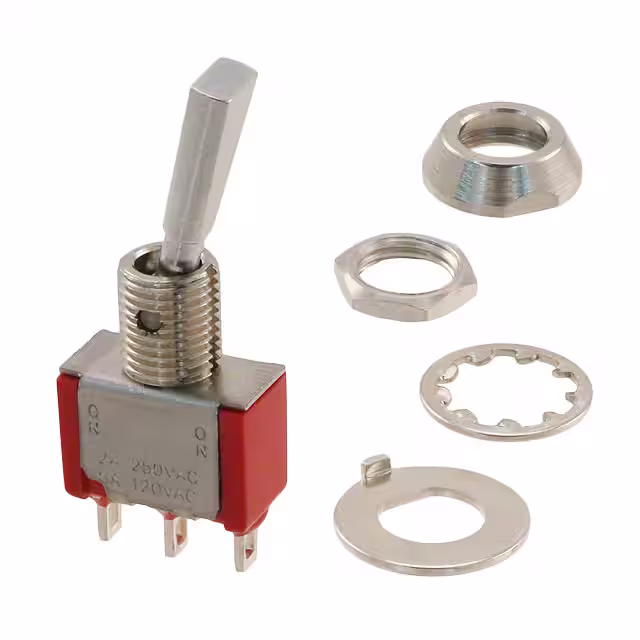

7101P3DZQESWITCH TOGGLE SPDT 5A 120V |
4,589 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

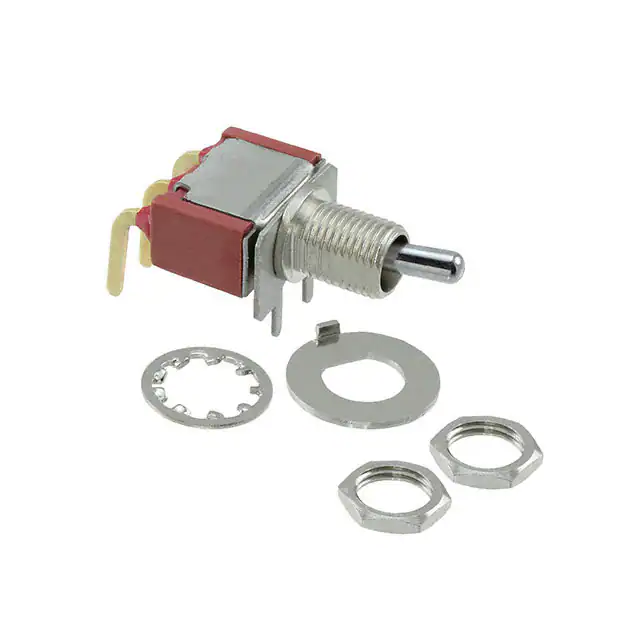

7101MHA2BESWITCH TOGGLE SPDT 0.4VA 20V |
4 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
