Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Features | Actuator Type | Actuator Length | Switch Function | Illumination | Illumination Type, Color | Ingress Protection | Illumination Voltage (Nominal) | Operating Temperature | Bushing Thread | Termination Style | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5636AKBSWITCH TOGGLE SPDT 6A 125V |
291 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Front Panel Sealing | Standard Round | 10.50mm | On-On | Non-Illuminated | - | - | - | -40°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.50mm Dia |
|

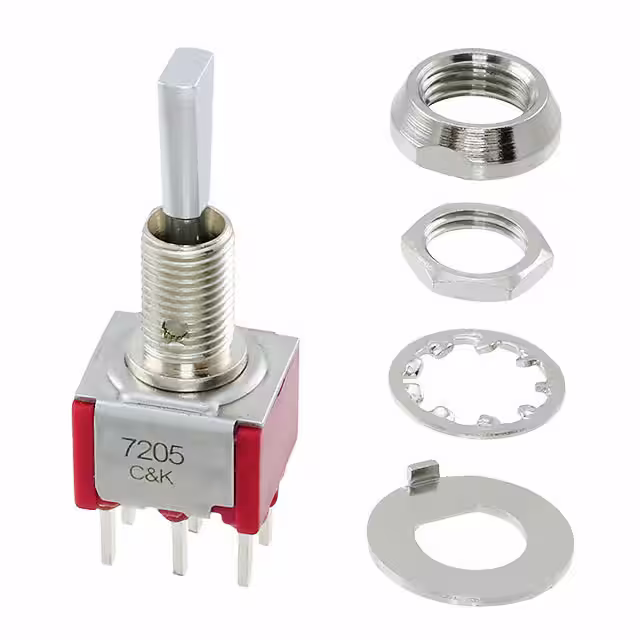

7205P3Y4CQESWITCH TOGGLE DPDT 5A 120V |
235 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Flat Anti-Rotation | 11.43mm | Mom-Off-Mom | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | PC Pin | Circular - 6.35mm Dia |
|

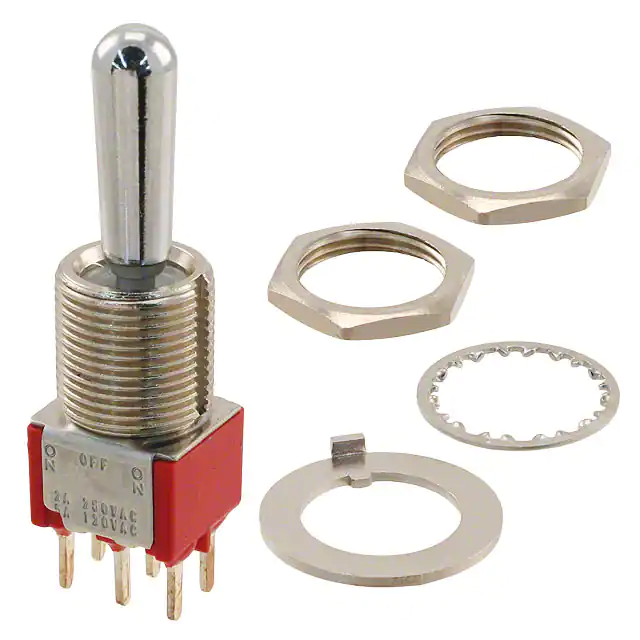

7205TCWCQESWITCH TOGGLE DPDT 5A 120V |
2,227 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Standard Round | 17.45mm | Mom-Off-Mom | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C | 15/32-32 | PC Pin | Circular - 11.91mm Dia |
|
7208P3YZQESWITCH TOGGLE DPDT 5A 120V |
115 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Flat Anti-Rotation | 11.43mm | On-Mom | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.35mm Dia |
|

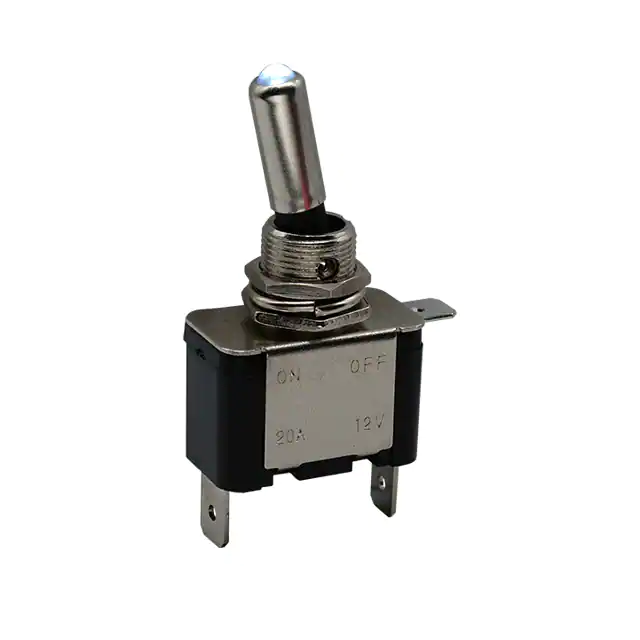

ILT01SWITCH TOGGLE SPST 20A 12V |
103 |
|
Datasheet |
ILT | Tray | Active | Panel Mount | SPST | 20A (DC) | - | 12 V | - | Standard Round | 19.90mm | On-Off | Illuminated | LED, White | - | 2.8 ~ 3.6 VDC | -25°C ~ 85°C | M12 x 0.75 | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia |
|

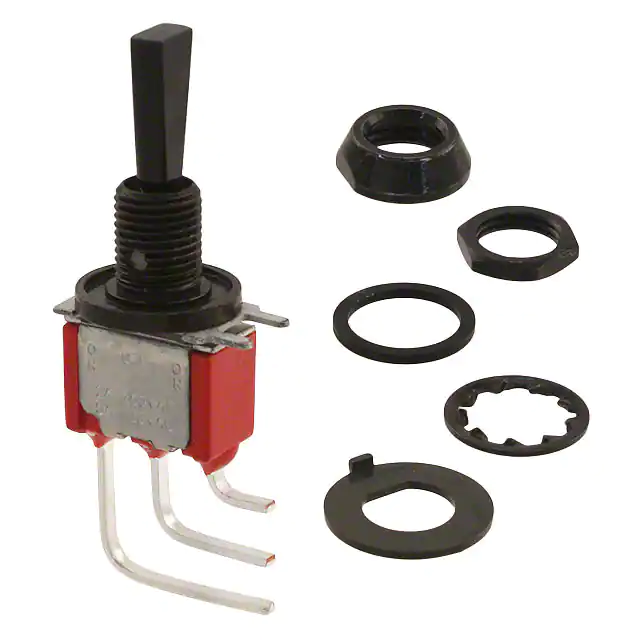

7107P3CWAV2QE22SWITCH TOGGLE SPDT 5A 120V |
417 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | Black Actuator | Flat Anti-Rotation | 11.43mm | On-Off-Mom | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C | 1/4-40 | PC Pin | Circular - 6.35mm Dia |
|

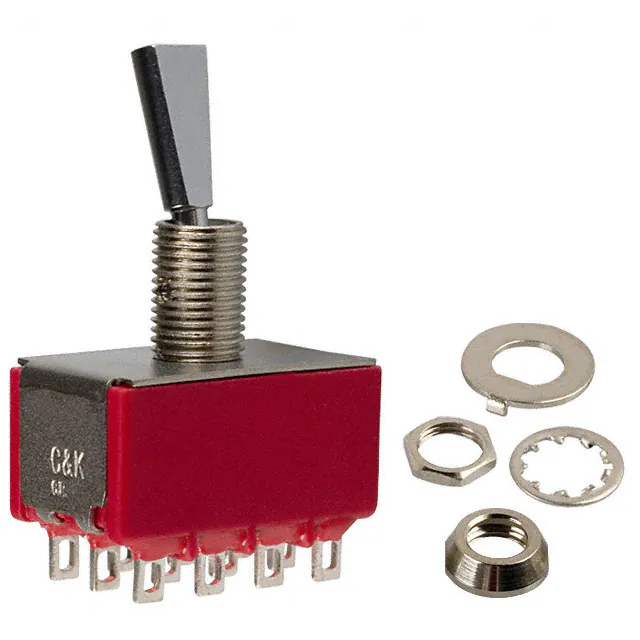

7403P3HZQESWITCH TOGGLE 4PDT 5A 120V |
180 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Flat Anti-Rotation | 11.43mm | On-Off-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.35mm Dia |
|

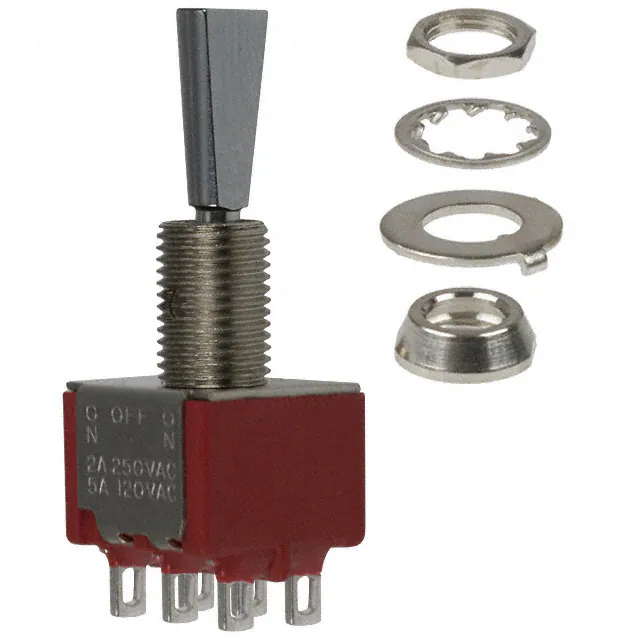

7203P3YZQESWITCH TOGGLE DPDT 5A 120V |
102 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Flat Anti-Rotation | 11.43mm | On-Off-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.35mm Dia |
|
|
7207P3YZQESWITCH TOGGLE DPDT 5A 120V |
138 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Flat Anti-Rotation | 11.43mm | On-Off-Mom | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.35mm Dia |
|
4-6437630-6SWITCH TOGGLE DPDT 6A 250V |
128 |
|
Datasheet |
F | Bulk | Active | Panel Mount | DPDT | 6A (AC) | 250 V | - | - | Standard Round | 10.50mm | On-Off-On | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C | M6 x 0.75 | Solder Lug | Circular - 6.20mm Dia |
|
1825192-2SWITCH TOGGLE SPDT 0.4VA 20V |
144 |
|
Datasheet |
TT | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Epoxy Sealed Terminals | Standard Round | 10.69mm | On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | PC Pin | Circular - 6.40mm Dia |
|

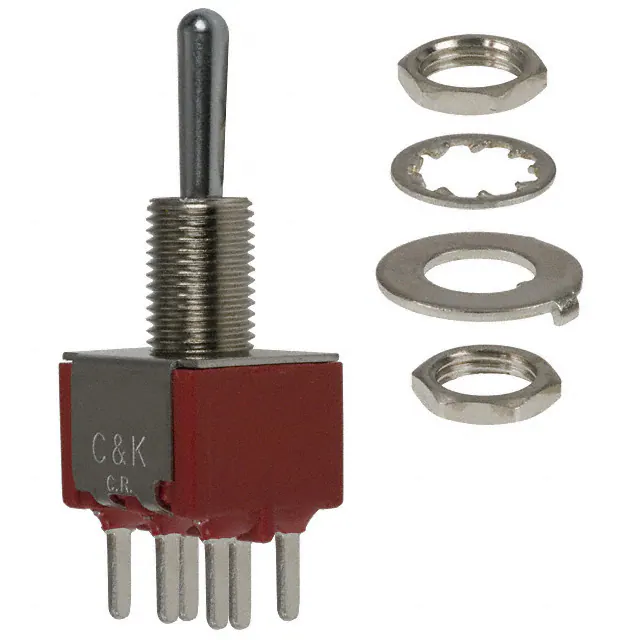

7215SYCQESWITCH TOGGLE SP3T 5A 120V |
101 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Jumper needed to achieve triple throw | Standard Round | 10.67mm | Mom-On-Mom | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | PC Pin | Circular - 6.35mm Dia |
|
7203P3YZQE22SWITCH TOGGLE DPDT 5A 120V |
355 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Black Actuator | Flat Anti-Rotation | 11.43mm | On-Off-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.35mm Dia |
|
631H/2KSWITCH TOGGLE SPST 15A 250V |
293 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPST | 15A (AC) | 250 V | - | Front Panel Sealing | Standard Round | 17.50mm | On-Off | Non-Illuminated | - | - | - | -20°C ~ 55°C | M12 x 0.75 | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia |
|
C3972BASWITCH TOGGLE DPDT 16A 125V |
421 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | DPDT | 16A (AC), 14A (DC) | 125 V | 36 V | - | Standard Round | 17.50mm | Mom-Off-Mom | Non-Illuminated | - | - | - | - | 15/32-32 | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia |
|
7201TCWZQESWITCH TOGGLE DPDT 5A 120V |
497 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Epoxy Sealed Terminals | Standard Round | 17.45mm | On-On | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C | 15/32-32 | Solder Lug | Circular - 11.91mm Dia |
|
S21AWFSWITCH TOGGLE DPST 15A 125V |
113 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | 15A (AC), 20A (DC) | 125 V | 30 V | - | Standard Round | 17.50mm | On-Off | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C | M12 x 1 | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia |
|
S422TSWITCH TOGGLE DPDT 20A 125V |
1,383 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPDT | 20A (AC) | 125 V | - | - | Standard Round | 17.50mm | On-On | Non-Illuminated | - | - | - | -10°C ~ 70°C | M12 x 1 | Screw Terminal | Circular - 12.50mm Dia |
|

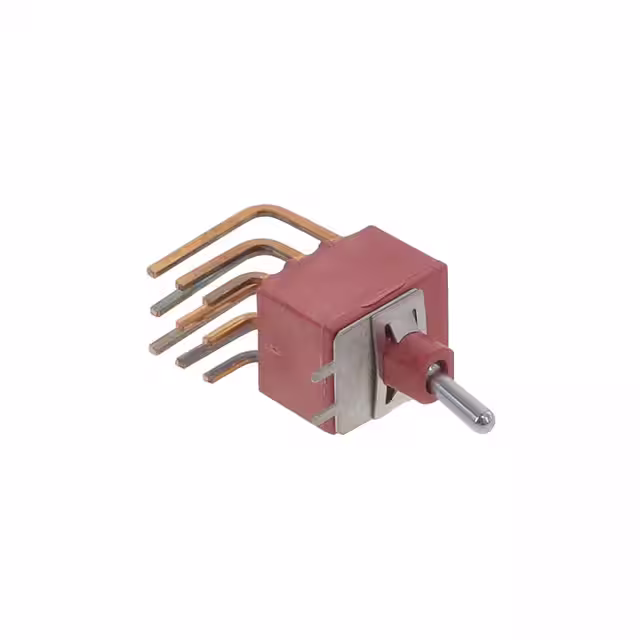

E301MD1AGESWITCH TOGGLE 3PDT 5A 125V |
500 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | 3PDT | 5A (AC/DC) | 125 V | 28 V | Epoxy Sealed Terminals | Standard Round | 7.62mm | On-On | Non-Illuminated | - | IP57 - Dust Protected, Waterproof | - | -30°C ~ 85°C | Unthreaded | PC Pin | - |
|
644H/22RSWITCH TOGGLE SP3T 10A 250V |
737 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SP3T | 10A (AC) | 250 V | - | Jumper needed to achieve triple throw | Standard Round | 17.50mm | Mom-On-Mom | Non-Illuminated | - | - | - | -20°C ~ 55°C | M12 x 0.75 | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia |
