Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

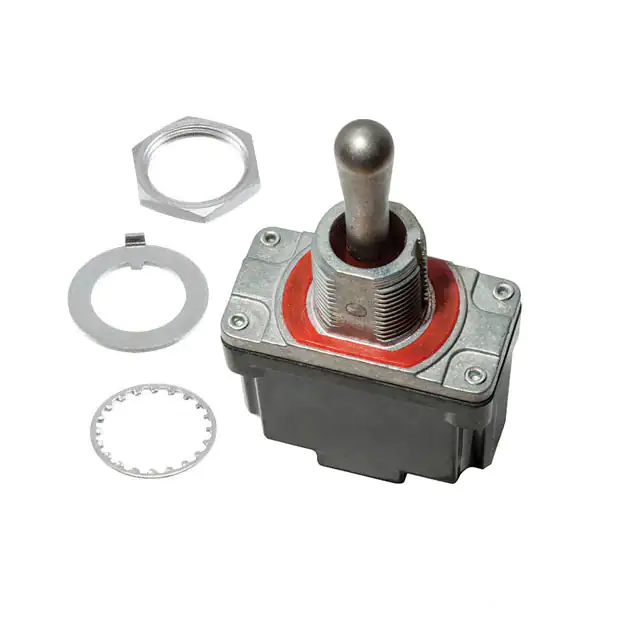

PT102SQQSWITCH TOGGLE SPST 15A 277V |
2,273 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|

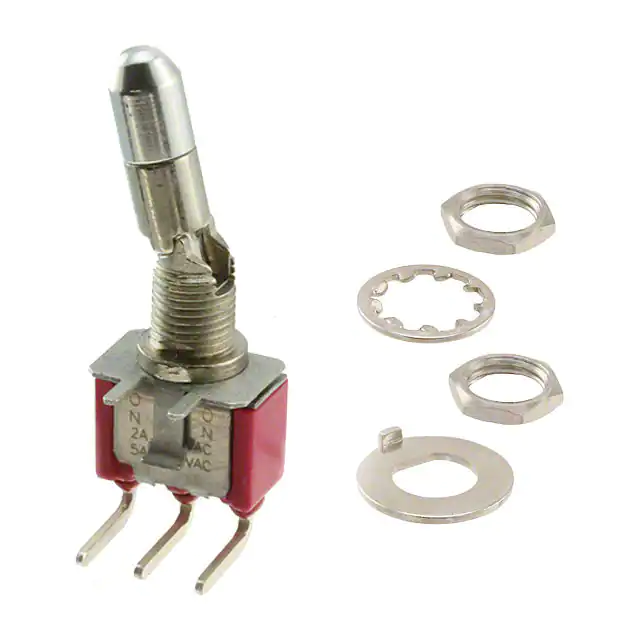

7101K2AQESWITCH TOGGLE SPDT 5A 120V |
1,666 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

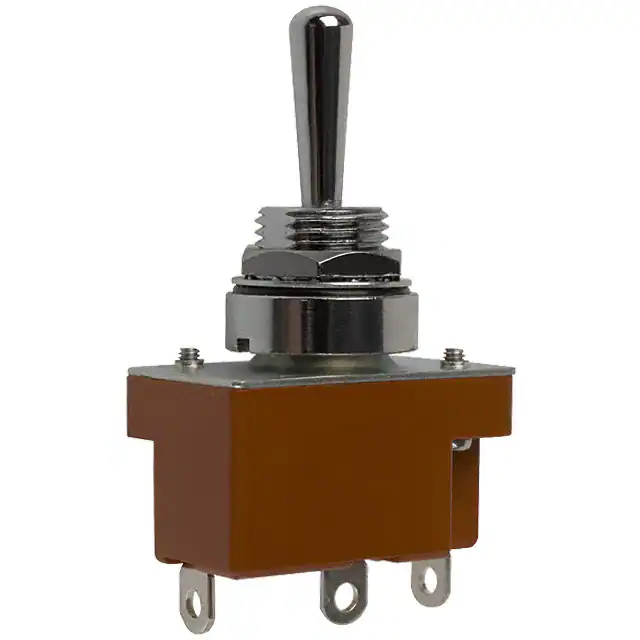

S8AWSWITCH TOGGLE SPDT 15A 125V |
707 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
7211SYZQESWITCH TOGGLE SP3T 5A 120V |
293 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
GTB2B12CSWITCH TOGGLE SPST 12A 125V |
603 |
|
Datasheet |
GTB | Bulk | Active | Panel Mount | SPST | On-Off | 12A (AC) | 250 V | - | Standard Round | 16.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | - |
|

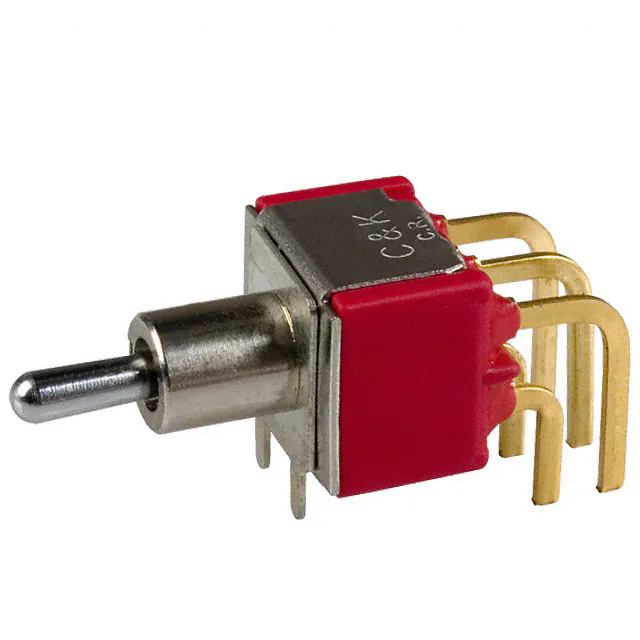

7207MD9ABESWITCH TOGGLE DPDT 0.4VA 20V |
530 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

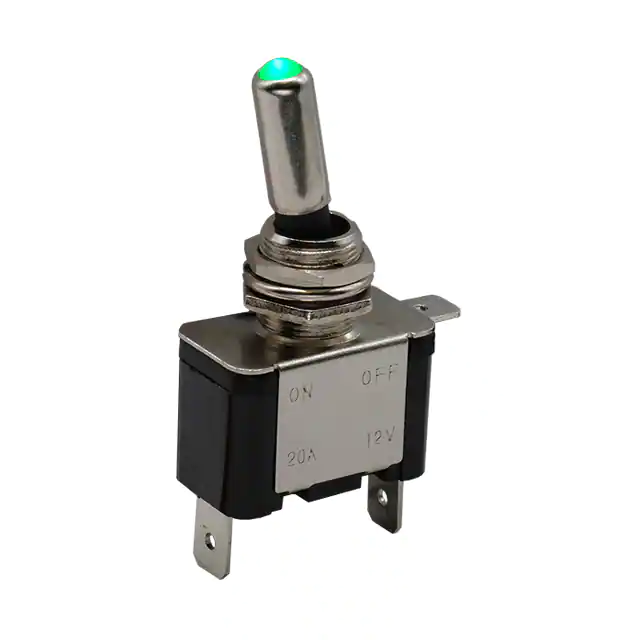

ILT05SWITCH TOGGLE SPST 20A 12V |
252 |
|
Datasheet |
ILT | Bulk | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 19.90mm | Illuminated | LED, Green | 3 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -25°C ~ 85°C |
|

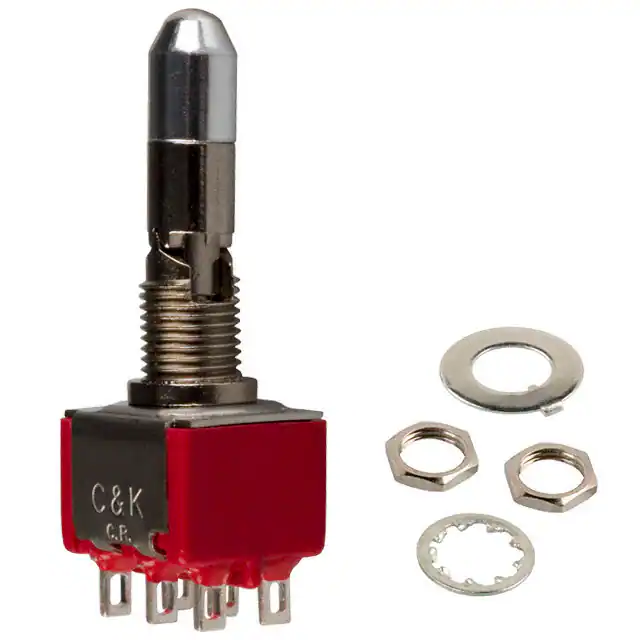

7201K2ZQESWITCH TOGGLE DPDT 5A 120V |
138 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

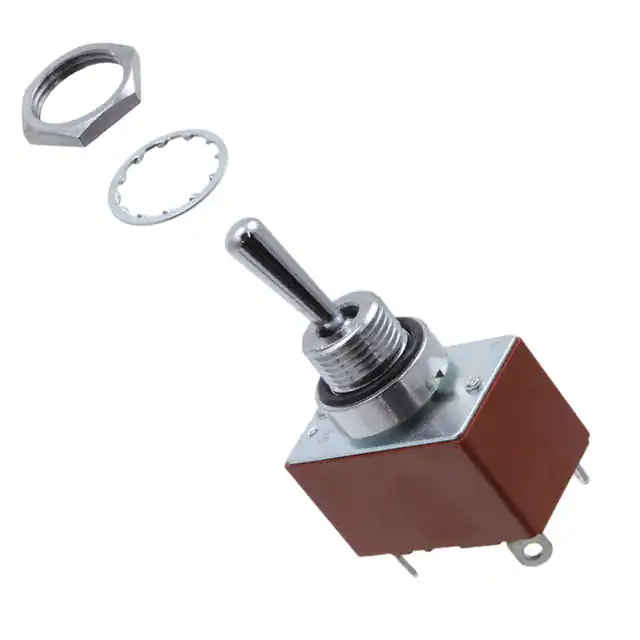

S21AWSWITCH TOGGLE DPST 15A 125V |
567 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|

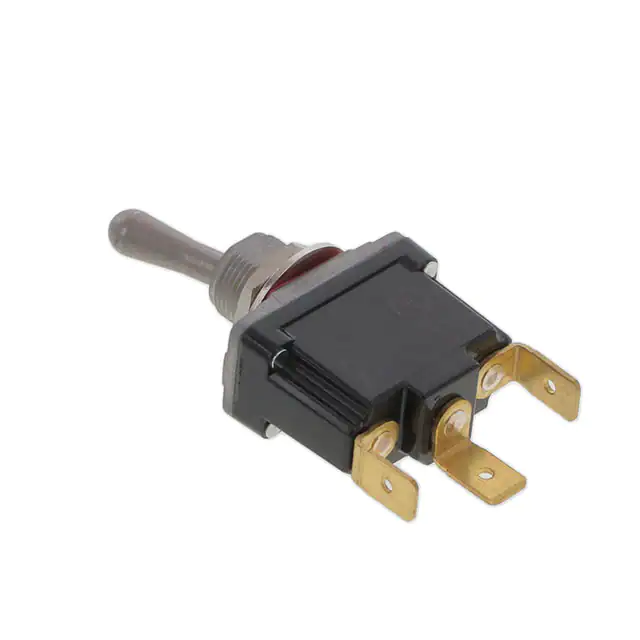

PT101SQQSWITCH TOGGLE SPDT 15A 277V |
500 |
|
Datasheet |
PT | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|

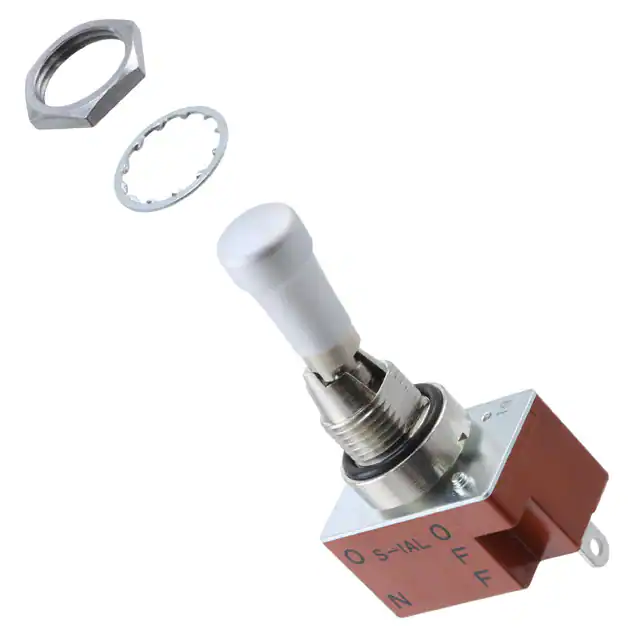

S1ALSWITCH TOGGLE SPST 15A 125V |
169 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Locking Lever | 23.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|

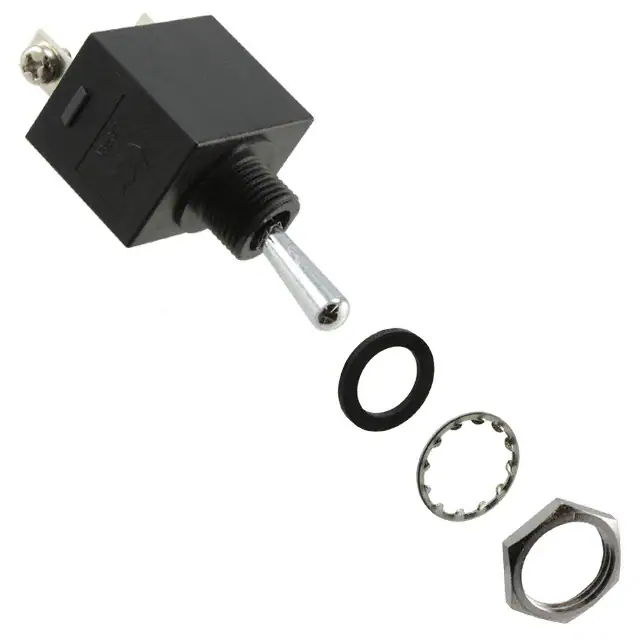

WT11TSWITCH TOGGLE SPST 10A 125V |
308 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

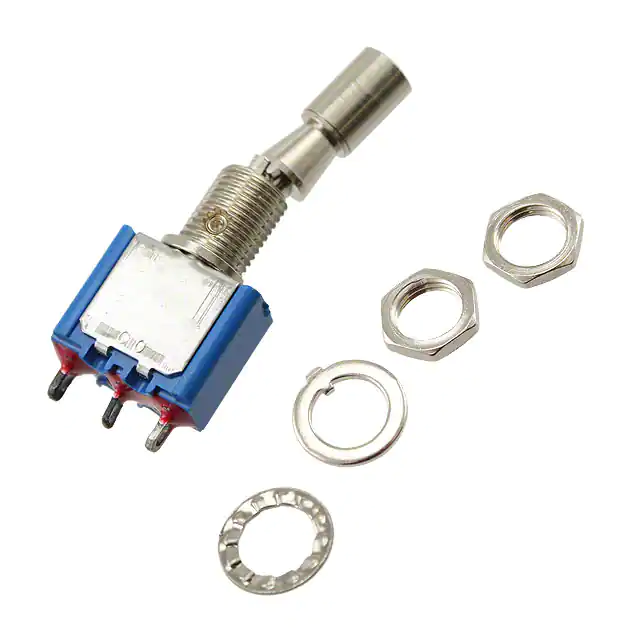

5636AB2VSWITCH TOGGLE SPDT 6A 125V |
254 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 14.75mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

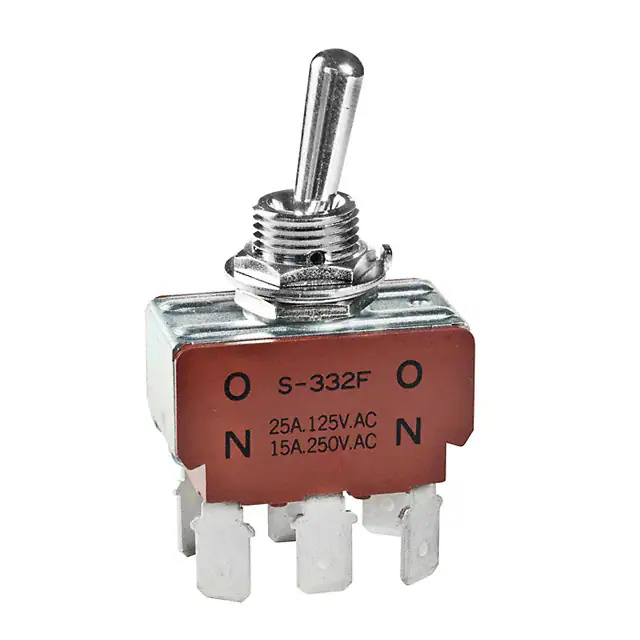

S332FSWITCH TOGGLE DPDT 25A 125V |
357 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | On-On | 25A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

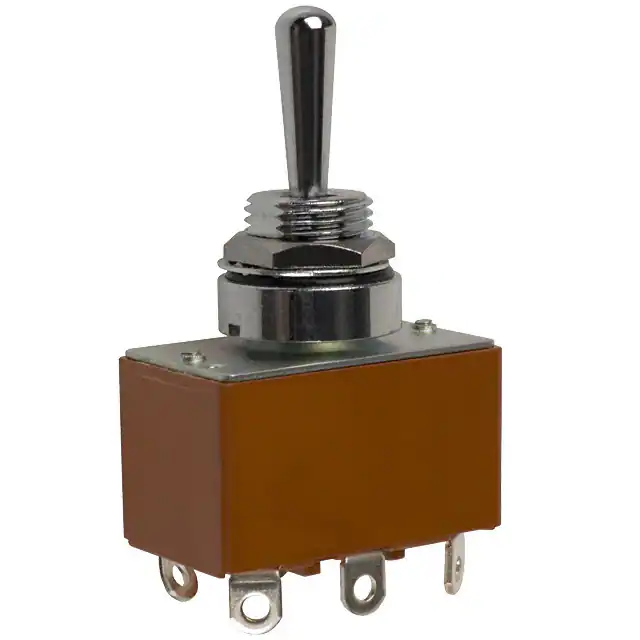

S6AWSWITCH TOGGLE DPDT 20A 125V |
227 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
|
GTB3B11CSWITCH TOGGLE DPDT 12A 125V |
250 |
|
Datasheet |
GTB | Bulk | Active | Panel Mount | DPDT | On-Off-On | 12A (AC) | 250 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | - |
|
1NT1-7SWITCH TOGGLE SPDT 10A 125V |
640 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
GTB4B13CSWITCH TOGGLE DPDT 12A 125V |
791 |
|
Datasheet |
GTB | Bulk | Active | Panel Mount | DPDT | On-On | 12A (AC) | 250 V | - | Standard Round | 16.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | - |
|
|
1NT1-3SWITCH TOGGLE SPDT 15A 125V |
159 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

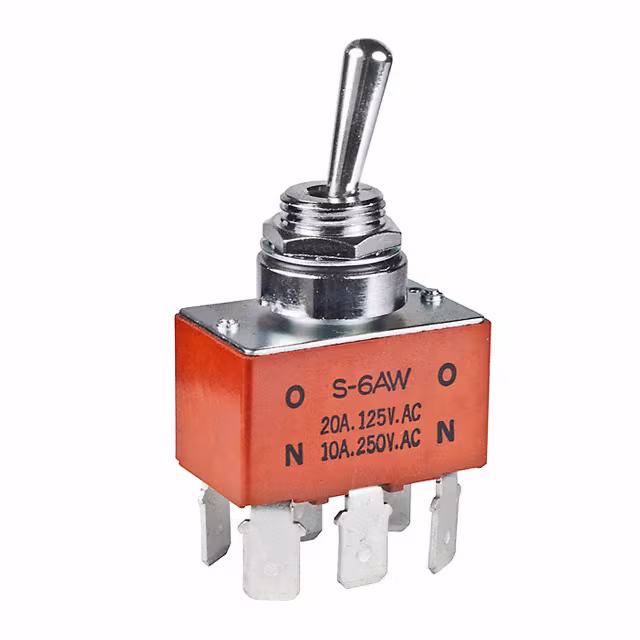

S6AWFSWITCH TOGGLE DPDT 20A 125V |
216 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
