Home > Products > Circuit Protection > Transient Voltage Suppressors (TVS) > TVS Diodes

TVS Diodes

制造商	Package/Case	Series	Packaging	Product Status	Type	Unidirectional Channels	Bidirectional Channels	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min)	Voltage - Clamping (Max) @ Ipp	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Power Line Protection	Applications	Capacitance @ Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package
Alpha & Omega Semiconductor Inc. Amazing Analog Devices Inc./Maxim Integrated ANBON SEMICONDUCTOR (INT'L) LIMITED Bourns Inc. California Micro Devices Central Semiconductor Corp Comchip Technology Diodes Incorporated Diotec Semiconductor Eaton - Electronics Division EIC SEMICONDUCTOR INC. EPCOS - TDK Electronics EVVO Fairchild Semiconductor Flip Electronics Formosa Microsemi Co., Ltd. Good-Ark Semiconductor Harris Corporation Hartland Controls/Littelfuse HY Electronic (Cayman) Limited Infineon Technologies KYOCERA AVX Littelfuse Inc. Lumimax Optoelectronic Technology MDD Meritek Micro Commercial Co Microchip Technology Microsemi Corporation Murata Electronics Nexperia USA Inc. NextGen Components Group NXP Semiconductors onsemi Panasonic - BSG Panjit International Inc. Qorvo Rectron USA Renesas ROHM Semiconductor Sanken Electric USA Inc. Semitec USA Corp Semtech Corporation SETsafe \| SETfuse Shenzhen Ruilongyuan Electronics Co.Ltd Shenzhen Slkormicro Semicon Co., Ltd. SMC Diode Solutions STMicroelectronics Taiwan Semiconductor Corporation Texas Instruments Torex Semiconductor Ltd Toshiba Semiconductor and Storage UMW Venkel Vishay Vishay General Semiconductor - Diodes Division WeEn Semiconductors Würth Elektronik YAGEO Yenyo Technology	- 01005 (0402 Metric) 0201 (0603 Metric) 0402 (1005 Metric) 0402 (1005 Metric), Concave 0402 (1006 Metric) 0405 (1012 Metric) 0503 (1308 Metric) 0508 (1220 Metric) 0603 (1608 Metric) 0603 (1608 Metric), Concave 0603 (1610 Metric) 0805 (2012 Metric) 10-CFlatPack 10-TFBGA, CSPBGA 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) 10-UDFN Exposed Pad 10-UFBGA, WLCSP 10-UFDFN 10-UFDFN Exposed Pad 10-UFQFN 10-VFSOP, 10-MSOP (0.118", 3.00mm Width) 10-WDFN 10-WFBGA, FCBGA 10-WFBGA, WLCSP 10-WFDFN 10-XDFN Exposed Pad 10-XFDFN 10-XFDFN Exposed Pad 1005 (2512 Metric) 11-UFBGA, WLCSP 12-UFDFN Exposed Pad 12-WQFN Exposed Pad 1206 (3216 Metric) 1210 (3225 Metric) 13-UDFN 14-CDIP (0.300", 7.62mm) 14-CFlatPack 14-DIP (0.300", 7.62mm) 14-Flatpack 14-PowerUFDFN 14-SOIC (0.154", 3.90mm Width) 14-UFDFN 14-WFDFN Exposed Pad 15-SMD, No Lead 15-UFBGA, WLCSP 15-XFBGA, WLCSP 16-CDIP (0.300", 7.62mm) 16-CFlatPack 16-DIP 16-DIP (0.300", 7.62mm) 16-SMD, Gull Wing 16-SOIC (0.154", 3.90mm Width) 16-SOIC (0.295", 7.50mm Width) 16-TSSOP (0.173", 4.40mm Width) 16-UFDFN 16-UFDFN Exposed Pad 16-UFQFN 16-UFQFN Exposed Pad 16-WDFN Exposed Pad 16-WFBGA, WLCSP 16-WFDFN Exposed Pad 16-WFQFN Exposed Pad 18-UFDFN Exposed Pad 18-VFDFN Exposed Pad 18-XFBGA, CSPBGA 2-Circular, 5R 2-LDFN 2-SFN Exposed Pad 2-SMD 2-SMD, Flat Leads 2-SMD, Gull Wing 2-SMD, J-Lead 2-SMD, No Lead 2-UDFN 2-UFDFN 2-VDFN 2-WDFN 2-WDFN Exposed Pad 2-XDFN 2-XFBGA, CSPBGA 2-XFBGA, FCBGA 2-XFBGA, WLCSP 2-XFDFN 2-XFDFN, FCDFN 20-SOIC (0.295", 7.50mm Width) 20-SSOP (0.209", 5.30mm Width) 20-TSSOP (0.173", 4.40mm Width) 24-LSSOP (0.173", 4.40mm Width) 24-VFQFN Exposed Pad 24-WFBGA, WLCSP 3-DFN 3-PowerUDFN 3-SIP 3-SMD, No Lead 3-SMD, SOT-23-3 Variant 3-UDFN 3-UDFN Exposed Pad 3-UFDFN 3-WDFN 3-XDFN 3-XDFN Exposed Pad 3-XFDFN 38-TFSOP (0.173", 4.40mm Width) 4-Micro-X 4-SMD 4-SMD, J-Lead 4-SMD, No Lead 4-UDFN 4-UDFN Exposed Pad 4-UFBGA, FCBGA 4-UFBGA, WLBGA 4-UFBGA, WLCSP 4-UFDFN Exposed Pad 4-VDFN 4-WFBGA 4-WFBGA, CSPBGA 4-WFBGA, FCBGA 4-WFBGA, WLCSP 4-WFBGA, WLPBGA 4-XFBGA 4-XFBGA, FCBGA 4-XFBGA, WLCSP 4-XFDFN 4-XFDFN Exposed Pad 4-XFLGA, DSLGA 4-XFQFN Exposed Pad 5-DFN 5-SMD, Flat Leads 5-TSSOP, SC-70-5, SOT-353 5-UDFN Exposed Pad 5-UFBGA, WLCSP 5-UFDFN 5-VSSOP, SC-70-5, SOT-353 5-WFBGA, CSPBGA 5-WFBGA, FCBGA 5-WFBGA, WLCSP 5-XFDFN 5-XFDFN Exposed Pad 5-XFLGA 6-LSOJ (0.148", 3.76mm Width) 6-PowerUFDFN 6-SMD (5 Leads), Flat Lead 6-SMD (5 Leads), Flat Leads 6-SMD (5 Leads), Gull Wing 6-SMD (5 Leads), No Lead 6-SMD, Flat Leads 6-SMD, J-Lead 6-TSSOP, SC-88, SOT-363 6-UDFN 6-UDFN Exposed Pad 6-UFBGA, FCBGA 6-UFDFN 6-UFDFN Exposed Pad 6-VQFN Exposed Pad 6-VSSOP, SC-88, SOT-363 6-WDFN 6-WDFN Exposed Pad 6-WFBGA, CSPBGA 6-WFBGA, WLBGA 6-WFBGA, WLCSP 6-WFDFN 6-WFDFN Exposed Pad 6-XDFN 6-XFBGA, FCBGA 6-XFDFN 6-XFDFN Exposed Pad 6-XFDFN, FC 7-UDFN 7-XFDFN 8-PowerTDFN 8-SOIC (0.154", 3.90mm Width) 8-TSSOP (0.173", 4.40mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-UDFN 8-UDFN Exposed Pad 8-UFBGA, WLCSP 8-UFDFN 8-UFDFN Exposed Pad 8-UFQFN 8-UFQFN Exposed Pad 8-VFDFN Exposed Pad 8-WDFN Exposed Pad 8-WFBGA, CSPBGA 8-WFDFN 8-WFDFN Exposed Pad 8-XFDFN 8-XFDFN Exposed Pad 9-UDFN 9-UFBGA, FCBGA 9-UFBGA, WLCSP 9-WFBGA, CSPBGA 9-WFBGA, WLBGA 9-XFDFN A, Axial Axial Axial, Right Angle Bend (24.15mm Center) Axial, Right Angle Bend (24.50mm Center) B, Axial Button, Axial C, Axial CSP0603P2Y D-6, Axial DFN0603P2Y DFN1006 DFN1006-3L DFN1006P2E DFN1610P2E DFN2116P8X DFN3810P9E Die DO-13 DO-201AA, DO-27, Axial DO-201AD, Axial DO-201AE, Axial DO-202AA, DO-13, Axial DO-203AB, DO-5, Stud DO-204AC, DO-15, Axial DO-204AL, DO-41, Axial DO-204AR, Axial DO-208AA DO-213AA DO-213AB, MELF DO-214AA (SMB) DO-214AA, SMB DO-214AB (SMC) DO-214AB, SMC DO-214AC (SMA) DO-214AC, SMA DO-215AA, SMB Gull Wing DO-215AB, SMC Gull Wing DO-216AA DO-218AB DO-218AC DO-219AA DO-219AB DO-219AD DO-220AA DO-221AA, SMB Flat Leads DO-221AC, SMA Flat Leads DO-222AA E-MELF G, Axial MCSP0603P2YS Microde Button Module MPG06, Axial Nonstandard Nonstandard SMD P600, Axial POWERDI®123 PowerDI™ 5 R-6, Axial SC-101, SOT-883 SC-70, SOT-323 SC-74, SOT-457 SC-74A, SOT-753 SC-75, SOT-416 SC-75-4, SOT-543 SC-76, SOD-323 SC-76A SC-79, SOD-523 SC-82A, SOT-343 SC-85 SC-89, SOT-490 SC-90, SOD-323F SOD-123 SOD-123F SOD-123F, SMF SOD-123FL SOD-123H SOD-123W SOD-128 SOD-523 SOD-723 SOD-882 SOD-923 SOT-1123 SOT-143-4L SOT-143R SOT-23 SOT-23-5 Thin, TSOT-23-5 SOT-23-6 SOT-23-6 Thin, TSOT-23-6 SOT-26, SOT-23-6 SOT-383F SOT-523 SOT-553 SOT-563, SOT-666 SOT-663 SOT-665 SOT-723 SOT-953 SOT-963 SOT23-6L SPD-4 SPD4-1 SQ-MELF SQ-MELF, A SQ-MELF, B SQ-MELF, C SQ-MELF, E SQ-MELF, G T-18, Axial ThinKey™3 TO-204AA, TO-3 TO-220-3 TO-236-3, SC-59, SOT-23-3 TO-252-3, DPAK (2 Leads + Tab), SC-63 TO-253-4, TO-253AA TO-263-3, D2PAK (2 Leads + Tab), TO-263AB TO-277, 3-PowerDFN TO-3 Top Can	* - 1.0SMB 1.0SMB-AT 1.4KESD 1.5KE 1.5KE, TRANSIL™ 1.5KE-AT 1.5KE-G 1.5KE-HF 1.5KE100CA 1.5KE6.8C 1.5KE6.8CL 1.5KEG 1.5KPA 1.5SMB 1.5SMBJ 1.5SMC 1.5SMC, TransZorb® 1.5SMC-AT 1.5SMC-AU 1.5SMC-Q 1.5SMC480A 1.5SMC510A 1.5SMCJ 10BJ 12KPExxH 15BJ 15BJxxH 15KP 15KPA 15KPA-HR 15KPA-HRA 15KPA-SD-Q 15KPE 15KPxxCA 1K5SMPC 1KSMB 1KSMBJ 1N56 1N60 1N6373 20KP 20KPA 3.0SMC 3.0SMCJ 3.0SMCJ-AT 3.0SMCJx 3.0SMI 30KP 30KPA 30KPA-HR 30KPA-HRA 3102 3205 3KP 3KP-AT 3KP-HF 4.0SMDJ 4SMF 5-0SMDJ 5-0SMDJxxH 5.0SMCJ 5.0SMCJ-AT 5.0SMCJx 5.0SMDJ 5.0SMDJ-AT 5.0SMDJ-Q 5.0SMDJ-S 5.0SMDJxxS 5.0SMLJ 50KP 5KP 5KP-AT 5KP-HR 5KP-HRA 5KP5.0C 5SMC33A 6KPExxH 8.0SMDJ AK AK1 AK1-Y AK10 AK10-Y AK10E AK15 AK15-Y AK1E AK20-Y AK3 AK3-Y AK6 AK6-Y AK6E AQ, SPA® AQ1003, SPA® AQ1005, SPA® AQ1006, SPA® AQ1026, SPA® AQ1205, SPA® AQ1250, SPA® AQ24CANA, SPA® AQ24COM-01 AQ24COM-02 AQ2555N, SPA® AQ27COM-01 AQ27COM-02 AQ3041, SPA® AQ3045, SPA® AQ3118, SPA® AQ3130, SPA® AQ3522, SPA® AQ3530, SPA® AQ4020, SPA® AQ4021, SPA® AQ4022, SPA® AQ4023, SPA® AQ4024, SPA® AQHV AQHV, SPA® AQHV-C AQW05, SPA® AQxx-01FLTG ASIP™ ASMF-HF ATS ATS-2CF ATV75PLADxx(C)A-HF AUSMBJ BZD27B, eSMP® BZD27B-M BZD27C, eSMP® BZG04 BZW04 BZW04, TRANSIL™ BZW06 BZW06, TRANSIL™ BZW50 BZW50, TRANSIL™ BZY91 CD214A CESDG CEZ CG0201MLU CPDFR CSLZ CUHZ CUZ DA1 DESDxxVxS2UTQ DFN0603 DFN1006 DFN1006- 3L DFN2510 DLTS DO218AB DPI DSI DSL DVI DVIY EClamp® EDZ EGA AMDG EPS ESD ESD11N ESD133C ESD3ZxxC ESD5Z ESD8351 ESD9C3.3ST5G ESDA ESDA, TRANSIL™ ESDAHDxxBE2 ESDAHDxxUE2 ESDAHDxxUE2X ESDALD18BC ESDALDxxBC ESDAY, TRANSIL™ ESDHDxxBB ESDHDxxBC ESDHDxxBF ESDHDxxUB ESDHDxxUC ESDHDxxUF ESDL ESDL, TRANSIL™ ESDU ESDZ eSMP® GiGUARD GiGuard® GSECxB006 GSESLCxVD323S-2B GSLCxxB006 GSMA6Jx GSMF13CA GSMF58CA HClamp® HDMI HDMIY HF-C HF-L HF-S HSP HSPY HxxC32xVx HxxC32xVxB HxxxD3xVxB HxxxD3xVxBL ICTE ICTE/MPTE ITA, TRANSIL™ LAD52CXXL01 LAD8CXXL01 LAQ02AXXL01 LAQ02C03L01 LAQ02C05L01 LAT56A05L05 LBD03C15L01 LBD32C1524L01 LBD52A36L01 LBD8A24L01 LBD8C05L01 LBQ02C05L01 LBT23C12L02 LBT23C24L02 LC03-3.3, SPA® LCE LDP LDP01Y, TRANSIL™ LDTS LES08A05L05 LES08A3.3L05 LES08CXXL04 LES16C05L08 LES16C12L08 LES16C15L08 LES16C24L08 LFTVS, TRANSIL™ LHS08A12L04 LNBTVS LNBTVS, TRANSIL™ LT4ME LTKAK10 LTKAK2-L LTKAK3 LTKAK6 LTS08A06L02 LTS08AXXL02 LXESxxA LXESxxT M1.5KE M15KP M5KP MART100KP MDA MicroClamp® MiniMosorb™ MKZ MLCE MMBZxxVxL MMQA Mosorb™ MP6KE MPTE MRT100KP MSATS14S MSMBJ MSMBJSAC MSMCJ MSMLJ MSZ MUZ NUP4114 NZ8DH NZL5V6AXV3T1 P1KSMBJ P4FL13A P4FL20A P4FL3.3A P4FMAF P4KE P4KE-AT P4KE-G P4KE-HF P4KE6.8C P4SMA P4SMA, TransZorb® P4SMA-AT P4SMA-Q P4SMAJ P4SMAJ15AS P4SMAJ24CA-AU P4SMAJ28CA-AU P4SMAJ30CA-AU P4SMAJ33CA-AU P4SMAJ36CA-AU P4SMAJ40CA-AU P4SMAx P4SMF P4SOD P6KE P6KE, TRANSIL™ P6KE-AT P6KE-G P6KE-HF P6KE6.8A P6KE6.8CA P6KExxC P6SMAL P6SMB P6SMB, TransZorb® P6SMB-AT P6SMB-E P6SMB-Q P6SMB27CA-AU P6SMB39CA-AU P6SMBJ P6SMBJ-AU P6SMBx PAR® PAR®, eSMP® PEC1605M1Q-AU PEDxS2UAT PESD24VV1BL PESDxL1BA PESDxL2BT PESDxS2UAT PESDxS2UQ PESDxS2UT PESDxS5UD PESDxUSB3B/C PESDxUSB3S PGB1 PGSMAJ PHP PIP PJE24HWS PJGBLC05 PJGBLC05C PJGBLC08C PJGBLC12C PJGBLC15C PJGBLC24C PJGBLC24C-AU PJMBZ15A-AU PJMBZ18A-AU PJMBZ20A-AU PJMBZ27A-AU PJMBZ33A-AU PJMBZ5V6A-AU PJSD05 PJSD05CW PJSD05CW-AU Power MicroClamp™ PowerClamp™ PTVS PTVSxP1BPL PTVSxP1UP PTVSxP1UP-Q PTVSxP1UTP PTVSxS1UR PTVSxS1UTR PTVSxS1UTR-Q PulseGuard® PGB PulseGuard® PGB2 PulseGuard® PGB2 0201 R15KP RailClamp® RailClamp®, SR RailClamp®, SRDA RBO RClamp® RKZ-KL RT100KP RVS, TRANSIL™ S14CXX-8 S16CXX-8 S16LCCXX-8 S16LCXX-8 S16XX-8 S23CXX S23LC36 S43LCXX S8ULCCxx-2 S8ULCxx-2 SA SA16 SAC SACB SAT36A05L05 SATA SBD52C05L01 SBT23C12L02 SC11xx SC1210, SPA® SC3051, SPA® SCS08C05L07 SCS08C12L07 SCS08C15L07 SCS08C24L07 SD, SPA® SD-C, SPA® SDD32A05L01 SDD32A12L01 SDD32C05L01 SDD32C18L01 SDD32C24L01 SDD32C30L01-IP6 SDD32C36L01 SDD32CXXL01 SDD52A12L01 SDD52C05L01 SDD8A12L01 SDT23C712L02 SDT23CXXL02 SDT26AXXL05 SDW05, SPA® SDxx SDxxC SDxxLC SDxxLCC SED52C05L01 SED8C05L01 SES08CXXL04 SESD, SPA® SET23AXXL02 SET23C05L02 SFD52AXXL01 SFD8C4.5L01 SiBOD™ TO-220 SJD12A(C)XXL01 SJD12A(C)XXXL01 SJD12A05L01 SJD12A06L01 SJD12A09L01 SJD12A10L01 SJD12A12L01 SJD12A14L01 SJD12A15L01 SJD12A16L01 SJD12A18L01 SJD12A20L01 SJD12A24L01 SJD12A28L01 SJD12A33L01 SJD12A36L01 SJD12A40L01 SJD12A43L01 SJD12A45L01 SJD12A48L01 SJD12A51L01 SJD12A58L01 SJD16AXXL01 SJPZ-N SL SLD SLD5S SLD6S SLD8S SLV SLVU SLVU2.8, SPA® SLVU2.8-4, SPA® SLVU2.8-8, SPA® SM, SPA® SM05T1G SM15T, TRANSIL™ SM15T, TransZorb® SM15TY, TRANSIL™ SM24CANA, SPA® SM24CANB, SPA® SM2T, TRANSIL™ SM30TxxCAY SM30TY, TRANSIL™ SM4TY, TRANSIL™ SM6F SM6HT, TRANSIL™ SM6T, TRANSIL™ SM6T, TransZorb® SM6TY, TRANSIL™ SM8S-Q SM8SF-Q SM8SxxH SM8TxxH SMA SMA4F SMA4F, TRANSIL™ SMA4FxxA SMA6F SMA6F, TRANSIL™ SMA6FxxA SMA6FxxAY SMA6J SMA6J, TRANSIL™ SMA6J-Q SMA6L SMA6TY, TRANSIL™ SMAJ SMAJ, TRANSIL™ SMAJ-AT SMAJ-E SMAJ-HP6 SMAJ-HP6AT SMAJ-Q SMAJE SMAJExxH SMAJx SMB SMB10J SMB15F SMB6FxxA SMB6FxxAY SMBJ SMBJ, TRANSIL™ SMBJ-AT SMBJ-E SMBJ-HR SMBJ-HRA SMBJ-Q SMBJE SMBJExxH SMBJH SMBJx SMBJxxCA SMC SMC30J SMC50J SMCG SMCG-HR SMCG-HRA SMCJ SMCJ, TRANSIL™ SMCJ-AT SMCJ-HR SMCJ-HRA SMCJ-Q SMCJE SMCJExxH SMCJLCE SMCJx SMCLCE-HR SMCLCE-HRA SMDA SMDA05C SMDA36 SMDA36C SMDA36LCC SMDAC SMDAC-5 SMDAC-7 SMDAC-8 SMDACN-5 SMDAXX-6 SMDAXX-7 SMDAXXC-4 SMDAXXC-4-2 SMDAXXC-5 s SMDB36 SMDB36C SMDB36LCC SMDJ SMDJ-AT SMDJ-HR SMDJ-HRA SMDJE SMDJExxH SMDLCE-HR SMDLCE-HRA SMEJ SMF SMF-HF SMF4L SMF4L-Q SMF5.0A-AU SMF5.0AT1G SMFA SMFE SMFExxH SMFExxLH SMFJ SMLJ SMLJ-Q SMLV, TRANSIL™ SMM4F, TRANSIL™ SMS SMS05T1 SMTAK3 SMTJ SMTOAK2 SMTY, Transky™ SMXJ, TRANSIL™ SOD SP0115 SP03-3.3, SPA® SP03-6, SPA® SP05, SPA® SP0504, SPA® SP050xBA SP0524P, SPA® SP0544T SP05xBAC SP1001, SPA® SP1002, SPA® SP1003, SPA® SP1004, SPA® SP1005, SPA® SP1006, SPA® SP1007, SPA® SP1008, SPA® SP1009, SPA® SP1010, SPA® SP1011, SPA® SP1012, SPA® SP1013, SPA® SP1014, SPA® SP1015, SPA® SP1020, SPA® SP1021, SPA® SP1026 SP1027, SPA® SP1043, SPA® SP1044, SPA® SP1050, SPA® SP1053, SPA® SP1054, SPA® SP1064 SP1124T, SPA® SP1212, SPA® SP1220, SPA® SP1250, SPA® SP1255P, SPA® SP1305, SPA® SP1312, SPA® SP1326, SPA® SP1333, SPA® SP1555, SPA® SP2502L, SPA® SP2504N, SPA® SP2525N, SPA® SP2555, SPA® SP2574N, SPA® SP3001, SPA® SP3002, SPA® SP3003, SPA® SP3004, SPA® SP3006, SPA® SP3010, SPA® SP3011, SPA® SP3012, SPA® SP3014, SPA® SP3019, SPA® SP3021, SPA® SP3022 SP3022, SPA® SP3025, SPA® SP3030, SPA® SP3031, SPA® SP3042, SPA® SP3050, SPA® SP3051, SPA® SP3118, SPA® SP3118E SP3130, SPA® SP3130E SP3145, SPA® SP3208, SPA® SP3222, SPA® SP3304N, SPA® SP3312T, SPA® SP3384N, SPA® SP3400, SPA® SP3422, SPA® SP3423, SPA® SP3522, SPA® SP3530, SPA® SP4010, SPA® SP4020, SPA® SP4021, SPA® SP4024, SPA® SP4031, SPA® SP4040, SPA® SP4042, SPA® SP4044, SPA® SP4045, SPA® SP4050, SPA® SP4060, SPA® SP4061, SPA® SP4062, SPA® SP4065, SPA® SP4203, SPA® SP4208, SPA® SP4338 SP6001, SPA® SP6002, SPA® SP6003, SPA® SP712 SP7522T, SPA® SP7538P SP8008, SPA® SP814X, SPA® SPA SPA® SPCL6 SPHV, SPA® SPHV-C, SPA® SPLV2.8, SPA® SPLV2.8-4, SPA® SPT SPXX, SPA® SR SR05, SPA® SR70, SPA® SRDA05, SPA® SRDA3.3, SPA® SRV05, SPA® ST STD22AXXL01 STIEC, TRANSIL™ STPK30KP STRVS SZ-10N SZ1.5SMC SZ1SMA SZ1SMB SZ1SMC SZ1SMCxxA SZ3KASMC SZ5KASMC SZESD5Z2.5T1G SZMMQA SZP6SMB SZSD05T1 SZSMF SZSMF4L TClamp® TFE10201DG TFE10402DG TFMCJ TLD6S TLD8S TLP TLPA TO-23 TP1.5KE TP5.0SMDJ TP5KP TP6KE TPSMA6L TPSMB TPSMB-VR TPSMC TPSMC-VR TPSMD TPSMF4L TransClamp® TransClamp™ TransGuard® TRANSIL™ TransZorb® TransZorb®, eSMP® TransZorb®, eSMP™ TrEOS TSDxxC TSDxxC-Q1 TVC TVH TVL TVL0201 TVN TVN0201 TVS TVSA TVSarray™ TVSL TVSS TVU TVW UAD03C05L01 UAD11A05L03 UAD20A05L04 UAD20C03L02 UAD20C05L04-R0.4 UAD33A05L06 UAD38A05L08 UAD52A05L01 UAD8A05L01 UAD8C03L01 UAD8C05L01 UAD8C05L01-LV UAD8C05L01-R0.4 UAD8C05L01-TIP UAQ02C05L01 UAQ02C05L01-R0.5 UAT14A07L03 UAT14A15L03 UAT26A03L05 UAT36A05L05 UAT52A05L02 UAT56A05L05 UBD32C05L01 UBD8C05L01 UBQ10A03L04 UBQ10A05L04 UBQ10A05L04-R0.4 UBQ10A05L04HI UBT23A05L02 UBT26A05L03 UBT32A05L02 UCD32CXXL01 uClamp® uClamp®, Z-Pak™ UCS08C03L02 UCS08C05L02 UCT23C05L02 UCT26A05L05-HP1 UDD32C03L01 UDD32C03L01-HT UDD32C05L01 UDD32C12L01 UDD32C15L01 UDD32CXXL01 UDD32CXXL01-DS035 UDS08A03L04 UDT14A05L03 UDT23A2.8L01 UDT23AXXL01 UDT23AXXL02 UDT23CXXL01 UDT26A05L05-LC1 UED26A03L05 UEDF3A2.8L04 UEDF3A3.3L04 UES08A03L05 UES08A05L04 uESD UET14A05L03-BK UET26A05L05 UET26A05L05-IP38 UFS08A2.8L04 ULCE UltraGuard® UMW UMZ6.8NUM UMZ8.2NUM UPT USB USB, Transil™ USBY VSxxVUA1LB WE-TVS WE-TVSP WE-VEA XBP4SMAJ XClampR™ XTREME-GUARD™ XtremeESD™ ZS ZS-U µClamp® µESD3.3DT5G	- Bag Box Bulk Cut Tape (CT) Digi-Reel® Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Digi-Key Last Time Buy Not For New Designs Obsolete	- Steering (Rail to Rail) Zener	- 1 10 12 13 14 15 18 2 24 3 4 5 6 7 8 9	- 0 1 12 15 16 2 3 4 5 6 7 8 9	- 1.2V 1.2V (Max) 1.5V 1.5V (Max) 1.8V 1.8V (Max) 10.22V 10.2V 10.3V 10.5V 10.5V (Max) 100mV 100V 100V (Max) 102.6V 102V 104V 105V 108V 10V 10V (Max) 11.1V 11.2V 11.4V 11.4V (Max) 110V 110V (Max) 111.15V 111V 112V 114V 11V 11V (Max) 12.1V 12.2V 12.2V (Max) 12.4V 12.6V 12.6V (Max) 12.8V 12.8V (Max) 12.9V 120V 120V (Max) 121.6V 121V 128.25V 128V 12V 12V (Max) 12V (Max), 7V (Max) 12V (Min) 13.2V (Max) 13.5V (Max) 13.6V 13.7V 13.7V (Max) 13.8V 130V 130V (Max) 132V 133V 136.8V 136.8V (Max) 136V 137V 138V 13V 13V (Max) 14.1V 14.5A 14.5V 14.5V (Max) 140V 144.5V 144V 145.35V 145V 145V (Max) 146V 14V 14V (Max) 14V (Max), 5V (Max) 15.1V 15.2V 15.2V (Max) 15.3V 15.3V (Max) 150V 150V (Max) 152V 152V (Max) 153.9V 153V 154V 154V (Max) 155V 156V 15V 15V (Max) 15V (Max), 24V (Max) 15V (Min) 15V, 24V 16.2V 16.7V 16.7V (Max) 16.9V 160V 160V (Max) 162V 165V 168V 16V 16V (Max) 16V (Max), 10V (Max) 16V (Max), 26.5V (Max) 17.1V 17.5V 17.6V (Max) 17.8V 170V 170V (Max) 171V 172V 175V 179.6V 17V 17V (Max) 18.2V 18.2V (Max) 18.5V (Max) 18.7V 18.8V 180V 185V 187V 188.1V 188V 188V (Max) 18V 18V (Max) 19.4V 190V 190V (Max) 192V 198V 19V 19V (Max) 1V 1V (Max) 2.1V 2.1V (Max) 2.2V (Max) 2.2V (Max), 3.3V (Max) 2.3V (Max) 2.5V 2.5V (Max) 2.8V 2.8V (Max) 20.5V 20.6V 20.6V (Max) 200V 200V (Max) 202V 204V 208V 20V 20V (Max) 21.5V 21.8V 210V 213.75V 213V 214V 215V 216V 21V 21V (Max) 22.6V 22.8V 22.8V (Max) 220V 220V (Max) 22V 22V (Max) 23.1V 230V 231V 232V 239V 23V 23V (Max) 24.3V 240V 243V 24V 24V (Max) 24V (Max), 15V (Max) 24V (Min) 25.1V 25.1V (Max) 25.2V 25.5V 25.6V 250V 250V (Max) 256V 258V 25V 25V (Max) 26.5V (Max) 26.8V 260V 26V 26V (Max) 27.4V 27.4V (Max) 27.9V 270V 273V 275V 275V (Max) 27V 27V (Max) 28.2V 280V 284V 288V 28V 28V (Max) 29.1V 29.7V 29.7V (Max) 295V 295V (Max) 299.3V 299V 29V 2V 2V (Max) 3.3V 3.3V (Max) 3.3V (Max), 12V (Max) 3.3V (Min) 3.5V 3.5V (Max) 3.6V 3.6V (Max) 30.5V 30.6V 30.8V 30.8V (Max) 300mV (Max) 300V 300V (Max) 30V 30V (Max) 31.2V 31.5V 31.6V 31V 31V (Max) 32.7V 32.7V (Max) 320V 320V (Max) 324.9V 324V 32V 32V (Max) 33.3V 330V 33V 33V (Max) 34.8V 342V 345V 34V 34V (Max) 35.8V 35.8V (Max) 350V 350V (Max) 354V 356V 35V 35V (Max) 35V (Max), 12V (Max) 36.5V 36.8V 36.8V (Max) 360V 36V 36V (Max) 36V (Min) 376.2V 376V 376V (Max) 37V 38.1V 38.8V 38.8V (Max) 380V 380V (Max) 388V 389V 38V 38V (Max) 39.6V 39V 39V (Max) 3V 3V (Max) 3V (Min) 4.3V 4.3V (Max) 4.5V 4.5V (Max) 4.7V 4.7V (Max) 4.8V (Max) 40.2V 40.3V 400V 400V (Max) 408V 40V 40V (Max) 41.3V 413V 41V 42.5V 42.6V 42.6V (Max) 422.2V 427.5V 429V 42V 42V (Max) 43.2V 43.6V 430V 430V (Max) 434V 437V 43V 43V (Max) 440V 440V (Max) 443V 444.6V 444V 445V 44V 45.4V 45.6V 450V 451V 459V 45V 45V (Max) 46.8V 460V 467V 468V 47.1V 47.1V (Max) 47.6V 47.8V 470.3V 470V (Max) 477V 47V 47V (Max) 486V 48V 48V (Max) 495V 49V 4V 4V (Max) 4V (Min) 5.25V 5.25V (Max) 5.2V 5.2V (Max) 5.3V 5.3V (Max) 5.5V 5.5V (Max) 5.5V (Max), 12V (Max) 5.5V (Min) 5.6V 5.75V (Max) 5.7V 5.7V (Max) 5.8V 5.8V (Max) 50.2V 50.3V 500mV 500V 50V 50V (Max) 51.6V 51.7V 51.7V (Max) 510V 511V 512V 513V 51V 51V (Max) 52.2V 52.78V 52V 530V 53V 54.8V 54V 54V (Max) 55.1V 550V 553V 55V 55V (Max) 56V 56V (Max) 57.6V 57V 58.1V 58V 58V (Max) 5V 5V (Max) 5V (Min) 6.05V 6.1V 6.1V (Min) 6.2V 6.2V (Max) 6.3V 6.3V (Max) 6.4V 6.5V 6.5V (Max) 6.63V 6.7V 6.8V 6.8V (Max) 6.9V 6.9V (Max) 60.7V 600V 60V 60V (Max) 62.2V 62.2V (Max) 623V 62V 62V (Max) 63V 64.1V 64V 64V (Max) 65V 66.4V 66V 66V (Max) 68V 68V (Max) 69.2V 69.2V (Max) 6V 6V (Max) 7.02V 7.37V 7.5V 7.5V (Max) 7.6V 7.6V (Max) 7.78V 7.7V 7.8V 7.9V 7.9V (Max) 70.1V 70.2V 708V 70V 70V (Max) 71V 72V 73.7V 73V 75V 75V (Max) 76V 76V (Max) 77.8V 78V 78V (Max) 7V 7V (Max) 7V (Max), 12V (Max) 7V (Max), 14V (Max) 7V (Max), 17V (Max) 7V, 12V 7V, 14V 8.1V 8.2V 8.2V (Max) 8.4V 8.4V (Max) 8.55V 8.5V 8.5V (Max) 8.65V 8.6V 8.92V 8.9V 800mV (Max) 80V 80V (Max) 81V 82V 82V (Max) 83.6V 83.6V (Max) 84V 85.5V 85.8V 85V 85V (Max) 86.6V 86V 86V (Max) 88V 89.2V 8V 8V (Max) 8V (Min) 9.1V 9.1V (Max) 9.4V 9.72V 9.8V (Max) 9.9V 9.9V (Max) 90V 90V (Max) 91.2V 91.2V (Max) 91V 91V (Max) 94.5V 94V 94V (Max) 95V 96V 97.2V 98.8V 98.8V (Max) 9V 9V (Max)	- 1.3V 1.4V 1.5V 1.6V 1.9V 10.08V 10.1V 10.2V 10.44V 10.45V 10.4V 10.53V 10.55V (Typ) 10.5V 10.78V 10.7V 10.83V 10.8V 100.5V 100V 101.07V 101.3V 102V 104.5V 104.85V 104.9V 104V 105.3V 105.5V (Typ) 105V 106V 107.2V 107.37V 107.64V 107.8V 108.3V 108V 109.81V 10V 10V (Typ) 11.1V 11.21V 11.38V 11.3V 11.42V 11.4V 11.57V 11.5V 11.73V 11.75V 11.76V 11.78V 11.7V 11.7V (Typ) 11.81V 11.8V 11.9V 110V 111.7V 111V 113.67V 113.97V 113.9V 113V 114V 115.29V 115.65V 115.83V 116.2V 117.33V 117.45V 117.6V 117.8V 117V 117V (Typ) 118.22V 11V 12.2V 12.32V 12.35V 12.3V 12.4V 12.5V 12.6V 12.74V 12.85V (Typ) 12.8V 12.99V 12.9V 120.6V 122.9V 122V 123.5V 124V 125.1V 125.69V 126.36V 126.63V 126V 127.4V 12V 12V (Max) 13.1V 13.2V 13.3V 13.3V, 7.5V 13.43V 13.48V 13.4V 13.54V 13.55V 13.59V 13.5V 13.64V 13.6V 13.7V 13.8V 13.97V 13.9V 130V 133V 134V 135.38V 135.45V 135.85V 135V 136.08V 136.35V 136.89V 136V 138.96V 138V 139.29V 13V 13V, 20V, 31V 14.1V 14.1V, 5.5V 14.25V 14.2V 14.3V 14.41V 14.44V 14.4V 14.51V 14.54V 14.5V 14.5V (Typ) 14.6V 14.76V 14.7V 140V 142.5V 143V 144.4V 144V 145.2V 146V 147.4V 147V 14V 14V (Typ) 15.15V (Typ) 15.2V 15.31V 15.3V 15.4V 15.5V 15.68V 15.6V 15.72V 15.75V 15.7V 15.84V 15.85V 15.88V 15.8V 15.96V 15.9V 150V 151.61V 151.96V 152V 153.45V 153.9V 153V 155V 156.8V 156V 157.82V 158.38V 158.4V 158V 15V 15V (Max) 15V (Typ) 16.1V 16.25V 16.2V 16.35V 16.3V 16.49V 16.4V 16.4V (Typ) 16.5V 16.5V, 10.5V 16.5V, 25.4V 16.6V 16.72V 16.7V 16.83V 16.86V 16.88V 16.89V 16.8V 160.8V 160V 161.5V 161V 162.45V 162V 164.3V 164.71V 166V 167.6V 167V 168.21V 168.48V 168.75V 168.87V 168V 169.87V 16V 17.1V 17.1V, 25.4V 17.1V, 28V 17.2V 17.35V 17.39V 17.55V 17.56V 17.5V 17.64V 17.6V 17.81V 17.86V 17.8V 17.90V 17.91V 17.93V 17.94V 17.97V 17.9V 170V 171V 174.3V 176.4V 176.94V 177.38V 178.13V 178.61V 178.7V 178V 179.01V 179.1V 179.46V 179V 17V 18.05V 18.1V 18.34V 18.5V 18.75V 18.7V 18.8V 18.95V 18.99V 18.9V 180.5V 180V 181.53V 181V 187.5V 187.7V 188V 189.45V 189.54V 189.9V 189V 18V 19.04V 19.05V 19.08V 19.2V 19.5V 19.6V 19.7V 19.86V 19.8V 19.9V 190.04V 190.35V 190V 191V 192.1V 192V 194.85V 196V 198.55V 198V 199.5V 199.8V 19V 1V 2.1V 2.2V 2.3V 2.55V 2.5V 2.6V 2.7V 2.85V 2.8V 2.9V 20.11V 20.19V 20.1V 20.34V 20.3V 20.4V 20.5V 20.8V 20.98V 20.9V 200V 201.1V 201V 202.7V 208.53V 208V 209.03V 209.79V 209V 20V 21.02V 21.05V 21.06V 21.11V 21.1V 21.2V 21.56V 21.5V 21.61V 21.66V 21.6V 21.7V 21.8V 210.6V 210V 211.95V 211V 212V 214.5V 215.37V 21V 21V (Typ) 22.1V 22.2V 22.33V 22.34V 22.3V 22.41V 22.4V 22.5V 22.7V 22.8V 22.91V 220.95V 220V 221.2V 222V 223.4V 223V 224V 225.15V 225V 227.48V 227.9V 228.03V 228V 22V 23.06V 23.09V 23.17V 23.31V 23.35V (Typ) 23.3V 23.52V 23.5V 23.72V 230V 231.3V 231.53V 231.66V 231V 233.1V 233V 234V 235.5V 237.5V 237V 23V 23V (Typ) 24.2V 24.35V 24.3V 24.42V 24.49V 24.4V 24.57V 24.59V 24.5V 24.63V 24.6V 24.7V 24.8V 241.3V 242V 244.85V 244V 245.7V 245V 246V 24V 24V (Max) 25.1V 25.23V 25.27V 25.29V 25.2V 25.34V 25.4V 25.4V, 17.1V 25.5V 25.5V (Typ) 25.65V 25.65V (Typ) 25.7V 25.95V 25.9V 250V 251V 252.32V 252.72V 253.35V 259.1V 259V 25V 26.19V 26.1V 26.2V 26.3V 26.41V 26.46V 26.48V 26.4V 26.51V 26.54V 26.5V 26.68V 26.6V 26.7V 26.81V 26.8V 26.95V 26.9V 262.35V 264.6V 266V 267V 268.1V 268V 269.8V 26V 27.08V 27.1V 27.27V 27.31V 27.36V 27.38V 27.44V 27.5V 27.6V 27.9V 270.27V 270.75V 270V 271.71V 272.35V 273.11V 273.78V 274.43V 277V 278V 279V 27V 28.1V (Typ) 28.4V 28.55V 28.5V 28.6V 28.9V 280V 283V 284.31V 285.01V 285V 286V 288.2V 289V 28V 28V (Typ) 29.04V 29.12V 29.19V 29.1V 29.39V 29.3V 29.47V 29.48V 29.4V 29.56V 29.75V 29.7V 29.83V 29.9V 290.4V 293.9V 294.84V 294V 295.6V 29V 2V 3.14V 3.1V 3.2V 3.3V 3.3V (Typ) 3.42V 3.45V 3.4V 3.4V (Typ) 3.53V 3.5V 3.65V 3.68V 3.6V 3.71V 3.75V 3.7V 3.82V 3.8V 3.9V 30.4V (Typ) 30.54V 30.5V 30.7V 30.9V 300V 300V (Typ) 301.6V 303.26V 304.01V 304V 30V 30V (Max) 31.1V 31.28V 31.33V 31.34V 31.35V 31.3V 31.47V 31.4V 31.53V 31.55V 31.59V 31.67V 31.6V 31.9V 311V 312.8V 315.4V 315V 316.67V 317.7V 31V 32.2V 32.34V 32.39V 32.47V 32.49V 32.4V 32.75V (Typ) 32.7V 321.7V 32V 33.2V 33.3V 33.51V 33.55V 33.5V 33.6V 33.77V 33.7V 33.8V 330V 332.5V 332V 333V 334V 335.1V 335V 336V 33V 34.2V 34.68V 34.79V 34.87V 342V 347V 34V 35.05V (Typ) 35.07V 35.15V 35.1V 35.25V 35.28V 35.5V 35.6V 35.74V 35.91V 350V 351V 353V 357.4V 35V 36.5V 36.69V 36.6V 36.7V 36.8V 36.98V 36.9V 360V 361V 36V 36V, 13.3V 37.05V 37.1V 37.3V 37.81V 37.89V 37.8V 37.99V 370.35V 37V 38.22V 38.27V 38.2V 38.5V 38.65V (Typ) 38.75V 38.7V 38.86V 380V 384V 389V 38V 39.9V 391V 396V 397.1V 39V 3V 4.01V 4.04V 4.09V 4.1V 4.21V 4.22V 4.2V 4.2V (Typ) 4.3V 4.45V 4.47V 4.4V 4.5V 4.61V 4.6V 4.75V 4.76V 4.7V 4.82V 4.84V 4.85V 4.8V 4.98V 40.2V 40.3V 40.57V 40.6V 40.75V 40.85V 40.9V 400V 401V 402.1V 40V 41.09V 41.96V 411.5V 418V 41V 42.08V 42.12V 42.14V 42.19V 42.1V (Typ) 42.24V 42.35V 42.3V 42.47V 42.4V 42.6V 423.45V 42V 43.3V 43.6V 43.7V 43.82V 432V 433.2V 43V 44.19V 44.2V 44.32V 44.4V 44.55V 44.65V 44.7V 44.8V 440V 444V 447V 44V 45.17V 45.1V 45.27V 45.36V 45.95V 45.9V 456V 459V 45V 46.06V 46.08V 46.11V 46.1V 46.4V 46.75V (Typ) 46.9V 460.75V 465.75V 466.98V 468V 46V 47.25V 47.39V 47.53V 47.8V 470.5V 470V 475V 477V 478.33V 47V 48.1V 48.2V 48.45V 48.5V 48.89V 485V 486V 487.35V 48V 49.1V 49.98V 490V 492V 494.5V 494V 495V 496.38V 49V 4V 4V (Typ) 5.1V 5.29V 5.2V 5.31V 5.32V 5.39V 5.3V 5.3V, 22V 5.45V 5.49V 5.4V 5.5V 5.5V, 13.3V 5.6V 5.78V 5.7V 5.84V 5.86V 5.89V 5.8V 5.9V 50.03V 50.37V 50.3V 50.3V (Typ) 50.49V 50.4V 50.54V 50.65V 50.8V 500V 503.5V 503V 50V 510V 513V 517.5V 52.04V 52.5V 52.65V (Typ) 52.9V 522.5V 522V 52V 53.2V 53.3V 53.58V 53.6V 53.73V 53.7V 53.87V 53.8V 530V 53V 54.1V 54.88V 54.9V 54V 55.03V 55.1V 55.5V 55.8V 55.96V 550V 558V 56.1V 56.1V (Typ) 56.7V 56.84V 56.98V 560V 56V 57.1V 57.2V 57.6V 570V 57V 58.1V 58.9V 58V 59.16V 59.1V 59.7V (Typ) 5V 5V (Typ) 5V, 3.6V 5V, 7.2V 6.03V 6.05V 6.08V 6.12V 6.13V 6.14V 6.1V 6.2V 6.2V (Typ) 6.32V 6.37V 6.3V 6.42V 6.44V 6.45V 6.46V 6.47V 6.4V 6.4V (Typ) 6.51V 6.57V 6.5V 6.5V (Typ) 6.5V, 12.5V 6.62V 6.65V 6.66V 6.67V 6.6V 6.6V (Typ) 6.75V 6.77V 6.78V 6.7V 6.7V (Typ) 6.82V 6.84V 6.85V 6.8V 6.8V (Typ) 6.9V 6.9V (Typ) 60.3V 60.5V 60.76V 60.86V 60.9V 600mV 60V 61.02V 61.07V 61.24V 61.2V 61.37V 617.5V 618V 62.2V 62.6V 62V 63.03V 63.15V (Typ) 63.18V 63.32V 63.8V 64.4V 64.6V 64.8V 64.9V 64V 65.4V 65V 66.4V 66.64V 66.7A 66.7V 67.19V 67.1V 67.2V 67.37V 67.3V 67.41V 67.55V 67.57V 67.5V 67.74V 67.7V 67.8V (Typ) 67V 68.4V 68V 69.48V 69.65V 6V 6V (Max) 6V (Typ) 7.02V (Typ) 7.03V 7.06V 7.12V 7.13V 7.1V 7.22V 7.27V 7.2V 7.33V 7.35V 7.37V 7.38V 7.3V 7.3V (Typ) 7.3V, 14.5V 7.4V 7.4V (Typ) 7.5V 7.5V (Typ) 7.5V, 12.8V 7.5V, 13.3V 7.6V 7.6V (Typ) 7.73V 7.76V 7.78V 7.79V 7.7V 7.82V 7.89V 7.8V 7.8V (Typ) 7.8V, 13V 7.9V 7.9V (Typ) 70.2V (Typ) 70.8V 700mV 70V 71.1V 71.25V 71.3V 71.5V 71.6V 71.7V 71.82V 71V 72.2V 72V 73.01V 73.2V 73.52V 73.5V 73.71V 73.7V 73.8V 73.9V 735V 74.01V 74.75V 74.85V (Typ) 74.94V 74V 75.6V 75.78V 75.98V 76V 77.6V 77.8V 77.9V 77V 78.2V 78.4V 78.5V 78.72V 78.93V 78.98V 79.19V 79.3V 79V 7V 7V (Typ) 8.04V 8.17V 8.19V 8.19V (Typ) 8.1V 8.22V 8.2V 8.2V (Typ) 8.33V 8.3V 8.42V 8.46V 8.53V 8.58V 8.5V 8.5V (Typ) 8.65V 8.6V 8.77V (Typ) 8.82V 8.89V 8.8V 8.8V (Typ) 8.92V 8.93V 8.95V 8.99V 8.9V 80.36V 80.4V 800mV 80V 81.93V 81.9V 81.9V (Typ) 82.13V 82.18V 82.31V 83.3V 83.8V 83.9V 835V 83V 84.48V 84.6V 84V 85V 86.45V 86.5V 86.7V 87.1V 87.4V 87.7V (Typ) 88.1V 88.43V 88.64V 88.7V 88.8V 88.9V 89.18V 89.21V 89.28V 89.4V 89.51V 89V 8V 8V (Typ) 8V, 13.3V 9.03V 9.2V (Typ) 9.36V (Typ) 9.3V 9.42V 9.44V 9.45V 9.4V 9.57V 9.5V 9.5V (Typ) 9.6V 9.6V (Typ) 9.8V 9.8V (Typ) 9.92V (Typ) 9.93V 9.95V 9.98V 9.9V 90.25V 90V 91.25V (Typ) 91V 92.89V 93.8V 94.4V 94.5V 94.77V 94.95V 94.97V 94.9V 94V 95.1V 95.2V 95.7V 95V 96V 98.3V 98V 99.28V 99.2V (Typ) 99.45V 99.75V 99V 9V 9V (Typ)	- 1.138kV 1.292kV 1.69V 1.85V 1.95V 10.1V 10.2V 10.33V 10.3V 10.3V (Typ) 10.4V 10.5V 10.5V (Typ) 10.6V 10.7V 10.82V 10.8V 10.8V (Typ) 10.9V 10.9V (Typ) 100.2V 100V 101.64V 101.96V 101V 102.17V 102.27V 102.48V 102V 102V (Typ) 103.1V 103.5V 103V 104.2V 104V 105V 105V (Typ) 106V 107.1V 107V 108.15V 108.1V 108.26V 108V 109.2V 109.41V 109V 10V 10V (Typ) 11.03V 11.26V 11.2V 11.2V (Typ) 11.3V 11.3V (Typ) 11.4V 11.4V (Typ) 11.5V 11.5V (Typ) 11.6V 11.6V (Typ) 11.76V 11.7V 11.87V 11.8V 11.8V (Typ) 11.9V 110V 111.5V 111V 112.35V 112.8V 113.6V 113V 114.45V 114V 115.5V 116V 117.08V 118.2V 118.44V 118.65V 118.9V 118V 119.28V 119.4V 119.7V 119V 11V 11V (Typ) 12.1V 12.1V (Typ) 12.1V (Typ), 10.2V (Typ) 12.2V 12.3V 12.3V (Typ) 12.45V (Typ) 12.4V 12.4V (Typ) 12.5V 12.5V (Typ) 12.6V 12.71V 12.7V 12.8V 12.8V (Typ) 12.9V 120V 121.8V 121V 122V 124V 125.1V 125.37V 125.8V 125V 126.1V 126V 127.05V 128.1V 128.4V 129.6V 129V 12V 12V (Typ) 13.22V 13.2V 13.2V (Typ) 13.3V 13.4V 13.4V (Typ) 13.55V 13.5V 13.5V (Typ) 13.6V 13.6V (Typ) 13.7V 13.8V 13.9V 130V 131.1V 131.25V 131.36V 131V 132.2V 132.3V 132.41V 133.1V 133.9V 133V 134V 135.45V 135V 136.5V 136.8V 136V 137.6V 137V 138V 139.2V 139V 13V 13V (Typ) 14.07V 14.1V 14.25V 14.28V 14.29V 14.2V 14.3V 14.3V (Typ) 14.4V 14.5V 14.5V (Typ) 14.7V 14.7V (Typ) 14.8V 14.9V 140V 142V 143.85V 144.1V 144.48V 144V 145.4V 145.6V 145V 146.16V 146.4V 146.9V 146V 147V 149.1V 14V 14V (Typ) 15.12V 15.1V 15.23V 15.2V 15.3V 15.42V 15.4V 15.5V 15.5V (Typ) 15.6V 15.6V (Typ) 15.7V 15.9V 150V 150V (Typ) 151.3V 151V 152.88V 152V 153.3V 153.72V 153V 155V 156V 157.3V 157V 158.5V 158.87V 158V 159.6V 159.9V 159V 15V 15V (Typ) 15V, 26V 15V, 30V 16.17V 16.2V 16.38V 16.3V 16.5V 16.5V (Typ) 16.6V 16.7V 16.7V (Typ) 16.8V 16.9V 16.9V (Typ) 160V 161.3V 161V 162.5V 162.75V 162V 163.8V 165.1V 165.6V 165V 166V 167V 168V 169.37V 16V 16V (Typ) 17.1V 17.2V 17.2V (Typ) 17.3V 17.3V (Typ) 17.4V 17.54V 17.5V 17.5V (Typ) 17.75V 17.7V 17.7V (Typ) 17.85V 17.8V 17.9V 170.1V 170V 172.9V 172V 173.25V 173.36V 173.88V 173V 174V 175.2V 175.5V 176.4V 176V 177V 178.1V 178.6V 178.8V 178V 179V 17V 17V (Typ) 17V, 30V 18.1V 18.2V 18.3V 18.3V (Typ) 18.4V 18.52V 18.5V 18.5V (Typ) 18.6V 18.7V 18.8V 18.9V 182V 183.96V 183V 185.85V 185V 186.9V 187.3V 187.53V 187.74V 187.95V 187V 189.8V 189V 18V 18V (Typ) 18V, 26V 19.11V 19.2V 19.2V (Typ) 19.49V 19.4V 19.4V (Typ) 19.5V 19.5V (Typ) 19.6V 19.6V (Typ) 19.9V 190V 191.1V 191V 192.3V 193V 194.4V 194V 196V 197V 198V 19V 19V (Typ) 19V, 35V 2.06V 2.18V 2.32V 2.47V 2.5V (Typ) 2.65V 2.87V 2.9V (Typ) 20.1V 20.2V 20.3V 20.4V 20.55V 20.5V 20.5V (Typ) 20.6V 20.6V (Typ) 20.9V 201.92V 201V 202.65V 203.7V 204.12V 204V 205V 206.3V 206.7V 206V 207V 208.3V 208V 209V 20V 20V (Typ) 20V, 14.5V 21.2V 21.4V 21.5V 21.5V (Typ) 21.5V, 14V 21.6V 21.74V 21.7V 21.8V 21.8V (Typ) 21.9V 210.6V 210V 212V 213V 214.5V 214V 215V 216.2V 216.62V 216V 217.35V 218.4V 218.72V 219.45V 219V 21V 21V (Typ) 21V, 25V 22.05V 22.1V 22.26V 22.2V 22.3V 22.58V 22.5V 22.6V 22.7V 22.9V 220V 222V 223.2V 223.65V 223V 224V 225V 226.1V 226.8V 227V 227V (Typ) 228.8V 228V 229.32V 229.95V 22V 22V (Typ) 22V, 30V 23.08V 23.1V 23.2V 23.3V 23.42V 23.4V 23.5V 23.5V (Typ) 23.63V 23.6V 23.7V 23.8V 23.9V 230.1V 230V 231V 232.7V 232V 233.4V 234.36V 234V 235V 239V 23V 23V (Typ) 23V, 30V 24.2V 24.36V 24.4V 24.59V 24.5V (Typ) 24.6V 24.8V 240.5V 241.9V 241V 242V 243.6V 243V 244V 245.07V 245.7V 245V 246V 248V 249V 24V 24V (Typ) 25.1V 25.2V 25.3V 25.4V 25.4V (Typ) 25.5V 25.5V (Typ) 25.62V 25.6V 25.86V 25.8V 25.9V 25.9V (Typ) 250.9V 250V (Typ) 252.6V 252V 254V 255.15V 256.1V 256V 257.25V 257.4V 257.99V 257V 258.3V 258.6V 258V 259V 25V 25V (Typ) 25V, 15V 26.2V 26.36V 26.3V 26.46V 26.5V 26.5V (Typ) 26.6V 26.78V 26.7V 26.9V 260V 260V (Typ) 261V 265.23V 265V 266V 267V 268V 26V 26V (Typ) 26V, 12V 26V, 14V 26V, 18V 27.2V 27.3V 27.3V (Typ) 27.4V 27.4V (Typ) 27.5V 27.6V 27.7V 27.91V 270.9V 270V 271.53V 271.7V 271.95V 272.4V 272.7V 273V 274V 275V 276V 277V 278V 27V 27V (Typ) 28.1V 28.3V 28.3V (Typ) 28.4V 28.5V 28.5V (Typ) 28.6V 28.6V (Typ) 28.8V 28.98V 28.9V 280V 281V 284V 286.02V 286.34V 286.65V 286V 287.7V 287V 288.5V 288.6V 288.75V 288V 289V 28V 28V (Typ) 28V, 17V 29.09V 29.1V 29.2V 29.3V 29.5V 29.5V (Typ) 290.4V 290.85V 290V 291.6V 291V 292.1V 292V 294V 295V (Typ) 296V 29V 29V (Typ) 2V 3.11V 3.1V 3.39V 3.3V 3.3V (Typ) 3.4V (Typ) 3.5V (Typ) 3.6V (Typ) 3.7V 3.7V (Typ) 3.8V (Typ) 3.9V (Typ) 30.15V 30.2V 30.2V (Typ) 30.5V 30.5V (Typ) 30.66V 30.6V 30.77V 30.7V 30.8V 30.9V 300.3V 300V 301V 302.93V 303.45V 303V 304.92V 304V 305.55V 305V 306.6V 306V 307.8V 307V 308V 309V 30V 30V (Typ) 31.4V 31.5V 31.5V (Typ) 31.6V 31.7V 31.8V 31.8V (Typ) 31.9V 310V 315V 317V 319.1V 319.8V 319V 31V 31V (Typ) 31V, 19V 32.03V 32.13V 32.2V 32.3V 32.45V 32.4V 32.5V 32.5V (Typ) 32.8V 32.97V 32.9V 321.1V 321V 322V 323V 324.45V 324V 325.5V 325V 326V 328V 329.2V 329V 32V 32V (Typ) 33.2V 33.3V 33.4V 33.5V 33.6V 33.8V 33.8V (Typ) 33.9V 330V 334V 335.06V 335.79V 335V 336V 337V 338.1V 33V 33V (Typ) 33V, 23V 33V, 50V 34.02V 34.1V 34.2V 34.3V 34.5V 34.5V (Typ) 34.6V 34.7V 34.86V 34.8V 34.97V 340.2V 340V 342V 343V 344.4V 344V 345.45V 345.66V 348.6V 348V 349.5V 34V 34V (Typ) 35.1V 35.29V 35.4V 35.5V 35.5V (Typ) 35.6V 35.7V 35.8V 350V 352.5V 353V 354V 356V 357V 358V 35V 35V (Typ) 35V, 50V 36.02V 36.3V 36.3V (Typ) 36.4V 36.5V 36.5V (Typ) 36.8V 36.9V 360V 361.2V 364V 365.4V 366.03V 366.98V 36V 36V (Typ) 37.1V 37.28V 37.3V 37.4V 37.5V 37.8V 371.1V 371V 373.8V 374V 375V 376V 37V 37V (Typ) 38.1V 38.4V 38.5V 38.64V 38.8V 38.96V 38.9V 380V 382V 384.6V 384V 387V 388V 389.66V 38V 38V (Typ) 39.1V 39.27V 39.2V 39.38V 39.3V 39.4V 39.5V 39.8V 39.9V 392.7V 392V 394V 39V 39V (Typ) 3V 3V (Typ) 4.11V 4.1V 4.2V (Typ) 4.38V 4.3V (Typ) 4.4V (Typ) 4.5V 4.5V (Typ) 4.5V, 7.2V 4.63V 4.6V (Typ) 4.76V 4.7V (Typ) 4.8V (Typ) 4.96V 4.9V (Typ) 40.4V 40.5V 40.5V (Typ) 40.6V 40.7V 40.85V 40.9V 400V 401V 403.83V 405V 406.35V 406V 407.4V 40V 40V (Typ) 41.2V 41.2V (Typ) 41.4V 41.5V 41.67V 41.6V 410V 412V 414V 416.4V 416.7V 416V 417V 419V 41V 42.1V 42.2V 42.3V 42.53V 42.5V 42.74V 42.8V 42.9V (Typ) 425.25V 425V 428.6V 42V 43.1V 43.26V 43.2V 43.3V 43.47V 43.5V 43.68V 43.6V 43.7V 430V 432.6V 434.7V 434V 435V 436.2V 436.8V 437.22V 437.54V 438V 439.95V 43V 43V (Typ) 44.12V 44.21V 44.3V 44.4V 44.5V 44.7V 44.7V (Typ) 440V (Typ) 441V 442V 445V 446.25V 44V 44V (Typ) 44V, 70V 45.3V 45.4V 45.5V 45.7V 451V 452V 454.5V 458.01V 45V 45V (Typ) 46.2V 46.2V (Typ) 46.4V 46.51V 46.5V 46.6V 46.94V 460V 464V 469.9V 46V 47.2V 47.5V 47.5V (Typ) 47.67V 47.6V 47.78V 47.7V 47.8V 47.99V 47.9V 470V 473.55V 474.6V 477.23V 47V 47V (Typ) 48.1V 48.3V 48.4V 48.5V 48.6V 48.7V 48.8V 482V 483V 484V 486V 487.2V 487V 48V 48V (Typ) 49.2V 49.4V 49.88V 49.9V 493.4V 493V 49V 49V (Typ) 4V 4V (Typ) 5.1V (Typ) 5.2V 5.2V (Typ) 5.31V 5.3V 5.3V (Typ) 5.4V 5.4V (Typ) 5.5V 5.5V (Typ) 5.6V 5.6V (Typ) 5.7V (Typ) 5.83V 5.8V 5.8V (Typ) 50.1V 50.2V 50.3V 50.4V 50.7V 50.82V 500V 503V 504V 506.1V 507.15V 50V 50V (Typ) 50V, 35V 51.4V 51.5V 51.6V 510.3V 510V 512V 51V 51V (Typ) 52.1V 52.3V 52.4V 52.5V 52.7V 52.8V 520V 520V (Typ) 523V 524.4V 529V 52V 52V (Typ) 53.1V 53.24V 53.3V 53.4V 53.57V 53.5V 53.6V 53.9V 530V 536V 53V 54.08V 54.1V 54.3V 54.7V 54.8V 54.9V 548V 54V 55.2V 55.97V 552V 557V 55V 55V (Typ) 56.28V 56.2V 56.4V 56.6V 56.7V 563V 564V 567V 568V 56V 56V (Typ) 57.02V 57.3V 57.44V 57.54V 57.5V 57.96V 57.9V 570V 574V 575.4V 57V 57V (Typ) 58.1V 58.25V 58.2V 58.3V 58.4V 58.5V 58.8V 580V (Typ) 585V 58V 58V (Typ) 59.1V 59.3V 59.5V 59.7V 59.8V 590V 595.35V 59V 5V 5V (Typ) 6.1V (Typ) 6.2V 6.2V (Typ) 6.3V 6.3V (Typ) 6.41V 6.4V (Typ) 6.5V 6.5V (Typ) 6.6V 6.6V (Typ) 6.89V 6.8V 6.8V (Typ) 6.9V 60.38V 60.5V 60.7V 60.8V 600V 602V 603V 607.2V 60V 60V, 30V 61.01V 61.43V 61.5V 61.8V 61.9V 618V 61V 61V (Typ) 62.06V 62.27V 62.5V 62.69V 62.79V 62.8V 620V 625V 62V 63.3V 63.5V 63.6V 630V (Typ) 631V 632.1V 63V 63V (Typ) 64.2V 64.3V 64.58V 64.5V 64.6V 64.7V 64.89V 64.8V 64.9V 640V 644V 648V 649V 64V 65.22V 65.2V 65.5V 65.8V 650V 652V 658V 65V 65V (Typ) 66V 67.2V 67.3V 67.73V 67.7V 67.83V 67.8V 67V 67V (Typ) 68.04V 68.2V 68.5V 680.4V 680V 686V 68V 69.09V 69.4V 69.6V 69.7V 69.8V 690.9V 690V 698V 69V 6V 6V (Typ) 7.28V 7.2V (Typ) 7.3V 7.3V (Typ) 7.4V 7.4V (Typ) 7.5V 7.5V (Typ) 7.6V 7.6V (Typ) 7.75V 7.7V (Typ) 7.8V 7.8V (Typ) 7.9V 70.1V 70.8V 706V 70V 70V (Typ) 71.19V 71.4V 71.5V 71.6V 71.7V 711V 713V 714V 717.6V 718V 71V 72.2V 72.3V 72.7V 72.87V 72.8V 725V 729V 72V 73.19V 73.29V 73.4V 73.5V 73.61V 73.6V 732.9V 735V 73V 74.5V 74.8V 740V 748.65V 748.8V 75.4V 75.6V 750V 759V 75V 75V (Typ) 76.34V 76.3V 76.44V 76.65V 76.6V 76.7V 76.8V 76.8V (Typ) 76.9V 760V 761.25V 762V 764V 76V 77.4V 77.7V 770V 772V 776V 777V 77V 78.5V 78.6V 78.9V 787V 78V 79.4V 79.8V 793V 798V 7V 7V (Typ) 8.1V 8.1V (Typ) 8.25V 8.2V 8.2V (Typ) 8.3V 8.4V 8.4V (Typ) 8.5V 8.5V (Typ) 8.5V, 7.5V 8.65V 8.6V 8.6V (Typ) 8.7V 8.8V 8.8V (Typ) 8.9V 8.9V (Typ) 80.3V 80.5V 80.6V 80.7V 80.85V 80V 81.27V 81.2V 81.59V 81.6V 82.2V 82.4V 82.8V 82.9V 828V 82V 83.37V 83.5V 84.3V 84.5V 84V 85.3V 85.5V 85.68V 85.8V 85.9V 85V 85V (Typ) 86.3V 86.4V 86.52V 86.5V 86.94V 868V 86V 86V (Typ) 87.05V 87.1V 87.5V 87.7V 87V 88.4V 88.5V 88V 89.25V 89.3V 89.57V 897V 89V 8V 8V (Typ) 9.15V 9.1V 9.2V 9.2V (Typ) 9.3V 9.3V (Typ) 9.3V, 9.666V 9.4V 9.4V (Typ) 9.5V 9.5V (Typ) 9.5V, 15V 9.64V (Typ) 9.66V 9.6V 9.6V (Typ) 9.7V 9.7V (Typ) 9.8V 9.8V (Typ) 9.8V (Typ), 10.4V (Typ) 9.96V (Typ) 9.97V 9.9V 9.9V (Typ) 90.09V 90.72V 90.9V 90V 91.1V 91.46V 91.4V 91.88V 91V 91V (Typ) 92.09V 92.3V 92.4V 92.6V 92.7V 92V 93.6V 93.7V 93.8V 93V 94.3V 94.4V 94.5V 94V 95.5V 95.97V 95V 95V (Typ) 96.3V 96.6V 96.8V 96.9V 96V 97.02V 97.1V 97.23V 97.3V 97.4V 97.6V 97V 98.28V 98.49V 98.7V 98V 99.5V 99V (Typ) 9V 9V (Typ)	- 1.04A 1.05A 1.06A 1.09A 1.11A 1.12A 1.13A 1.14A 1.16A 1.17A 1.1A 1.1A (8/20µs) 1.21A 1.22A 1.23A 1.24A 1.25A 1.29A (8/20µs) 1.2A 1.2A (8/20µs) 1.32A 1.37A 1.39A (8/20µs) 1.3A 1.3A (8/20µs) 1.40A 1.45A 1.46A 1.48A 1.4A 1.4A (8/20µs) 1.50A 1.51A 1.53A 1.54A 1.55A 1.58A 1.59A 1.5A 1.5A (8/20µs) 1.63A 1.65A 1.69A 1.6A 1.6A (8/20µs) 1.71A 1.74A 1.75A 1.76A 1.77A 1.78A 1.7A 1.7A (8/20µA) 1.7A (8/20µs) 1.81A 1.83A 1.85A 1.8A 1.8A (8/20µs) 1.91A 1.93A 1.94A 1.95A 1.98A 1.9A 1.9A (8/20µs) 10.05A 10.09A 10.12A 10.1A 10.1A (8/20µs) 10.1mA 10.27A 10.28A 10.29A 10.2A 10.33A 10.36A 10.3A 10.3A (8/20µs) 10.4A 10.4A (8/20µs) 10.5A 10.5A (8/20µs) 10.67A 10.68A 10.6A 10.7A 10.7A (8/20µs) 10.86A 10.8A 10.91A 10.95A 10.99A 10.9A 10000A (10kA) (8/20µs) 1000A (1kA) (8/20µs) 100A 100A (2/10µs) 100A (8/20µs) 100mA 101A 102.3A 102.74A 102.7A 102.8A 102A 102A (8/20µs) 103.1A 103.31A 103.3A 103.45A 103.4A 103.5A 103.7A 103A 104.17A 104.1A 104.2A 104.34A 104.3A 104.8A 104.9A 1041A (1.041kA) 104A 105.4A 1059A (1.059kA) 105A 105A (8/20µs) 106.31A 106.6A 1061A (1.061kA) 106A 106A (8/20µs) 107.1A 107A 107A (8/20µs) 108.4A (8/20µs) 108.7A 108A 109.7A 109A 10A 10A (2/10µs) 10A (8/20µs) 11.13A 11.1A 11.26A 11.27A 11.2A 11.2A (8/20µs) 11.33A 11.3A 11.3A (8/20µs) 11.48A 11.4A 11.57A 11.58A 11.5A 11.5A (8/20µs) 11.67A 11.6A 11.6A (8/20µs) 11.76A 11.7A 11.8A 11.98A 11.9A 11.9A (8/20µs) 110.13A 110.1A 110.29A 110.2A 110.3A 1101A (1.101kA) 110A 110A (8/20µs) 111.23A 111.2A 111.6A 111.94A 111.9A 111A 111A (8/20µs) 112.3A 112.8A 112A 113.4A 113.6A 1130A (1.13kA) 113A 114A 115.38A 115.3A 115.4A 115A 115A (8/20µs) 116.28A 116.2A 116.3A 116.5A 1164A (1.164kA) 1169A (1.169kA) 1169A (1.169kA) 116A 116A (8/20µs) 117.8A 1177A (1.177kA) (8/20µs) 117A 118.2A 118.76A 118.8A 1184A (1.184kA) 118A 119.7A 119.95A 1190A (1.19kA) 119A 119A (8/20µs) 11A 11A (8/20µs) 12.02A 12.05A 12.14A 12.1A 12.2A 12.34A 12.35A 12.3A 12.3A (8/20µs) 12.44A 12.4A 12.5A 12.5A (8/20µs) 12.64A 12.6A 12.6A (8/20µs) 12.73A 12.7A 12.84A 12.8A 12.92A 12.99A 12.9A 120.2A 120A 120A (8/20µs) 121.1A 121A 122.3A 122.95A 122.9A 122A 123.5A 123.7A 123.8A 123.97A 123A 123A (8/20µs) 124.1A 124.9A 124A 124A (8/20µs) 125.6A 1250A (1.25kA) 1251A (1.251kA) 125A 125A (8/20µs) 126A 127.1A 127.21A 1273A (1.273kA) 1275A (1.275kA) 127A 128.2A 128.53A 128.5A 128A 129.31A 129.3A 129.4A 129.6A 129.82A 129.8A 129A 12A 12A (100ns) 12A (8/20µs) 12A (8/20µs), 17A (8/20µs) 12A, 16.5A 13.07A 13.08A 13.13A 13.1A 13.22A 13.23A 13.27A 13.2A 13.2A (8/20µs) 13.36A 13.3A 13.3A (8/20µs) 13.4A 13.5A 13.5A (8/20µs) 13.6A 13.76A 13.78A 13.79A 13.7A 13.89A 13.8A 13.9A 130.3A 130A 130A (8/20µs) 131.1A 131.6A 131A 131A (8/20µs) 132.74A 132.7A 132.9A 1324A (1.324kA) 132A 133.93A 133.9A 133A 134.5A 134A 135.66A 135.8A 135A 135A (8/20µs) 136.4A 136A 136A (8/20µs) 137.8A 137A 1387A (1.387kA) 138A 139.4A 139.53A 139.5A 139.6A 1396A (1.396kA) 139A 13A 13A (8/20µs) 14.04A 14.17A 14.1A 14.21A 14.25A 14.2A 14.31A 14.35A 14.3A 14.41A 14.44A 14.49A 14.4A 14.4A (8/20µs) 14.56A 14.5A 14.63A 14.6A 14.6A (8/20µs) 14.71A 14.7A 14.8A 14.9A 140.7A 140.85A 140.8A 140.8A (8/20µs) 140A 140A (8/20µs) 141A 142.25A 142.3A 142.86A 142.8A 142.9A 142A 143.3A 143.7A 143A 143A (8/20µs) 144.8A 144.9A 1446A (1.446kA) (8/20µs) 144A 145.4A 145.63A 145.6A 145.7A 145A 146.63A 1463A (1.463kA) 146A 146A (8/20µs) 147A 147A (8/20µs) 148A 149.2A 149A 14A 14A (8/20µs) 15.1A 15.2A 15.38A 15.3A 15.42A 15.43A 15.47A 15.4A 15.54A 15.58A 15.5A 15.5A (8/20µs) 15.6A 15.7A 15.87A 15.89A 15.9A 150.1A 150.6A 150.75A 150.7A 150.8A 15000A (15kA) (8/20µs) 1500A (1.5kA) 1500A (1.5kA) (8/20µs) 150A 150A (8/20µs) 151A 152A 153A 153A (8/20µs) 154.32A 154.3A 154.5A 154.9A 154A 155.1A (8/20µs) 155.4A 155.86A 155.9A 1553A (1.553kA) 155A 155A (8/20µs) 156.2A 156.3A 156.8A 156A 156A (8/20µs) 157.4A 157A 157A (8/20µs) 158A 159.6A 159A 15A 15A (8/20µs) 15A, 37.5A 16.03A 16.1A 16.24A 16.2A 16.39A 16.3A 16.3A (8/20µs) 16.41A 16.4A 16.5A 16.67A 16.6A 16.72A 16.7A 16.8A 16.95A 16.9A 16000A (16kA) (8/20µs) 160A 160A (8/20µs) 161A 162.44A 162.4A 162A 163.04A 163A 164.07A 164.84A 164.8A 164.9A 164A 165.1A 165.3A 165A 166.5A (8/20µs) 1665A (1.665kA) (8/20µs) 167.8A (8/20µs) 167A 168A 169.7A 169A 169A (8/20µs) 16A 16A (100ns) 16A (8/20µs) 17.15A 17.16A 17.1A 17.21A 17.22A 17.24A 17.2A 17.32A 17.3A 17.4A 17.5A 17.5A (8/20µs) 17.65A 17.67A 17.6A 17.78A 17.7A 17.86A 17.8A 17.9A 170A 170A (8/20µs) 171.23A 171.2A 171.9A 1714A (1.714kA) (8/20µs) 1715A (1.715kA) 171A 172.2A 172.5A 172.95A 172.9A 172A 172A (8/20µs) 173A 174.1A 174.4A 174.7A 174A 174A (8/20µs) 175A 175A (8/20µs) 176.2A 176.47A 176.4A 176.5A 176A 177.4A 177A 178.1A 178A 179A 17A 17A (8/20µs) 18.07A 18.18A 18.1A 18.2A 18.36A 18.4A 18.52A 18.53A 18.5A 18.5A (8/20µs) 18.6A 18.76A 18.7A 18.87A 18.8A 18.91A 18.9A 180A 180A (1.5/40µs) 180A (8/20µs) 181.16A 181.2A 181A 181A (8/20µs) 182.1A 182.4A 182.97A 183.2A (8/20µs) 183.6A 183A 184.8A 184A 184A (8/20µs) 185.9A 185A (8/20µs) 186.5A 186A 187A 187A (8/20µs) 188.6A 189A 18A 18A (8/20µs) 19.01A 19.1A 19.2A 19.2A (8/20µs) 19.31A 19.38A 19.3A 19.42A 19.48A 19.49A 19.4A 19.53A 19.5A 19.61A 19.6A 19.7A 19.8A 19.8A (8/20µs) 19.9A 190.1A 190A 190A (8/20µs) 191A 192.31A 192.3A 192.8A 192A 193A 194.23A 194.2A 194.3A 194.81A 194.8A 194.9A 194A 195A 195A (8/20µs) 196.2A 196A 197A 198A 19A 19A (8/20µs) 1A 1A (8/20µs) 2.03A 2.06A 2.07A 2.09A 2.14A 2.15A 2.17A 2.18A 2.19A 2.1A 2.1A (8/20µs) 2.23A 2.25A 2.26A 2.28A 2.2A 2.2A (8/20µs) 2.32A 2.34A 2.35A 2.3A 2.3A (8/20µs) 2.42A 2.43A 2.44A 2.45A (8/20µs) 2.46A 2.47A 2.4A 2.4A (8/20µs) 2.53A 2.54A 2.56A 2.58A 2.5A 2.5A (8/20µs) 2.63A 2.65A 2.66A 2.66A (8/20µs) 2.6A 2.6A (8/20µs) 2.72A 2.73A 2.74A 2.75A 2.76A 2.7A 2.7A (8/20µs) 2.85A 2.86A 2.87A 2.88A 2.8A 2.8A (8/20µs) 2.91A 2.92A 2.94A 2.9A 2.9A (8/20µs) 20.1A 20.33A 20.3A 20.4A 20.55A 20.58A 20.5A 20.63A 20.66A 20.6A 20.78A 20.7A 20.8A 20.9A 200.7A 20000A (20kA) (8/20µs) 2000A (2kA) (8/20µs) 200A 200A (8/20µs) 201.5A 201.9A (8/20µs) 202A 202A (8/20µs) 203.7A 204.92A 204.9A 204A 205.7A 205A 205A (8/20µs) 206.3A 206.97A 206A 207.4A 207A 207A (8/20µs) 208.33A 208.3A 208.4A 208A 209.8A 209A 20A 20A (1.2/50µs) 20A (8/20µs) 20A, 37.5A 21.01A 21.13A 21.1A 21.28A 21.2A 21.37A 21.3A 21.4A 21.5A 21.61A 21.66A 21.6A 21.74A 21.75A 21.7A 21.7A (8/20µs) 21.8A 21.98A 21.9A 210A 211.2A 211A 212A 2143A (2.143kA) (8/20µs) 214A 215.52A 215.5A 215A 215A (8/20µs) 216.3A 216A 217.67A 217.7A 218.1A 219.4A 219.8A 219A 219A (8/20µs) 21A 21A (8/20µs) 22.03A 22.04A 22.05A 22.1A 22.27A 22.2A 22.3A 22.4A 22.5A 22.5A (8/20µs) 22.61A 22.6A 22.7A 22.8A 22.96A 22.9A 220.59A 220.5A 220.6A 220A 220A (8/20µs) 221A 223A 225.4A 225.6A 225A 226.8A 226A 227A 228A 229.5A 229A 22A 22A (8/20µs) 23.08A 23.15A 23.1A 23.26A 23.2A 23.3A 23.4A 23.52A 23.53A 23.5A 23.6A 23.75A 23.7A 23.81A 23.8A 23.8A (8/20µs) 23.92A 23.95A 23.98A 23.9A 231.4A 231A 232.56A 232.5A 232.6A 232A 233.6A 233A 234.88A 234.9A 234A 234A (8/20µs) 235.4A 235.5A 235A (8/20µs) 236.7A 236A 237.2A 239A 23A 23A (8/20µs) 24.13A 24.16A 24.1A 24.27A 24.2A 24.4A 24.59A 24.5A 24.6A 24.79A 24.7A 24.8A 24.9A 240A 240A (8/20µs) 243.9A 243A 245A 246A 247.8A 247A 248A 249A 24A 24A (8/20µs) 25.1A 25.2A 25.3A 25.48A 25.4A 25.5A 25.64A 25.6A 25.71A 25.7A 25.82A 25.84A 25.86A 25.8A 25.91A 25.97A 25.9A 2500A (2.5kA) (8/20µs) 250A 250A (8/20µs) 251.26A 251.3A 251A 252.5A 252.7A 252A 253.77A 253.8A 253A 254.4A 254A 254A (8/20µs) 256.3A 256.8A 2564A (2.564kA) (8/20µs) 256A 257A 258A 258A (8/20µs) 259A 25A 25A (8/20µs) 26.13A 26.17A 26.1A 26.23A 26.2A 26.3A 26.4A 26.55A 26.5A 26.67A 26.6A 26.7A 260A 263.2A 263A 263A (8/20µs) 264A 265.8A 266A 267.86A 267.8A 267.9A 267A 268A 269A 26A 26A (8/20µs) 27.1A 27.2A 27.3A 27.4A 27.51A 27.59A 27.5A 27.6A 27.78A 27.7A 27.8.A 27.83A 27.8A 27.91A 27.9A 27.9A (8/20µs) 270.5A 270A 271.1A 271.7A 271A 272.7A 272.8A 272A 274.73A 274.7A 274.8A 274A 275A 275A (8/20µs) 276.1A 276A (8/20µs) 277.47A 277.9A 277A 278A 27A 27A (8/20µs) 28.12A 28.14A 28.17A 28.1A 28.24A 28.25A 28.2A 28.3A 28.53A 28.6A 28.7A 28.81A 28.8A 280.2A 280A 280A (8/20µs) 280mA (8/20µs) 282A 283.2A 283A 284A 286A 287A 288.4A 288A 28A 28A (8/20µs) 29.13A 29.1A 29.2A 29.41A 29.4A 29.5A 29.6A 29.7A 29.85A 29.8A 29.9A 290A 290A (8/20µs) 291.26A 291.2A 291.3A 291.6A 291A 292A 293A (8/20µs) 294.12A 294.1A 294.2A 294.9A 294A 295A 296A 297.1A 297.8A 297.9A 298.1A 298A 298A (8/20µs) 29A 29A (8/20µs) 2A 2A (1.2/50µs) 2A (8/20µs) 3.01A 3.09A 3.11A 3.13A 3.14A 3.15A 3.17A 3.18A 3.1A 3.1A (8/20µs) 3.24A 3.25A (8/20µs) 3.28A 3.2A 3.2A (8/20µs) 3.31A 3.35A 3.38A 3.39A 3.3A 3.3A (8/20µs) 3.42A 3.44A 3.45A 3.47A 3.49A 3.4A 3.4A (8/20µs) 3.54A 3.5A 3.5A (8/20µs) 3.62A 3.64A 3.65A 3.6A 3.6A (8/20µs) 3.6A (8/20µs), 2A (8/20µs) 3.70A 3.75A 3.77A 3.7A 3.7A (8/20µs) 3.87A 3.88A 3.89A 3.8A 3.8A (8/20µs) 3.95A 3.9A 3.9A (8/20µs) 30.06A 30.15A 30.1A 30.2A 30.2A (8/20µs) 30.3A 30.3A (8/20µs) 30.4A 30.5A 30.6A 30.7A 30.86A 30.8A 30.8A (8/20µs) 30.99A 30.9A 3000A (3kA) (8/20µs) 300A 300A (8/20µs) 300mA 301A 302A 304A 307.3A 307.7A 307.8A 307A 308A (8/20µs) 309A 30A 30A (8/20µs) 31.01A 31.16A 31.17A 31.1A 31.2A 31.3A 31.4A 31.5A 31.5A (8/20µs) 31.6A 31.7A 31.9A 310A 312.5A 312A 314A 315A (8/20µs) 316A 317.9A 317A (8/20µs) 318A 319A 31A 31A (8/20µs) 32.05A 32.1A 32.2A 32.49A 32.4A 32.5A 32.6A 32.78A 32.7A 32.82A 32.8A 32.97A 320A 321.7A 322A (8/20µs) 323.2A 323.5A 323A 324.68A 324.7A 324.8A 324A 325A 326.09A 326.1A 326A 327.9A 327A 328.5A 328A 32A 32A (8/20µs) 33.04A 33.06A 33.1A 33.2A 33.33A 33.3A 33.5A 33.6A 33.8A 33.9A 33.9A (8/20µs) 330A 331.2A 331.5A 331A 331A (8/20µs) 332A 333A 334A (8/20µs) 336A 338A 338A (8/20µs) 33A 33A (8/20µs) 34.25A 34.2A 34.3A 34.43A 34.44A 34.4A 34.59A 34.5A 34.7A 34.8A 34.9A 341A 342A 343.2A 343.3A 344.9A 347.22A 347.2A 347.3A 347A 348.8A 348A 349.9A 349A 34A 34A (8/20µs) 35.1A 35.29A 35.2A 35.3A 35.44A 35.4A 35.5A 35.63A 35.6A 35.71A 35.7A 35.8A 35.93A 35.9A 350.7A 3500A (3.5kA) (8/20µs) 350A 351.3A 351A 352A 354.2A 356A 357A 358A 35A 35A (8/20µs) 36.1A 36.23A 36.2A 36.3A 36.41A 36.4A 36.5A 36.7A 36.86A 36.8A 361A 363A 365A (8/20µs) 366A 367.65A 367.6A 367.7A 367A 368A 368A (8/20µs) 369A 36A 36A (8/20µs) 37.2A 37.3A 37.4A 37.52A 37.5A 37.6A 37.7A 37.8A 370.6A 371.3A 371A 372.1A 372A 374A (8/20µs) 375A 376.8A 376A 377A 378A 37A 37A (8/20µs) 38.1A 38.2A 38.3A 38.46A 38.4A 38.56A 38.58A 38.5A 38.6A 38.76A 38.7A 38.83A 38.8A 38.96A 38.97A 38.9A 382A (8/20µs) 383A 384A 385A 386A 387.6A 387.7A 388A 38A 38A (8/20µs) 39.1A 39.24A 39.2A 39.3A 39.4A 39.5A 39.68A 39.7A 39.8A 390A 391.5A 392.2A 394A (8/20µs) 395.3A 396A 39A 39A (8/20µs) 3A 3A (8/20µs) 3A (8/20µs), 5A (8/20µs) 4.01A 4.11A 4.13A 4.14A 4.17A 4.18A 4.1A 4.1mA 4.21A 4.22A 4.27A 4.28A 4.2A 4.35A 4.36A 4.38A 4.3A 4.3A (8/20µs) 4.41A 4.42A 4.46A 4.49A 4.4A 4.4A (8/20µs) 4.4mA 4.56A 4.57A 4.59A 4.5A 4.5A (8/20µA) 4.5A (8/20µs) 4.63A 4.65A 4.6A 4.6A (8/20µs), 2.7A (8/20µs) 4.71A 4.75A 4.75A (8/20µs) 4.76A 4.7A 4.7A (8/20µs) 4.85A 4.86A 4.87A 4.8A 4.8A (8/20µs) 4.92A 4.96A 4.9A 4.9A (8/20µs) 40.08A 40.1A 40.2A 40.3A 40.3A (8/20µs) 40.5A 40.7A 40.98A 400.7A 400mA 402.1A 404A 407A 40A 40A (8/20µs) 40A, 15A (8/20µs) 41.27A 41.2A 41.32A 41.38A 41.3A 41.4A 41.67A 41.6A 41.74A 41.7A 41.8A 41.9A 410mA 412.5A (8/20µs) 412A 413A (8/20µs) 414A 415.1A 416.67A 416.7A 416.8A 417.5A (8/20µs) 417A 41A 41A (8/20µs) 42.1A 42.25A 42.2A 42.37A 42.3A 42.4A 42.5A 42.5A (8/20µs) 42.6A 42.75A 42.8A 42.95A 420.8A 420A (8/20µs) 420mA (8/20µs) 423A 425A 426A 428A 42A 42A (8/20µs) 43.1A 43.23A 43.2A 43.38A 43.3A 43.48A 43.4A 43.5A 43.7A 43.8A 43.99A 43.9A 430mA 432A 437A 439.6A 439A 43A 43A (8/20µs) 44.05A 44.12A 44.1A 44.25A 44.2A 44.3A 44.4A 44.5A 44.69A 44.6A 44.78A 44.7A 44.8A 440.2A 441.1A 441.5A (8/20µs) 441A 446.43A 446.4A 446.5A 446A 447A 44A 44A (8/20µs) 45.18A 45.1A 45.2A 45.4A 45.5A 45.8A 450.9A 451.9A 455.4A 455A (8/20µs) 45A 45A (8/20µs) 46.3A 46.4A 46.51A 46.5A 46.5A (8/20µs) 46.6A 46.74A 46.7A 460A 460mA 461A (8/20µs) 462A 463A 465A (8/20µs) 466A 468A 46A 46A (8/20µs) 47.1A 47.2A 47.3A 47.51A 47.5A 47.5A (8/20µs) 47.6A 470A (8/20µs) 475.5A 47A 47A (8/20µs) 48.1A 48.2A 48.41A 48.4A 48.54A 48.5A 48.6A 48.73A 48.7A 48.8A 480mA 485.44A 485.4A 485.5A 485A 486A 487A 487A (8/20µs) 488.7A 48A 48A (8/20µs) 49.02A 49.03A 49.2A 49.4A 49.59A 49.5A 49.6A 49.7A 49.8A 490.3A 495.1A 496A 49A 4A 4A (1.2/50µs) 4A (8/20µs) 4A (8/20µs), 11A (8/20µs) 5.06A 5.14A 5.15A 5.16A 5.17A 5.18A 5.19A 5.1A 5.1A (8/20µs) 5.23A 5.29A 5.2A 5.2A (8/20µs) 5.31A 5.32A 5.33A 5.35A 5.39A 5.3A 5.3A (8/20µs) 5.42A 5.45A 5.47A 5.4A 5.4A (8/20µs) 5.5A 5.5A (8/20µs) 5.61A 5.63A 5.65A 5.6A 5.6A (8/20µs) 5.71A 5.76A 5.77A 5.78A 5.79A 5.7A 5.7A (8/20µs) 5.83A 5.87A 5.88A 5.8A 5.8A (8/20µs) 5.98A 5.9A 5.9A (8/20µs) 50.25A 50.3A 50.4A 50.7A 50.8A 500A 500A (8/20µs) 500mA 500mA (8/20µs) 502A 504mA (8/20µs) 508A 50A 50A (8/20µs) 51.37A 51.3A 51.41A 51.49A 51.4A 51.5A 51.5A (8/20µs) 51.64A 51.65A 51.6A 51.7A 51.9A 510mA 512A 512A (8/20µs) 513A 515.4A 516A 517.2A 517.9A 519A 51A 52.17A 52.1A 52.2A 52.3A 52.4A 52.6A 52.7A 520A (8/20µs) 520mA 521A 521A (8/20µs) 524A (8/20µs) 527.8A 52A 52A (8/20µs) 53.1A 53.2A 53.3A 53.42A 53.4A 53.57A 53.5A 53.6A 53.7A 53.7A (8/20µs) 53.95A 530mA 533A 538A (8/20µs) 53A 53A (8/20µs) 54.15A 54.2A 54.35A 54.3A 54.4A 54.5A 54.6A 54.8A 54.95A 54.9A 540mA 543.48A 543.5A 543.6A 543A 544A 548.9A 54A 54A (8/20µs) 55.4A 55.56A 55.5A (8/20µs) 55.6A 55.8A 55.9A 550mA 551.5A (8/20µs) 554.3A 554mA (8/20µs) 556.6A 556A 556A (8/20µs) 559A 55A 55A (8/20µs) 56.1A 56.29A 56.2A 56.33A 56.3A 56.5A 56.6A 56.81A 560mA 563A 564A 567A (8/20µs) 56A 56A (8/20µs) 57.14A 57.1A 57.2A 57.41A 57.4A 57.5A 57.69A 57.7A 57.98A 570A (8/20µs) 570mA 576A 579A 57A 57A (8/20µs) 58.14A 58.1A 58.25A 58.2A 58.3A 58.4A 58.5A 58.6A 58.82A 58.8A 58.9A 580A 580mA 581.5A (8/20µs) 58A 59.2A 59.52A 59.5A 59.5A (8/20µs) 59.8A 59.9A 599A 59A 59A (8/20µs) 5A 5A (100ns) 5A (8/20µs) 5A (8/20µs), 12A (8/20µs) 5A (8/20µs), 3A (8/20µs) 5A, 2A (8/20µs) 5A, 3A (8/20µs) 6.11A (8/20µs) 6.17A 6.18A 6.1A 6.1A (8/20µs) 6.24A 6.28A 6.29A 6.2A 6.34A 6.3A 6.3A (8/20µs) 6.41A 6.43A 6.4A 6.52A 6.54A 6.56A 6.5A 6.5A (8/20µs) 6.61A 6.6A 6.6A (8/20µs) 6.73A 6.75A 6.7A 6.85A 6.88A 6.89A 6.8A 6.8mA 6.91A 6.94A 6.9A 60.3A 60.68A 60.7A 60.8A 6000A (6kA) (8/20µs) 600mA 602A 606A 60A 60A (8/20µs) 61.29A 61.48A 61.4A 61.5A 61.73A 61.98A 61.9A 610mA 615mA (8/20µs) 617A 618A 61A 61A (8/20µs) 62.1A (8/20µs) 62.3A 62.4A 62.5A 62.6A 62.9A 620A 620mA 625A (8/20µs) 628A (8/20µs) 62A 62A (8/20µs) 63.1A 63.2A 63.3A 63.5A 63.8A 63.94A 630mA 63A 63A (8/20µs) 64.1A 64.4A 64.5A 64.66A 64.6A 64.7A 64.8A 64.94A 64.9A 643A 645A 64A 65.22A 65.25A 65.2A 65.3A 65.4A 65.9A 650mA 653A 655A 65A 65A (8/20µs) 66.08A 66.1A 66.2A 66.5A (8/20µs) 66.67A 66.7A 660mA 667A (8/20µs) 668A 66A 67.3A 67.4A 67.5A 67.5A (8/20µs) 67.6A 67.83A 670A (8/20µs) 670mA 672.5A (8/20µs) 676A 67A 68.2A 68.3A 68.5A 68.78A 68.8A 68.9A 680A 680mA 682A 68A 68A (8/20µs) 69.1A 69.44A 69.46A 69.4A 69.5A 69.77A 69.7A 69.8A 69.9A 690A (8/20µs) 690mA 693A 694mA (8/20µs) 696A 69A 69A (8/20µs) 6A 6A (8/20µs) 6A (8/20µs), 4A (8/20µs) 7.01A 7.06A 7.11A 7.18A 7.1A 7.1A (8/20µs) 7.25A 7.28A 7.2A 7.2A (8/20µs) 7.32A 7.3A 7.3A (8/20µs) 7.41A 7.42A 7.4A 7.51A 7.5A 7.5A (8/20µs) 7.67A 7.69A 7.6A 7.6A (8/20µs) 7.71A 7.72A 7.74A 7.75A 7.77A 7.79A 7.7A 7.8A 7.8A (8/20µs) 7.94A 7.98A 7.9A 70.2A 70.5A 70.75A 70.8A 700mA 700mA (8/20µs) 708A 70A 70A (8/20µs) 71.26A 71.2A 71.3A 71.4A 71.7A 71.9A 710mA 71A 71A (8/20µs) 72.05A 72.1A 72.3A 72.5A 72.77A 72.7A 72.8A 72.9A 720mA 723A 724A (8/20µs) 725A 728.5A (8/20µs) 72A 73.1A 73.53A 73.5A 73.6A 730A (8/20µs) 730mA 738A 73A 73A (8/20µs) 74.4A 74.6A 74.8A 742A 746A (8/20µs) 74A 74A (8/20µs) 75.2A 75.38A 75.3A 75.4A 75.5A 75.8A 750mA 753A 758mA (8/20µs) 75A 75A (8/20µs) 76.1A 76.2A 760mA 77.12A 77.1A 77.2A 77.4A 77.52A 77.5A 77.5A (8/20µs) 77.6A 77.7A 77.8A 770mA 775A (8/20µs) 776A 77A 78.28A 78.29A 78.3A 78.5A 78.8A 78.9A 780mA 789A (8/20µs) 78A 79.1A 79.3A 79.8A 790mA 795A 79A 7A 7A (8/20µs) 8.02A 8.08A 8.15A 8.1A 8.21A 8.24A 8.25A 8.26A 8.2A 8.2A (8/20µs) 8.33A 8.38A 8.3A 8.43A 8.45A 8.47A 8.4A 8.4A (8/20µs) 8.56A 8.58A 8.5A 8.5A (8/20µs) 8.62A 8.63A 8.65A 8.6A 8.6A (8/20µs) 8.75A 8.76A 8.7A 8.7A (8/20µs) 8.81A 8.82A 8.84A 8.85A 8.88A 8.8A 8.8A (8/20µs) 8.9A 8.9A (8/20µs) 80.1A 800mA 80A 80A (8/20µs) 81.3A 81.4A (8/20µs) 810mA 815A (8/20µs) 81A (8/20µs) 82.42A 82.4A 82.5A 82.6A 82.7A 820mA 822A 82A 83.33A 83.3A 83.5A 83.8A 830mA 836A 838A 83A 83A (8/20µs) 84.36A 84.4A 84.51A 84.5A 84.6A 84.7A 840mA 840mA (8/20µs) 848A 84A 85.3A 85.5A 850mA 85A 85A (8/20µs) 86.06A 86.1A 86.7A 86.92A 86.9A 860mA 86A 86A (8/20µs) 87.1A 87.7A 87.8A 870mA 878A 87A 87A (8/20µs) 88.24A 88.2A 88.3A 88.5A 88.8A 882A 88A 89.29A 89.3A 89.4A (8/20µs) 89.7A 89.82A 89.8A 890mA 89A 89A (8/20µs) 8A 8A (8/20µs) 9.07A 9.09A 9.1A 9.22A 9.26A 9.2A 9.35A 9.37A (8/20µs) 9.3A 9.3A (8/20µs) 9.41A 9.43A 9.4A 9.4A (8/20µs) 9.5A 9.5A (8/20µs) 9.62A 9.66A 9.6A 9.6A (8/20µs) 9.71A 9.75A 9.75A (8/20µs) 9.7A 9.87A 9.8A 9.8A (8/20µs) 9.9A 9.9A (8/20µs) 90.8A 90.8A (8/20µs) 900mA 900mA (8/20µs) 905A 909A 90A 90A (8/20µs) 91.2A 91.39A 910mA 910mA (8/20µs) 91A 91A (8/20µs) 92.4A 92.59A 92.5A 92.6A 923mA 923mA (8/20µs) 92A 93.2A 93.5A 93.6A 93.81A 93.8A 93.9A 930mA 93A 93A (8/20µs) 94.75A 94.7A 94.8A 943A 945A (8/20µs) 94A 94A (8/20µs) 95.1A 95.2A 95.7A 950mA 95A 95A (8/20µs) 96.15A 96.2A 96.8A 960mA 968A (8/20µs) 96A 97.09A 97.1A 97.47A 97.4A 970mA 975A 97A 98.23A 98.4A 980mA 989A 990A 990mA 99A 9A 9A (8/20µs)	- 1.8W 100000W (100kW) 10000W (10kW) 1000W (1kW) 1000W (1kW), 600W 100mW 100W 100W, 300W 102W 104W 1050W (1.05kW) 105W 107W 108W 10W 11000W (11kW) 1100W (1.1kW) 110W 1120W (1.12kW) 112W 113W 115W 116W 117W 118W 119W 11W 12000W (12kW) 1200W (1.2kW) 120W 121W 125W 126W 1280W (1.28kW) 128W 129W 12W 130000W (130kW) 1300W (1.3kW) 130W 132W 133W 1344W (1.344kW) 134W 1350W (1.35kW) 135W 136W 138W 13W 1400W (1.4kW) 140W 144000W (144kW) 14500W (14.5kW) 145W 1470W (1.47kW) 1485W (1.485kW) 148W 1490W (1.490kW) 14W 15000W (15kW) 1500W (1.5kW) 150mW 150W 1520W (1.52kW) 152W 154W 155W 158W 159.1W 159W 15W 1600W (1.6kW) 160W 1620W (1.62kW) 162W 165W 1680W (1.68kW) 169W 16W 170W 172W 174W 1750W (1.75kW) 175W 176W 17W 18000W (18kW) 1800W (1.8kW) 180W 181W 1875W (1.875kW) 18W 19.6W 1900W (1.9kW) 190W 192W 198W 19W 2.5W 20000W (20kW) 2000W (2kW) 200mW 200W 204W 20W 2100W (2.1kW) 210W 21W 2200W (2.2kW) 220W 22500W (22.5kW) 2250W (2.25kW) 225W 22W 2300W (2.3kW) 230W 233W 235W 23W 2400W (2.4kW) 240W 242W 245W 248W 24W 2500W (2.5kW) 2500W(2.5kW) 250mW 250W 252W 255W 25W 26.5W 260W 2635W (2.635kW) 26W 27.5W 2700W (2.7kW) 270W 275W 27W 2800W (2.8kW) 280W 286W 28W 290W 29W 2W 3.5W 30.6W 30000W (30kW) 3000W (3kW) 300W 306W 308W 30W 312mW 312W 315W 31W 32.5W 320W 323W 325W 32W 3300W (3.3kW) 330W 335W 33W 340W 345W 34W 350W 3510W (3.51kW) 35W 36000W (36kW) 3600W (3.6kW) 360W 364W 369W 36W 37.5W 3700W (3.7kW) 370W 372W, 145W 375W 378W 37W 3800W (3.8kW) 380W 384W 38W 39.2W 390W 39W 40000W (40kW) 4000W (4kW) 400mW 400W 40W 410W 412W 41W 4200W (4.2kW) 420W 429W 42W 432W 43W 4400W (4.4kW) 440W 4480W (4.48kW) 44W 4500W (4.5kW) 450W 45W 4600W (4.6kW) 460W 46W 476W 47W 4800W (4.8kW) 480W 48W 4W 50000W (50kW) 5000W (5kW) 500W 5060W (5.06kW) 50W 50W, 61W 5200W (5.2kW) 520W 525W 528W 52W 530W 53W 540W 5460W (5.46kW) 54W 54W, 63W 5500W (5.5kW) 550W 5580W (5.58kW) 55W 5680W (5.68kW) 56W 5700W (5.7kW) 570W 575W 57W 580W 58W 590W 595W 5W 60000W (60kW) 6000W (6kW) 600W 60W 616W 61W 62.5W 630W 63W 640W 64W 65000W (65kW) 6500W (6.5kW) 650W 657W 65W 6600W (6.6kW) 660W 6660W (6.66kW) 66W 67W 68W 6W 7.2W 7000W (7kW) 700W 70W 7200W (7.2kW) 720W 7260W (7.26kW) 72W 734W 735W 73W 7500W (7.5kW) 750W 75W 7600W (7.6kW) 76W 7700W (7.7kW) 77W 78W 7W 8000W (8kW) 800mW 800W 80W 82W 840W 84W 858W 85W 860W 87.5W 87W 88W 890W 8W 9.8W 90000W (90kW) 900W 90W 92W 950W 95W 960W 96W 98W 990W 9W	- No Yes	- Automotive CAN CAN, Ethernet, Telecom CAN, Ethernet, USB CAN, HDMI, USB CAN, Telecom CAN, Telecom, USB CAN, USB Data Line DVI DVI, Ethernet, HDMI DVI, Ethernet, HDMI, USB DVI, Ethernet, USB DVI, Ethernet, USB 2.0, USB 3.0 DVI, HDMI DVI, HDMI, Ethernet, USB DVI, HDMI, Telecom, USB DVI, HDMI, USB DVI, HDMI, USB 2.0, USB OTG DVI, HDMI, VGA, USB DVI, HDVI, USB DVI, Telecom, USB DVI, USB Ethernet Ethernet, HDMI Ethernet, HDMI, RF Antenna Ethernet, HDMI, Telecom, USB Ethernet, HDMI, USB Ethernet, HDMI, USB OTG Ethernet, Multimedia Card Interface, USB OTG Ethernet, RF Antenna Ethernet, Telecom Ethernet, Telecom, USB Ethernet, USB Ethernet, USB 2.0 Ethernet, USB 3.1 Ethernet, USB OTG General General Amplification General Purpose HDMI HDMI, RF Antenna HDMI, Telecom, USB HDMI, USB HDMI, USB OTG HDMI2, USB 3.2 HDVI, USB Industrial, Multipurpose LVDS MOSFET Protection MOSFET Protection, Telecom Multimedia Card Interface Netcom Power Line Power Over Ethernet (PoE) RF Antenna RF Antenna, Telecom RF Antenna, Telecom, USB 2.0, USB 3.0 RS-485 Telecom Telecom, USB USB USB 1.1, USB 2.0 USB 2.0 USB 2.0, USB 3.0 USB 3.0 USB 3.0, USB 3.1 USB OTG USB, VGA	- 0.04pF @ 250MHz 0.05pF @ 1MHz 0.075pF @ 1MHz 0.085pF @ 10GHz 0.08pF @ 10GHz 0.08pF @ 1MHz 0.09pF @ 1MHz 0.09pF @ 250MHz 0.11pF @ 1MHz 0.12pF @ 1MHz 0.12pF @ 2.5GHz 0.12pF @ 250MHz 0.13pF @ 1MHz 0.13pF @ 2.5GHz 0.13pF @ 3GHz 0.14pF @ 1MHz 0.155pF @ 1MHz 0.15pF @ 10GHz 0.15pF @ 1GHz 0.15pF @ 1MHz 0.15pF @ 3GHz 0.17pF @ 10GHz 0.17pF @ 1MHz 0.187pF @ 1MHz 0.18pF @ 10GHz 0.18pF @ 1MHz 0.19pF @ 10GHz 0.19pF @ 1MHz 0.1pF @ 10GHz 0.1pF @ 1MHz 0.1pF @ 2.5GHz 0.1pF @ 3GHz 0.1pF @ 5GHz 0.21pF @ 1MHz 0.22pF @ 1GHz 0.22pF @ 1MHz 0.23pF @ 1MHz 0.245pF @ 1MHz 0.24pF @ 1MHz 0.24pF @ 2.5GHz 0.24pF @ 200MHz ~ 3GHz 0.25pF @ 1GHz 0.25pF @ 1MHz 0.25pF @ 1MHz (Max) 0.26pF @ 1MHz 0.27pF @ 1MHz 0.28pF @ 1MHz 0.28pF @ 3GHz 0.29pF @ 1MHz 0.2pF @ 1GHz 0.2pF @ 1MHz 0.2pF @ 1MHz (Max) 0.2pF @ 2.5GHz 0.2pF @ 200MHz ~ 3GHz 0.2pF @ 3GHz 0.31pF @ 1MHz 0.31pF @ 5GHz 0.32pF @ 1MHz 0.32pF @ 1MHz (Max) 0.33pF @ 1MHz 0.34pF @ 1MHz 0.35pF @ 1GHz 0.35pF @ 1MHz 0.35pF @ 200MHz ~ 2.5GHz 0.35pF @ 200MHz ~ 3GHz 0.36pF @ 1MHz 0.37pF @ 1MHz 0.38pF @ 1MHz 0.39pF @ 1MHz 0.3pF @ 1MHz 0.3pF @ 1MHz (Max) 0.3pF @ 200MHz ~ 3GHz 0.3pF @ 3GHz 0.42pF @ 1MHz 0.43pF @ 1MHz 0.44pF @ 1MHz 0.45pF @ 1MHz 0.45pF @ 1MHz (Max) 0.47pF @ 1MHz 0.48pF @ 1MHz 0.49pF @ 1MHz 0.4pF @ 1GHz 0.4pF @ 1MHz 0.4pF @ 1MHz (Max) 0.4pF @ 200MHz ~ 2.5GHz 0.4pF @ 200MHz ~ 3GHz 0.51pF @ 1MHz 0.52pF @ 1MHz 0.55pF @ 1MHz 0.55pF @ 1MHz (Max) 0.5pF @ 1MHz 0.5pF @ 1MHz (Max) 0.5pF @ 1MHz, 0.25pF @ 1MHz 0.5pF @ 200MHz ~ 3GHz 0.62pF @ 1MHz 0.63pF @ 1MHz 0.65pF @ 1MHz 0.66pF @ 1MHz 0.69pF @ 1MHz 0.6pF @ 1MHz 0.6pF @ 1MHz (Max) 0.6pF @ 200MHz ~ 2.5GHz 0.6pF @ 200MHz ~ 3GHz 0.75pF @ 1MHz 0.75pF @ 3GHz 0.76pF @ 1MHz 0.7pF @ 1GHz 0.7pF @ 1MHz 0.7pF @ 1MHz (Max) 0.7pF @ 3MHz 0.82pF @ 1MHz 0.83pF @ 1MHz 0.85pF @ 1MHz 0.85pF @ 825MHz 0.88pF @ 1MHz 0.8pF @ 1GHz 0.8pF @ 1MHz 0.8pF @ 1MHz (Max) 0.8pF @ 1MHz (Max), 100pF @ 1MHz (Max) 0.95pF @ 1MHz 0.95pF @ 1MHz (Max) 0.9pF @ 1MHz 0.9pF @ 1MHz (Max) 1.1pF @ 1MHz 1.25pF @ 1MHz 1.2pF @ 1MHz 1.2pF @ 1MHz (Max) 1.35pF @ 1MHz 1.3pF @ 1MHz 1.4pF @ 1MHz 1.55pF @ 1MHz 1.5pF @ 10MHz 1.5pF @ 1MHz 1.5pF @ 1MHz (Max) 1.6pF @ 1MHz 1.75pF @ 1MHz 1.7pF @ 1MHz 1.85pF @ 1MHz 1.8pF @ 1MHz 1.8pF @ 1MHz (Max) 1.9pF @ 1MHz 10.2pF @ 1MHz 10.5pF @ 1MHz 10.7pF @ 1MHz 10000pF @ 10kHz 10000pF @ 10kHz (Max) 1000pF @ 10kHz 1000pF @ 1MHz 1000pF @ 1MHz (Max) 100pF @ 1MHz 100pF @ 1MHz (Max) 101pF @ 1MHz 1020pF @ 1MHz 1025pF @ 1MHz 1035pF @ 1MHz 103pF @ 1MHz 1050pF @ 1MHz 105pF @ 1MHz 105pF @ 1MHz (Max) 1063pF @ 1MHz 106pF @ 1MHz 1075pF @ 1MHz 1080pF @ 1MHz 1085pF @ 1MHz 108pF @ 1MHz 1090pF @ 1MHz 10pF @ 1MHz 10pF @ 1MHz (Max) 11.2pF @ 1MHz 11.4pF @ 1MHz 11.5pF @ 1MHz 11000pF @ 10kHz 11000pF @ 10kHz (Max) 1100pF @ 10kHz 1100pF @ 1MHz 110pF @ 1MHz 110pF @ 1MHz (Max) 1110pF @ 1MHz 1120pF @ 1MHz 112pF @ 1MHz 1130pF @ 1MHz 11500pF @ 1MHz 1150pF @ 1MHz 115pF @ 1MHz 1160pF @ 1MHz 116pF @ 1MHz 11700pF @ 10kHz 1175pF @ 1MHz 118pF @ 1MHz 119pF @ 1MHz 11pF @ 100MHz 11pF @ 1MHz 11pF @ 5MHz 12.5pF @ 1MHz 12.7pF @ 1MHz 12.8pF @ 1MHz 12000pF @ 10kHz 12000pF @ 10kHz (Max) 1200pF @ 10kHz 1200pF @ 1MHz 120pF @ 10kHz 120pF @ 1MHz 120pF @ 1MHz (Max) 122pF @ 1MHz 1245pF @ 1MHz 1250pF @ 1MHz 125pF @ 1MHz 125pF @ 1MHz (Max) 1265pF @ 1MHz 126pF @ 1MHz 1270pF @ 1MHz 127pF @ 1MHz 12pF @ 1MHz 12pF @ 1MHz (Max) 13.5pF @ 1MHz 13.9pF @ 1MHz 1300pF @ 10kHz 1300pF @ 1MHz 130pF @ 1MHz 130pF @ 1MHz (Max) 130pF @ 1MHz, 65pF @ 1MHz 131pF @ 1MHz 1320pF @ 1MHz 1325pF @ 1MHz 132pF @ 1MHz 1335pF @ 1MHz 1345pF @ 1MHz 13500pF @ 1MHz 1350pF @ 1MHz 135pF @ 1MHz 137pF @ 1MHz 138pF @ 1MHz 13pF @ 1MHz 13pF @ 1MHz (Max) 14.5pF @ 1MHz 1400pF @ 10kHz 1400pF @ 1MHz 140pF @ 1MHz 141pF @ 1MHz 142pF @ 1MHz 1430pF @ 1MHz 1435pF @ 1MHz 143pF @ 1MHz 144pF @ 1MHz 1450pF @ 1MHz 145pF @ 1MHz 145pF @ 1MHz (Max) 1460pF @ 1MHz 148pF @ 1MHz 14pF @ 1MHz 15.5pF @ 1MHz 15.6pF @ 1MHz 1500pF @ 10kHz 1500pF @ 1kHz 1500pF @ 1MHz 1500pF @ 1MHz (Max) 1505pF @ 1MHz 150pF @ 1MHz 150pF @ 1MHz (Max) 151pF @ 1MHz 152pF @ 1MHz 153pF @ 1MHz 1550pF @ 1MHz 155pF @ 1MHz 156pF @ 1MHz 159pF @ 1MHz 15pF @ 1MHz 15pF @ 1MHz (Max) 16.1pF @ 1MHz 16.5pF @ 1MHz 16.5pF @ 1MHz (Max) 16.7pF @ 1MHz 1600pF @ 10kHz 1600pF @ 1MHz 1605pF @ 1MHz 160pF @ 1MHz 160pF @ 1MHz (Max) 160pF @ 1MHz, 80pF @ 1MHz 161pF @ 1MHz 162pF @ 1MHz 1650pF @ 1MHz 165pF @ 1MHz 165pF @ 1MHz (Max) 1690pF @ 1MHz 169pF @ 1MHz 16pF @ 0V, 1MHz (Max) 16pF @ 100MHz 16pF @ 1MHz 17.5pF @ 1MHz 1700pF @ 10kHz 1700pF @ 1MHz 170pF @ 1MHz 170pF @ 1MHz (Max) 172pF @ 1MHz 1730pF @ 1MHz 173pF @ 1MHz 1750pF @ 1MHz 175pF @ 1MHz 1780pF @ 1MHz 178pF @ 1MHz 17pF @ 1MHz 17pF @ 1MHz (Max) 18.5pF @ 1MHz 1800pF @ 1MHz 180pF @ 1MHz 180pF @ 1MHz (Max) 1835pF @ 1MHz 1850pF @ 1MHz 185pF @ 1MHz 1890pF @ 1MHz 18pF @ 1MHz 18pF @ 1MHz (Max) 1900pF @ 1MHz 190pF @ 1MHz 192pF @ 1MHz 195pF @ 1MHz 195pF @ 1MHz (Max) 198pF @ 1MHz 19pF @ 100MHz 19pF @ 1MHz 1pF @ 1MHz 1pF @ 1MHz (Max) 1pF @ 200MHz ~ 3GHz 1pF @ 3GHz 2.1pF @ 1MHz 2.2pF @ 1MHz 2.3pF @ 1MHz 2.4pF @ 1MHz 2.5pF @ 1GHz 2.5pF @ 1MHz 2.5pF @ 1MHz, 1.25pF @ 1MHz 2.6pF @ 1MHz 2.7pF @ 1MHz 2.8pF @ 1MHz 2.9pF @ 1MHz 2000pF @ 10kHz 2000pF @ 1MHz 2005pF @ 1MHz 200pF @ 1MHz 200pF @ 1MHz (Max) 2015pF @ 1MHz 2035pF @ 1MHz 2050pF @ 1MHz 205pF @ 1MHz 207pF @ 1MHz 2095pF @ 1MHz 20pF @ 1MHz 20pF @ 1MHz (Max) 2100pF @ 1MHz 210pF @ 1MHz 2140pF @ 1MHz 2150pF @ 1MHz 215pF @ 1MHz 2180pF @ 1MHz 21pF @ 1MHz 21pF @ 1MHz (Max) 2200pF @ 10kHz 220pF @ 1MHz 220pF @ 1MHz (Max) 2235pF @ 1MHz 225pF @ 1MHz 226pF @ 1MHz 227pF @ 1MHz 229pF @ 1MHz 22pF @ 1MHz 22pF @ 1MHz (Max) 2300pF @ 10kHz 2300pF @ 1MHz 230pF @ 1MHz 235pF @ 1MHz 2380pF @ 1MHz 23pF @ 1MHz 24.2pF @ 1MHz 24.5pF @ 1MHz 24000pF @ 1MHz 2400pF @ 10kHz 2400pF @ 1MHz 240pF @ 1MHz 242pF @ 1MHz 243pF @ 1MHz 244pF @ 1MHz 2450pF @ 1MHz 245pF @ 1MHz 247pF @ 1MHz 24pF @ 1MHz 2500pF @ 10kHz 2500pF @ 1MHz 250pF @ 1MHz 250pF @ 1MHz (Max) 255pF @ 1MHz 25pF @ 1MHz 25pF @ 1MHz (Max) 25pF @ 5MHz 26000pF @ 1MHz 2600pF @ 10kHz 2600pF @ 1MHz 260pF @ 1MHz 260pF @ 1MHz (Max) 264pF @ 1MHz 265pF @ 1MHz 267pF @ 1MHz 26pF @ 1MHz 2700pF @ 10kHz 2700pF @ 1MHz 270pF @ 1MHz 271pF @ 1MHz 274pF @ 10kHz 275pF @ 1MHz 275pF @ 1MHz (Max) 276pF @ 1MHz 279pF @ 1MHz 27pF @ 1MHz 2800pF @ 10kHz 2800pF @ 1MHz 280pF @ 1MHz 283pF @ 1MHz 285pF @ 1MHz 287.5pF @ 1MHz 2875pF @ 1MHz 28pF @ 1MHz 28pF @ 1MHz (Max) 2900pF @ 1MHz 290pF @ 1MHz 291pF @ 1MHz 292pF @ 1MHz 293pF @ 1MHz 295pF @ 1MHz 29pF @ 1MHz 2pF @ 1MHz 2pF @ 1MHz (Max) 3.1pF @ 1MHz 3.2pF @ 1GHz 3.2pF @ 1MHz 3.3pF @ 1MHz 3.5pF @ 1MHz 3.5pF @ 1MHz (Max) 3.6pF @ 1MHz 3.75pF @ 1MHz 3.8pF @ 1MHz 3.9pF @ 1MHz 3000pF @ 10kHz 3000pF @ 1MHz 300pF @ 1MHz 300pF @ 1MHz (Max) 305pF @ 1MHz 308pF @ 1MHz 309pF @ 1MHz 30pF @ 1GHz 30pF @ 1MHz 30pF @ 1MHz (Max) 310pF @ 1MHz 312.5pF @ 1MHz 315pF @ 1MHz 31pF @ 1MHz 32.5pF @ 1MHz 32000pF @ 10kHz 3200pF @ 1MHz 320pF @ 1MHz 324pF @ 1MHz 325pF @ 1MHz 32pF @ 1MHz 3300pF @ 10kHz 3300pF @ 1MHz 330pF @ 1MHz 330pF @ 1MHz (Max) 335pF @ 1MHz 337.5pF @ 1MHz 33pF @ 1MHz 3400pF @ 1MHz 340pF @ 1MHz 342pF @ 1MHz 343pF @ 1MHz 345pF @ 1MHz 34pF @ 1MHz 3500pF @ 1MHz 350pF @ 10kHz 350pF @ 1MHz 350pF @ 1MHz (Max) 35pF @ 1MHz 35pF @ 1MHz (Max) 360pF @ 1MHz 360pF @ 1MHz (Max) 362.5pF @ 1MHz 365pF @ 1MHz 366pF @ 1MHz 367pF @ 1MHz 36pF @ 1MHz 3700pF @ 10kHz (Max) 3700pF @ 1MHz 370pF @ 1MHz 375pF @ 1MHz 379pF @ 1MHz 37pF @ 1MHz 380pF @ 1MHz 380pF @ 1MHz (Max) 385pF @ 1MHz 385pF @ 1MHz (Max) 38700pF @ 10kHz 387pF @ 1MHz 38pF @ 1MHz 390pF @ 1MHz 392pF @ 1MHz 395pF @ 1MHz 39pF @ 1MHz 3pF @ 1MHz 3pF @ 1MHz (Max) 4.1pF @ 1MHz 4.2pF @ 1GHz 4.2pF @ 1MHz 4.3pF @ 1MHz 4.5pF @ 1MHz 4.7pF @ 1MHz 40000pF @ 10kHz (Max) 4000pF @ 10kHz 4000pF @ 1MHz 400pF @ 10kHz 400pF @ 1MHz 400pF @ 1MHz (Max) 400pF @ 1MHz, 200pF @ 1MHz 405pF @ 1MHz 408pF @ 1MHz 40pF @ 1MHz 40pF @ 1MHz (Max) 4100pF @ 10kHz 410pF @ 1MHz 412pF @ 1MHz 415pF @ 1MHz 41pF @ 1MHz 420pF @ 1MHz 423pF @ 1MHz 4250pF @ 1MHz 425pF @ 1MHz 42pF @ 1MHz 4300pF @ 1MHz 430pF @ 1MHz 433pF @ 1MHz 43pF @ 1MHz 440pF @ 1MHz 440pF @ 1MHz (Max) 44pF @ 1MHz 4500pF @ 10kHz 450pF @ 1MHz 455pF @ 1MHz 45pF @ 1MHz 45pF @ 1MHz (Max) 460pF @ 1MHz 465pF @ 1MHz 46pF @ 100MHz 46pF @ 1MHz 470pF @ 1MHz 474pF @ 1MHz 4750pF @ 1MHz 475pF @ 1MHz 47pF @ 1MHz 4800pF @ 1MHz 480pF @ 1MHz 480pF @ 1MHz (Max) 483pF @ 1MHz 485pF @ 1MHz 487.5pF @ 1MHz 48pF @ 1MHz 490pF @ 1MHz 49pF @ 1MHz 4pF @ 1MHz 5.2pF @ 1MHz 5.3pF @ 1MHz 5.4pF @ 1MHz 5.5pF @ 1GHz 5.5pF @ 1MHz 5.5pF @ 1MHz (Max) 5.6pF @ 1MHz 5.7pF @ 1MHz 5.8pF @ 1GHz 5000pF @ 10kHz 5000pF @ 1MHz 500pF @ 1MHz 505pF @ 1MHz 509pF @ 1MHz 50pF @ 1MHz 50pF @ 1MHz (Max) 510pF @ 1MHz 512pF @ 1MHz 513pF @ 1MHz 515pF @ 1MHz 52.6pF @ 1MHz 5200pF @ 1MHz 520pF @ 1MHz 52pF @ 1MHz 530pF @ 1MHz 537.5pF @ 1MHz 540pF @ 1MHz 545pF @ 1MHz 54pF @ 1MHz 55.5pF @ 1MHz 5500pF @ 10kHz 550pF @ 1kHz 550pF @ 1MHz 550pF @ 1MHz (Max) 555pF @ 1MHz 558pF @ 1MHz 55pF @ 1MHz 55pF @ 1MHz (Max) 5600pF @ 10kHz 560pF @ 1MHz 562pF @ 1MHz 565pF @ 1MHz 56pF @ 100MHz 56pF @ 1MHz 570pF @ 1MHz 5750pF @ 1MHz 575pF @ 1MHz 57pF @ 1MHz 580pF @ 1MHz 585pF @ 1MHz 58pF @ 1MHz 590pF @ 1MHz 598pF @ 1MHz 5pF @ 1MHz 5pF @ 1MHz (Max) 6.2pF @ 1MHz 6.5pF @ 1GHz 6.5pF @ 1MHz 6.7pF @ 1MHz 6000pF @ 10kHz 6000pF @ 10kHz (Max) 6000pF @ 1MHz 600pF @ 10kHz 600pF @ 1MHz 600pF @ 1MHz, 300pF @ 1MHz 606pF @ 1MHz 60pF @ 1MHz 60pF @ 1MHz (Max) 610pF @ 1MHz 620pF @ 1MHz 625pF @ 1MHz 62pF @ 1MHz 630pF @ 1MHz 635pF @ 1MHz 63pF @ 1MHz 6400pF @ 1MHz 640pF @ 1MHz 645pF @ 1MHz 64pF @ 1MHz 6500pF @ 10kHz 6500pF @ 10kHz (Max) 650pF @ 10kHz 650pF @ 1MHz 650pF @ 1MHz (Max) 655pF @ 1MHz 65pF @ 1MHz 65pF @ 1MHz (Max) 660pF @ 1MHz 66pF @ 1MHz 6700pF @ 10kHz 670pF @ 1MHz 674pF @ 1MHz 6750pF @ 1MHz 675pF @ 1MHz 67pF @ 1MHz 680pF @ 1MHz 684pF @ 1MHz 68pF @ 1MHz 690pF @ 1MHz 69pF @ 1MHz 6pF @ 1GHz 6pF @ 1MHz 6pF @ 1MHz (Max) 7.1pF @ 1MHz 7.2pF @ 1MHz 7.5pF @ 1MHz 7.6pF @ 1MHz 7.7pF @ 1MHz 7.8pF @ 1MHz 7000pF @ 10kHz (Max) 7000pF @ 1MHz 700pF @ 10kHz 700pF @ 1MHz 700pF @ 1MHz (Max) 706pF @ 1MHz 70pF @ 1MHz 70pF @ 1MHz (Max) 70pF @ 1MHz, 35pF @ 1MHz 710pF @ 1MHz 715pF @ 1MHz 720pF @ 1MHz 725pF @ 1MHz 730pF @ 1MHz 735pF @ 1MHz 73pF @ 1MHz 740pF @ 1MHz 744pF @ 10kHz 74pF @ 1MHz 7500pF @ 10kHz 750pF @ 1kHz 750pF @ 1MHz 752pF @ 1MHz 758pF @ 1MHz 75pF @ 1kHz 75pF @ 1MHz 75pF @ 1MHz (Max) 76pF @ 1MHz 770pF @ 1MHz 773pF @ 1MHz 775pF @ 1MHz 780pF @ 1MHz 785pF @ 1MHz 78pF @ 1MHz 790pF @ 1MHz 7pF @ 1GHz 7pF @ 1MHz 7pF @ 1MHz (Max) 8.3pF @ 1MHz 8.4pF @ 1MHz 8.5pF @ 1MHz 8.6pF @ 1MHz 8.7pF @ 1MHz 8000pF @ 10kHz 8000pF @ 1MHz 800pF @ 1MHz 800pF @ 1MHz (Max) 805pF @ 1MHz 807pF @ 1MHz 80pF @ 1MHz 80pF @ 1MHz (Max) 80pF @ 1MHz, 40pF @ 1MHz 815pF @ 1MHz 82pF @ 1MHz 830pF @ 1MHz 835pF @ 1MHz 83pF @ 1MHz 843pF @ 1MHz 8500pF @ 10kHz 8500pF @ 1MHz 850pF @ 1MHz 850pF @ 1MHz (Max) 85pF @ 1MHz 85pF @ 1MHz (Max) 8600pF @ 10kHz 860pF @ 1MHz 865pF @ 1MHz 870pF @ 1MHz 87pF @ 1MHz 880pF @ 1MHz 880pF @ 1MHz (Max) 88pF @ 1MHz 89pF @ 1MHz 8pF @ 1MHz 8pF @ 1MHz (Max) 9.3pF @ 1MHz 9.5pF @ 1MHz 9.8pF @ 1MHz 9000pF @ 10kHz 9000pF @ 10kHz (Max) 900pF @ 1MHz 90pF @ 1MHz 90pF @ 1MHz (Max) 910pF @ 1MHz 915pF @ 1MHz 91pF @ 1MHz 9250pF @ 1MHz 925pF @ 1MHz 938pF @ 1MHz 94pF @ 1MHz 9500pF @ 1MHz 950pF @ 10kHz 950pF @ 1MHz 95pF @ 1MHz 965pF @ 1MHz 970pF @ 1MHz 975pF @ 1MHz 97pF @ 1MHz 988pF @ 1MHz 98pF @ 1MHz 9pF @ 1MHz	- -25°C ~ 175°C (TJ) -30°C ~ 85°C (TA) -35°C ~ 85°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TJ) -40°C ~ 125°C -40°C ~ 125°C (TA) -40°C ~ 125°C (TC) -40°C ~ 125°C (TJ) -40°C ~ 150°C -40°C ~ 150°C (TA) -40°C ~ 150°C (TJ) -40°C ~ 175°C (TJ) -40°C ~ 85°C -40°C ~ 85°C (TA) -40°C ~ 85°C (TC) -40°C ~ 85°C (TJ) -45°C ~ 125°C (TA) -45°C ~ 125°C (TJ) -45°C ~ 150°C (TA) -50°C ~ 125°C (TJ) -50°C ~ 150°C -50°C ~ 150°C (TA) -50°C ~ 150°C (TJ) -50°C ~ 175°C -50°C ~ 175°C (TJ) -50°C ~ 200°C (TJ) -55°C ~ 110°C (TJ) -55°C ~ 125°C -55°C ~ 125°C (TA) -55°C ~ 125°C (TC) -55°C ~ 125°C (TJ) -55°C ~ 145°C (TJ) -55°C ~ 150°C -55°C ~ 150°C (TA) -55°C ~ 150°C (TJ) -55°C ~ 155°C (TJ) -55°C ~ 175°C -55°C ~ 175°C (TA) -55°C ~ 175°C (TJ) -55°C ~ 185°C (TA) -55°C ~ 85°C -55°C ~ 85°C (TA) -55°C ~ 85°C (TC) -55°C ~ 85°C (TJ) -65°C ~ 125°C -65°C ~ 125°C (TA) -65°C ~ 125°C (TJ) -65°C ~ 150°C -65°C ~ 150°C (TA) -65°C ~ 150°C (TJ) -65°C ~ 175°C -65°C ~ 175°C (TA) -65°C ~ 175°C (TJ) -65°C ~ 185°C (TJ) 0°C ~ 70°C (TA) 0°C ~ 85°C (TJ) 125°C (TJ) 150°C 150°C (TJ) 175°C (TA) 175°C (TJ)	- Automotive Military	- AEC-Q100 AEC-Q101 AEC-Q200 MIL-PRF-19500 MIL-PRF-19500/434 MIL-PRF-19500/469 MIL-PRF-19500/474 MIL-PRF-19500/500 MIL-PRF-19500/507 MIL-PRF-19500/507A MIL-PRF-19500/516 MIL-PRF-19500/551 MIL-PRF-19500/552	- Chassis Mount Chassis, Stud Mount Press Fit Surface Mount Surface Mount, Wettable Flank Through Hole	- 01005 01005, Flip Chip 01005/DFN 0201 0201 (0603 Metric) 0201 FlipChip 0201-A 0201-B 0201-C 0201/DFN0603 0402 0402 (1005 Metric) 0402-3P 0402/2DFN (1x0.60) 0402/3DFN (0.6x1) 0402/SOD-882 0402/SOD-923F 0402C-03/SOT-883 0402C/SOD-923F 0405 0503 0503/SOD-723F 0508 0508 (1220 Metric) 0603 0603 (1608 Metric) 0603/SOD-523F 0603C/SOD-523F 0802 0805 (2012 Metric) 1.5KA 1.5KE 10-CFlatpack 10-CSP (3.1x1.15) 10-DFN (2.5x1) 10-DFN (2.5x2.5) 10-DFN (2.6x2.6) 10-DFN (3x2) 10-DFN (4.1x2) 10-DFNWB (2.5x1) 10-FlipChip 10-Micro 10-MSOP 10-QFN (2.5x1) 10-SLF3020P10T 10-TSSOP 10-UDFN (2.5x1) 10-UDFN (2.6x2.6) 10-UDFN (3.2x1.2) 10-UDFN (3.5x2) 10-UDFN (3x2) 10-uMAX/uSOP 10-uQFN (1.9x1) 10-UQFN (2.0x1.5) 10-UQFN (2.5x1) 10-USON (2.5x1) 10-VSSOP 10-WDFN (3.5x2) 10-WDFNW (2.5x1) 10-WDFNW (3x2) 10-WLCSP (1.57x1.17) 10-WLCSP (1.6x1.1) 10-WLCSP (1.96x1.33) 10-WLCSP (2.46x0.96) 10-WLCSP (3.1x1.15) 10-XSONU (2.5x1) 10-µDFN (2.2x1.35) 10-µDFN (2.5x1) 10-µDFN (2.5x1.0) 10-µDFN (2x2) 10-µDFN (3x2) 1004/10DFN (2.5x1.0) 1005 1005 FlipChip 1005/SOD-323F 11-WLCSP (1.56x1.16) 1103/6DFN (2.8x0.8) 12-DFN (3.5x2.5) 12-TDFN (3.5x2.5) 12-TQFN (4x4) 12-UDFN (2.5x1.35) 12-WQFN (4x4) 1206 1210 14-CDIP 14-CFlatPack 14-DIP 14-Flatpack 14-SO 14-SOIC 14-TDFN (3.5x2.5) 14-UDFN (3.5x1.35) 14-UDFN (5.5x1.5) 14-USON (3.5x1.35) 15-SON 15-WLCSP (1.56x1.56) 15-WLCSP (2.37x1.17) 15-WLCSP (2.96x1.33) 16-CDIP 16-CFlatPack 16-CSP (1.96x1.97) 16-DIP 16-SO 16-SOIC 16-TDFN EEP (4x1.6) 16-TQFN (3x3) 16-TQFN-EP (3x3) 16-TSSOP 16-UDFN (3.3x1.35) 16-UQFN (2.6x1.8) 16-UQFN (3.5x1.5) 16-WDFN (4x1.6) 16-WDFN (4x1.7) 16-WDFN (6x4) 16-WLCSP (1.96x1.97) 16-µDFN (3.5x1.35) 1610 18-CSP (1.96x1.61) 18-DFN (5.5x1.5) 18-DFN (5x6) 18-UDFN (5.5x1.5) 2-CSP 2-CSP (0.60x0.30) 2-DFN (0.62x0.32) 2-DFN (0.6x0.3) 2-DFN (1.6x.8) 2-DFN (1.6x0.8) 2-DFN (1.6x1) 2-DFN (1x0.6) 2-DFN (2x1.25) 2-DFN (8.1x10.5) 2-DFN (8x6) 2-DFN1006 2-DFN1006L 2-DSN (0.44x0.23) 2-DSN (0.60x0.30) 2-DSN (1x.60) 2-DSN0603 2-EFP 2-FlipChip 2-SFP 2-SLP1608P 2-SMD 2-Super Mini Mold 2-uDFN 2-UDFN (1.6x1) 2-UDFN (2x1.25) 2-UFP 2-Ultra Super Mini Mold 2-uQFN (3.3x1.5) 2-URP 2-WLCSP (0.40x0.20) 2-WLCSP (0.43x0.23) 2-WLCSP (0.52x0.70) 2-WLCSP (0.6x0.3) 2-X1SON (1x.60) 2-X1SON (1x0.6) 2-X2DFN (1x0.6) 2-X2DFNW (1.6x0.8) 2-X2DFNW (1x0.6) 2-X2SON (0.6x0.3) 2-X3DFN (0.62x0.32) 2-X3DFN (0.6x0.3) (0201) 2-X3DFN (1x0.6) 2-X4DFN (0.45x0.24) 2-XDFN (1x0.6) (SOD-882) 2-µDFN (0.60x0.30) 2-µQFN (1.45x1.0) 20-SO 20-SOIC 20-SSOP 20-TSSOP 24-QFN (4x4) 24-QSOP 24-WLCSP (1.95x2.11) 24-WLCSP (1.96x2.01) 2510P10 3-CMPAK 3-DFN (1.0 x 0.60) 3-DFN (1.3x0.8) 3-DFN (1x0.6) 3-DFN (2x2) 3-DSN (0.73x0.25) 3-DSN (0.76x0.34) 3-HUSON 3-HUSON (2x2) 3-Mini Mold 3-MPAK 3-QFN (1.1x1) 3-QFN (2x2) 3-SMT (1.2x1.5) 3-UDFN (1.6x1) 3-UDFN (2x2) 3-USP (1.2x1.2) 3-WLCSP (0.63x0.33) 3-X2SON (1.3x0.6) 3-X2SON (1x0.6) 3-X4DFN (0.62x0.32) 3-XDFNW (1x1) 3220 38-TSSOP 4-CSP 4-DSLGA 4-FlipChip 4-FlipChip (0.65x0.65) 4-FlipChip (0.77x0.77) 4-FlipChip (0.82x0.82) 4-FlipChip (0.95 x 0.55) 4-FlipChip (1.6x1.1) 4-LLP75 4-Micro-X 4-QFN (2.9x2.5) 4-SMT 4-SOP 4-UCSP (1.05x1.05) 4-uQFN (1x0.8) 4-USP (1.2x1.6) 4-WLCSP (0.76x0.76) 4-WLCSP (0.78x0.78) 4-WLCSP (0.8x0.8) 4-WLCSP (0.91x0.91) 4-WLCSP (0.96x0.96) 4-WLP (1.05x1.05) 4-X2SON (0.8x0.8) 4-X3DFN (0.53x0.93) 5-CSP (1.12x1.12) 5-CSP (1.28x0.91) 5-CSP (1.33x0.96) 5-DFN (1.3x0.8) 5-DFN (1x0.6) 5-DFN (2x1) 5-FlipChip (0.94x0.94) 5-FlipChip (1.12x1.12) 5-FlipChip (1.32x0.95) 5-FlipChip CSP (1.33x0.96) 5-Mini Mold 5-MPAK 5-SSOP 5-Super Mini Mold 5-TSOP 5-TSSOP 5-UCSP (1x1.52) 5-uQFN (1.3x0.8) 5-VSON 5-WLCSP (0.76x1.05) 5-WLCSP (0.77x1.17) 5-WLCSP (0.96x1.33) 5-µDFN (1x0.7) 5-µQFN (1.3x0.8) 5R 6+3-QFN (3x3) 6-DFN (1.25x1) 6-DFN (1.2x1.1) 6-DFN (1.3x0.8) 6-DFN (1.45x1.0) 6-DFN (1.6x1) 6-DFN (1.6x1.6) 6-DFN (1x1.2) 6-DFNWB (1.45x1) 6-FlipChip 6-FLIPCHIP (0.94x0.61) 6-FlipChip (1.57x1.1) 6-HXSON (1.6x1.6) 6-Micro DFN (1x1) 6-MicroDFN (1x1) 6-SMD 6-SON (1.45x1) 6-SON (3x3) 6-TDFN (3x3) 6-TDFN-EP (3x3) 6-TSOC 6-TSOP 6-TSSOP 6-UCSP (1.57x1.05) 6-UDFN (1.25x1) 6-UDFN (1.2x1) 6-UDFN (1.45x1) 6-UDFN (1.6x1.6) 6-UDFN (1.8x2) 6-UDFNB (2x2) 6-uQFN (1.45x1) 6-USON (1.6x1.6) 6-WDFN (2x2) 6-WLCSP (1.46x0.96) 6-WLCSP (1.8x1.15) 6-WLP 6-WLP (1.57x1.05) 6-X2SON (1x1) 6-XSON (1.45x1) 6-XSON (1x1) 6-XSON, SOT886 (1.45x1) 6-XSON, SOT891 (1x1) 6-µDFN (1.25x1.0) 6-µDFN (1.2x1) 6-µDFN (1.5x1) 6-µDFN (1.6x1) 6-µDFN (1.6x1.6) 6-µDFN (1.8x2) 6-µDFN (2x2) 6-µQFN (1.45x1.0) 6-µQFN (1.8x2) 7-XSON (1.1x2.1) 8-DFN (1.6x1.6) 8-DFN (1.8x1.2) 8-DFN (3.3x1.3) 8-MSOP 8-SO 8-SOIC 8-SOP 8-TSSOP 8-UCSP (1.52x1.52) 8-UDFN (1.7x1.35) 8-UDFN (1.8x1.2) 8-UDFN (2.2x2) 8-UDFN (2x1.2) 8-UDFN (2x2.2) 8-UDFN (3.3x1.0) 8-UQFN (1.5x1.5) 8-UQFN (1.7x1.35) 8-UQFN (2x1) 8-WDFN (1.7x1.35) 8-WDFNW (2.2x2) 8-WLCSP (1.16x1.16) 8-WSON (1.7x1.35) 8-µDFN (2x1) 8-µDFN (2x2) 8-µQFN (1.7x1.35) 9-CSP 9-FlipChip 9-WLCSP (1.14x1.14) 9-WLP 9-WLP (1.53x1.53) 9-µDFN (3.8x1) A, Axial A, SQ-MELF A-MELF AK ASM-10A Axial B, Axial B, SQ-MELF C, Axial C, SQ-MELF Case 5A (DO-204AR) CASE-1 CASE-11 CASE-12 CASE-5A CASE-8 CASE-9 CB429 CFP5 CFP5-FL CLP0603 CLP1007-FL CSP01005 CSP0201 CSP0402P2U CSP0603P2Y CSP1006-2 CSP1610-6 CST2 CST2C CST3 CST6C D-5A D-5C D-Flat D2PAK D6 DFN-2L (0402) DFN0402-2 DFN0603 DFN0603-2 DFN0603-2L DFN0603-3 (SOT8013) DFN0603/QFN-0201 DFN0603P2Y DFN0808-4 DFN1006 DFN1006-2 DFN1006-2A DFN1006-2B DFN1006-2L DFN1006-2L (SWF) DFN1006-2W DFN1006-3 DFN1006-3L DFN1006B-3 DFN1006BD-2 DFN1006D-2 DFN1006L DFN1006P2E DFN1006P2X DFN1006P3X DFN1010D-3 DFN1109 DFN1110-3 DFN1110-3A DFN1110D-3 DFN1210-6 DFN1210P6X DFN1308-5 DFN1308-6 DFN1308P5Z DFN1412D-3 DFN1510-6 DFN1608 DFN1608-2 DFN1610 DFN1610-2 DFN1610-2L DFN1610-6 DFN1610N2 DFN1610P2E DFN1616 DFN1616-6 DFN2010 DFN2010-5 DFN2010-8L DFN2018P6E DFN2020-3 DFN2020-3L DFN2020-6S DFN2020P2E DFN2020P3E DFN2110-9 DFN2116P8X DFN2510 DFN2510-10 DFN2510-10 (SWF) DFN2510-10A DFN2510-10L DFN2510A-10 DFN2510D-10 DFN2510P10E DFN2525P10E DFN2626 DFN2626-10 DFN3020 DFN3020-10 DFN3020P10E DFN3310 DFN3810 DFN3810-9 DFN3810P9E DFN3820A DFN4120-10 DFN4120P10E DFN5515-18 DFN5515P14E DFN5515P18E DFNWB1006-2L Die DO-13 DO-13 (DO-202AA) DO-15 DO-201 DO-201AD DO-201AE DO-204AC (DO-15) DO-204AL (DO-41) DO-204AR DO-208 DO-213AA DO-213AA (MINIMELF) DO-213AB (GL41) DO-213AB (MELF) DO-214AA DO-214AA (SMB) DO-214AA (SMBG) DO-214AA (SMBJ) DO-214AB DO-214AB (SMC) DO-214AB (SMCG) DO-214AB (SMCJ) DO-214AB (SMLJ) DO-214AC DO-214AC (SMA) DO-214AC (SMAJ) DO-215AA (SMBG) DO-215AB (SMCG) DO-215AB (SMLG) DO-216AA DO-218 DO-218AB DO-218AB (SMCJ) DO-218AC DO-219AA DO-219AB (SMF) DO-219AD (MicroSMP) DO-220AA (SMP) DO-221AC DO-221AC (SlimSMA) DO-221AC (SMA-FL) DO-41 DO-5 DO222-AA DSN0402B DSN0603-2 DSN0603-2, SOD-962, SMD0603 DSN1006-2 DSN1608-2 E-MELF ECP01005 ECP0201 EMD2 EMD3 EMD5 EMD6 ES6 ESC eSGA (SOD-123FL) eSGB (SMAF) ESV FBP1006-2A FlatPAK 5x6 (Dual) fSC G, Axial G-MELF (D-5C) GMD2 LLP0603-2L LLP1006-2L LLP1006-2M LLP1006-3L LLP1010-5L LLP1010-6L LLP1713-7L LLP1713-9L LLP2510-10L LLP2513-11L LLP75-3B LLP75-6A LLP75-6L LLP75-7A LLP75-7L LPDS MCSP0603P2YS Microde Button Mini-PLAD Mini3-G1 MINI3-G3-B Mini5-G1 Mini5-G3-B Module MP6 MPG06 P-600 P/PG-WLL-2-2 P600 PG-SC74-6 PG-SC79-2-1 PG-SOD323-3D PG-SOT-143-3D PG-SOT23 PG-SOT323 PG-SOT363-PO PG-TO252-3-11 PG-TSFP-3 PG-TSLP-2-17 PG-TSLP-2-18 PG-TSLP-2-19 PG-TSLP-2-20 PG-TSLP-2-7 PG-TSLP-3 PG-TSLP-3-1 PG-TSLP-3-7 PG-TSLP-4-7 PG-TSLP-9-1 PG-TSNP-2-2 PG-TSSLP-2-1 PG-TSSLP-2-2 PG-TSSLP-2-3 PG-TSSLP-2-4 PG-WLL-2-3 PLAD PMDE PMDS PMDTM PMDU PowerDI™ 123 PowerDI™ 5 Powermite Powermite 1 (DO216-AA) QFN-143 QFN1616P6E R-6 S-Mini SC-59 SC-70 SC-70 (SOT323) SC-70-3 SC-70-3 (SOT323) SC-70-5 SC-70-6 SC-70-6L (SOT-363) SC-74 SC-74A SC-75 (SOT523) SC-75, SOT-416 SC-88 (SC-70-6) SC-88/SC70-6/SOT-363 SC-88A SC-88A (SC-70-5) SC-88A (SC-70-5/SOT-353) SC-89 SC-89 (SOT-666) SC-89-3 SC-89-6 SC2 SG-WLL-2-1 SG-WLL-2-2 SG-WLL-2-3 SG-WLL-2-5 SG-WLL-2-7 SG-WLL-3-1 SG-WLL-3-2 SGF2708N9 SGP0603P2X3 SGP1006N2 SGP1006N3T SGP1610N2 SGP2010N5 SGP2510P8 SGP2626N8 SGP2708N7 SGP3016N6 SGP3810N9 SGP4017N13 SJP SL2 SLF1006N2T SLF2010N5 SlimSMAW (DO-221AD) SLP0402P2X4F SLP0603P2X3 SLP0603P2X3A SLP0603P2X3B SLP0603P2X3E SLP0603P2X3F SLP0603P2X3J SLP0603P3X3A SLP0603P3X3C SLP0603P3X3F SLP0806P2T SLP0808P4T SLP1006N3T SLP1006P2 SLP1006P2T SLP1006P3 SLP1006P3T SLP1007N5T SLP1007N6T SLP1210N6 (1.2x1.0) SLP1308N5T SLP1313P6T SLP1508N5T SLP1510N6 SLP1608P2 SLP1610P4 SLP1610P4T SLP1616P6 (1.6x1.6) SLP1710N6T SLP1710P4T SLP1713P8T SLP2010N5 SLP2010N8T SLP2010P8T SLP2018P6 SLP2020P5 (2x2) SLP2020P6 SLP2116P8 SLP2510P8 SLP2510P8T SLP2611N9T SLP2626P10 (2.6x2.6) SLP2710P8 SLP3020N10 SLP3030P16 SLP3313P6 SLP3313P6T SLP3525N12 SLP3810N9 SMA SMA-FL SMA-PG SMAF SMAflat SMAJ (DO-214AC) SMAL SMB SMBF SMBflat SMBP SMC SMC (DO-214AB) SMD0402 SMD1006 SMD2012 SMD3 SMD5 SME SMF/SOD-123FL SMG SMini3-F2-B SMini5-F1 SMini5-F3-B SMPC4.6U SMT6 SMTAK SMTO-218 Tab SMTO-263 SMV SOD-123 SOD-123F SOD-123F (SMF) SOD-123FL SOD-123HE SOD-123HL SOD-123S SOD-123W SOD-128 SOD-128/CFP5 SOD-323 SOD-323F SOD-323FL SOD-323HE SOD-323HE-B SOD-323J SOD-323P SOD-523 SOD-523F SOD-523P SOD-723 SOD-882 SOD-882 (DFN1006-2) SOD-882T SOD-883 SOD-923 SOD128Flat SOD882 (µQFN-2) SOT-1123 SOT-143 SOT-143-4 SOT-143-4L SOT-143B SOT-23 SOT-23 (TO-236AB) SOT-23-3 SOT-23-3 (TO-236) SOT-23-3L SOT-23-4 SOT-23-5 SOT-23-5L SOT-23-6 SOT-23-6L SOT-23A-3 SOT-23F SOT-23F-5P SOT-23P SOT-25 SOT-25-5 SOT-26 SOT-26P SOT-3 SOT-323 SOT-323-3 SOT-323-5 SOT-323-6L SOT-353 SOT-363 SOT-363F (VR6) SOT-383F SOT-490 SOT-5 SOT-523 SOT-523 Flat Leads SOT-543 SOT-553 SOT-563 SOT-5X3 SOT-6 SOT-663 SOT-665 SOT-666 SOT-666IP SOT-723 SOT-883 SOT-953 SOT-963 SOT23-3 (TO-236) SOT23-3L SOT23-6L SPD-4 SPD4-1 SSD3 SSM SSMini2-F1 SSMini2-F5-B SSMini3-F2 SSMini3-F3-B SSMini5-F1 SSMini5-F4-B SSSMini2-F4-B SSSMini3-F1 SSSMini3-F2-B ST01005 ST0201 STmite Flat STmite Flat (DO222-AA) SZ-10 T-18 Thin SMA ThinKey™3 TLM1031 TLM2D3D6 TO-220 TO-220 Modified TO-236AB TO-252 TO-263AB TO-263AB (D2PAK) TO-277A TO-277A (SMPC) TO-3 TOP CAN TSLP-5-2 TSOT-25 TSOT-26 TSSLP-2-4 TUMD2 U-DFN1006-2 (Type B) U-DFN1006-2/SWP U-DFN1608-2 U-DFN1608-2 (Type C) U-DFN1610-2 (Type B) U-DFN1610-6 U-DFN1616-2 U-DFN1616-6 U-DFN1820-6 (Type A) U-DFN2020-2 U-DFN2020-3 (Type C) U-DFN2020-6 (Type C) U-DFN2510-10 U-DFN2626-10 U-DFN3810-9 (Type B) U-WLB0808-4 UF6 UMD2 UMD3 UMD3F UMD4 UMD5 UMD6 US2H US6 USC USM USV VESM VMD2 VMD3 VMN2 VMN2 (SOD-923) VMN2M (SOD-923) WBFBP-02C-A WL-CSP01005 SL WL-CSP0201 SL WLL-2-1 WLL-2-2 WLL-2-3 WLP-4-1 X1-DFN1006-2 X1-DFN1006-2 (Type SA) X1-DFN1006-3 X1-DFN1006-3 (Type SA) X1-DFN3313-8 X2-DFN0603-2 X2-DFN0806-3 X2-DFN0808-4 X2-DFN1006-2 X2-DFN1006-3 X2-DFN1010-3 X2-DFN2010-8 Type B X2-DSN0603-2 X2-ESN0603-2 X3-DFN0603-2 X3-DSN1006-2 X3-DSN1006-3 X3-ESN0603-2

全部重置

应用所有

结果:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Unidirectional Channels	Bidirectional Channels	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min)	Voltage - Clamping (Max) @ Ipp	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Power Line Protection	Applications	Capacitance @ Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package

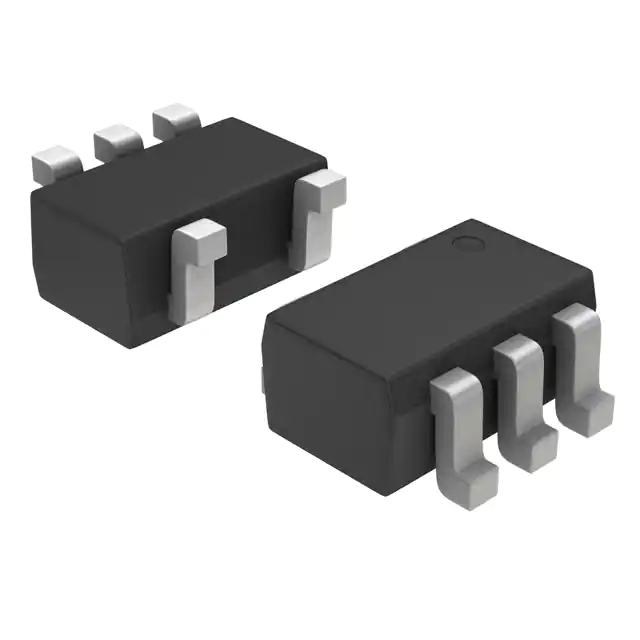

NSQA6V8AW5T2G TVS DIODE 5VWM 13VC SC88A onsemi	31,470	-	RFQ	Datasheet	5-TSSOP, SC-70-5, SOT-353	-	Tape & Reel (TR)	Active	Zener	4	-	5V	6.4V	13V	1.6A (8/20µs)	20W	No	General Purpose	12pF @ 1MHz	-40°C ~ 125°C (TJ)	-	-	Surface Mount	SC-88A (SC-70-5/SOT-353)
DALC208SC6 TVS DIODE 5VWM SOT23-6 STMicroelectronics	28,699	-	RFQ	Datasheet	SOT-23-6	-	Tape & Reel (TR)	Active	Steering (Rail to Rail)	4	-	5V	-	-	-	-	No	General Purpose	-	-	-	-	Surface Mount	SOT-23-6

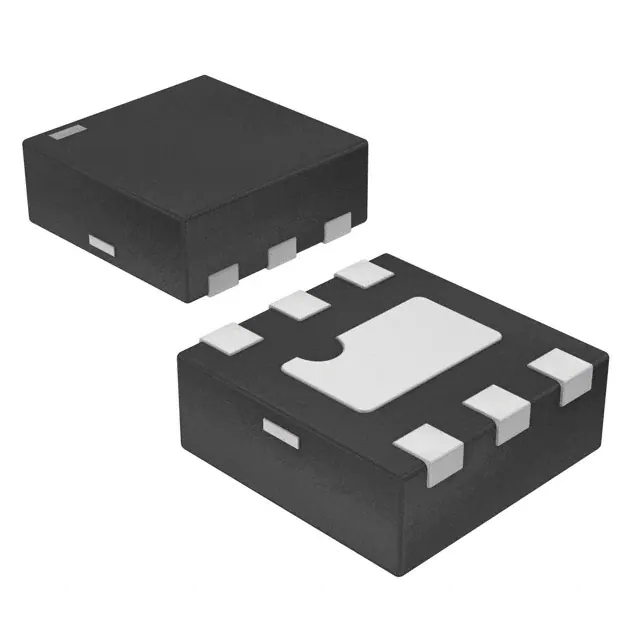

VBUS053AZ-HAF-GS08 TVS DIODE 5.5VWM 18VC LLP75-7L Vishay General Semiconductor - Diodes Division	27,649	-	RFQ	Datasheet	6-UFDFN Exposed Pad	-	Tape & Reel (TR)	Active	Steering (Rail to Rail)	3	-	5.5V (Max)	6.5V	18V	3A (8/20µs)	36W	Yes	USB OTG	-	-40°C ~ 125°C (TJ)	-	-	Surface Mount	LLP75-7L
SA5.0A-E3/54 TVS DIODE 5VWM 9.2VC DO204AC Vishay General Semiconductor - Diodes Division	24,844	-	RFQ	Datasheet	DO-204AC, DO-15, Axial	TransZorb®	Tape & Reel (TR)	Active	Zener	1	-	5V	6.4V	9.2V	54.3A	500W	No	General Purpose	-	-55°C ~ 175°C (TJ)	-	-	Through Hole	DO-204AC (DO-15)

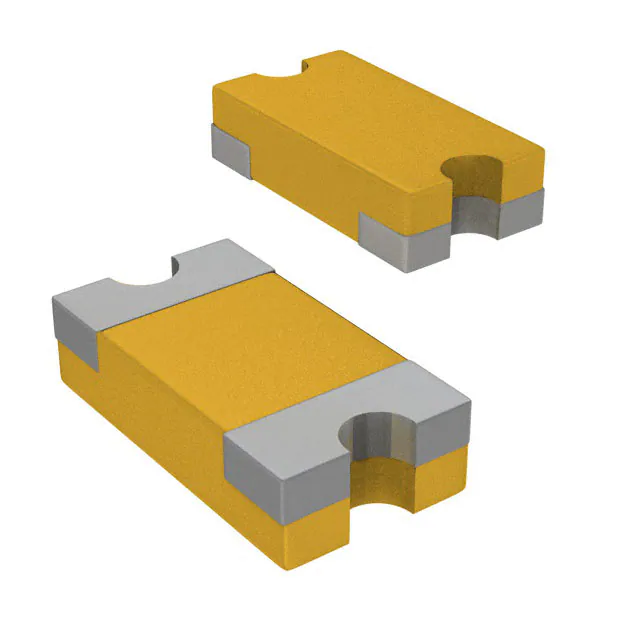

XGD10402KR TVS DIODE 24VWM 40VC 0402 Littelfuse Inc.	36,740	-	RFQ	Datasheet	0402 (1005 Metric), Concave	XTREME-GUARD™	Tape & Reel (TR)	Active	Zener	-	1	24V (Max)	250V	40V	-	-	No	General Purpose	-	-	-	-	Surface Mount	0402
SM6T39CA TVS DIODE 33.3VWM 53.9VC SMB STMicroelectronics	11,756	-	RFQ	Datasheet	DO-214AA, SMB	SM6T, TRANSIL™	Tape & Reel (TR)	Active	Zener	-	1	33.3V	37.1V	53.9V	11.1A	600W	No	General Purpose	-	-55°C ~ 150°C (TJ)	-	-	Surface Mount	SMB
CDDFN2-T3.3B TVS DIODE 3.3VWM 8VC 2DFN Bourns Inc.	59,994	-	RFQ	Datasheet	2-XDFN	-	Tape & Reel (TR)	Active	Zener	-	1	3.3V (Max)	4V	8V	5A (8/20µs)	-	No	General Purpose	13.5pF @ 1MHz	-55°C ~ 85°C (TA)	-	-	Surface Mount	2-DFN (1x0.6)
CPDH3V3UP-HF TVS DIODE 3.3VWM 8VC SOD523 Comchip Technology	50,421	-	RFQ	Datasheet	SC-79, SOD-523	-	Tape & Reel (TR)	Active	Zener	1	-	3.3V	-	8V	5A (8/20µs)	40W	No	General Purpose	12pF @ 1MHz	-55°C ~ 125°C (TJ)	-	-	Surface Mount	SOD-523
TPSMA6L48A TVS SMAF 48V 600W UNIDIR Littelfuse Inc.	29,010	-	RFQ	Datasheet	DO-221AC, SMA Flat Leads	TPSMA6L	Tape & Reel (TR)	Active	Zener	1	-	48V	53.3V	77.4V	7.8A	600W	No	-	-	-65°C ~ 150°C (TJ)	Automotive	AEC-Q101	Surface Mount	DO-221AC

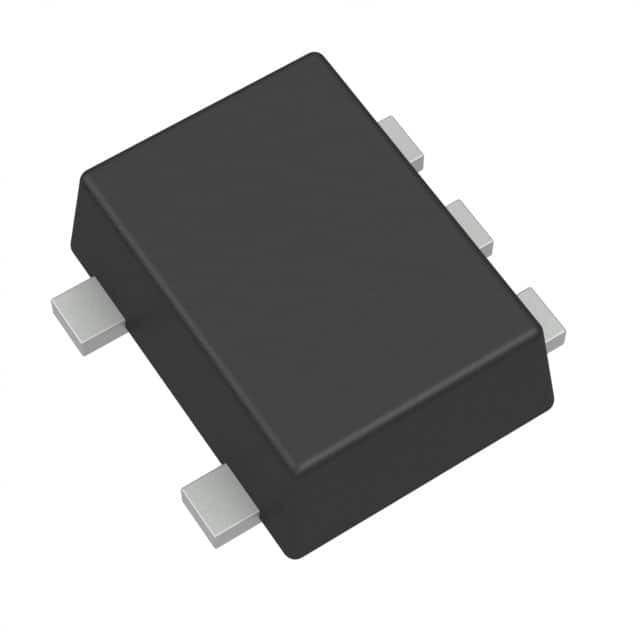

TPD2E2U06DRLR TVS DIODE 5.5VWM 12.4VC SOT5 Texas Instruments	22,614	-	RFQ	Datasheet	SOT-553	-	Tape & Reel (TR)	Active	Steering (Rail to Rail)	2	-	5.5V (Max)	6.5V	12.4V (Typ)	5.5A (8/20µs)	85W	Yes	Ethernet	-	-40°C ~ 125°C (TA)	-	-	Surface Mount	SOT-5
CPDUR12V TVS DIODE 12VWM 25V 0603/SOD523F Comchip Technology	20,037	-	RFQ	Datasheet	2-SMD, No Lead	-	Tape & Reel (TR)	Active	Zener	-	1	12V	13V	25V	1A (8/20µs)	25W	No	General Purpose	12pF @ 1MHz	-	-	-	Surface Mount	0603/SOD-523F

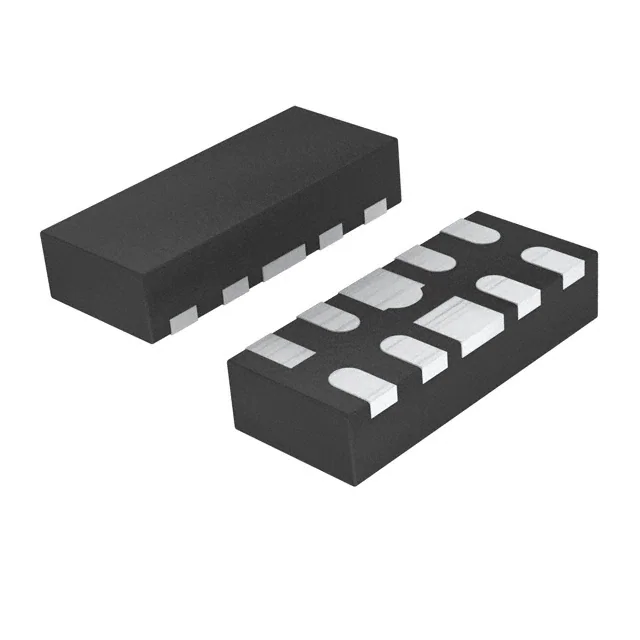

ESD224DQAR TVS DIODE 3.6VWM 14VC 10USON Texas Instruments	12,356	-	RFQ	Datasheet	10-UFDFN	-	Tape & Reel (TR)	Active	Zener	-	4	3.6V (Max)	7.9V	14V	2A (8/20µs)	17W	No	Ethernet, HDMI, USB	0.5pF @ 1MHz	-40°C ~ 125°C (TA)	-	-	Surface Mount	10-USON (2.5x1)
PTVS5V0P1UP,115 TVS DIODE 5VWM 9.2VC SOD128/CFP5 Nexperia USA Inc.	5,344	-	RFQ	Datasheet	SOD-128	-	Tape & Reel (TR)	Active	Zener	1	-	5V	6.4V	9.2V	65.2A	600W	No	-	-	-55°C ~ 150°C (TA)	Automotive	AEC-Q101	Surface Mount	SOD-128/CFP5
ESDS314DBVR TVS DIODE 3.6VWM 6.5VC SOT23-5 Texas Instruments	2,532	-	RFQ	Datasheet	SC-74A, SOT-753	-	Tape & Reel (TR)	Active	Zener	4	-	3.6V (Max)	4.5V	6.5V (Typ)	25A (8/20µs)	170W	No	General Purpose	4.5pF @ 1MHz	-40°C ~ 125°C (TA)	-	-	Surface Mount	SOT-23-5

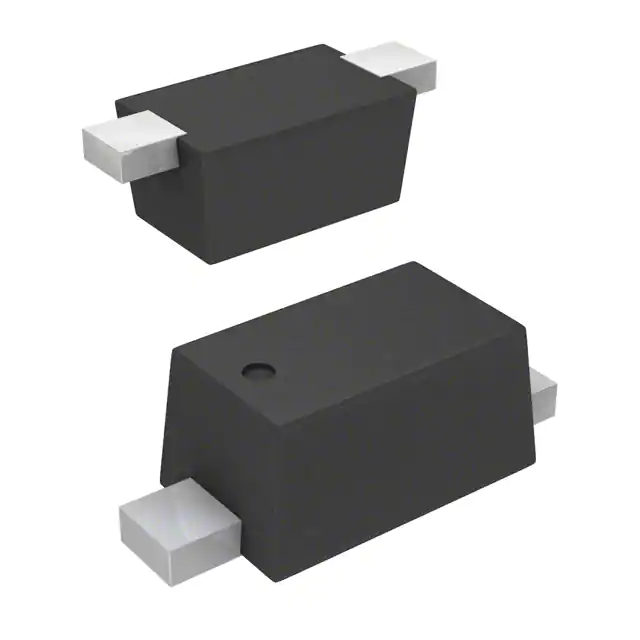

SP1003-01DTG TVS DIODE 5VWM 12VC SOD723 Littelfuse Inc.	44,498	-	RFQ	Datasheet	SOD-723	SP1003, SPA®	Tape & Reel (TR)	Active	Zener	1	-	5V (Max)	6V	12V (Typ)	7A (8/20µs)	-	No	General Purpose	-	-40°C ~ 125°C (TJ)	-	-	Surface Mount	SOD-723

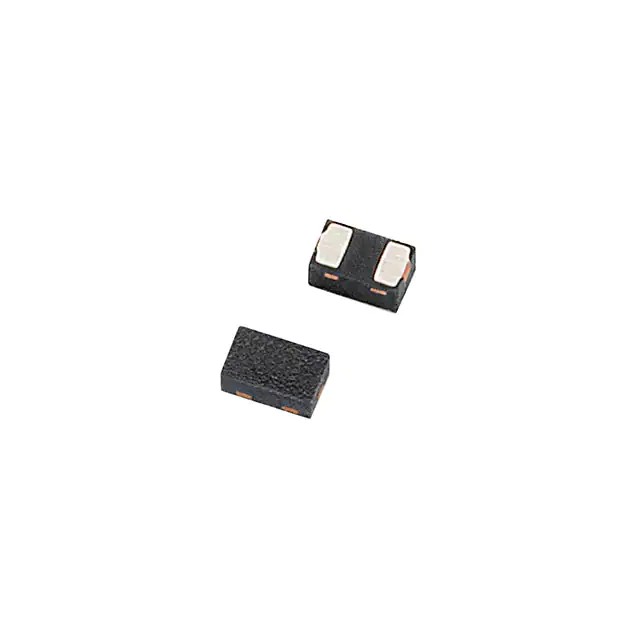

SP4322-01ETG TVS DIODE 5VWM 8VC SOD882 Littelfuse Inc.	28,891	-	RFQ	Datasheet	SOD-882	-	Tape & Reel (TR)	Active	Zener	1	-	5V (Max)	9V (Typ)	8V (Typ)	11A (8/20µs)	-	No	-	0.4pF @ 1MHz	-40°C ~ 125°C	Automotive	AEC-Q101	Surface Mount	SOD-882
AQ05C-01FTG TVS DIODE 5VWM 14.5VC SOD323 Littelfuse Inc.	28,710	-	RFQ	Datasheet	SC-76, SOD-323	AQ, SPA®	Tape & Reel (TR)	Active	Zener	-	1	5V (Max)	-	14.5V	30A (8/20µs)	450W	No	CAN	200pF @ 1MHz (Max)	-40°C ~ 150°C (TA)	Automotive	AEC-Q101	Surface Mount	SOD-323
SMS05T1G TVS DIODE 5VWM 15.5VC SC74 onsemi	20,803	-	RFQ	Datasheet	SC-74, SOT-457	-	Tape & Reel (TR)	Active	Zener	4	-	5V	6V	15.5V	23A (8/20µs)	350W	No	General Purpose	250pF @ 1MHz	-55°C ~ 150°C (TJ)	-	-	Surface Mount	SC-74
1.5KE33CA TVS DIODE 28.2VWM 45.7VC DO201 Littelfuse Inc.	13,429	-	RFQ	Datasheet	DO-201AA, DO-27, Axial	1.5KE	Tape & Reel (TR)	Active	Zener	-	1	28.2V	31.4V	45.7V	33.3A	1500W (1.5kW)	No	General Purpose	-	-55°C ~ 175°C (TJ)	-	-	Through Hole	DO-201
0603ESDA-AEC1 TVS ESD 0.05PF 0603 SMD AECQ Eaton - Electronics Division	12,824	-	RFQ	Datasheet	0603 (1608 Metric)	-	Tape & Reel (TR)	Active	Zener	-	1	-	-	35V (Typ)	-	-	No	HDMI, USB	0.05pF @ 1MHz	-55°C ~ 125°C	Automotive	AEC-Q200	Surface Mount	0603

Total 96664 Record«Prev 1... 14 15 16 171819 20 21...4834 Next»
