AD8217BRMZ-R7: A Precise High Voltage Current Detection Tool - Comprehensive Analysis

In fields such as motor control, battery management, and industrial control, current detection on the high-voltage side is a crucial step for ensuring the safety and efficient operation of the system. The AD8217BRMZ-R7, launched by Analog Devices, is a high-precision amplifier specifically designed for high-voltage side current detection. With its advantages such as zero drift, high common-mode rejection, and high linearity, it has become the ideal choice for high-end applications.

FEATURES

1.High common-mode voltage range

  4.5 V to 80 V operating

  0 V to 85 V survival

2.Buffered output voltage

3.Wide operating temperature range:−40°C to +125°C

4.Excellent ac and dc performance

  ±100 nV/°C typical offset drift

  ±100μV typical offset

  ±5 ppm/°C typical gain drift

  100 dB typical CMRR at dc

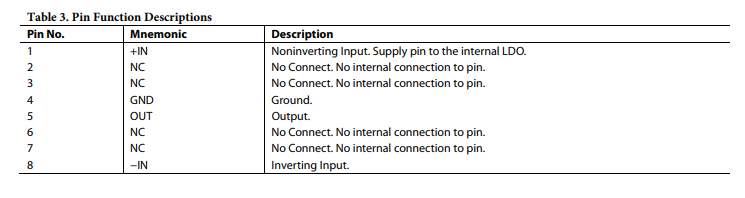

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

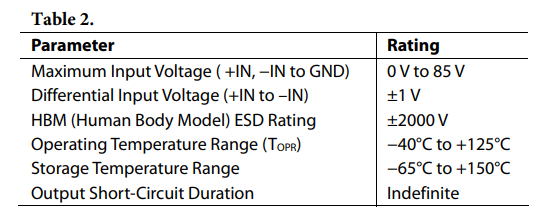

ABSOLUTE MAXIMUM RATINGS

Applications

1.High-End Current Measurement Systems

Application Context:

In systems such as servo drives, motor inverters, or power modules that require accurate current feedback, precision current sensing directly affects performance and safety.

AD8217 Advantages:

l Zero-drift architecture ensures long-term accuracy.

l High CMRR (Common-Mode Rejection Ratio) suppresses common-mode interference.

l High precision, suitable for detecting small current levels.

2.48V Telecom Power Systems

Application Context:

Telecom systems often operate on a 48V power rail. Real-time monitoring of supply current is essential for load management, overcurrent protection, and remote diagnostics.

AD8217 Advantages:

l Wide common-mode input range (4.5V–80V) supports direct monitoring of 48V rails.

l Integrated LDO allows direct high-side supply without extra regulators.

l Excellent for low-mV drop sensing over shunt resistors.

3.Power Management Systems (PMICs / DC-DC Converters)

Application Context:

DC-DC converters, server power modules, and automotive power management units require accurate load current measurement for dynamic regulation and protection.

AD8217 Advantages:

l Stable output suitable for direct interface with ADCs or digital controllers.

l Facilitates feedback loop regulation based on current sensing.

l High thermal stability suitable for high-dissipation systems.

4.Communication Base Stations (Power Distribution & Protection)

Application Context:

Modern base stations incorporate multiple high-voltage supply channels (e.g., 48V). Monitoring each supply path is crucial for power budgeting and fault detection.

AD8217 Advantages:

l Easily scalable to multiple channels.

l High reliability for remote and unattended systems.

l Fixed gain simplifies peripheral design for mass deployment.

Conclusion

The AD8217BRMZ-R7, with its high precision, wide common-mode voltage range, zero drift technology and high reliability, has been widely applied in various scenarios requiring precise current measurement. For designers, this is a highly cost-effective and powerful current detection amplifier. If you are facing a design challenge related to high-voltage current detection, the AD8217 might be just the perfect choice for you.
