AD9649BCPZ-40: An ideal choice for medium-speed and high-precision data acquisition

In modern signal acquisition and processing systems, the selection of analog-to-digital converters (ADCs) is crucial to the overall performance of the system. AD9649BCPZ-40 is a 14-bit, 40 MSPS ADC chip launched by Analog Devices. It combines high precision, low power consumption and flexible input/output design, and is widely applicable to application scenarios such as communication, medical imaging, industrial monitoring and radar systems.

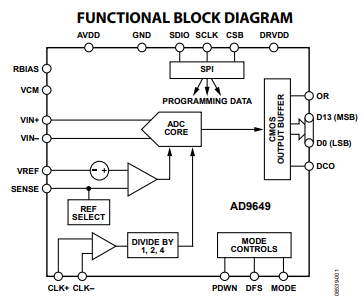

Product highlights

1. The AD9649 operates from a single 1.8 V analog power supply and features a separate digital output driver supply to accommodate 1.8 V to 3.3 V logic families.

2. The sample-and-hold circuit maintains excellent performance for input frequencies up to 200 MHz and is designed for low cost, low power, and ease of use.

3. A standard serial port interface (SPI) supports various product features and functions, such as data output formatting, internal clock divider, power-down, DCO, data output (D13 to D0) timing and offset adjustments, and voltage reference modes.

4. The AD9649 is packaged in a 32-lead RoHS-compliant LFCSP that is pin compatible with the AD9629 12-bit ADC and the AD9609 10-bit ADC, enabling a simple migration path between 10-bit and 14-bit converters sampling from 20 MSPS to 80 MSPS.

Analysis of Core Characteristics

1.The resolution is balanced with the sampling rate

The AD9649 offers a 14-bit resolution, meaning it can precisely subdivide analog signals into 16,384 level points, making it suitable for applications with high requirements for amplitude accuracy. Its sampling rate of 40 MSPS can not only meet the requirements of intermediate frequency signal acquisition, but also avoid the data redundancy and power consumption burden caused by the high sampling rate.

2. Differential input design

It supports differential or single-ended input modes, has stronger anti-interference capabilities, is suitable for operation in complex electromagnetic environments, and enhances the stability of the system and data quality.

3. Low power consumption advantage

The typical power consumption of this chip at 40 MSPS is only a few tens of milliwatts, making it suitable for battery-powered or power-sensitive embedded applications, such as portable medical devices or unmanned aerial vehicle detection systems.

4. Flexible data output format

It supports three formats: offset binary, gray code and binary complement code. It can be flexibly configured according to the data decoding logic of the subsequent FPGA or DSP, reducing the complexity of system design.

Typical application scenarios

1.Communication system

It is suitable for intermediate frequency (IF) signal sampling, such as IF ADC in software-defined radio receivers. Its high SFDR can effectively suppress stray signals and improve the sensitivity of the receiver.

2.Industrial sensing and testing

It is applicable to high-resolution sampling scenarios in industrial CT, power monitoring and mechanical vibration testing, ensuring the authenticity of data and the accuracy of system feedback.

3.Medical equipment

In portable ultrasound, electroencephalogram (EEG) or electrocardiogram (ECG) devices, it can provide low-power and high-resolution data acquisition, meeting the requirements of precise detection.

4.Radar/imaging system

Combining the characteristics of high-speed sampling and high precision, it can be used as the core component for the front-end acquisition of echo signals.

Sum up

The AD9649BCPZ-40 achieves a good balance among power consumption, size and performance with its resolution of up to 14 bits and rate of 40 MSPS. It is a highly cost-effective solution for systems that require medium-speed and high-precision ADCs.

If the application has a higher requirement for sampling rate, the AD9649-65 or AD9649-80 models of the same series can also be considered. If low power consumption is preferred, energy consumption can be further optimized through the power management mode.
