Analysis of Circuit Application Examples of KSP13TA Transistor

The transistor is one of the core components in modern electronic circuits and is widely used in various application scenarios such as signal amplification, switch control, and logic level conversion. KSP13TA is an NPN small-signal transistor produced by ROHM, featuring high-frequency response and excellent current amplification capability, making it highly suitable for use in consumer electronics, communications, and control systems. This article will introduce the electrical characteristics of KSP13TA and illustrate its application methods in practice through three typical circuit examples.

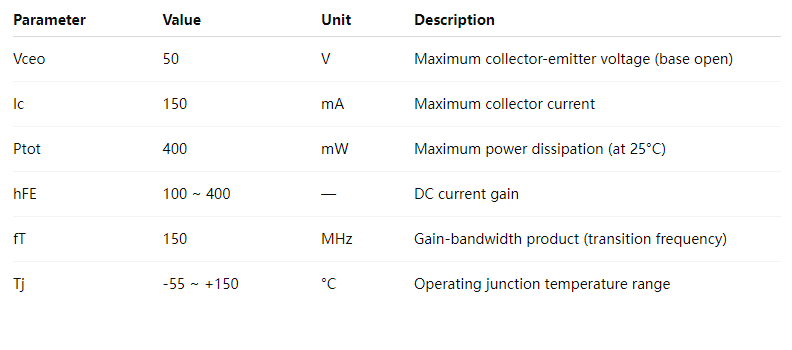

Typical features of KSP13TA

• High gain and low noise, suitable for small-signal amplification
• Compact in size, it is suitable for pin soldering and breadboard experiments
• Good switching characteristics, suitable for low-speed digital logic control
• Low cost, it is often used in educational and mass production circuits

Circuit application examples

1.Common-emitter amplifier circuit (for signal amplification)

In small-signal processing scenarios such as audio or sensor signals, the KSP13TA can be used to build a common-emitter amplifier.

Circuit structure description:

• The base is connected to the input signal through a resistor (such as 100kΩ) as a bias.
• A collector series resistor (such as 4.7kΩ) is connected to the power supply for voltage amplification.
• The emitter can be connected in series with a resistor (such as 1kΩ) to stabilize the amplification factor.
• The output signal is taken from the collector to achieve inverting amplification of the input signal.

Application examples:

• Preamplifier circuit of audio amplifier
• Sensor output amplification
• Low-frequency amplification module

2.Switch drive circuit (for controlling leds or relays)

The most common application of transistors in digital control systems is "electronic switches". The structure and current capacity of KSP13TA are highly suitable for controlling medium and small-sized loads.

Circuit structure description:

• The base is connected to the output port of the microcontroller (MCU) through a current-limiting resistor (1kΩ).
• The collector is connected to loads such as leds or relays and the current is limited by resistors.
• The emitter is grounded.

When the MCU outputs a high level, the transistor conducts and the load is driven. When the output is low, the transistor cuts off and the load is de-energized.

Application examples:

• The MCU controls the LED lights
• Relay drive in smart home
• Solenoid valve control in an automated system

3.Simple Inverter (Logic NOT Gate)

The KSP13TA can also be used as a basic logic inverter (NOT gate), allowing for the quick establishment of logic functions without a dedicated logic chip.

Circuit structure description:

• The input signal is connected to the base (through a current-limiting resistor).
• Connect a pull-up resistor to the collector to the positive power supply.
• The output is taken from the collector node.

The logical relationship is as follows:

• High input → transistor conduction → Low output
• Low input → transistor cut-off → High output

Application examples:

• Analog logic interface
• Level conversion
• Simplified implementation of digital logic

Conclusion

As a conventional NPN transistor, KSP13TA features stable performance and low cost, making it suitable for a wide range of scenarios, from educational practice to mass production control circuits. The three circuit examples presented in this article cover their main uses: signal amplification, switch control and logic circuits. By flexibly combining these basic applications, developers can build feature-rich and stable electronic systems.
