Comprehensive Analysis of ADUM4224WCRWZ-RL

ADUM4224WCRWZ-RL is a wide-body SOIC-16 package-based isolated dual-channel gate driver, suitable for driving high-side and low-side switching devices (such as MOSFETs or IGBTs). It utilizes Analog Devices' patented iCoupler® technology to achieve an electrical isolation of up to 5000 V RMS between digital signals and power rails. This not only ensures safety but also significantly enhances the anti-interference capability.

Features

1.Isolation & Safety

-5000 V RMS isolation rating (1-minute rating, reinforced insulation)

-iCoupler® technology for digital isolation without optocouplers

-Common-mode transient immunity (CMTI): >25 kV/μs

-Designed for high-side/low-side driving with high noise immunity

2.Output & Power Capabilities

-4 A peak output current (source/sink)

-Low propagation delay: 38 ns (typical), 54 ns (maximum)

-Low pulse-width distortion and skew between channels

-Operates at up to 18 V output drive voltage

-Independent supplies for each output driver

3.Supply Voltage

-Input-side supply (VDD1): 3.0 V to 5.5 V

-Output-side supplies (VDDA/VDDB): 4.5 V to 18 V

4.Input & Control Logic

-TTL/CMOS compatible inputs

-Logic input threshold allows compatibility with 3.3 V and 5 V systems

5.Temperature & Package

-Operating temperature range: −40°C to +125°C

-Package: 16-lead wide-body SOIC (SOIC-W), 7.5 mm creepage

-Available in tape and reel packaging (RL suffix)

6.Protection & Reliability

-Default low output state when input is unpowered or disconnected

-Fail-safe operation in the event of logic failure

-Internal UVLO (undervoltage lockout) protection on input and output sides

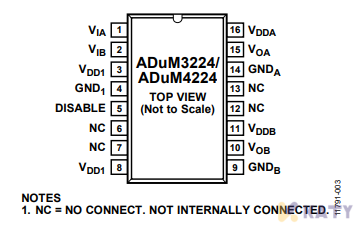

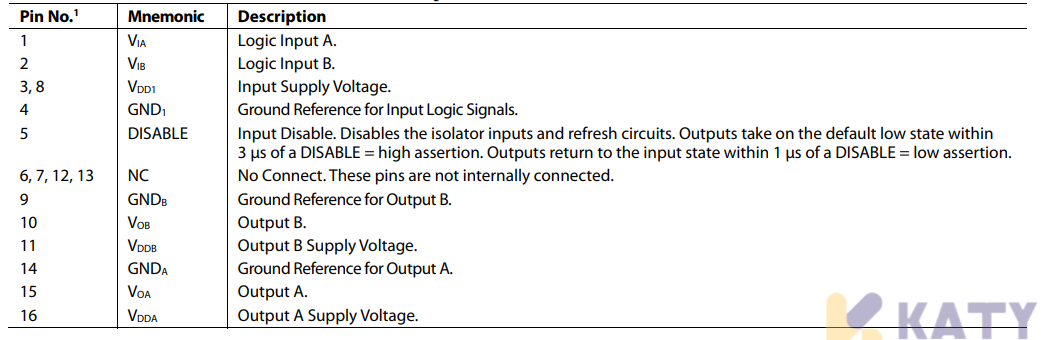

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

This product is packaged in a 16-pin wide SOIC format, with a package width of 7.5 mm. It complies with the strict requirements for creepage distance and electrical clearance in the industrial field. Its wide operating temperature range (-40°C to +125°C) further ensures long-term stable operation in extreme environments.

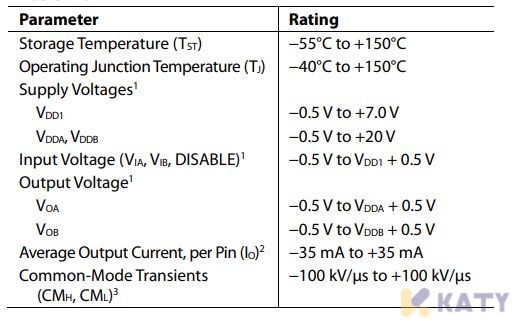

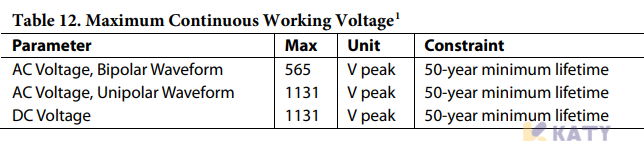

ABSOLUTE MAXIMUM RATINGS

APPLICATIONS

1. Industrial Motor Drives

Drives IGBTs or MOSFETs in high-voltage motor control systems

Provides reliable isolation between control logic and power stages

Withstands harsh industrial EMI environments due to high CMTI

2. Switch-Mode Power Supplies (SMPS)

Used in half-bridge or full-bridge topologies

Efficient switching of power transistors with fast rise/fall times

Enhances safety and separation between primary and secondary sides

3. Renewable Energy Inverters

Solar panel string inverters, microinverters, and wind turbine controllers

Supports high-voltage and high-frequency switching

Reinforced isolation protects low-voltage control systems

4. Uninterruptible Power Supplies (UPS)

Drives high-power inverter stages for AC backup systems

Ensures safe isolation from AC mains and battery management circuitry

5. Electric Vehicles (EV) Power Electronics

Gate driver for traction inverters and DC-DC converters

Supports fast switching for efficiency and thermal performance

Withstands automotive-level EMI and isolation requirements

6. Industrial Automation and Robotics

Used in actuator drivers, servo motors, and automation control systems

Ensures noise immunity and safety in distributed control networks

Conclusion

With the rapid development in industrial control, electric vehicles, and clean energy sectors, the demand for high-efficiency and highly reliable isolated drivers is increasing day by day. The ADUM4224WCRWZ-RL, as a high-performance and widely applicable gate driver, thanks to its excellent electrical characteristics and rich design compatibility, has become an ideal choice for many engineers in the design of high-voltage systems.
