Detailed Explanation of ATMEGA32A-AU Microcontroller

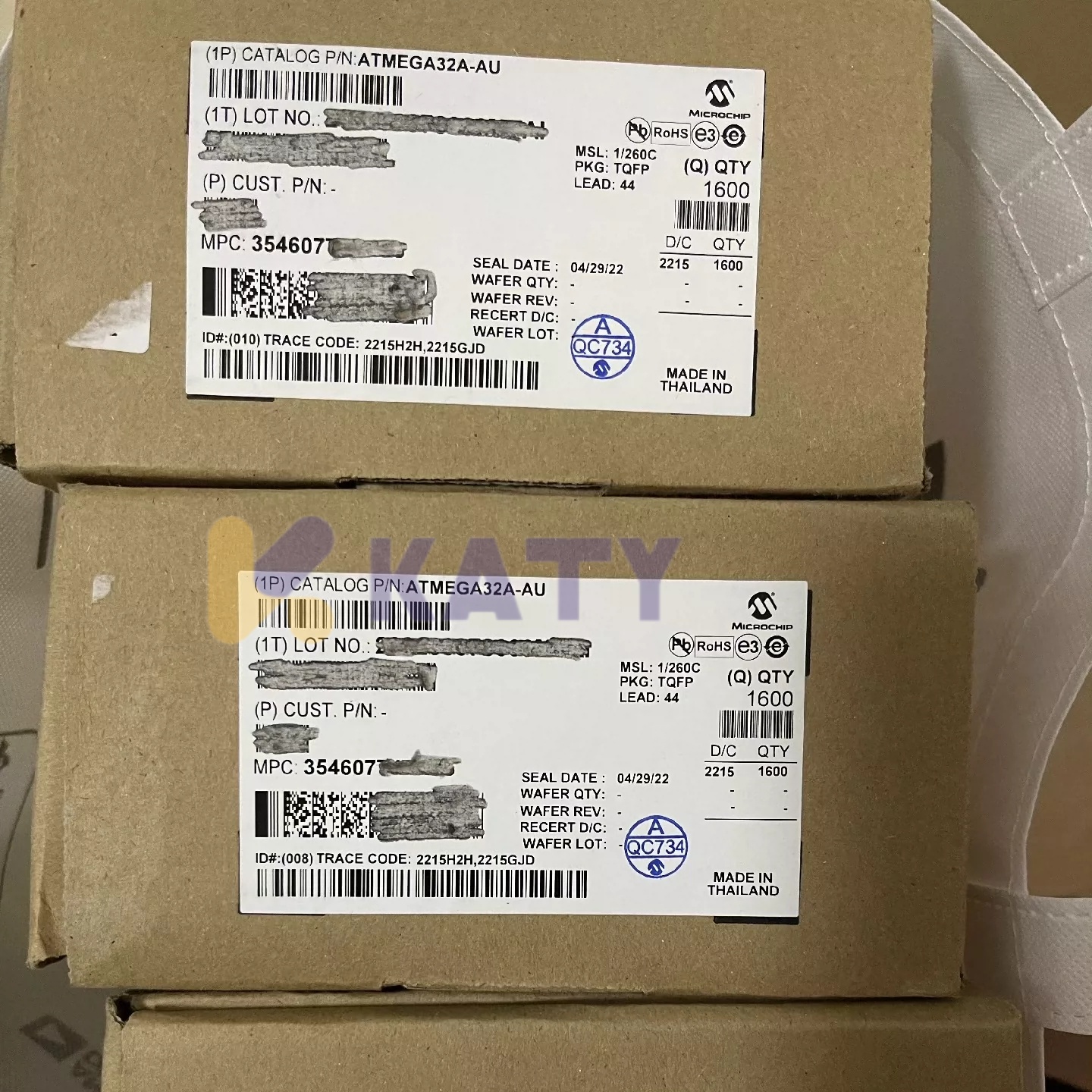

ATMEGA32A-AU is an 8-bit high-performance microcontroller based on the AVR architecture launched by Microchip (formerly Atmel). It boasts excellent cost-performance ratio and abundant peripheral resources, and is widely used in embedded systems, industrial control, smart home, robotics and other fields. "AU" indicates that this chip is equipped with TQFP-44 packaging, which is suitable for surface mount (SMT) processing. Compared with DIP packaging, it has a smaller size and higher integration.

Key Features

1.Core Architecture

l High-performance, low-power 8-bit AVR microcontroller

l RISC architecture with single-cycle instruction execution

l 32 general-purpose registers, up to 16MHz clock, 16 MIPS performance

2.Memory Resources

l 32 KB Flash, 1 KB EEPROM, 2 KB SRAM

l Flash endurance:≥10,000 write/erase cycles

l EEPROM endurance:≥100,000 write/erase cycles

l Data retention: 20 years at 85°C / 100 years at 25°C

3.Programming & Debugging

l Supports ISP serial programming and JTAG interface

l Debugging features: In-system programming, boundary scan, on-chip emulation

4.Peripheral Interfaces

l Timers: 2×8-bit and 1×16-bit, with RTC and PWM support

l ADC: 8-channel 10-bit, with differential input support

l Communication: USART, SPI, I²C (TWI)

5.Special Features

l Analog Comparator, ADC noise reduction mode

l Power-on Reset, Brown-out Detection

l Internal RC oscillator and external clock support

6.Package & I/O

l Available packages: PDIP-40, TQFP-44, QFN

l Up to 32 programmable I/O pins with interrupt support

7.Electrical Characteristics

l Operating voltage: 2.7V–5.5V

l Power consumption: <6.0mA (active mode), <1µA (power-down mode)

Pin Configuration Summary

Main Pin Functions

1.Power Pins:VCC: Main supply voltage,GND: Ground,AVCC: Supply voltage for ADC,AREF: Analog reference voltage for ADC

2.Clock Pins:XTAL1 / XTAL2: External crystal oscillator input/output

3.Reset Pin:RESET: External reset input (active low)

4.I/O Port Functions:PORTA (PA0–PA7): ADC input channels,PORTB (PB0–PB7): SPI, timers, external interrupts, etc.PORTC (PC0–PC7): TWI (I²C), JTAG, general I/O,PORTD (PD0–PD7): USART (TX/RX), PWM, external interrupts

Package Details

Available in multiple packages:PDIP-40: Through-hole,TQFP-44 / QFN-44: Surface-mount

QFN package requires ground connection to thermal pad

Typical Application

1.Embedded System Controller

Use Case: General-purpose control in small embedded systems

Functions: Reads sensors via ADC, controls actuators via PWM, communicates via UART/SPI/I²C

Example: Smart fan controller, home appliance MCU

2. DIY Game Console

Use Case: Hobbyist retro-style handheld game console

Functions: Uses GPIO for button input, SPI for LCD display, sound via PWM

Example: Game console with Nokia 5110 LCD + buzzer + push buttons

3. Data Logger

Use Case: Environmental data acquisition and storage

Functions: Collects data from temperature/humidity sensors, stores to EEPROM or SD card

Example: Temperature logger with RTC, ADC inputs, and serial data output

4. Wireless Sensor Node

Use Case: Low-power sensor node for IoT network

Functions: Reads analog/digital sensors, transmits via external RF module (e.g., nRF24L01)

Example: Soil moisture sensor node for smart agriculture

5. Robotics Controller

Use Case: Main controller for simple autonomous robot

Functions: Controls motors (via H-bridge + PWM), reads distance sensors, communicates with other modules

Example: Line-following robot or obstacle-avoiding car

6. LED Display Driver

Use Case: Control matrix LEDs or 7-segment displays

Functions: Multiplexing outputs using GPIO and timers

Example: Digital clock, message scrolling display

Conclusion

The ATMEGA32A-AU, with its stable performance, flexible function configuration and excellent development environment, is an ideal choice for learning embedded systems and designing small-scale electronic projects. It can handle tasks in both educational and enthusiast projects, as well as industrial applications.
