Efficient Voltage Reduction Solution: Detailed Explanation of TPS54560DDAR

In modern electronic systems, the efficiency and stability of power management directly affect the overall performance and reliability of the entire device. The TPS54560DDAR is a product launched by Texas Instruments that integrates a 5A, 60V buck converter. With its wide input range, high efficiency, light-load Eco mode, and comprehensive protection mechanism, it has become one of the ideal choices for industrial and automotive applications.

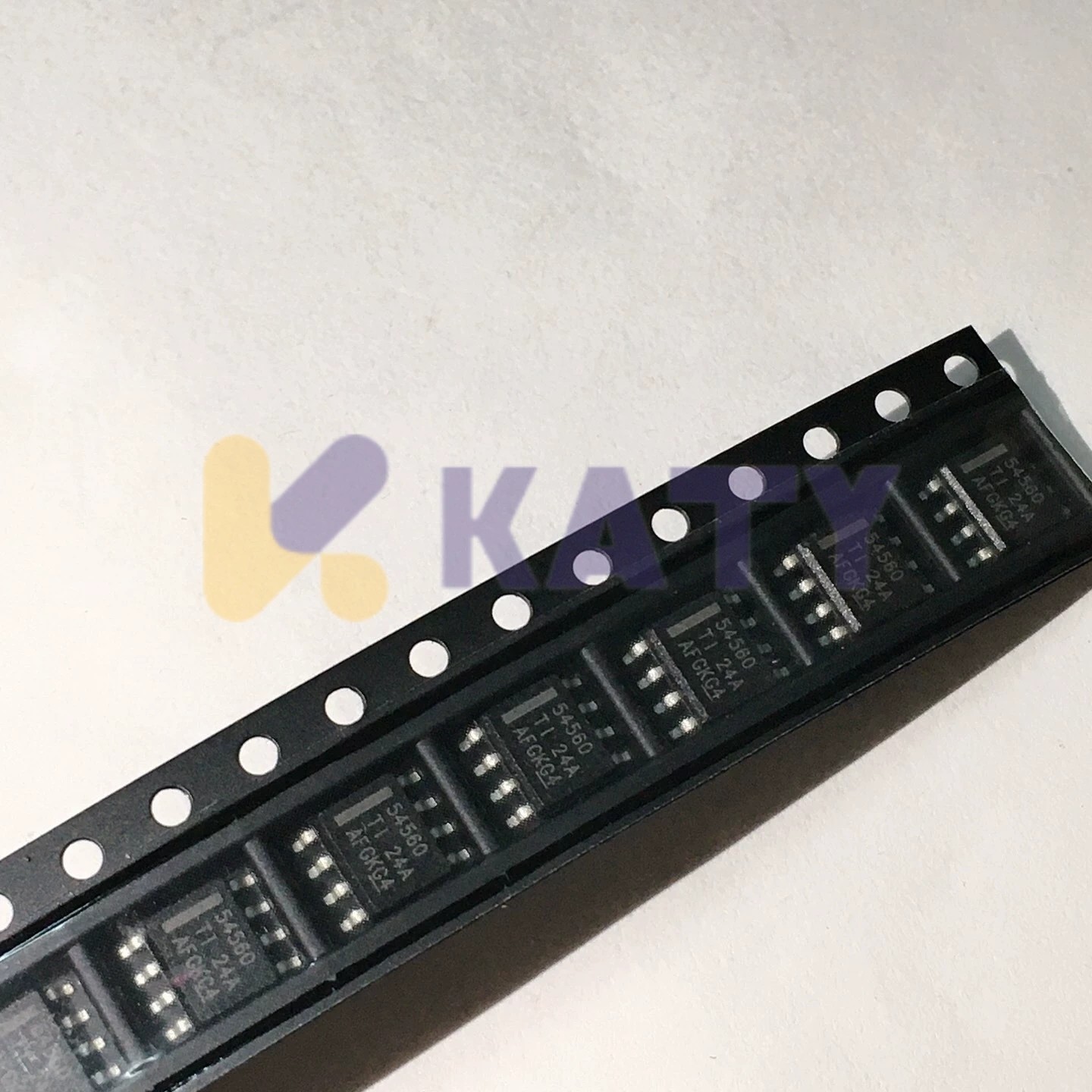

The TPS54560DDAR is a non-synchronous buck converter that integrates a high-side MOSFET, capable of supporting an input voltage of up to 60V and a continuous output current of 5A. Its package is an 8-pin HSOIC PowerPAD (DDA), facilitating thermal management.

Features

•High Efficiency at Light Loads with Pulse Skipping Eco-mode™

•92-mΩHigh-Side MOSFET

•146μA Operating Quiescent Current and 2μA Shutdown Current

•100 kHz to 2.5 MHz Fixed Switching Frequency

•Synchronizes to External Clock

•Low Dropout at Light Loads with Integrated BOOT Recharge FET

•Adjustable UVLO Voltage and Hysteresis

•0.8 V 1% Internal Voltage Reference

•8-Terminal HSOP with PowerPAD™Package

• –40°C to 150°C TJ Operating Range

•Create a Custom Design using the TPS54560 with the WEBENCH® Power Designer

Application

1. Industrial Automation and Motor Control

Application Background:

Industrial control systems typically use 24V or 48V bus voltages to power a wide range of devices such as PLCs, I/O modules, sensors, motor drivers, and industrial Ethernet equipment.

TPS54560DDAR Advantages:

Wide input voltage range (4.5V–60V) perfectly matches industrial standards.

Up to 5A output current, ideal for powering controllers, encoders, or motor driver ICs.

Withstands transient overvoltage, suitable for environments with electrical noise and spikes.

High efficiency reduces heat generation, essential in sealed control cabinets.

2. Vehicle Accessories: GPS, Entertainment Systems

Application Background:

Modern vehicles integrate numerous electronic accessories such as GPS navigation, infotainment displays, reversing cameras, Bluetooth modules, etc., all powered by the car's 12V system.

TPS54560DDAR Advantages:

Direct operation from 12V vehicle battery, stable even under cold crank or load dump conditions.

Eco-mode™for light-load efficiency, reducing power consumption in standby.

UVLO support on EN pin, prevents malfunction during low voltage conditions.

Built-in protections (thermal, overcurrent, short-circuit) ensure safety and system reliability.

3. USB Charging Ports and Battery Chargers

Application Background:

High-power USB charging ports (e.g., QC/PD) and lithium battery chargers often require stable step-down conversion from higher voltages to regulated 5V, 9V, or 12V.

TPS54560DDAR Advantages:

Provides up to 5A output current, ideal for single or multi-port USB charging.

Adjustable output voltage for compatibility with multiple fast-charging protocols.

High-efficiency design minimizes heat, ideal for compact and mobile applications.

Soft-start capability limits inrush current during battery charging.

4. 12V, 24V, and 48V Industrial, Automotive, and Communication Power Systems

Application Background:

Power systems in telecom stations, industrial controllers, and distributed automotive systems often use mid-range voltages (24V/48V) as input rails for localized DC-DC conversion.

TPS54560DDAR Advantages:

60V input tolerance, suitable for 48V buses and transient surges.

Adjustable switching frequency (100 kHz–2.5 MHz) allows design flexibility.

Syncs with external clock sources, minimizing EMI in multi-rail systems.

External compensation and frequency settings provide precise control in complex power designs.

Design Considerations

1.PCB Layout Recommendations

Keep the switch nodes as compact as possible, and use short and thick wiring to reduce EMI.

Make full use of the PowerPAD for heat dissipation and arrange multiple thermal vias.

Keep the ground connection intact and separate the analog ground from the power ground.

2.Selection of peripheral devices

The recommended saturation current for the inductor is greater than 6A.

It is recommended to use low ESR ceramic capacitors for the output capacitor.

The frequency setting resistor (RT) should be selected based on design requirements. It is recommended to avoid setting too high a frequency to prevent excessive power loss.

Conclusion

The TPS54560DDAR is a stable, efficient and well-protected high-voltage step-down converter, which is highly suitable for power supply design in industrial and automotive systems. In practical design, a highly reliable and efficient power supply solution can be achieved by properly configuring peripheral components and ensuring a good PCB layout.
