L7812CV-DG: A Comprehensive Analysis of a Linear Voltage Regulator

The L7812CV-DG is a fixed 12V linear voltage regulator produced by STMicroelectronics. It is part of the L78xx series, which are widely used positive voltage regulators designed to provide a constant, regulated output voltage with reliable protection features.

Key Specifications

Output Voltage: 12V (fixed)

Maximum Output Current: 1.5A

Input Voltage Range: Up to 35V

Dropout Voltage: Typically 2V at 1A

Quiescent Current: Approximately 8mA

Package Type: TO-220 (3-pin)

Operating Temperature Range: 0°C to +125°C

Protection Features: Thermal overload protection, short-circuit protection, and output transition safe operating area (SOA) protection

Features

• Output current up to 1.5 A

•Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18;24 V

•Thermal overload protection

•Short circuit protection

•Output transition SOA protection

•2 % output voltage tolerance (A version)

•Guaranteed in extended temperature range(A version)

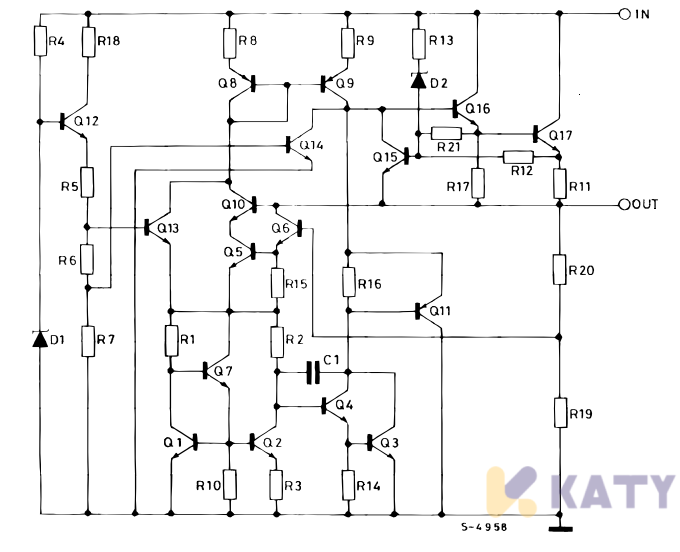

Pin configuration

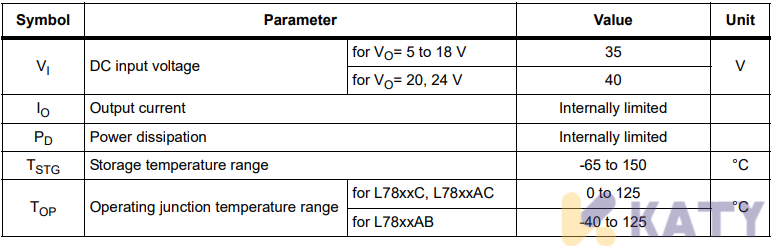

Absolute maximum ratings

Applications

1. Power Supplies for Electronic Devices

Description:

The L7812CV can regulate higher DC voltages (e.g., 15V, 18V, 24V) down to a stable 12V, making it suitable for powering electronic devices that require consistent voltage.

Example Applications:

Audio Amplifiers: Supplies clean 12V power to audio circuits, preventing noise or speaker damage caused by voltage fluctuations.

Communication Equipment: Routers, modems, and other network devices benefit from stable voltage.

Security Systems: Power for CCTV cameras, IR sensors, and motion detectors.

Portable Device Chargers: Used as a pre-regulator in 12V-to-USB charging modules.

2. Embedded Systems

Description:

Embedded systems typically consist of a main control chip (e.g., ARM, RISC-V, or 8051) and multiple peripherals. Stable voltage is crucial for their reliable operation.

Example Applications:

Development Boards: Powering STM32, ESP32, BeagleBone, etc., with regulated 12V.

Sensor Nodes: Intermediate regulator for GPS, temperature/humidity, and accelerometer modules.

Industrial Controllers: Embedded PLC systems use 12V to drive relays, solenoids, etc.

HMI Devices: Touch screen displays and industrial control panels powered by a stable 12V source.

3. Microcontroller-Based Projects

Description:

The L7812CV is commonly used in educational and DIY microcontroller projects to convert higher voltage inputs to 12V for the system.

Example Applications:

Arduino Projects: Converts 15–24V power supplies to 12V for Arduino's Vin pin.

Raspberry Pi Accessories: While the Pi itself uses 5V, some expansion modules (relays, motor drivers) require 12V.

Robotics: Powers control boards and actuators like motors and servos.

Wireless Modules: Modules like NRF24 or LoRa often operate at 12V.

4. General-Purpose Voltage Regulation in Various Electronic Circuits

Description:

The L7812CV is a go-to linear regulator for providing fixed 12V output in all sorts of electronic circuits.

Example Applications:

Electronics Learning Kits: Training or lab kits needing a fixed 12V source.

Lighting Control Systems: Supplies stable voltage to LED strips or laser modules.

Motor Controllers: 12V for DC motors, servos, or stepper motor drivers.

Simple UPS Systems: Combined with batteries and charging modules for 12V backup power.

Conclusion

The L7812CV-DG is a robust, reliable, and easy-to-use linear voltage regulator that outputs a stable 12V, making it ideal for a wide range of electronic applications. Whether you're powering embedded systems, microcontroller-based projects, or general electronic circuits, this regulator offers a cost-effective solution with built-in protection features.

While it's not as efficient as switching regulators in battery-sensitive designs, its simplicity, availability, and durability make it a go-to choice for fixed 12V power supply needs.
